Cables |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
|
Click on photo for
larger view
|

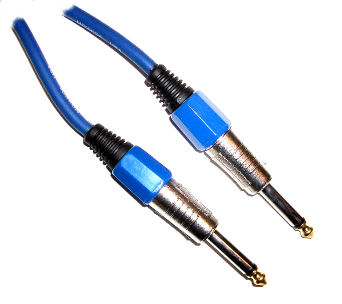

CABLE, Shielded, 1/4"-1/4", 20 ft. Extra heavy-duty nickel 1/4" plugs with gold tips for improved connectivity. Rubber super strain relief. Cable is blue in color. Makes a great guitar cord.
Part # M-26B |
$ 10.50 |
|
|
|
Jacks |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
|
Click on photo for
larger view
|
JACK, Fender®, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit. Fender part number 0051658000.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part # J-512
|
$ 5.00 |
|
|
Click on photo for
larger view
|
JACK, MONO 4 PIN, PC MOUNT, Fender®, AMPS 1988 - Present.
Fender® PC mount 1/4" jack, with nut and washer. Mono 4 pin. Fits certain Fender® amp models 1988 - present. Also commonly found on Hartke® amps. With nut and washer. Fender part number 0990912000. Replacement nut is part number J-5KN-NUT, below.
Part # J-506 |
$ 3.49
 |
|
|
Click on photo for
larger view
|
JACK, STEREO, 9 PIN, PC MOUNT, Fender®, AMPS 1988 - Present.
Fender® PCB mount 1/4" jack, with nut and washer. Stereo, 9 pin. Fits certain Fender®amp models 1988 - present. Used as the input jack on the Ultimate Chorus, Princeton Chorus, and similar solid-state models from the 1990's. With nut and washer. Fender part number 0990913000. Replacement nut is part number J-5KN-NUT, below.
Part #J-507 |
$ 3.99
|
|
|
Click on photo for
larger view
|
JACK, STEREO, RE-AN TYPE, PC MOUNT, Fender®, AMPS 1999 - Present.
Fender® PCB mount 1/4" jack. Stereo, 6 pin. Fits certain Fender® amp models 1999 - present (including certain jacks on the Hot Rod Deluxe & Deville, and Blues Deluxe & Deville). Nut NOT included. Reuse existing nut or order nut separately as part #J-510. Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way. If you need the black plastic nut to fit
this jack, order #J-5NT, further down this page.
Part #J-508 |
$ 4.95 |
|
|
Click on photo for
larger view
|
JACK, MONO, RE-AN TYPE, PC MOUNT, Fender®, AMPS 1999 - Present.
Fender® PCB mount 1/4" jack. Mono, 4 pin. Fits certain Fender® amp models 1999 - present (including certain jacks on the Hot Rod Deluxe & Deville, and Blues Deluxe & Deville). Nut NOT included. Reuse existing nut or order nut separately as part #J-510. Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way. If you need the black plastic nut to fit
this jack, order #J-5NT, further down this page. Fender part number 0051658000.
Part #J-509 |
$ 4.50 |
|
|
Click on photo for
larger view
|
NUT, CHROME, RE-AN TYPE, Fender®, AMPS 1999 - Present.
Fender® nut, fits J-508 and J-509 jacks. (Note: you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amp's appearance.)
Part #J-510 |
$ 0.60 |
|
|
Click on photo for
larger view
|
NUT, CHROME, KOBICONN TYPE.
Fits J-506, J-507, J-530, J-531, J-532, J-533, J-539.
Part #J-5KN-NUT |
$ 1.00 |
|
Click on photo for
larger view |
JACK, MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$2.25 |
|
Click on photo for
larger view |
JACK, MONO, OPEN CIRCUIT, WIRED, MADE IN CHINA
Good Chinese copy of above J-11 jack. Includes nut and washer. Holes on solder tabs are slightly smaller than the Switchcraft, but otherwise is identical.
Part #J-C11 |
$1.39 |
|
Click on photo for
larger view |
JACK, MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Found in vintage Fender® (and other) amps as the input jack. Includes nut and washer.
Part #J-12A |
$2.50 |
|
Click on photo for
larger view |
JACK, MONO, CLOSED CIRCUIT (SHORTING), WIRED, MADE IN CHINA
Good Chinese copy of above J-12A jack. Includes nut and washer. Holes on solder tabs are slightly smaller than the Switchcraft, but otherwise is identical.
Part #J-C12A |
$1.50 |
|
Click on photo for
larger view |
JACK, MONO, CLOSED CIRCUIT, PC MOUNT, Switchcraft®, NON-ISOLATED
Common input jack. 3 pins. Ground tied to chassis mount.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-112PC |
$2.50 |
|
Click on photo for
larger view |
JACK, STEREO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft®, NYLON THREADS, NON-ISOLATED, 5 PINS
Common input jack in Crate® & Ampeg® products. Ground tied to chassis mount.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
 Part #J-114PC
|
$4.99 |
|
Click on photo for
larger view |
JACK, MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG
Common input jack in Crate®, Ampeg®, others. 4 pins, PC mount, with nut and washer.
Part #J-503L |
$3.45
(also see special pricing on a 3-pack of this jack, below) |
|
 |
3-Pack of the J-503L - Save!
JACK, MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG
Common input jack in Crate®, Ampeg®, others. 4 pins, PC mount, with nut and washer. Save by buying a 3-pack!
Part #J-503L-3 |
$6.50
(for all 3 jacks) |
|
Click on photo for
larger view |
JACK, STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG
Common input jack in Crate®, Ampeg®, others. 6 pins, PC mount, with nut and washer.
Part #J-504L |
$3.75 |
|
Click on photo for
larger view |

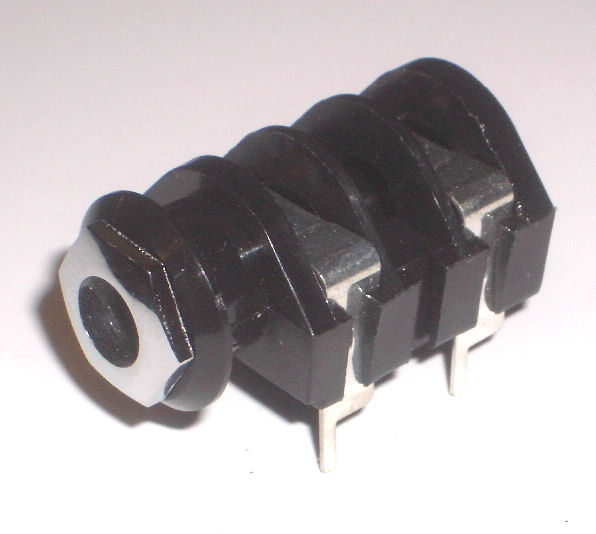

JACK, MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG
Common input jack in Crate®, Ampeg®, others. 4 PC board terminals. Chrome nut has male threads, jack has female threads. With nut and washer. Note "L-Leg" pins as shown in photo. Crate® & Ampeg® part number 39-119-01.
Part #J-580L |
$5.95 |
|
Click on photo for
larger view |

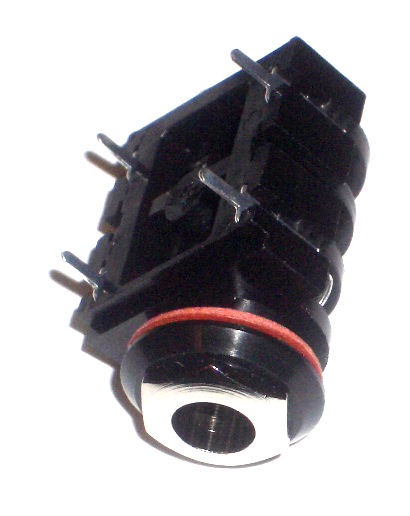

JACK, MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack some "boutique" and independent brand amps. NOT used in Crate®, Ampeg® - see the J-580L instead. 4 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-580 |
$3.99 |
|
Click on photo for
larger view |
JACK, STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG
Common input jack in Crate®, Ampeg®, others. 6 PC board terminals. Chrome nut has male threads, jack has female threads. With nut and washer. Note "L-Leg" pins as shown in photo. Crate® & Ampeg® part number 39-120-01.
Part #J-581L |
$6.50 |
|
Click on photo for
larger view |
JACK, STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack some "boutique" and independent brand amps, as well as Dunlop®/MXR products. NOT used in Crate®, Ampeg® - see the J-581L instead. 6 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-581 |
$4.49 |
|
Click on photo for
larger view |
JACK, STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF
Stereo input jack. 6 PC board terminals, switched. Used in modern Marshall® amps. Used in many PA and recording consoles, Marshall® bass heads, Line 6® amps, and "rack" units. With nut and washer.
Part #J-504 |
$3.50 |
|
Click on photo for
larger view |
JACK, MONO PC MOUNT PLASTIC, CLIFF, REPLACEMENT FOR Marshall®
4 PC board terminals, switched. Used in modern Marshall®TM amps, or as a replacement part for Marshall®TM JCM 900 cabinets. Used in Ampeg®, Crate®, Marshall®TM and more. With nut and washer.
Part #J-503 |
$2.99 |
|
Click on photo for
larger view |
JACK, MONO PLASTIC, CLIFF, SOLDER TERMINALS, CHROME NUT
4 solder terminals, switched. Used in "hand-wired" British amps, as well as other brands. Chrome nut has male threads, jack has female threads. With nut and washer.
Part #J-501 |
$3.75 |
|
Click on photo for
larger view |
JACK, MONO PLASTIC, CLIFF, SOLDER TERMINALS, REPLACEMENT FOR Marshall®
4 solder terminals, switched. Used in "hand-wired" Marshall®TM amps, as well as other brands. With nut and washer.
Part #J-502 |
$2.99 |
|
Click on photo for
larger view |
JACK, STEREO PLASTIC, CLIFF, SOLDER TERMINALS, REPLACEMENT FOR Marshall®
6 solder terminals, switched. Used in "hand-wired" Marshall®TM amps, as well as other brands. With nut and washer.
Part #J-505 |
$3.50 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC, CLIFF, REPLACEMENT FOR Marshall® AND OTHERS
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks
Part #J-5NT |
$0.50 |
|
Click on photo for
larger view |
JACK, Marshall® ORIGINAL, MG SERIES, INPUT, LINE OUT, FOOTSWITCH, PC MOUNT, HAS RED STRIPE, ALSO USED IN YAMAHA
Used in certain Marshall® MG-series amps - compare with original jack.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, ABOVE.
Part #J-531 |
$5.75 |
|
Click on photo for
larger view |
JACK, Marshall® ORIGINAL, USED AS CD OUTPUT JACK, PC MOUNT, ALSO USED IN YAMAHA.
Used in certain Marshall® MG-series amps - compare with original jack. 3 pins.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, ABOVE.
Part #J-532 |
$6.75 |
|
Click on photo for
larger view |
JACK, STEREO, Korg®, Marshall® ORIGINAL, PC MOUNT, ALSO USED IN YAMAHA.
Used in many Korg® keyboards - compare with original jack. 4 pins.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, ABOVE.
Part #J-533 |
$6.95 |
|
Click on photo for
larger view |
JACK, Marshall® ORIGINAL, INPUT, MG SERIES, 6 PINS
Used in certain Marshall® MG-series amps - compare with original jack.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, ABOVE.
Part #J-530 |
$8.75 |
|
Click on photo for
larger view |
JACK, MONO, 3-PIN, INPUT, MADE BY KOBICONN, USED IN Marshall®, KORG, YAHAMA & OTHERS, PC MOUNT
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, ABOVE.
Part #J-539 |
$4.99 |
|
Click on photo for
larger view |
JACK, Peavey® ORIGINAL, PC MOUNT, MONO, 4 PINS.
This jack is unusual in that two different pins contact the tip of the plug. One of the tip contacts is switched (normally closed). This jack is exclusive to Peavey®.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-521 |
$3.50 |
|
Click on photo for
larger view |
JACK, Peavey® ORIGINAL, PC MOUNT, MONO, 5 PINS, INSULATED.
This jack is unusual in that two different pins contact the tip of the plug. One of the tip contacts is switched (normally closed). This jack is exclusive to Peavey®. Same as J-521 except that the threads are insulated.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-522 |
$3.75 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 6 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps. Also used by Genz Benz and other manufacturers.
Part #J-520 |
$3.75 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 7 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps. Also used by Mesa Boogie, Genz Benz and other manufacturers.
Part #J-516 |
$3.75 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 8 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps. Also used by Genz Benz and other manufacturers.
Part #J-518 |
$3.75 |
|
Click on photo for
larger view |
JACK, PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed). Used in Peavey®, Mackie and other brands.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-524 |
$3.75 |
|
Click on photo for
larger view |
JACK, PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.
Both tip and ring conductors are switched (normally closed). Used in Peavey® and other brands. Same as J-524, except that the threads are insulated.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-523 |
$3.75 |
|
Click on photo for
larger view |
JACK, PC MOUNT, MONO, 4 PINS, SWITCHED, NON-INSULATED.
Made by Re-an - used in many Peavey®
models.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-525 |
$4.50 |
|
Click on photo for
larger view |
JACK, PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.
Made by Re-an - used in many Peavey®
models.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-526 |
$4.50 |
|
Click on photo for
larger view |
JACK, CHASSIS INSERT, FEMALE XLR.
Made by Neutrik. Used in Peavey® and Crate® mixers as well as other brands.
Part #J-528 |
$4.50 |
|
Click on photo for
larger view |
JACK NUT AND WASHER, METALReplacement jack nut and washer set as used on the J-521, J-522, J-523, J-524, J-527, J11, J12A, J112PC, and J114PC jacks. Also fits Fender® bias pot, and the Alpha pots with 3/8" bushing.
Part #JNUT-38 |
$0.99 |
|
|
|
Potentiometers - for Guitars |
|
|
Click on photo for
larger view |

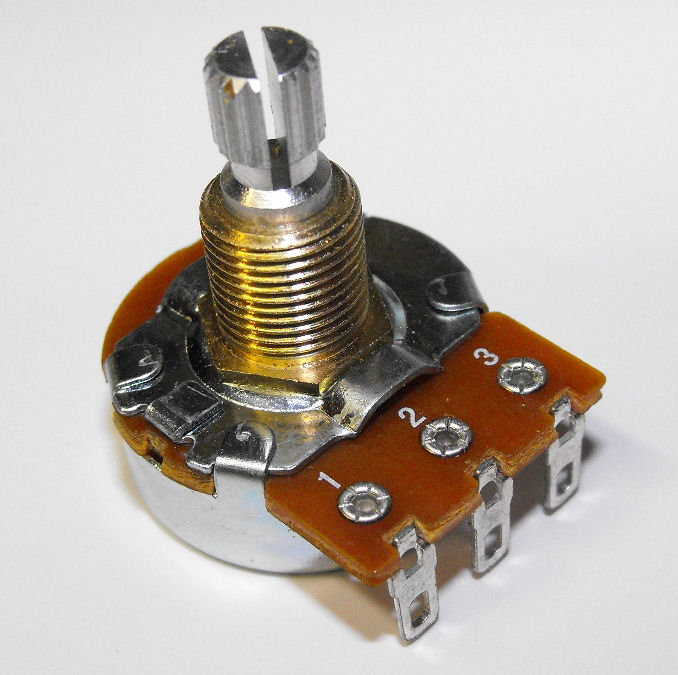

GUITAR POT, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns. Knurled 1/4" shaft fits most knobs. Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups. Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body. (This pot will not work on Les Pauls, for example). 250K, Special A2 taper preferred by guitar and bass players.
Nut and washer included.
Part #GP-250KA-16 |
$6.95 |
|
Click on photo for
larger view |
GUITAR POT, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns. Knurled 1/4" shaft fits most knobs. Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups. Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body. (This pot will not work on Les Pauls, for example). 500K, Special A2 taper preferred by guitar and bass players.
Nut and washer included.
Part #GP-500KA-16 |
$6.95 |
|
|
|
Potentiometers - Marshall |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
POT, 22K LINEAR BIAS ADJUST POT FOR Marshall®
Used in many previous Marshall® models with PC board circuitry - JMP series. Mounted on the main PC board - used to set the bias on the output tubes. Common failure item.
Part #P-BPM-22KL |
$6.50 |
|
Click on photo for
larger view |

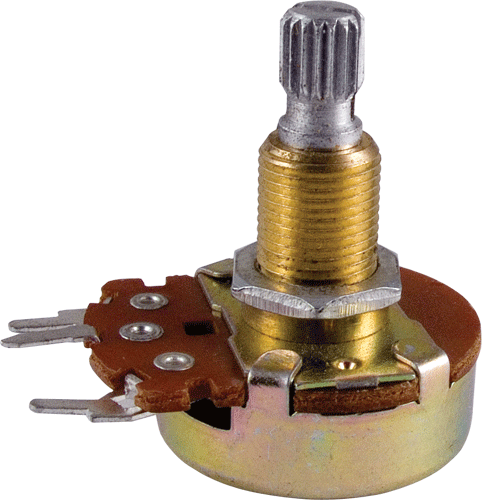

POT, 4.7K OHM AUDIO (A4.7K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter.
Includes nut and washer.
Part #P-V4D7KA-M24 |
$5.95
 |
|
Click on photo for
larger view |
POT, 4.7K OHM LINEAR (B4.7K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter. Includes nut and washer.
Part #P-V4D7KL-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 22K OHM AUDIO (A22K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter.
Includes nut and washer.
Part #P-V22KA-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 22K OHM LINEAR (B22K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter. Includes nut and washer.
Part #P-V22KL-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 100K OHM AUDIO (A100K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter.
Includes nut and washer.
Part #P-V100KA-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 100K OHM LINEAR (B100K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter.
Includes nut and washer.
Part #P-V100KL-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 220K OHM AUDIO (A220K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter. Includes nut and washer.
Part #P-V220KA-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 220K OHM LINEAR (B220K), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter. Includes nut and washer.
Part #P-V220KL-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 1 MEG OHM AUDIO/LOG (A1M), Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 9mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is the size of a quarter. Includes nut and washer.
Part #P-V1MA-M24 |
$5.95
|
|
Click on photo for
larger view |
POT, 4.7K OHM LINEAR, (4B7K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V4D7KL-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 10K OHM LINEAR, (B10K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V10KL-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 10K OHM AUDIO, (A10K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V10KA-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 10K OHM X2 LINEAR DUAL, (B10K), Marshall® TYPE, PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V10KLX2-M16 |
$8.95 |
|
Click on photo for
larger view |
POT, 22K OHM LINEAR, (B22K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V22KL-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 50K OHM LINEAR, (B50K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V50KL-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 100K OHM AUDIO, (A100K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V100KA-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 100K OHM LINEAR, (B100K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V100KB-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 220K OHM LINEAR, (B220K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V220KL-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 250K OHM AUDIO, (A250K), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V250KA-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 1 MEG OHM AUDIO, (A1M), Marshall® TYPE, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 11.5mm. Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER
Part #P-V1MA-M16 |
$4.95
|
|
Click on photo for
larger view |
POT, 5K LINEAR, 11mm, Marshall® TYPE, PC MOUNT. LABELED "B5K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-5KL |
$7.95 |
|
Click on photo for
larger view |
POT, 10K LINEAR, 11mm, Marshall® TYPE, PC MOUNT. LABELED "B10K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-10KL |
$7.95 |
|
Click on photo for
larger view |
POT, 10K AUDIO, 11mm, Marshall® TYPE, PC MOUNT. LABELED "A10K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-10KA |
$7.95 |
|
Click on photo for
larger view |
POT, 20K LINEAR, 11mm, Marshall® TYPE, PC MOUNT. LABELED "B20K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
THIS PARTICULAR POT DOES NOT
INCLUDE MOUNTING NUT - REUSE ORIGINAL NUT
Part #P-VKG-20KL |
$7.95 |
|
Click on photo for
larger view |
POT, 100K LINEAR, 11mm, Marshall® TYPE, PC MOUNT. LABELED "B100K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-100KL |
$7.95 |
|
Click on photo for
larger view |
POT, 100K AUDIO, 11mm, Marshall® TYPE, PC MOUNT. LABELED "A100K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-100KA |
$7.95 |
|
Click on photo for
larger view |
POT, 200K LINEAR, 11mm, Marshall® TYPE, PC MOUNT. LABELED "B200K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-200KL |
$7.95 |
|
Click on photo for
larger view |
POT, 200K AUDIO, 11mm, Marshall® TYPE, PC MOUNT. LABELED "A200K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-200KA |
$7.95 |
|
Click on photo for
larger view |
POT, 500K AUDIO, 11mm, Marshall® TYPE, PC MOUNT. LABELED "A500K".
Used in many later Marshall® models, such as many of the JCM2000 series, Valvestate and others.
INCLUDES MOUNTING NUT
Part #P-VKG-500KA |
$7.95 |
|
|
|
Potentiometers - Fender® & Others |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
POT - Fender® BIAS POT 10K LINEAR, SCREW
Original Fender® 10K linear, screw, bias potentiometer. Used in vintage blackface and silverface models. Original Fender® part # 0017502000.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, ABOVE
Part #P-BPF-10KL |
$4.95 |
|
Click on photo for
larger view |
POT - ALPHA, 5K LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 5K, linear.
INCLUDES NUT & WASHER
Part #P-38-5KL |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 10K AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 10K, audio.
INCLUDES NUT & WASHER
Part #P-38-10KA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 25K AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 25K, audio.
INCLUDES NUT & WASHER
Part #P-38-25KA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 25K LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 25K, linear.
INCLUDES NUT & WASHER
Part #P-38-25KL |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 100K AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 100K, audio.
INCLUDES NUT & WASHER
Part #P-38-100KA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 50K REVERSE AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 50K, reverse audio.
INCLUDES NUT & WASHER
Part #P-38-50KRA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 100K LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 100K, linear.
INCLUDES NUT & WASHER
Part #P-38-100KL |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 250K AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 250K, audio.
INCLUDES NUT & WASHER
Part #P-38-250KA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 250K LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 250K, linear.
INCLUDES NUT & WASHER
Part #P-38-250KL |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 500K AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 500K, audio.
INCLUDES NUT & WASHER
Part #P-38-500KA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 500K LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 500K, linear.
INCLUDES NUT & WASHER
Part #P-38-500KL |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 1 MEG AUDIO, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 1 Meg, audio.
INCLUDES NUT & WASHER
Part #P-38-1MA |
$2.95 |
|
Click on photo for
larger view |
POT - ALPHA, 2 MEG LINEAR, 3/8" BUSHING
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others. 2 Meg, linear.
INCLUDES NUT & WASHER
Part #P-38-2ML |
$2.95 |
|
Click on photo for
larger view |
POT, 24mm DIAMETER
Quality replacement pot from Bourns. Knurled 1/4" shaft. Low torque, carbon resistive element. Click here for complete dimensions. 250K, Audio taper.
Nut and washer included.
Part #P-250KA |
$5.95 |
|
Click on photo for
larger view |
POT, 24mm DIAMETER
Quality replacement pot from Bourns. Knurled 1/4" shaft. Low torque, carbon resistive element. Click here for complete dimensions. 500K, Audio taper.
Nut and washer included.
Part #P-500KA |
$5.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 25K LINEAR, USED IN BLUES JUNIOR (MIDDLE CONTROL) AND SIMILAR AMPS. ORIGINAL FENDER.
Part #FPBJ-25KL |
$3.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 50K LINEAR, USED IN BLUES JUNIOR (REVERB CONTROL) AND SIMILAR AMPS. ORIGINAL FENDER.
Part #FPBJ-50KL |
$3.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 250K LINEAR, USED IN BLUES JUNIOR (BASS CONTROL) AND SIMILAR AMPS. ORIGINAL FENDER.
Part #FPBJ-250KL |
$3.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 250K AUDIO, USED IN BLUES JUNIOR (TREBLE CONTROL) AND SIMILAR AMPS. ORIGINAL FENDER.
Part #FPBJ-250KA |
$3.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 1MEG AUDIO, USED IN BLUES JUNIOR (VOLUME CONTROL) AND SIMILAR AMPS. ORIGINAL FENDER.
Part #FPBJ-1MA |
$3.95 |
|
Click on photo for
larger view |
POT - BRACKET MOUNT 25K AUDIO, USED IN HOD ROD DELUXE (PRESENCE CONTROL) AND SIMILAR AMPS. SMOOTH 1/4" SHAFT. ORIGINAL FENDER.
Part #FPHD-25KA |
$3.95 |
|
Click on photo for
larger view |
POT - BRACKET MOUNT 25K LINEAR, USED IN HOD ROD DELUXE (REVERB CONTROL) AND SIMILAR AMPS. SMOOTH 1/4" SHAFT. ORIGINAL FENDER.
Part #FPHD-25KL |
$3.95 |
|
Click on photo for
larger view |
POT - BRACKET MOUNT 250K AUDIO, USED IN HOD ROD DELUXE (VOLUME, DRIVE AND BASS CONTROL) AND SIMILAR AMPS. SMOOTH 1/4" SHAFT. ORIGINAL FENDER.
Part #FPHD-250KA |
$3.95 |
|
Click on photo for
larger view |
POT, 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
Part #P-V50KL-M16S |
$4.95
|
|
Click on photo for
larger view |
POT, 50K OHM AUDIO, (A50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
Part #P-V50KA-M16S |
$4.95
|
|
Click on photo for
larger view |
POT, 500K OHM AUDIO, (A500K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
Part #P-V500KA-M16S |
$4.95
|
|
|
|
Pro Audio Pots |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 9mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 10K AUDIO, NO CENTER DETENT.
Part #EVUF-103A |
$3.95 |
|
Click on photo for
larger view |
AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 9mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 10K AUDIO, WITH CENTER DETENT.
Part #EVUF-103ACD |
$3.95 |
|
Click on photo for
larger view |
AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 9mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 50K AUDIO, NO CENTER DETENT.
Part #EVUF-503A |
$3.95 |
|
Click on photo for
larger view |
AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 9mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 50K AUDIO, WITH CENTER DETENT.
Part #EVUF-503ACD |
$3.95 |
|
Click on photo for
larger view |
DUAL AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 12mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 10K AUDIO, NO CENTER DETENT.
Part #EVJY-103A |
$5.95 |
|
Click on photo for
larger view |
DUAL AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 12mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 10K AUDIO, WITH CENTER DETENT.
Part #EVJY-103ACD |
$5.95 |
|
Click on photo for
larger view |
DUAL AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 12mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 50K AUDIO, NO CENTER DETENT.
Part #EVJY-503A |
$5.95 |
|
Click on photo for
larger view |
DUAL AUDIO TAPER POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS. 12mm SNAP-IN BODY. SHAFT IS "D-SHAFT" TYPE. TOTAL SHAFT LENGTH IS 23mm. THE "D" SHAPED SECTION OF THE SHAFT IS 12mm. 50K AUDIO, WITH CENTER DETENT.
Part #EVJY-503ACD |
$5.95 |
|
|
|
Knobs |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
KNOB, Marshall®, SET SCREW
Standard Marshall® control knob, with set screw. Fits a variety of shaft types.
Part #MKSS |
$2.50 |
|
Click on photo for
larger view |
KNOB, Marshall®, PUSH ON
Standard Marshall® control knob, push-on type. Designed for the "knurled" type control shafts, such as the 16mm potentiometers shown above.
Part #MKPT |
$2.50 |
|
Click on photo for
larger view |
KNOB, Fender®, SET SCREW
Genuine Fender® amp knobs, skirted with 1-10 numbering. For vintage Fender® amps in the original blackface and silverface series. Fits 1/4" shaft, with set screw.
Part #FVSK |
$3.95 |
|
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
Large 0.91" diameter, 0.5" tall, fits 1/4" shaft (either smooth or knurled). Classic look found on vintage FX units.
Part #K-348 |
$1.95 |
|
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SET SCREW WITH BRASS INSERT.
Large 1.06" diameter, 0.6" tall, fits 1/4" shaft (either smooth or knurled). Classic look found on vintage guitar and bass amps.
Part #K-349 |
$1.95 |
|
Click on photo for
larger view |
KNOB, CHICKEN HEAD, SET SCREW, BLACK
Used in Fender® and many other retro style amps. Black. Fits 1/4" shaft, brass insert, with set screw.
Part #CHKBK |
$1.95 |
|
Click on photo for
larger view |
KNOB, CHICKEN HEAD, SET SCREW, WHITE
Used in Fender® and many other retro style amps. White. Fits 1/4" shaft, brass insert, with set screw.
Part #CHKWH |
$1.95 |
|
|
Click on photo for
larger view
|
KNOB, CHICKEN HEAD, SET SCREW, BLUE
Used in Fender® and many other retro style amps. Blue. Fits 1/4" shaft, brass insert, with set screw.
Part #CHKBL |
$1.95 |
|
Click on photo for
larger view |
KNOB, CHICKEN HEAD, SET SCREW, CREAM
Used in Fender® and many other retro style amps. Cream. Fits 1/4" shaft, brass insert, with set screw.
Part #CHKCR |
$1.95 |
|
|
|
Jewels |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, MANY OTHERS. RED.
Part #JL-115R |
$2.75 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, MANY OTHERS. VIOLET.
Part #JL-115V |
$2.75 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, MANY OTHERS. AMBER.
Part #JL-115A |
$2.75 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, MANY OTHERS. GREEN.
Part #JL-115G |
$2.75 |
|
|
|
Reverb Tanks |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
BELTON Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75-4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Hughes & Kettner, MarshallTM, Ampeg, Crate, Fender®, Mesa Boogie, Guytron, Rocktron, DOD, Summit Audio, and Smokey.
Part #BL9AB3C1B |
$29.99 |
|
Click on photo for
larger view |
BELTON Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75-4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Hughes & Kettner, MarshallTM, Ampeg, Crate, Fender®, Mesa Boogie, Guytron, Rocktron, DOD, Summit Audio, and Smokey.
Part #BL4AB3C1B |
$28.99 |
|
Click on photo for
larger view |
BELTON Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank Medium Delay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Used in Fender, Peavey, Music Man. This is the most popular short tank.
Part #BL8EB2C1B |
$26.99 |
|
|
|
¼" Plugs |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
PLUG, ¼", Switchcraft® MONO, SOLDER TERMINALS, STRAIN RELIEF
Heavy-duty machined copper alloy handle, tip, and body for unsurpassed ruggedness. Bright nickel plating on exterior surfaces will not chip or corrode. Solder terminals are tin electroplated for ease of soldering. One-piece tip rod staked into tip terminal to ensure electrical continuity. Heavy-duty cable clamp provides secure strain relief.
Part #J-280 |
$2.99 |
|
Click on photo for
larger view |
PLUG, ¼", NEUTRIK MONO, SOLDER TERMINALS, STRAIN RELIEF
Heavy-duty machined copper alloy handle, tip, and body for unsurpassed ruggedness. Bright nickel plating on exterior surfaces will not chip or corrode. Solder terminals are tin electroplated for ease of soldering. One-piece tip rod staked into tip terminal to ensure electrical continuity. Heavy-duty cable clamp provides secure strain relief. Very similar to Switchcraft 280.
Part #NYS224 |
$1.99 |
|
Click on photo for
larger view |
PLUG, ¼", NIPPON AMERICA MONO, SOLDER TERMINALS, STRAIN RELIEF, EXTRA HEAVY DUTY. MADE IN CHINA.
Extra large handle, heavy-duty construction. Machined copper alloy nickel-plated handle with heavy duty plastic cap, nickel sleeve, gold tip, flexible rubber strain relief, superior internal cable clamp.
Part #S-X1132 |
$2.50 |
|
Click on photo for
larger view |
PLUG, ¼", MONO, SOLDER TERMINALS, SPRING STRAIN RELIEF, HEAVY DUTY, MADE IN CHINA.
Machined copper alloy nickel-plated handle with heavy duty red plastic grip, nickel sleeve, spring strain relief. Priced to sell!
Part #P-101AHQR |
$1.00 |
|
Click on photo for
larger view |
PLUG, ¼", POMONA, MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF, EXTRA HEAVY DUTY
Heavy-duty construction. Machined copper alloy nickel-plated handle with strain relief, nickel sleeve and tip, flexible rubber strain relief, superior internal cable clamp.
Part #7151 |
$2.95 |
|
|
|
XLR Plugs |
|
|
Click on photo for
larger view |
PLUG, MALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft A3M. Made in China, good quality.
Part XLR-A3M |
$2.25 |
|
Click on photo for
larger view |
PLUG, FEMALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft A3F. Made in China, good quality.
Part XLR-A3F |
$2.25 |
|
Click on photo for
larger view |
JACK, CHASSIS INSERT, FEMALE XLR.
Made by Neutrik. Used in Peavey® and Crate® mixers as well as other brands.
Part #J-528 |
$4.50 |
|
Click on photo for
larger view |
ADAPTOR, MALE-MALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft 390. Made in China, good quality.
Part XLR-390 |
$3.25 |
|
Click on photo for
larger view |
ADAPTOR, FEMALE-FEMALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft 389. Made in China, good quality.
Part XLR-389 |
$3.25 |
|
|
|
Banana Plugs |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
PLUG, MDP TYPE (DUAL "BANANA" TYPE) COLOR - RED
High current dual banana plug designed especially for use with larger conductor wires. Will accept up to 14 gauge wire. Screw type compression connection does not require soldering. Long lasting high conductivity gold plated brass finish. Rear integrated ring for cable stress relief. Injection molded high impact low melting point red plastic.
Part #MDP-R |
$1.95 |
|
Click on photo for
larger view |
PLUG, MDP TYPE (DUAL "BANANA" TYPE) COLOR - BLACK
High current dual banana plug designed especially for use with larger conductor wires. Will accept up to 12 gauge wire. Screw type compression connection does not require soldering. Long lasting high conductivity gold plated brass finish. Rear integrated ring for cable stress relief. Injection molded high impact low melting point black plastic.
Part #MDP-B |
$1.95 |
|
Click on photo for
larger view |
PLUG, DUAL GOLD "BANANA" TYPE COLOR - RED
Gold dual red banana plug. Side entry ports accept up to 10 gauge wire. Rear of plug accepts dual banana for stacking. One piece machined compression screw will not "slip" like other two piece punched models. Red non-conductive plastic barrel with red and black markings on plugs Overall dimensions: 2.25" L x 1.25" W
Part #GDBP-R |
$4.45 |
|
Click on photo for
larger view |
PLUG, DUAL GOLD "BANANA" TYPE COLOR - BLACK
Gold dual black banana plug. Side entry ports accept up to 10 gauge wire. Rear of plug accepts dual banana for stacking. One piece machined compression screw will not "slip" like other two piece punched models. Black non-conductive plastic barrel with red and black markings on plugs Overall dimensions: 2.25" L x 1.25" W
Part #GDBP-B |
$4.45 |
|
|
|
Audio Adaptors |
|
|
Click on photo for
larger view |
ADAPTOR, MALE-MALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft 390. Made in China, good quality.
Part XLR-390 |
$3.25 |
|
Click on photo for
larger view |
ADAPTOR, FEMALE-FEMALE XLR TYPE, NICKEL
Heavy-duty construction. 3-pin, similar to Switchcraft 389. Made in China, good quality.
Part XLR-389 |
$3.25 |
|
 |
ADAPTOR, RCA JACK TO 1/4" MONO PLUG
Part P-222 |
$0.99 |
|
|
ADAPTOR, 3.5MM STEREO PLUG TO DUAL RCA JACKS
Allows connection of standard RCA cable to headphone out or soundcard jacks.
Part P-246 |
$1.09 |
|
 |
ADAPTOR, FEMALE-FEMALE RCA INLINE
Connects two standard RCA type cables to extend length.
Part P-119 |
$0.89 |
|
 |
ADAPTOR, 3.5MM STEREO JACK TO 1/4" STEREO PLUG
Standard headphone adaptor.
Part P-111 |
$0.99 |
|
Click on photo for
larger view |
ADAPTOR CABLE, 3.5MM STEREO PLUG TO TWO RCA PLUGS, 6 FT. LONG
Commonly used to connect a PC sound card's output to another audio device, such as a mixer or receiver. Common cable used by DJ's who use a laptop as their music source.
Part M209GHQ |
$3.95 |
|
|
|
Switches |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
ROCKER SWITCH, LIGHTED POWER, USED IN Marshall® JCM SERIES & OTHERS
Has 4 electrical terminals on back of switch.
1/4" push-on terminals, or solder directly to terminals. Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep. Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-491 |
$7.95 |
|
Click on photo for
larger view |
ROCKER SWITCH, BLACK, USED AS STANDBY SWITCH IN Marshall® JCM SERIES & OTHERS
Has 4 electrical terminals on back of switch.
1/4" push-on terminals, or solder directly to terminals. 15/16" x 1 1/16" x 1" deep.
Part #SW-490 |
$6.95 |
|
Click on photo for
larger view |
ROCKER SWITCH, LIGHTED POWER, USED IN Marshall® & OTHERS
Has 4 electrical terminals on back of switch, 1/0 on/off designation on rocker. 1/4" push-on terminals, or solder directly to terminals. Rated 20A @ 125VAC, 15A @ 250VAC. Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-498 |
$6.95 |
|
Click on photo for
larger view |
ROCKER SWITCH, USED IN Marshall® MG SERIES
Has 4 electrical terminals on back of switch. Used as the power switch in most Marshall® MG series amplifiersPart #SW-489 |
$6.95 |
|
Click on photo for
larger view |
UNIVERSAL LIGHTED ROCKER SWITCH
Has 3 electrical terminals on back of switch. 1/4" push-on terminals, or solder directly to terminals. Rated 15A @ 125VAC, 10A @ 250VAC. Internal neon lamp powered by either 125VAC or 250VAC. Designed for 1" x 1/2" rectangular mounting hole. Used in several brands of amplifiers and effects as the main power switch.
Part #SW-25 |
$2.95 |
|
Click on photo for
larger view |
UNIVERSAL LIGHTED ROCKER SWITCH
Has 3 electrical terminals on back of switch. 1/4" push-on terminals, or solder directly to terminals. Rated 20A @ 125VAC, 15A @ 250VAC. Internal neon lamp powered by either 125VAC or 250VAC. Designed for 1 1/8" x 7/16" rectangular mounting hole. Used in several brands of amplifiers and effects as the main power switch.
Part #SW-15 |
$2.95 |
|
Click on photo for
larger view |
SWITCH, CARLING SPST TOGGLE, ORIGINAL REPLACEMENT FOR 60's and 70's Fender® AMPS (POWER & STANDBY SWITCHES)
Part #SW-495 |
$4.95 |
|
|
|
Foot Switches |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, SPDT
Found in many type of footswitches. Has 3 electrical terminals (single pole, double throw).
Solder lugs for wire.
Part #FS-492 |
$11.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, SPST, REPLACEMENT FOR Fender®, ETC.
Carling SPST footswitch. Used in Fender® etc. Reverb/tremolo/channel switching pedals.
Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire.
Part #FS-493 |
$7.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, DPDT, FOR SWITCHING AND EFFECTS.
Has 6 electrical terminals (double pole, double throw).
Solder lugs for wire.
Part #FS-497 |
$13.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
DPDT, FOR SWITCHING AND EFFECTS.
Electrically equivalent to FS-497, but with a smaller switch body. Has 6 electrical terminals (double pole, double throw). Solder lugs for wire. Good quality, made in Taiwan.
Part #FS-498 |
$6.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
DPDT, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board. Found in the Line 6® XPS-AB power supply for their Variax guitars. Has 6 electrical terminals (double pole, double throw).
Good quality, made in Taiwan.
Part #FS-498-PC |
$6.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a "hard" connection (no "click"). Solder lugs for wire.
Good quality, made in Taiwan.
Part #FS-503 |
$7.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
3PDT, PC MOUNT, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw)
Good quality, made in Taiwan. Commonly found in effects pedals which have "true bypass".
Part #FS-501 |
$7.95 |
|
Click on photo for
larger view |
9V BATTERY CLIP.
Commonly found in effects boxes.
Part #9VBC |
$0.45 |
|
|
|
Lamps |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
Long life general replacement lamps for dials, indicators, etc. Sold individually. Replacement for Fender® Fender part number 0021642049
Part #P-47 |
$0.60 |
|
Click on photo for
larger view |
REPLACEMENT BULB FOR MORLEY® EFFECTS AND VOLUME PEDALS
Long life replacement bulb used for both the pilot lamp and also to drive the photocell in all Morley pedals from 1983 through current models. Pedal not working? In most cases, it just needs a new bulb.
Part #L-387 |
$1.99 |
|
|
|
Fuse Holders |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
FUSE HOLDER, HIGH QUALITY, USED ON Marshall® AMPS
Marshall® style fuse holder. Snap-in mount for chassis hole diameters between 5/8" and 11/16". Flush design, fuse cap removed with screwdriver. Rugged, reliable, tough - better than OEM.
Part #FH-200 |
$5.95 |
|
Click on photo for
larger view |
FUSE HOLDER, Fender® STYLE, HIGH QUALITY USED W/AGC TYPE FUSE
Fender® style fuse holder, replacement for many other brands. Twist-lock cap. Durable, rugged design - better than OEM.
Part #FH-201 |
$4.50 |
|
Click on photo for
larger view |
FUSE HOLDER, GENERAL TYPE, HIGH QUALITY USED W/AGC TYPE FUSE
Fuse holder, replacement for many other brands. Threaded screw-off cap, metal mounting nut. Durable, rugged design - better than OEM.
Part #FH-1 |
$3.50 |
|
Click on photo for
larger view |
REPLACEMENT CAP FOR FUSE HOLDER - Peavey®
Cap for fuse holder found in many Peavey® products. Common failure item in Peavey®. Peavey® part number
70900281
Part #FH-203 |
$1.50 |
|
|
|
Power Connectors and Strain Reliefs |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL
Popular IEC type AC connector found in many amplifiers and effects units. Designed to snap into 0.8" x 1.10" rectangular panel hole. Rated at 10 amps.
Part #P-S2-108 |
$2.95 |
|
Click on photo for
larger view |
IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL
Popular IEC type AC connector found in many amplifiers and effects units. Designed to mount in 0.8" x 1.10" rectangular panel hole. Screw holes are 1.57" apart, center-to-center. Rated at 10 amps.
Part #P-S2-106 |
$2.95 |
|
Click on photo for
larger view |
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many amplifiers and effects units. Designed to snap into 1.25" x 1.10" rectangular panel hole. Uses GMA type fuses (5mm x 20mm). Space for spare fuse. Rated up to 10 amps. Fuse not included.
Part #P-S2-120-3 |
$3.95 |
|
Click on photo for
larger view |
MEDIUM SIZED STRAIN RELIEF FOR 3/4" X 27/32" HOLE
Popular strain relief found on many amplifiers. Designed for 5/16" cord diameter. Click here for specific dimensions of chassis hole.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on many amplifiers, including most vintage Fender® amps. Designed for 11/32" cord diameter. Click here for specific dimensions of chassis hole.
Part #SR-1300 |
$0.99 |
|
|
|
Power Cord |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
POWER CORD, DETACHABLE, 3-WIRE, 6ft LONG, IEC CONNECTOR AT EQUIPMENT END. COMMON REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.
Part #PC-300 |
$4.95 |
|
|
|
Hardware |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
CUP WASHER, BLACK METAL, PACK OF 10. USED WITH #8 BLACK SCREW ON AMP AND SPEAKER CABINETS.
Part #BCW-10 |
$0.69
(pack of 10) |
|
Click on photo for
larger view |
SPEED CLIP, BLACK SPRING STEEL, PACK OF 6. USED WITH #8 BLACK SCREW. FOR AMPLIFIER CHASSIS, AUTOMOTIVE DASHS, SMALL SPEAKER INSTALLATION.
Part #SC-6 |
$0.89
(pack of 6) |
|
Click on photo for
larger view |
GUITAR PICKGUARD SCREWS, BLACK. SET OF 12 SCREWS.
Part #PGSB-12 |
$2.49
(pack of 12) |
|
Click on photo for
larger view |
GUITAR PICKGUARD SCREWS, CHROME. SET OF 12 SCREWS.
Part #PGSC-12 |
$2.49
(pack of 12) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10. USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-5 |
$0.39
(pack of 10) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10. USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-75 |
$0.45
(pack of 10) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10. USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-1 |
$0.49
(pack of 10) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10. USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-15 |
$0.55
(pack of 10) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #8 X 2", PACK OF 10. USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-2 |
$0.59
(pack of 10) |
|
Click on photo for
larger view |
SMALL BLACK RUBBER FEET, SET OF 4. 3/4" DIAMETER AT TOP, 5/8" DIAMETER AT BOTTOM, 5/16" TALL. BLACK RUBBER WITH METAL INSERT. USED TO SUPPORT EFFECTS, SMALLER AMPS, SMALLER MIXERS.
Part #BRF-4 |
$1.89
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4. 3/4" DIAMETER 1/2" TALL. BLACK RUBBER WITH METAL INSERT. USED TO SUPPORT EFFECTS, AMPS, MEDIUM-SIZED MIXERS.
Part #00051600 |
$4.95
(pack of 4) |
|
Click on photo for
larger view |
LARGE BLACK RUBBER FEET, SET OF 4. TAPERED - 1 5/8" DIAMETER AT TOP, 1 1/4" AT BOTTOM. 3/4" TALL. BLACK RUBBER WITH METAL INSERT. USED TO SUPPORT AMP HEADS, SPEAKER CABINETS.
Part #BRF-9107 |
$7.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM SIZED STRAIN RELIEF FOR 3/4" X 27/32" HOLE
Popular strain relief found on many amplifiers. Designed for 5/16" cord diameter. Click here for specific dimensions of chassis hole.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on many amplifiers, including most vintage Fender® amps. Designed for 11/32" cord diameter. Click here for specific dimensions of chassis hole.
Part #SR-1300 |
$0.99 |
|
|
|
Capacitors |
Axial Lead |
|
|
Photo |
Description & Part No. |
Price |
Purchase |
 |
CAPACITOR, AXIAL LEAD ELECTROLYTIC, 22uF/500V, 1.50" L x 0.64" DIA. REPLACES 20uF/500V
Part #A22-500
(See our other capacitors here) |
$5.50 |
|
|
|
CAPACITOR, AXIAL LEAD ELECTROLYTIC, 47uF/500V, 2.0" L x 0.88" DIA. REPLACES 40uf/500V or 50uF/500V
Part #A47-500
(See our other capacitors here) |
$6.95 |
|
|
|
CAPACITOR, AXIAL LEAD ELECTROLYTIC, 80uF/450V, 2.043" L x 1" DIA.
Part #A80-450
(See our other capacitors here) |
$6.95 |
|
Click on photo for
larger view |
CAPACITOR KIT - CONTAINS
Disk (500V) - 4 ea. of the following:
10pf, 22pf, 47pf, 100pf, 220pf, 470pf
Mylar (100V) - 4 ea. of the following:
.001uf, .0022uf, .0047uf , .01uf, .022uf, .1uf, .22uf, .47uf
Electrolytic
50V: 4 ea - 1uf, 4.7uf, 22uf, 8 ea. - 10uf
35V: 4 ea. - 47uf, 100uf
25V: 4 ea. - 470uf 2 ea. - 1,000 uf
Part #ECOCAPKIT
(See our other capacitors here) |
$13.95 |
|
Click on photo for
larger view |
- DELUXE CAPACITOR KIT - CONTAINS
Disk (500V) - 5 ea.
- 2.2 pF, 3.3 pF, 4.7 pF, 6.8 pF, 10 pF, 22 pF, 33 pF, 47 pF, 68 pF, 100 pF, 150 pF, 220 pF, 330 pF, 470 pF, 680 pF
- Mylar (100V) - 5 ea.
- .001, .0022, .0033, .0047, .0068, .01, .022, .033, .047, .068, .1, .22, .47
- Monolythic (50V) - 5 ea.
- 01 uF, .1 uF, .22 uF
- Electrolytic Radial - 5 ea.
- 50V: 1 uF, 2.2 uF, 3.3 uF, 4.7 uF, 10 uF, 22 uF, 33 uF
35V: 47 uF, 100 uF, 220 uF, 330 uF, 470 uF, 1,000 uF
Part #DLXCAPKIT
(See our other capacitors here) |
$26.95 |
|
|
|
Resistors |
|
|
|
Photo |
Description & Part No. |
Price (each) |
Purchase |
 |
RESISTOR, FLAMEPROOF, 470 OHM, 2 WATT. COMMONLY USED AS THE SCREEN GRID RESISTOR IN MANY TUBE AMPS SUCH AS VINTAGE Fender®.
Part #470FP2
(See our other resistors here) |
$0.22 |
|
|
|
RESISTOR, FLAMEPROOF, 1000 OHM, 2 WATT. COMMONLY USED AS THE SCREEN GRID RESISTOR IN MANY TUBE AMPS.
Part #1000FP2
(See our other resistors here) |
$0.22 |
|
|
|
Output Modules |
|
|
|
Photo |
Description & Part No. |
Price (each) |
Purchase |
Click on photo for
larger view |
TDA2030 OUTPUT CHIP, COMMONLY FOUND IN Crate®, KORG AND MANY OTHERS. 5 PINS. RATED 14 WATT OUTPUT.
Part #TDA2030 |
$3.40 |
|
Click on photo for
larger view |
LM1875T OUTPUT CHIP, COMMONLY FOUND IN Crate®, RMS, KORG AND MANY OTHERS. 5 PINS. RATED 20 WATT OUTPUT.
Part #LM1875T |
$3.95 |
|
Click on photo for
larger view |
LM3886TF OUTPUT CHIP, COMMONLY FOUND IN Marshall®, AND MANY OTHERS. 11 PINS. RATED 68 WATT OUTPUT INTO 4 OHMS.
Part #LM3886TF |
$12.95 |
|
Click on photo for
larger view |
TDA7293 OUTPUT CHIP, COMMONLY FOUND IN Crate®, Marshall® AND MANY OTHERS. 15 PINS. RATED 100 WATT OUTPUT, AT UP TO 120V SUPPLY.
Part #TDA7293 / TDA7293V |
$7.95 |
|
 |
TDA7294 OUTPUT CHIP, COMMONLY FOUND IN Crate®, Marshall® AND MANY OTHERS. 15 PINS. RATED 100 WATT OUTPUT AT UP TO 80V SUPPLY.
Part #TDA7294 / TDA7294V |
$7.95 |
|
 Click on photo for
larger view |
TIP142 NPN DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate®, Marshall®, Fender® AND MANY OTHERS.
Part #TIP142 |
$5.05 |
|
 Click on photo for
larger view |
TIP147 PNP DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate®, Marshall®, Fender® AND MANY OTHERS.
Part #TIP147 |
$5.10 |
|
Click on photo for
larger view |
SINGLE-USE HEATSINK COMPOUND. ELECTRONIC DEVICES MOUNTED ON HEATSINKS DON'T REQUIRE A LOT OF THERMAL CONDUCTION GREASE, BUT THEY DO REQUIRE A SMALL DAB TO ENSURE THAT THEY WON'T OVERHEAT. THIS PACK CONTAINS SUFFICIENT AMOUNT FOR ONE APPLICATION.
Part #HSC-1 |
$0.99 |
|
|
|
Audio Drivers |
|
|
|
Photo |
Description |
Price |
Purchase |
Click on photos for
larger view
 |
Generic Replacement for Eminence Diaphragm
REPLACEMENT 8-OHM AUDIO DIAPHRAGM, GENERIC, EQUIVALENT TO EMINENCE PSD2002-8DIA DIAPHRAGM. TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 8 OHM IMPEDANCE, 1,200-20,000HZ. EXCELLENT QUALITY FOR ABOUT 50% LESS THAN EMINENCE. USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
Part #RD208
|
$21.95 |
|
Click on photos for
larger view
|
Generic Replacement for Eminence Diaphragm
REPLACEMENT 16-OHM AUDIO DIAPHRAGM, GENERIC, EQUIVALENT TO EMINENCE PSD2002-16DIA DIAPHRAGM. TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 16 OHM IMPEDANCE, 1,200-20,000HZ. EXCELLENT QUALITY FOR ABOUT 50% LESS THAN EMINENCE. USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
Part #RD216 |
$21.95 |
|
Click on photo for
larger view
|
Replacement Horn / Tweeter Protection Lamp
Many horn drivers or tweeters are protected by this lamp on the crossover board, used to limit the current to the horn or tweeter. This lamp will fit in a socket or leads may soldered to the end caps for direct PC board mounting
Part #L211-2 |
$2.25 |
|
 |
Standard Piezo Horn Driver - 100W Max
Due to the high efficiency of the piezo system, the loading on the amplifier is negligible. For use with any reflector horn with 1 3/8" thread connection.
* Highly efficient Piezo system
* Impedance - 1k ohms @ 1kHz
* Impedance - 50 ohms @ 25kHz
* Frequency response - 3kHz – 29kHz
* Body diameter - 2.5 inches
Part #DUV-100 |
$2.95 |
|
 |
Heavy Duty Piezo Horn Driver - 300W Max
Due to the high efficiency of the piezo system, the loading on the amplifier is negligible. For use with any reflector horn with 1 3/8" thread connection.
* Highly efficient Piezo system
* Impedance - 1k ohms @ 1kHz
* Impedance - 50 ohms @ 25kHz
* Frequency response - 3kHz – 29kHz
* Body diameter - 4.1 inches
Part #DUV-300 |
$4.95 |
|
Click on photo for
larger view |
Motorola Style
3-1/2" Super Horn Piezo Tweeter
|
O.D. |
3.34" x 3.34" |
|
Impedance |
High |
|
Power |
75 watts |
|
Freq Resp |
4Khz - 27KHz |
|
Magnet Wt |
Ceramic Element |
|
SPL |
94 dB |
|
Depth |
74mm |
|
Hole Cut |
79mm |
Super bargain price on these versatile tweeters! Used in both home stereo and professional applications. Adds high frequency response to stereo cabinets, PA cabinets, monitor speakers, DJ enclosures. No crossover needed - a series resistor (50 ohms, 5 watts) may be used on high powered systems to prevent distortion. Piezo tweeters are high impedance - their effect on your overall system impedance is negligible.
Part #MP-1 |
$2.95 |
|
|
|
Fuses |
|
|
|
Part No, Desc. |
Rating |
Price
(Pack of 5) |
Purchase |
GMA0.5
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 1/2 A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA1
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 1A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA1.5
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 1.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA1.6
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 1.6A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA2
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 2A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA2.5
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 2.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA3
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 3A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA3.5
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 3.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA4
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 4A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA5
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
GMA8
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
Rated at 8A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC0.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 0.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC1
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 1A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC1.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 1.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC2
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 2A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC2.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 2.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC3
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 3A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC3.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 3.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC4
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 4A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC6.3
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 6.3A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Pack of 5 fuses) |
|
AGC8
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 8A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$1.50 (Box of 5 fuses) |
|
AGC1SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 1A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
AGC2SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 2A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
AGC3SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 3A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
AGC4SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 4A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
AGC5SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 5A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
AGC625SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
Rated at 6.25A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long. Measure your old fuse). |
$5.00 (Pack of 5 fuses) |
|
Click on photo for
larger view
|
Replacement Horn / Tweeter Protection Lamp
Many horn drivers or tweeters are protected by this lamp on the crossover board, used to limit the current to the horn or tweeter. This lamp will fit in a socket or leads may soldered to the end caps for direct PC board mounting
Part #L211-2 |
$2.25 |
|
|
|
Tools/Supplies |
|
|
|
Photo |
Description & Part No. |
Price |
Purchase |
Click on photo for
larger view |
HEAT SHRINK TUBING KIT
Invaluable in working in tube amp chassis, building or repairing guitar / mic cords, and dozens of other uses. Kit contains 2 pieces each of 1/16", 3/32", 3/16", 1/4", and 3/8" diameter heat shrink, each piece 6" long. Assorted colors in each pack. 10 pieces in all.
Part #HST-1 |
$3.25 (Pack of 10 pieces, assorted sizes) |
|
 |
QUALITY SOLDERING KIT
Contains grounded 25 watt soldering iron, 8" super desoldering pump for removing solder, desoldering braid for cleaning up PC board solder points, soldering iron stand with cleaning sponge, and a pen-type solder dispenser containing quality 60/40 solder for electronic work. Excellent value! | More soldering tools and supplies
Part #SK-2 |
$16.95 |
|
Click on photo for
larger view |
DVM-810 POCKET-SIZED DIGITAL MULTIMETER * automatic polarity indication
* voltage measurements: AC 500V and DC 500V max.
* current measurements: DC 10A max.
* resistance measurements: 2Mohm
* diode and transistor (hFE) test
* packaging: blister
* easily fits in your shirt pocket!
Click here for more product details
Part #DVM-810 |
$12.95 |
|
Click on photo for
larger view |
DVM-850 DIGITAL MULTIMETER * automatic polarity indication
* voltage measurements: AC 600V and DC 600V max.
* current measurements: DC 10A max.
* resistance measurements: 2Mohm
* diode and transistor (hFE) test
* packaging: blister
* with data hold and backlight
* Dimensions :
2.7" x 5.4" x 1.2"
Click here for more product details
Part #DVM-850 |
$26.95 |
|
Click on photo for
larger view |
The Xcelite® 170M 5" Micro Shearcutter is a high quality,
USA built diagonal flush cutter.
Features:
* Low profile, general-purpose cutter
* Superior blade by-pass shear cutting action
* Better cuts with half the effort
* Greatly reduced mechanical shock delivered to the work
* Features red grips
* Flush cuts soft wire up to 20 AWG (0.8mm)
Part #170M |
$6.95 |
|
See our complete Tool Department here!
|
Vacuum Tubes
