Audio Cassette Parts and Supplies |
 |
|
Audio Cassette Motors
 |
Universal Single Speed Motors
(for Single Deck Machines)
These motors work in most single-speed
decks. Match voltage and direction of rotation
with your existing motor.
$8.95 each |
(*Direction refers to the direction of rotation of the shaft, when facing the motor at the shaft end. CW means clockwise, and CCW means counterclockwise. All of these motors are 2400 RPM.)
|
Model |
Voltage |
Direction* |
Order |
EG530AD-6F
$8.95 |
6 volts |
CW* |
|
EG530AD-6B
$8.95 |
6 volts |
CCW* |
|
EG530AD-9F
$8.95 |
9 volts |
CW* |
|
EG530AD-9B
$8.95 |
9 volts |
CCW* |
|
EG530AD-2F
$8.95 |
12 volts |
CW* |
|
EG530AD-2B
$8.95 |
12 volts |
CCW* |
|
|
|
Dual Speed Motors
(for Dual Deck Machines)
(Not Universal - see below)
$9.95 each |
|
READ >>>> Unlike the single-speed motors above, these dual speed motors are NOT universal replacements. Be sure that you match the part number on your motor exactly with the part number of the motor below! Otherwise, this motor will probably not work in your cassette deck. |
|
Part No. |
Voltage |
Direction* |
Speed |
Order |
EG530KD-9F
$9.95 |
9 volts |
CW* |
1600/3200
RPM |
|
EG530KD-9B
$9.95 |
9 volts |
CCW* |
1600/3200
RPM |
|
EG530KD-2F
$9.95 |
12 volts |
CW* |
1600/3200
RPM |
|
EG530KD-2B
$9.95 |
12 volts |
CCW* |
1600/3200
RPM |
|
|
|
Audio/Video Demagnetizer
Recording heads, capstans, and metallic guides can become magnetized from repeated use. The resulting magnetic field on these parts results in a very slight erasure of a tape each time you play it. Over time, this degrades the quality of the video and audio. The HD-880 demagnetizer will remove this magnetism. Instructions included. (Note: Do not use around video or audio tapes - the demagnetizer can partially erase recorded tapes when it is plugged in.)
HD-880 Demagnetizer
$14.95
|

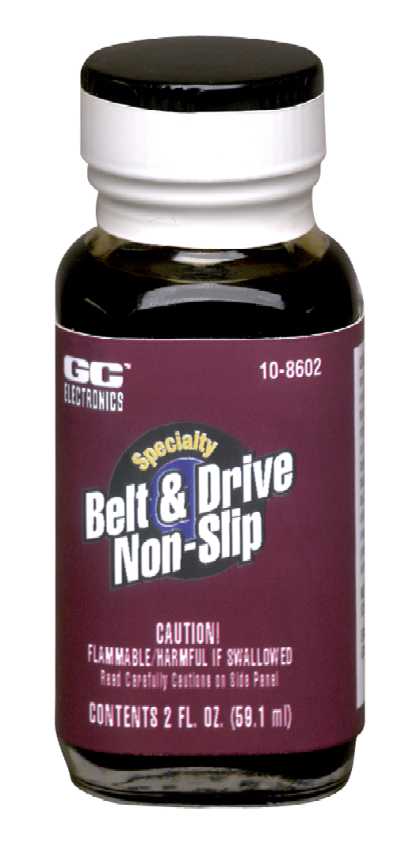

Belt and Drive Non-Slip
Apply to belts, pinch rollers, idler tires, phono drives, rubber rollers in printers & faxes, etc. Cleans, rejuvenates rubber parts. Contains Vinsol Resin and Ethanol. Contents 2 fluid ounces (59.1 ml). From GC Electronics.
Cannot be shipped via Priority Mail. Cannot be shipped outside the USA.
10-8602 $9.95
|
Belt Installation Tool
This is a real time-saver! Polished metal, tapered design to fit comfortably in your hand. Takes the frustration out of installing belts in tight places. One end designed for pulling, the other end for pushing. Worth its weight in gold! Comes with storage pouch. 6 inches long.
Part number BST-1
$5.95 each
|
Standard Cassette Cases
These are the standard "Norelco" cassette cases which were typically included with both prerecorded cassettes and blank cassettes. Half of case is black, other half is clear plastic. Replace your cracked or missing cases! Cassette not included - case only.
NCC-01 Only 29 cents ea!
|
 Audio Cassette Album
This audio cassette album holds two standard cassette tapes. Make to stand upright - looks like a book when placed on a bookshelf. Outside has clear open overlay, so that you can insert your own custom artwork! Outside dimensions when closed: 7"H x 4 7/8"W x 1"T.
CTA-02 Only $1.29 ea!
 |
Audio Cassette Album
This audio cassette album holds eight standard cassette tapes. Make to stand upright - looks like a book when placed on a bookshelf. Outside has clear open overlay, so that you can insert your own custom artwork! Tapes not included. Outside dimensions when closed:
9 7/8"H x 7"W x 1 1/4"T.
CTA-08 Only $2.29 ea!
|

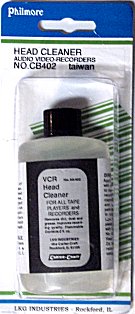

Audio/Video Head
Cleaning Fluid
Superior to isopropyl alcohol, this specially designed head cleaner is formulated from Freon-TF. Faster evaporating, better suited to trapping and removing residue. For Video and Audio Heads. 2 fluid ounces.
CB-402 $6.95
|

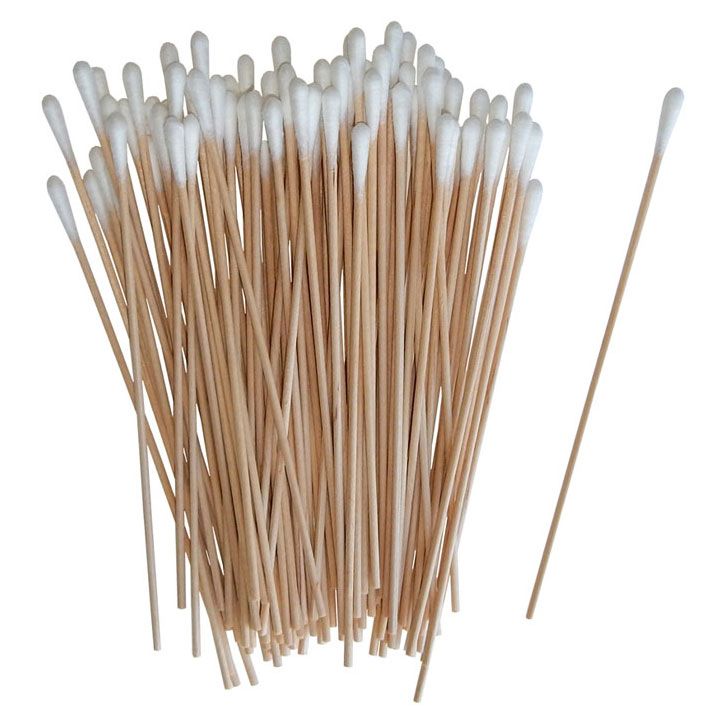

Cotton Tip Cleaning Swabs
Pack of 100 extra-long cleaning swabs 6" length, wooden stick. Use with alcohol or head cleaning fluid. The long length makes these perfect for those hard-to-reach areas in cassette decks, VCRs and CD or DVD players. Use on audio heads, CD/DVD lasers, rollers, guides and other devices in the tape path. Important note: Cotton swabs are not designed to be used on video heads, and using these swabs on a video head can easily damage the head. May be safely used on parts
of a VCR other than the video head.
CCS-100 $2.49
|
Automatic Cassette
Head Cleaner
Clean your cassette tape heads, capstan and pinch roller with this ingenious cleaning system. Unlike cassette cleaners which just use a wet cleaning tape to run past the head, this system uses the rotary movement of the tape reels to drive a wet scrubbing pad which gently rubs the head with a back-and-forth cleaning action - the same way you would do it manually! Stationary pads clean the moving pinch roller and capstan shaft at the same time! Simply wet the pads on the special cassette with the enclosed cleaning fluid. Insert the
cassette into the deck, and press play. Let run for about 20 seconds, and that's it! Extra cleaning pads and a pair of tweezers to aid in changing the pads included.
HL-103 $2.95
|
Audio Alignment Test Tape
This super high quality, normal bias 30 minute test cassette is an important tool for performing many common mechanism adjustments required by most decks today. Includes a full 20Hz to 20 KHz sweep, as well as fixed frequency tones at 20Hz, 100Hz, 250Hz, 400Hz, 1KHz, 2.5KHz, 4KHz, 6KHz, 8KHz, 10KHz, 12KHz, 15KHz, and 20KHz, all recorded at -10dB. In addition, there is a long-playing 1KHz for use during critical adjustment, and a pink noise segment. Perfect for adjusting your deck's azimuth and wow/flutter to perfection. These cassettes perform as well or better than
ones available from the OEMs costing more than twice as much!
CA-01 $19.95 ea
|
|
General Cassette Deck Square Belt Kit
|
|
Contains the 10 most popular SQUARE belts used in audio cassette decks
|
|
Includes one each of the following sizes:
SBS2.6, SBS3.4, SBS4.6, SBS5.1, SBS7.5, SBS8.0, SBS8.6, SBS9.8, SBS11.0, SBS12.4
CBK Kit
$7.95
|
|
|
General Cassette FLAT BELT Kit
|
|
Contains the 7 most popular FLAT belts used in cassette decks
|
|
Includes one each of the following sizes:
FBS8.0, FBS9.0, FBS9.6, FBS9.9, FBS10.5, FBS11.0, FBS12.1
(Also see our 11-piece Deluxe Cassette Flat Belt Kit, below)
CFBK-1 Kit
$7.95
|
|
|
Deluxe Cassette FLAT BELT Kit
|
|
Contains the 11 most popular FLAT belts used in cassette decks
|
|
Includes one each of the following sizes:
FBS7.0, FBS7.5, FBS8.0, FBS8.4, FBS9.0, FBS9.6, FBS9.9, FBS10.5, FBS10.7, FBS11.0, FBS12.1
DCFBK-1 Kit
$9.95
|
|
Cassette Deck Pinch Roller
Size is 12.8mm outer diameter (½"), rubber portion is 6.4mm wide (¼"), total width is 8mm, and the hole diameter is 2.6mm. The most common size found in traditional bookshelf type cassette decks, although it won't work in every deck. Measure your old roller carefully.
CPR-5 Pinch Roller
$2.85
|
|
Cassette Pinch Roller
Size is 9mm outer diameter, 6mm width, and the hole diameter is 1.55mm. Generally used on smaller cassette players, newer units, walkmans. Too small for most traditional bookshelf cassette decks. Measure your old roller carefully.
CPR-9 Pinch Roller
$2.85
|
Cassette Pinch Roller
Size is 10mm outer diameter, 6mm width, and the hole diameter is 1.55mm. Generally used on newer cassette players. Too small for most older traditional bookshelf cassette decks. Measure your old roller carefully.
CPR-10 Pinch Roller
$2.85
|
SQUARE BELTS FOR CASSETTE DECKS
SBO (Square Belt Other) belts are typically used in smaller cassette decks, especially Walkman Type. These are the thinnest square belts we carry - 1mm in thickness. I.C. (inside circumference) is shown in inches.
|
|
Part # |
I.C.* |
Thickness |
Price ea |
Purchase
|
|
SBO1.55 |
1.55 |
.039" (1mm) |
$1.05
|
|
|
SBO2.5 |
2.5 |
.039" (1mm) |
$1.05 |
|
|
SBO3.2 |
3.2 |
.039" (1mm) |
$1.05 |
|
|
SBO3.7 |
3.7 |
.039" (1mm) |
$1.05 |
|
|
SBO4.0 |
4.0 |
.039" (1mm) |
$1.05 |
|
|
SBO4.3 |
4.3 |
.039" (1mm) |
$1.05 |
|
|
SBO4.7 |
4.7 |
.039" (1mm) |
$1.05 |
|
|
SBO5.0 |
5.0 |
.039" (1mm) |
$1.05 |
|
|
SBO5.2 |
5.2 |
.039" (1mm) |
$1.05 |
|
|
SBO5.7 |
5.7 |
.039" (1mm) |
$1.05 |
|
|
SBO6.0 |
6.0 |
.039" (1mm) |
$1.05 |
|
|
SBO6.6 |
6.6 |
.039" (1mm) |
$1.05 |
|
|
SBO7.2 |
7.2 |
.039" (1mm) |
$1.05 |
|
|
SBO8.0 |
8.0 |
.039" (1mm) |
$1.15 |
|
|
SBO8.6 |
8.6 |
.039" (1mm) |
$1.15 |
|
|
SBO9.0 |
9.0 |
.039" (1mm) |
$1.15 |
|
|
SBO9.7 |
9.7 |
.039" (1mm) |
$1.15 |
|
|
SBO10.2 |
10.2 |
.039" (1mm) |
$1.15 |
|
|
SBO10.5 |
10.5 |
.039" (1mm) |
$1.15 |
|
SBS (Square Belt Small) belts are typically used in standard cassette decks. These belts are 1.2mm thick. I.C. (inside circumference) is shown in inches.
|
|
Part # |
I.C.* |
Thickness |
Price ea |
Purchase |
|
SBS2.0 |
2.0 |
.046" (1.2mm) |
$1.05 |
|
|
SBS2.2 |
2.2 |
.046" (1.2mm) |
$1.05 |
|
|
SBS2.4 |
2.4 |
.046" (1.2mm) |
$1.05 |
|
|
SBS2.6 |
2.6 |
.046" (1.2mm) |
$1.05 |
|
|
SBS3.0 |
3.0 |
.046" (1.2mm) |
$1.05 |
|
|
SBS3.2 |
3.2 |
.046" (1.2mm) |
$1.05 |
|
|
SBS3.5 |
3.5 |
.046" (1.2mm) |
$1.05 |
|
|
SBS4.0 |
4.0 |
.046" (1.2mm) |
$1.05 |
|
|
SBS4.3 |
4.3 |
.046" (1.2mm) |
$1.05 |
|
|
SBS4.6 |
4.6 |
.046" (1.2mm) |
$1.05 |
|
|
SBS5.1 |
5.1 |
.046" (1.2mm) |
$1.05 |
|
|
SBS5.6 |
5.6 |
.046" (1.2mm) |
$1.05 |
|
|
SBS6.2 |
6.2 |
.046" (1.2mm) |
$1.05 |
|
|
Part # |
I.C.* |
Thickness |
Price ea |
Purchase |
|
SBS6.7 |
6.7 |
.046" (1.2mm) |
$1.05 |
|
|
SBS7.0 |
7.0 |
.046" (1.2mm) |
$1.05 |
|
|
SBS7.4 |
7.4 |
.046" (1.2mm) |
$1.05 |
|
|
SBS8.0 |
8.0 |
.046" (1.2mm) |
$1.15 |
|
|
SBS8.4 |
8.4 |
.046" (1.2mm) |
$1.15 |
|
|
SBS8.9 |
8.9 |
.046" (1.2mm) |
$1.15 |
|
|
SBS9.5 |
9.5 |
.046" (1.2mm) |
$1.15 |
|
|
SBS10.0 |
10.0 |
.046" (1.2mm) |
$1.15 |
|
|
SBS10.5 |
10.5 |
.046" (1.2mm) |
$1.15 |
|
|
SBS11.4 |
11.4 |
.046" (1.2mm) |
$1.15 |
|
|
SBS12.4 |
12.4 |
.046" (1.2mm) |
$1.15 |
|
|
SBS13.6 |
13.6 |
.046" (1.2mm) |
$1.15 |
|
|
SBS15.0 |
15.0 |
.046" (1.2mm) |
$1.15 |
|
|
SBS16.0 |
16.0 |
.046" (1.2mm) |
$1.15 |
|
|
SBS17.0 |
17.0 |
.046" (1.2mm) |
$1.15 |
|
You may be wondering how to measure the sizes of your existing belts. Click here
to find out how. |
FLAT BELTS FOR CASSETTE DECKS
FBS (Flat Belt Small) belts are typically used in cassette decks |
|
Part # |
I.C.* |
Thick (") |
Width (") |
Price ea |
Purchase |
|
FBS5.8 |
5.8 |
.025 |
.125-.15 |
$1.15 |
|
|
FBS6.7 |
6.7 |
.025 |
.125-.15 |
$1.15 |
|
|
FBS7.0 |
7.0 |
.025 |
.125-.15 |
$1.15 |
|
|
FBS7.5 |
7.5 |
.025 |
.125-.15 |
$1.15 |
|
|
FBS8.0 |
8.0 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS8.4 |
8.4 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS9.0 |
9.0 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS9.6 |
9.6 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS9.9 |
9.9 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS10.5 |
10.5 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS10.7 |
10.7 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS11.0 |
11.0 |
.025 |
.125-.15 |
$1.25 |
|
|
FBS12.1 |
12.1 |
.025 |
.125-.15 |
$1.25 |
|
You may be wondering how to measure the sizes of your existing belts. Click here
to find out how.
|
