Click on photo for
larger view |
ELECTROLYTIC
Electrolytic Capacitor Kit, FOR
CERTAIN MARSHALL JMP, JCM800 AND SILVER JUBILEE AMP MODELS. OR
KIT, FOR
CERTAIN MARSHALL JCM800 AND JCM900 SERIES. See specific model
numbers below.
Available in Top Premium (F&T/Sprague) or Prime (JJ).
Fits Marshall amps which have 3 can
capacitors (50uF+50uF/500V) mounted to the chassis.
| JMP
SERIES |
JCM800
SERIES |
SILVER JUBLIEE |
| 1961,
1985, 1986, 1987, 1987T, 1989, 2204 |
1986,
1987, 2204, 2210, 4010, 4104, 4211
LATER 2203, 4103 |
2550, 2553, 2554, 2555, and 2558 |
Contains 3 50uf+50uf/500V dual can capacitors, and two
axial lead EL-CAP-10/160. Available in Top Premium, Prime, or Pro grade
capacitors.
|
Top Premium Set:
3 F&T 50uF+50uF -500V
2 Sprague 10uF-150V
$65.95 |
Prime Set:
3 JJ 50uF+50uF-500V
2 Illinois 10uF-160V
$56.95 |
Note: This set is not for the early
versions of the JCM800 2203 and 4103 from 1981-1987.
Part #MCK-1 |
Top Premium Set:
$65.95Prime Set:
$56.95
|
|
Click on photo for
larger view |
ELECTROLYTIC
Electrolytic Capacitor Kit, FOR
CERTAIN MARSHALL JCM800 AND JCM900 SERIES. See specific model numbers below.
Available in Top Premium (F&T/Sprague), or Prime (JJ). Fits
Marshall amps which have 2 can capacitors (50uF+50uF/500V) mounted to the
chassis.
| JCM800
SERIES |
JCM900 SERIES |
| 2205,
4210, 4212 |
2100, 2101, 2100SL-X, 2101SL-X, 2500, 2501,
2502, 2500SL-X, 2501SL-X, 2502SL-X, 4100, 4101, 4102, 4500, 4501,
and 4502 |
Contains 2 50uf+50uf/500V dual can capacitors, and two
axial lead EL-CAP-10/160. Available in Premium, or Prime, or Pro grade
capacitors.
|
Top Premium Set:
2 F&T 50uF+50uF -500V
2 Sprague 10uF-150V
$48.99 |
Prime Set:
2 JJ 50uF+50uF-500V
2 Illinois 10uF-160V
$39.95 |
Part #MCK-2 |
Top Premium Set:
$48.99
Prime Set:
$39.95
|
|
Click on photo for
larger view |
ELECTROLYTIC
Electrolytic Capacitor Kit, FOR
CERTAIN MARSHALL 100 WATT JMP and JCM800 Models. See specific model numbers below.
Available in Top Premium (F&T/Sprague), or Prime (JJ). Fits
Marshall amps which have 6 can capacitors (50uF+50uF/500V) mounted to the
chassis.
| JMP
SERIES |
JCM800 SERIES |
| 1959,
1986, 1987, 1992, 2103, 2104, 2203, 2204 |
EARLY 2203
and 4103
1959, 1992 |
Contains 6 50uf+50uf/500V dual can capacitors, and two
axial lead 10uF/150V. Available in Top Premium, or Prime grade
capacitors.
|
Top Premium Set:
6 F&T 50uF+50uF - 500V
2 Sprague 10uF-150V
$121.95 |
Prime Set:
6 JJ 50uF+50uF-500V
2 Illinois 10uF-160V
$110.95 |
Part #MCK-3 |
Top Premium Set:
$121.95
Prime Set:
$110.95
|
|

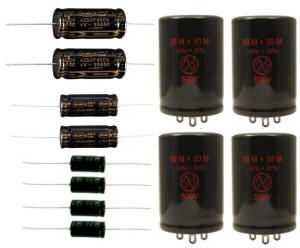

Prime Capacitor Set Shown:
Click on photo for
larger view |
ELECTROLYTIC
Electrolytic Capacitor Kit, FOR
MARSHALL 9005 RACK-MOUNT POWER AMP.
Available in Top Premium (F&T/Sprague) or Prime (JJ/Illinois).
This capacitor set replaces the electrolytic filter capacitors in both channels
of the Marshall 9005 power amplifier.
|
Premium Set:
4 F&T 50uF+50uF-500V
2 F&T 30uF/500V
2 F&T 10uF/5000V
4 Sprague 10uF-150V
$128.95 |
Prime Set:
4 JJ 50uF+50uF-500V
2 Illinois 33uF/450V
2 Illinois 10uF/500V
4 Illinois 10uF-160V
$98.95 |
Part #MCK-4 |
Top Premium Set:
$128.95
Prime Set:
$98.95
|
|
Click on photo for
larger view |

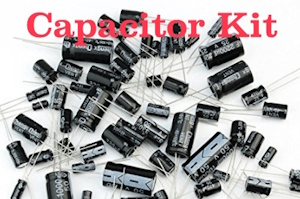

CAPACITOR KIT, FOR
MARSHALL
EARLY VERSION
Lead 12 MicroStack (Model 3005) or the Lead 12 1x10 Combo (Model
5005) Contains
the following filter capacitors, used as main and low voltage filters in the
3005 and 5005 Lead 12 Models.
- 2 2200uF-50V (Main Filters - Replaces
2200uF-25V
- 3 22uF-50V (Decoupling Filters)
- 1 100uF-35V (Rolloff
Filter)
This kit is for the early version of the Lead
12, which did had only one jack next the power switch (some didn't have a jack
there at all). See below:
Part #MCK-5 |
$11.95 |
|
|
CAPACITOR KIT, FOR
MARSHALL
LATER VERSION
Lead 12 MicroStack (Model 3005) or the Lead 12 1x10 Combo (Model
5005) Contains
the following filter capacitors, used as main and low voltage filters in the
3005 and 5005 Lead 12 Models.
- 2 2200uF-25V Radial (Main Filters)
- 3 22uF-50V (Decoupling Filters)
- 1 100uF-25V (Rolloff
Filter)
- 1 2.2uF-50V (Coupling Capacitor)
This kit is for the later version
of the Lead 12, which has TWO jacks next to the power switch. See
below:
Part #MCK-5A |
$11.95 |
|
Click on photo for
larger view |
CAPACITOR KIT, FOR
MARSHALL™
Lead 100 MOSFET (Model 3210)
Contains
the following electrolytic capacitors, which includes all axial electrolytic
capacitors used in the Lead 100 Mosfet Model 3210:
- 2 2200uF-50V
- 3 100uF-25V
- 4 47uF-63V
- 8 22uF-50V
Download the installation
guidelines
Part #MCK-6 |
$35.95
|
|
Click on photo for
larger view |
CAPACITOR, AXIAL LEAD ELECTROLYTIC, 70 uF/100V,
0.84" L x 0.51" DIA, 85° C.
Part #C-GE-70-100
|
$1.29 |
|
 |
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads. Tolerance
±5%. Dipped in epoxy coating. (See Options)
1000pF = 1nF = 0.001uF
Part #C-SM-XX |
Starting at
$0.80 |
|
 |
CAPACITOR, POLYPROPYLENE, RADIAL. Similar to orange drop style, rated
at 630 volts. Values from 0.001uF to 0.47uF
Radial leads. (See Options)
Part #C-PR-XX |
Starting at
$0.30 |
|
 |
CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at
630 volts. Values from 0.001uF to 0.47uF. Axial Leads.
(See Options)
Part #C-MF-XX |
Starting at
$0.90 |
|
Click on photo for
larger view |
 CAPACITOR, F&T BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Made
in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their great stability and
reliability. Values available include 10uF/500V, 16uF/475V, 22uF/500V,
30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.
Choose capacitor value under the Select Option box.
Part #FT-CAP-XX |
Starting at
$4.95 |
|
Click on photo for
larger view |
CAPACITOR, F&T BRAND, DUAL CAN 16uF+16uF @ 450V. Direct replacement for LCR type capacitors popular in Marshall™
and Vox™ amps. This is a dual can style capacitor
16uF/16uF rated at 450 volts. Solder terminals for attaching wire
leads. 1 3/8" diameter X 2" tall. Very low ripple.
Clamp may be ordered separately below.
Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche,
F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their superior stability
and
reliability.
Part #FT-1616 |
$17.95 |
|
Click on photo for
larger view |
CAPACITOR, F&T BRAND, DUAL CAN 32uF+32uF @ 500V. Direct replacement for LCR type capacitors popular in Marshall™
JMP and JCM900 series amps. This is a dual can style capacitor
32uF/32uF rated at 500 volts. Solder terminals for attaching wire
leads. 1 3/8" diameter X 2" tall. Very low ripple.
Clamp may be ordered separately below.
Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche,
F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their superior stability
and
reliability.
Part #FT-3232 |
$18.95 |
|
 |
CAPACITOR, F&T BRAND, DUAL CAN 50uF+50uF @ 500V Direct replacement for LCR type capacitors popular in Marshall™
JMP and JCM900 series amps. This is a dual can style capacitor
50uF/50uF rated at 500 volts. Solder terminals for attaching wire
leads. 1 3/8" diameter X 2" tall. Very low ripple.
Clamp may be ordered separately below.
Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their great tone and
reliability.
Part #FT-5050 |
$19.95 |
|
 |
CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style
capacitors. Part #CC-122 |
$2.50 |
|
|
|
 Sprague Premium
Axial Capacitors |
|
|
Click on photo for
larger view |
SPRAGUE AXIAL 10uf/150V
Replacement
for the 10uF/160V axial bias filter capacitors commonly found in vintage
Marshall™
amps from the 1960s through the 1990s. Sprague, founded in 1926, is considered
one of the premier capacitor manufacturers in the world.
Part #SP-CAP-10-150 |
$4.95 |
|
|
|
 Tube
Amp Doctor Premium Capacitors |
|
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 8uF-475V
12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.
Part #TAD-CAP-8-475 |
$4.75
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 16uF-475V
12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC
Part #TAD-CAP-16-475 |
$4.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 220uF-350V
25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC
Part #TAD-CAP-220-350 |
$19.95
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 25uF-25V
6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps
Part #TAD-CAP-25-25 |
$1.75
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 5uF-50V
5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit
of many Fender amps
Part #TAD-CAP-5-50 |
$3.50
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 47uF-500V
22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC
Part #TAD-CAP-47-500 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 70uF-350V
18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC
Part #TAD-CAP-70-350 |
$8.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 80uF-100V
9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps
Part #TAD-CAP-80-100 |
$4.95
In stock |
|
|
|
 JJ
Electronic Premium Capacitors |
|
|
 |
CAPACITOR, JJ ELECTRONIC, direct replacement for LCR type capacitors popular in Marshall™
JCM900 series amps. This is a dual can style capacitor
50uF/50uF rated at 500 volts. Solder terminals for attaching wire
leads. 1 3/8" diameter X 2" tall. Very low ripple.
Clamp may be ordered separately above.
Made in the Slovak Republic in eastern Europe. Founded in 1993 by Jan
Jurco, JJ Electronic is a world-renowned manufacturer of vacuum tubes,
electrolytic capacitors and high-end audio amplifiers.
Part #JJ-5050 |
$17.95 |
|
|
|
 Ruby
Gold Premium Capacitors |
|
|
Click on photo for
larger view |
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD
ELECTROLYTIC, 220uF-350V Ruby
Gold capacitors are used by many original amplifier manufacturers in Europe and
the U.S.A. Ruby Gold Capacitors are rated at 105° C for longer life,
improved stability in the hot environment of tube amplifiers, and increased
protection against electrolyte deterioration. Ideal as replacement
in vintage audio and guitar amplifiers. 220uF/350V.
Part #RG-CAP-220-350 |
$8.99 |
|
|
|
MOD Axial Capacitors |
|
|
Click on photo for
larger view |
 MOD™ CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Mod™ Electronics electrolytic capacitors offer long-lasting performance at the
highest degree. These capacitors are designed with tube amplifiers in mind; each
capacitor is rated at 105°C. This temperature rating provides a highly-stable
capacitance in any device, be it vacuum tube or solid state. The Mod™
electrolytic capacitor line features capacitance values that are common in many
vintage amplifiers. Values available include
8uF/150V, 8uF/475V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.
Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX |
Starting at
$1.00 |
|
|
|
Illinois
Capacitor  Electrolytic Capacitors |
|
|
Click on photo for
larger view |
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years
later continues to produce benchmark quality capacitors for industry.
Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American
capacitor manufacturer tracing its roots to 1909. Values available include
2.2uF/50V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V,
47uF/63V, 47uF/500V, 80uF/450V,
100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V. Choose capacitor value
under the Select Option box.
Part #IC-CAP-XX |
Starting at
$0.99 |
|
 |
CAPACITOR, ILLINOIS 5000uF/55V Axial electrolytic 5000uF@55V with
axial leads.
Part #IC-CAP-5000-55 |
$5.99 |
|
|
|
Axial Electrolytic Capacitors - Other Brands |
|
|
Click on photo for
larger view |
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Values
available include the following:
|
25uF/25V |
100uF/25V |
220uF/25V |
2200uF/25V |
|
100uF/50V |
0.68uF/50V |
25uF/50V |
|
| |
47uF/63V |
70uF/100V |
100uF/100V |
| |
8uF/150V |
10uF/160V |
100uF/350V |
|
220uF/350V |
4.7uF/450V |
8uF/450V |
10uF/450V |
| |
22uF/450V |
33uF/450V |
47uF/450V |
|
16uF/475V |
20uF/500V |
20uF/600V |
80uF/500V |
Choose capacitor
value under the Select Option box.
Part #EL-CAP-XX |
Starting at
$1.00 |
|
 |
CAPACITOR, electrolytic 10uF @ 160V with axial leads.
Replaces 10uF @ 100V. Used in the Marshall JCM800 and JCM900 series amplifiers.
Part #EL-CAP-10-160 |
$1.00 |
|
|
|
CAPACITOR, electrolytic 33uF @ 450V with axial leads. Used in the Marshall JCM900 series amplifiers.
Part #EL-CAP-33-450 |
$3.99 |
|
 |
CAPACITOR, electrolytic 100uF @ 50V with radial leads. Used in
the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-100-50 |
$0.39 |
|
 |
CAPACITOR, electrolytic 1000uF @ 16V with radial leads. Used in
the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-1000-16 |
$0.77 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 10uF @ 450V with radial leads. 10mm Diameter,
21mm tall. Used in many PC
board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™,
B52, many others.
Part #RAD-10-450 |
$1.95 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 22uF @ 450V with radial leads. 132.5mm Diameter, 25mm tall. Used in many PC
board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™,
B52, many others.
Part #RAD-22-450 |
$2.50 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 33uF @ 450V with radial leads. 16mm Diameter,
26.2mm tall. Used in many PC
board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™,
B52, many others.
Part #RAD-33-450 |
$2.95 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 47uF @ 450V with radial leads. 16mm Diameter,
31.7mm tall. Used in many PC
board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™,
B52, many others.
Part #RAD-47-450 |
$3.95 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 100uF @ 450V with radial snap-in leads.
Made by Nippon Chemi-Con. 22mm Diameter, 26mm tall.
Used in many PC board tube amplifiers, such as Marshall™, Orange, Randall™,
B52, Crate, Peavey, many others.
Part #RAD-100-450 |
$6.95 |
|
Click on photo for
larger view |
RADIAL ELECTROLYTIC
CAPACITOR, 10,000uF @ 16V. This
size filter capacitor is commonly found in amplifiers which use DC voltage on
the filaments of some of the preamp tubes. Found in Marshall™,
Mesa-Boogie™ as well as other brands. Working temperature range -40°C to
+105°C. 18mm diameter, 35mm tall (approximately 11/16" diameter X 1
3/8" tall)
Part #10000-16 |
$2.49 |
|
|
|
CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style
capacitors. Part #CC-122 |
$2.50 |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
