Curtis Mathes, GE, Magnavox, Panasonic, JC Penney, Quasar, Sylvania, and Teknika VCR replacement rubber kits.
 VMK-156 |

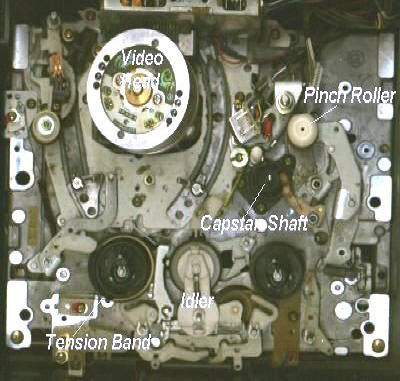

Our VMK-156 Kit is a complete maintenance kit for these VCRs. It contains both belts, the pinch roller and a replacement idler assembly. The parts in this kit are the parts that cause the majority of problems in these VCRs. The VCRs that this kit is designed for are fairly old but solid work horses. Your price is $14.95 See Chassis photos for parts placement |
 MBK-07: |
Contains both belts, Capstan/idler belt, and the load belt. Bad belts in these VCRs can cause problems like, tries to power up then shuts down, lines in the picture, eats tape, and fast forward and rewind failure. Even though there are only two belts in the VCR they control most functions of the mechanical section. Your price is $2.95 See Chassis photo for belt placement |
 MBK-07T: |
Contains both belts, Capstan/Idler belt, and the load belt and the idler tire. The tire is the only part of the idler assembly that normally needs to be replaced. The tire drives the reels in both play/record and fast forward/rewind. A bad tire can cause the VCR to eat tapes, fail in rewind or fast forward, fail to play or record. Your price is $3.95 See Chassis photo for parts placement |
 MBK-07PT: |
Contains both belts, Capstan/Idler belt, and the load belt. This kit also contains a replacement idler tire and pinch roller. If the pinch roller has a hard glaze on it or the capstan shaft has a black buildup, the pinch roller has probably been slipping. This kit is a complete rubber replacement kit for these VCRs built by Panasonic. Your total cost is $11.00 See Chassis photos for parts placement |
 MBK-07-IA: |
If the idler fails to make contact with the take-up reel, you may need to replace the idler assembly. The spring in the idler will lose tension and cause a no play situation. Your total price is $5.50 See Chassis photo for idler placement |
