Panasonic, Canon VCR replacement rubber kits.
 MBK-121-CB |
Contains the carriage belt by itself. This small belt controls the carriage (cassette housing) operation, and is only applicable on the Panasonic AG-1800 and NV-H65PX, and the Canon VR-HF600A. If you have the Panasonic AG-1810, NV-H70PX, or the Canon VR-HF700A, VR-HF710A or VR-HF720A, this belt is not used. Your price is $1.25. |
 MBK-121 |

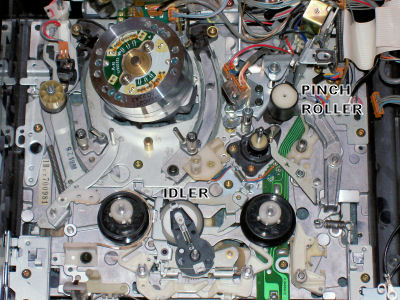

Contains the capstan/idler belt, and the load belt. Does not include the carriage belt used in some models (see above). Bad belts in these VCRs can cause problems such as an attempt to power up then shuts down, lines in the picture, eats tape, and fast forward and rewind failure. Even though there are only two belts in the main operational section of the VCR, they control most functions of the mechanical section. Your price is $2.50. See Chassis photo for belt placement |
 MBK-121T |
Contains capstan/idler belt and the load belt and the two idler tires. Does not include the carriage belt used in some models (see MBK-121-CB, above). The tires are the only part of the idler assembly that normally needs to be replaced. The tires drive the reels in both play/record and fast forward/rewind. Bad tires can cause the VCR to eat tapes, fail in rewind or fast forward, fail to play or record. Your price is $4.50  See Chassis photo for parts placement |
 MBK-121PT |
Contains both belts, both idler tires, and the pinch roller. If the pinch roller has a hard glaze on it or the capstan shaft has a black buildup, the pinch roller has probably been slipping. This kit is a complete rubber replacement kit for these VCRs built by Panasonic. Your total cost is $11.00 See Chassis photos for parts placement |
 MBK-121-IA: |
If the idler fails to make contact with the take-up reel, you may need to replace the idler assembly. The spring in the idler will loose tension and cause a no play situation. Your total price is $5.50 See Chassis photo for idler placement |
