Contains the only belt used in these Hitachi VCRs.   The most common symptom of a worn belt is the VCR will fail to load, or unload tape properly.  VCR will fail to eject tape.   Your price for our MBK-17 kit is $1.25.

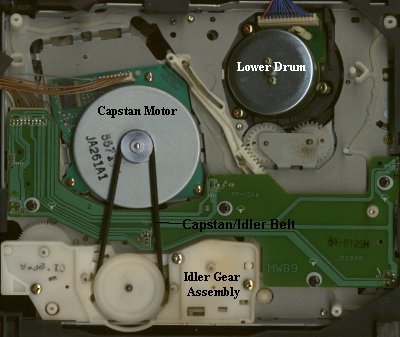

See photo for belt location

This kit contains the capstan/idler belt and the pinch roller.  If the pinch roller has never been replaced your VCR probably needs one.  This kit is a complete rubber replacement kit for these Hitachi manufactured VCRs.  Your price for our MBK-17P kit is $7.75.

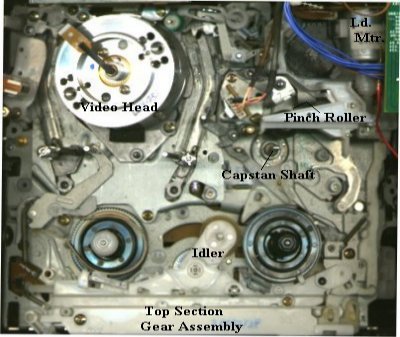

See photo for pinch roller location

Instructions for removing pinch roller assembly on these models

If the pinch roller has never been replaced your VCR probably needs one.  If the roller has a hard glaze on it or the capstan shaft has a black build up the roller has probably been slipping.   Your price for our MBK-17-PR is   $6.50.

See photo for pinch roller location

Instructions for removing pinch roller assembly on these models

The idler in these Hitachi units will warp and cause the VCR to eat tape.  A visual inspection of the idler should be sufficient to determine if your VCR has an idler problem.   Your price for our MBK-17-I is   $4.50.

See photo for Idler location

The Idler Gear Assembly in these Hitachi VCRs is a common source of problems.  The most common symptom of a weak gear assembly is the VCR eating tape.  The VCR may also display tracking lines that wont track out and warble in the audio  Your price for our MBK-17-IGA kit is   $15.38.

See photo for Idler Gear Location

Our MBK-17-MNT kit solves the most common problems with these VCRs  The kit includes both rubber parts, the belt and pinch roller.   This kit also includes a new idler.   The idler is a common source of problems in these VCRs and should be replaced as a part of routine maintenance.   Your total price for our MBK-17-MNT kit is   $12.00.

See photos for parts locations

Instructions for removing pinch roller assembly on these models

There are a couple of common problems with these Hitachi VCRs, besides belts which are a common problem with all VCRs.  This kit covers all of the common problems in these VCRs.  It contains a replacement Gear Block Assembly, Idler, Belts, and Pinch Roller.  Your total price for our MBK-17-OH kit is   $25.50.

See photos for parts locations

Instructions for removing pinch roller assembly on these models

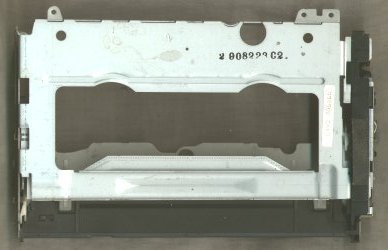

The cassette carriage has some problems in these VCRs.   There is a rod that goes all the way across the bottom of the carriage, with an arm/lever on both ends of it and a gear on one end.   Either or both of the levers may crack or the gear will break causing the carriage to fail to load cassettes.   Our MBK-17-CRK kit takes care of all of these common problems.   Your price for our MBK-17-CRK is   $10.85.
