Panasonic, Curtis Mathes, Crosley, GE, Magnavox, Memorex, Optimus, Philco, Philips, Quasar, RCA, Realistic, and Sylvania VCR replacement parts kits.
 MBK-22: Belt Kit |

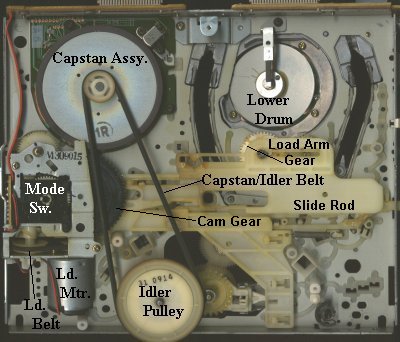

Our MBK-22 kit contains both belts that are used in these Panasonic VCRs. Belts can cause a good many problems in these VCRs. One belt drives the idler, which handles tape movement through the VCR. The other belt drives the load assy. Belt problems can range from lines in the picture to shuts down after power up to wont take a cassette. Belts should be your first trouble shooting step. Your price for our MBK-22 kit is $3.95. See photo for location of Belts |
 MBK-22P:Complete Rubber Kit |

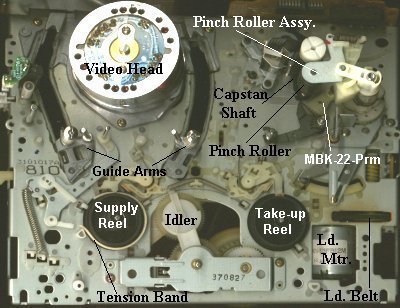

This kit contains both belts and the pinch roller. If the pinch roller has never been replaced your VCR probably needs one. If the old roller has a hard glaze on it or the capstan shaft has a black build up the roller has probably been slipping. This kit is a complete rubber replacement kit for these Panasonic VCRs. Your price for our MBK-22P kit is $12.95. See photo for location of Pinch Roller |
 MBK-22-PR:Pinch Roller |
The pinch roller pulls the tape thorough the VCR in play and record mode. If the pinch roller has never been replaced your VCR probably needs one. If the old roller has a hard glaze on it or the capstan shaft has a black build up the roller has probably been slipping. Your price for our MBK-22-PR kit is $8.95. See photo for location of Pinch Roller |
|
|
The mode switch in these Panasonic VCRs is a common source of problems.
The VCR may accept a cassette and load it into the play position.
Then unload the tape and eject. The Mode Switch can also case other
problems. Soldering is required for replacing the mode switch. Your
price for our MBK-22-MSW is $9.95.   Instructions
for installation (PDF)
See photo for location of Mode Switch |
 MBK-22-OH: Overhaul Kit |
Our Overhaul Kit for these Panasonic VCRs consist of both belts, pinch roller,
and mode switch. This kit takes care of all of the common problems with
these VCRS. Soldering is required to replace the mode switch. Your price
for our MBK-22-OH kit is $19.95. Instructions
for installation (PDF)
See photos for parts location |
 MBK-22-CG: |

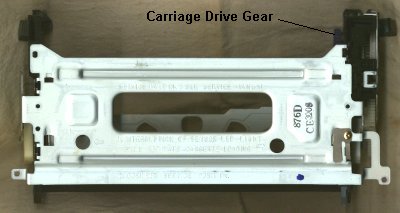

The Carriage Gear in these VCRs is a common source or problems. The gear that drives the carriage will strip or break teeth and cause the VCR to fail to load a cassette. If the Carriage Drive Gear in your VCR is white, you probably need to replace it. The replacement gear is blue and much more durable than the original white gear. Your price for our MBK-22-CG is $3.95. See photo for location of Carriage Gear |
 MBK-22-LAG: |
The Load Arm Gear in these VCRs is another common source of problems. The gear that drives the guide arms will strip or break teeth and cause the VCR to fail to load tape around the video head. Your price for our MBK-22-LAG is $6.95. See photo for location of Load Arm Gear |
 MBK-22-MSLD: |
The Main Slide Plate in these VCRs is another common source of problems. The Slider will break and cause the VCR to lock up. You may hear a clicking or popping noise as the VCR tries to go into play or record mode. Inspect the Slide Rod for cracks or breaks. Your price for our MBK-22-MSLD is $5.95. |
 MBK-22-LDR |
The cassette carriage assembly in these VCRs is a common source of problems. We carry a new replacement for the carriage assembly. Your price for our MBK-22-LDR is $26.85.
|
