Our MBK-74 series of parts covers about fifty VCR models by Emerson, Broksonic, Orion, and Sansui.
 MBK-74: Belt Kit |
Our MBK-74 kit contains all four belts that are used in these VCRs. The belts are used to drive the clutch that drives the idler and for loading and unloading. Common problems are no play, poor picture, or lines in the picture Since a belt also drives the gears that move the carriage cassette load and eject problems are also common with bad belts. Your price for our MBK-74 kit is $5.00. See photos for belt locations. |
|
|
This kit is a complete rubber replacement kit for these Emerson built VCRs. It contains all four belts and the pinch roller. If the pinch roller has never been replaced you really need one. If the pinch roller has a hard glaze on it or the capstan shaft has a black build up on it the pinch roller has probably been slipping. Your price for our MBK-74P kit is $11.50. See photos for parts locations. |
 MBK-74-I: Idler |
The idler is a common source of problems in these VCRs. The idler can cause problems such as no play, no FF, no REW, eats tape, and wont eject. Your price for our MBK-74-I is $9.75. See photos for parts locations. |
 MBK-74-MSW: Mode Switch |
The mode switch is another common cause of problems in these VCRs. Mode switch problems range from will not accept tape to takes a tape then shuts down. It is also common for a bad mode switch to cause the VCR to rewind for a few seconds then shut down shortly after power on. Soldering is required for installation. Your price for our MBK-74-MSW is $5.50. See photos for parts locations. |
|
|
The VMK-E1975 kit includes all of the mechanical items which commonly cause problems in this chassis: The belts, the pinch roller and the idler assembly. The VMK-E1975 kit sells for $17.95.  Instructions for installation (PDF)
|
|
|
Many of the problems with these VCRs can be caused by several different parts. Our MBK-74-OH overhaul kit includes all of the parts that commonly fail in these Orion/Emerson built VCRs. The overhaul kit includes all four belts, the pinch roller, the idler, and the mode switch. Our overhaul kit will take care of all of the common problems with these units. Your price for our MBK-74-OH is $21.95.Instructions for installation (PDF)
See photos for parts locations. |

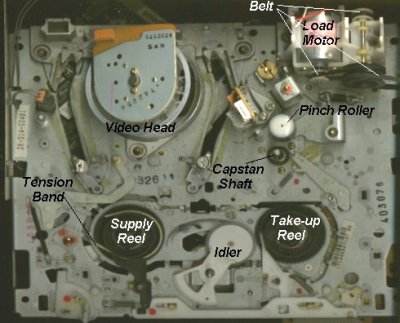

Top view of Emerson Chassis
Our MBK-74 Series of parts are for this chassis

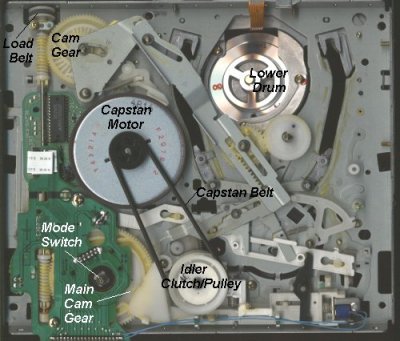

Bottom view of Emerson Chassis
Our MBK-74 Series of parts are for this chassis
