Roland and Boss Parts



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB3C1D.   Input impedance 250 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for vertical wall, long axis horizontal, connectors down.   Common replacement for Marshall™ 3203, 4203, 5275 and some ValveState models.   Also is an upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212, and an upgrade tank for the Roland JC90.  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4DB3C1D

"Bringing back the sound of vintage USA-built Accutronics tanks"

$46.95





Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2D1A Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side up.   May be used in some Roland JC120 (very early versions and also the JC120UT.   The 8DB2C1B is used in some other versions of the Jazz Chorus 120).   Unsure?   Measure input resistance on old tank - if it is less than 5 ohms, the 2AB2D1A is the replacement) Also used in the Roland Space Echo RE-501, RE-301, and RE-201.  as well as the Roland Bolt 60, and the Roland Jazz Chorus JC77.  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #2AB2D1A

"Bringing back the sound of vintage USA-built Accutronics tanks"

$32.95







Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2D1B Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side down.  Found in some versions of the Roland Space Echo RE-501 and RE-201 with the tank mounted on the bottom.  Also used in the Acoustic G60T (Model 162 or Model 163).  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #2AB2D1B

"Bringing back the sound of vintage USA-built Accutronics tanks"

$32.95







Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2D1AShort Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side up.   Found in some Roland JC120 (very early versions and also the JC120UT).   Found in the Roland™ JC60.  The 8DB2C1B is used in some other versions of the Jazz Chorus 120.   Unsure?   Measure input resistance on old tank - if it is less than 5 ohms, the 8AB2D1A is the replacement) Also used in the Roland Space Echo RE-501, RE-301, and RE-201. as well as the Roland Bolt 60, and the Roland Jazz Chorus JC77.  Used in the Gibson G60T tube amp.   See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

For an equivalent tank in a 2-spring version for 25% less, see the 2AB2D1A tank in this section

View the 2-year warranty details here.
Part #8AB2D1A

"Bringing back the sound of vintage USA-built Accutronics tanks"

$43.95



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2D1BShort Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side down.  Found in some versions of the Roland Space Echo RE-501 and RE-201 with the tank mounted on the bottom.  Also used in the Acoustic G60T (Model 162 or Model 163).  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

For an equivalent tank in a 2-spring version for 25% less, see the 2AB2D1B tank in this section

View the 2-year warranty details here.
Part #8AB2D1B

"Bringing back the sound of vintage USA-built Accutronics tanks"

$43.95



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1EShort Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output.  Mounts on vertical wall with long axis vertical, input side up.  Primarily used BY Roland GC-408, Roland Jazz Chorus JC90, Roland Jazz Chorus JC120B as well as some other versions (the 8AB2D1A is also used in certain JC120 models ... Unsure?  Measure resistance of the input side of the old tank.   If it is around 35 ohms or so, the 8DB2C1E is correct).  Also the Roland Cube 40 and Cube 60 models from the 1980s, and the Roland Blues Cube BC60 from the 1990s.   See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8DB2C1E

"Bringing back the sound of vintage USA-built Accutronics tanks"

$43.95


Click on photo for
 larger view

TACT SWITCH, PC MOUNT
Fits the following:  Boss ME-5.  Casio CZ-1000, CZ-3000, CZ-5000.  Ibanez TS9 Tube Screamer.  Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61.  Kurzweil K1000, K1200, K2000.  Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606.  Yamaha DX7, DX9, KX88.  Oberheim Matrix 6/6R/1000.  Sequential Circuits Multi-Trak.   Boss part # 13129715.  Korg # 37505000.  Roland # 13129715.  Yamaha # KA905510.  12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99

FOOT SWITCH, REPLACEMENT FOR BOSS EFFECT PEDALS
Replacement for Boss effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511
$4.50


SET-SCREW
Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.   CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Small size 0.78" (20mm) diameter, 0.43" (11mm) tall, fits smooth 1/4" shaft.  Classic look found on Boss FX units.  With set screw.
Part #K-828
$1.95


SET-SCREW
Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.  CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Medium size 0.91" (23mm) diameter, 0.5" (12mm) tall, fits smooth 1/4" shaft.   Smooth silver top.  Classic look found on Boss FX units.  With set screw.
Part #K-348
$1.95


SET-SCREW
Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.  CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Large size 1.06" (27mm) diameter, 0.6" (15mm) tall, fits smooth 1/4" shaft.  Smooth silver top.  Classic look found on Boss FX units.  With set screw.
Part #K-372
$1.95


Click on photo for
larger view
ROLAND JACK NUT, FOR ROLAND AND ZOOM.   FITS MOST ROLAND KEYBOARD AND AMPLIFIER JACKS, AND SOME ZOOM PROCESSORS
Replacement jack nut for Roland products.  Fits Roland models AT-90S, JC120, KC60, CUBE-15XL, MICRO CUBE, JP-8080, HP-335, KR117M-PE, CUBE Street, BC30, BC60, BC210, BC310, JUNO-2, JX-10, KC100, KC350, KC550, KCW-1, FP8, MKS-20, MKS-50, MKS-70, U-20, U-220, D-50, D-550, RD-250, RD-300, CUBE-15, CUBE-30, CUBE-60, GP-16, TU-12, TU-12P and others.   Also fits Zoom Models 9030 and 9050 Processors from the 1990s.
Part #JN-756
$3.15


WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT,  ALSO USED IN YAMAHA, KORG, ROLAND, ENSONIQ.  CHROME SLEEVE, STEREO.
Used in certain Marshall™ G-series amps from the late 90s - compare with original jack.   Used as the CD input jack in the Marshall™ G15RCD and the G30RCD.   Genuine Marshall part number J1031.   Used for the Headphone output of the Roland S-50 and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.   It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards.  The jack is equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and Behringer part # W64-01081-03178.  Used in the Behringer V-Amp and P16-M.  The chrome sleeve at the jacks opening is cosmetic.  The jack will replace equivalent jacks that have a gold sleeve or no sleeve.   Nut and washer are included.  Replacement nut/washer set is the JN-916.  This is a stereo jack - unswitched tip, ring and sleeve.

Part #J-532
$4.75


4-PIN, WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", STEREO, 4-PIN SWITCHED, MADE BY KOBICONN OR JALCO, USED IN  KORG, YAHAMA & OTHERS, PC MOUNT   This 4-pin, PC mount, 1/4" stereo phone jack has a normally closed tip shunt and is used in a variety of amps and keyboards made by Yamaha Ensoniq, Marshall™, Ibanez, Casio, Korg, Roland and others.   Yamaha part number VM57600R.

Nut and washer are included.   Replacement nut/washer set is the JN-916.

Part #J-53
3
$4.75


3 PIN, WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", MONO, 3-PIN, INPUT, MADE BY KOBICONN,    Used in Marshall™, Korg, Yamaha, Roland, Behringer & others, PC Mount.  Chrome sleeve around jack entrance.   Gold sleeve also available, see J-539G.  Korg part number 454004300.  Behringer part number W64-01382-03176.  Roland part number 13449146.  Nut and washer are included.  Replacement nut/washer set is the JN-916.   This is a mono jack with a normally closed contact to the tip conductor.

Part #J-539
$5.75


Click on photo for
larger view
JACK, 1/4", BOSS PEDALS, OPEN CIRCUIT MONO, STEREO LUGS, METAL BUSHING
High quality Japanese made ¼” mono jack found in many Boss pedals. This jack has two solder lugs - one for the tip and one for the sleeve.  This style of jack has been widely used across the industry and can also be found in many Roland items.  Includes nut and washer.

Part #J-537
$4.95


Click on photo for
larger view
JACK, 1/4", BOSS PEDALS, OPEN CIRCUIT STEREO, SOLDER LUGS, METAL BUSHING
High quality Japanese made ¼” stereo jack found in many Boss pedals. This jack has three solder lugs - one for the tip, one for the ring, and one for the sleeve.  This style of jack has been widely used across the industry and can also be found in many Roland items.  Includes nut and washer.

Part #J-538
$4.95



Click on photo for
larger view

JACK, 5-PIN Low Profile, 1/4".  Used in some effects pedals, including certain Boss pedals.  Has 5 pins, located right down the center of the jack (one pin toward the front of the jack, then 2 rows of 2 pins each, centered).    Nut and washer are included,   Note:  Gold trim ring on face of jack.


Part #J-575
$4.50


Click on photo for
larger view

UNIVERSAL STYLE DUAL FOOTSWITCH WITH REMOVABLE CABLE.   Revisit™ replacement for foot switch boxes with stereo 1/4" plug for the amplifier connection.   10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug for connection at both the foot switch end and the amplifier end.    Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall™ JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.  The Acoustic Soloist:  AS80R.  Includes the dual footswitch box and the stereo cable (10 ft).
Advantages of the removable cable include:
  • Easy to replace cable - no disassembly or soldering needed
  • Easy to change to a different configuration footswitch by changing the cable (for example, to a mono Y-cord for Roland amps)
  • Cable has metal 1/4" plugs with spring strain reliefs for durability

Part #FBS-671

$44.95


Click on photo for
larger view
USB CONNECTOR, "A" type.   USED IN YAMAHA, KORG, ROLAND, Others.   "A" Type USB connector, found in a number of keyboards, processors, professional audio gear made by many manufacturers.   Right-angle PC mount 4-conductor.    Industry standard USB.   As found in the Korg Pa3X, Triton Extreme.   As found in the Yamaha MOXF8.
Part #J-427
$1.89


Click on photo for
larger view
USB CONNECTOR, "B" type.   USED IN YAMAHA, KORG, ROLAND, Others. Korg part number CON0001079, as found in the Korg SV1-73, and Triton Extreme.  Also found in the Access Virus T1, Akai MPK49 and MPK61, Alesis Q25, Q49, QX25, QX49, Dave Smith Prophet 12, Edirol PCR Series, M-Audio Axiom 49, Axiom Pro 49, Axiom 61, Axiom Pro 61, KeyRig Series, Keystation Series and Key Studio, Roland PCR Series Controllers, and Yamaha MM6, MM8, and S90, as well as other brands and models not listed.  Line 6 part number 21-21-0001, as found in many Line 6 guitar processors.
Part #J-437
$1.89

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D
$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Low-current, JFET input, TL062 Dual Op-Amp in 8-pin DIP package.   Compatible with TL072 designs, with significantly lower current draw.   Good choice for battery-operated pedals to increase battery life.
Part #TL062
$1.00

Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.60

High slew rate, JFET input, TL082 Dual Op-Amp in 8-pin DIP packag
Part #TL082
$1.90


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004
$0.35

+15V 1 amp Voltage Regulator - Metal Tab
Part #7815
$0.90

-15V 1 amp Voltage Regulator - Metal Tab
Part #7915
$0.90



Click on photo for
larger view
CUP WASHER, BLACK METAL, PACK OF 10.  Used with #8 Black screws, on amps and speaker cabinets.
Part #BCW-10
$2.49
(pack of 10)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 4.
Part #SC-409-4
$4.50
(For a pack of 4 screws with nuts and lock washers)



Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #6 screw, Pack of 10.
Part #SCR-435
$0.79
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.
Part #BWS8-5
$1.29
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.
Part #BWS8-75
$1.49
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.
Part #BWS8-1
$1.69
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.
Part #BWS8-15
$1.79
(pack of 10)




Click on photo for
larger view
CAGE NUT, ZINC, 10-32 THREAD.   Used on square-punched amp chassis rails to secure the chassis to the cabinet.   Frequently found in Peavey, Crate, Ampeg, other brands.   NOT used in Marshall™ - see the MCN-4.   Works with all 10-32 screws.   Verify screw thread before ordering, as not all cage nuts are 10-32.   Zinc coating retards oxidation.   Pack of 4 nuts.   Made in Canada by Hammond Industries.
Part CNA-1421
$4.29
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750
$4.95
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
Part #BRF-723
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

Part #BRF-1691
$5.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

Part #BRF-9105
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   Tapered: 1 3/16" Diameter At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112
$5.95
(pack of 4)



Click on photo for
larger view

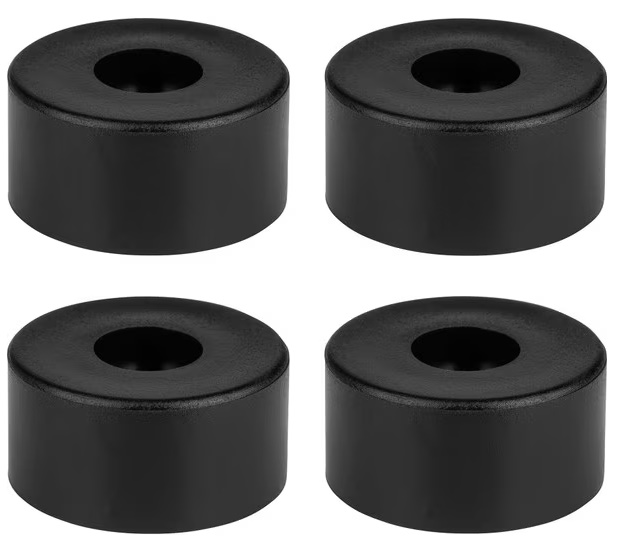

BLACK RUBBER FEET, SET OF 4

This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces.  The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  1.5" diameter x 0.75" high.   Screws not included.    Set of 4 feet.

Part #BRF-7517
$6.95
(pack of 4)



Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4.   TAPERED -  1 5/8" DIAMETER AT LARGE END, 1 1/4" AT SMALL END.  3/4" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT AMP HEADS, SPEAKER CABINETS.  MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9107
$7.95
(pack of 4)



Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender™ amps.   Designed for 5/16" cord diameter (3 conductor 18ga power cable).   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$12.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.   10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF EXTENSION CORDS.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST HEAVY-DUTY POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.34 inches (about 11/32" or 8.6mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC, rated at 16 amps maximum.  Used only in North America.
Part #PC-163SJT15
$19.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12
$18.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL
$9.95

1 foot long!


Click on photo for
larger view
1 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 1 ft (including plug and socket), 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.  Increases the ability of power strips to accept AC adaptors without blocking the adjacent outlet socket!   See inset photo for more info, click on it for a larger view.

Part #EC-5296
$5.95


Click on photo for
larger view
15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301
$19.95


Click on photo for
larger view
Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement straight plug with 24" cable and bare stripped and tinned conductors for soldering to speaker terminals.   Used to replace the speaker cable in some combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.
Round black professional cable with black and white color-coded 18ga wires, straight metal 1/4 inch plug and bare tinned conductors for soldering to speaker terminals.
Part #SCH-7085
$6.99


Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99



BUILD YOUR OWN Speaker Harness for Combo Amps:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view
PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.
Part #P-287
$3.95

Copyright ©2025 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.

All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
