Do-It-Yourself Speaker Repair Parts
6" Kits and Parts     8" Kits and Parts     10" Kits and Parts
12" Kits and Parts     15" Kits and Parts
Dust Caps     Gaskets     Tools and Supplies     Other Speaker Parts

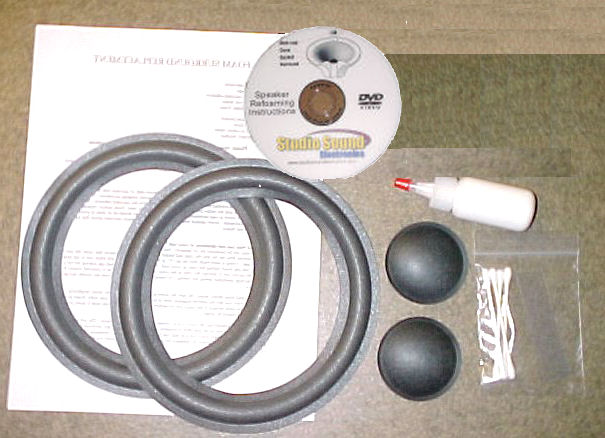

Repair your own speakers with our do-it-yourself foam surround replacement kits.


I was just writing to say that the speaker repair kit I ordered from you was exactly what I needed.  I had actually been looking at new speakers online when I came across your site.  With the instructions and parts you included, my 14-year-old daughter and I successfully restored my old mid-80's floor speakers to their original sound.  Apparently listening to vinyl records through 12" woofers is still cool.  She and I are both proud of the fact that we got the old system working so well and we did it for only $24.
Thanks,
Mike S.
Charlottesville, VA

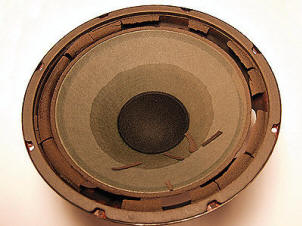

The Problem

The Solution

Deteriorated foam surrounds is one of the major problems with home speakers. The foam starts to crack and break after about 8 to 10 years. Our repair kits allow you to remove the old foam surround and easily reattach a new one.   What's the correct procedure for doing this?   Download our instruction sheet (in PDF format).   Or you can order our 20 minute detailed instructional DVD below.

Some refoam kits skip over the part about shimming the cone in place.   Sometimes skipping that step works, sometimes it doesn't.   When it doesn't, you're left with a speaker with a voice coil that is rubbing the magnet structure, resulting in a distorted sound and a shortened life for your speaker.   Our instructions give you the necessary directions to properly shim the voice coil, just as the professionals do.    This extra step is not difficult and takes only a few extra minutes per speaker, and ensures your success every time!

Before you order, please measure your old surround carefully.   The following diagram shows necessary measurements:

"A" is the outside diameter of the surround - to the very edge of the speaker gasket.  If the "A" dimension on our replacement surround is a little too large, you can trim off a little from the new surround with a scissors (perhaps 1/8").

"B" is the inside diameter of the surround - measured right across the center of the speaker.   This is a very important dimension, so measure carefully.

"C" is the diameter of the dust cap.   You have some choice on the type and size of dust cap you choose.   Sometimes you may want to choose a dust cap that is slightly larger than your old one.   That's perfectly OK!   Never choose a dust cap that is smaller than the old one, however.

Look at how the old foam surround attached to the cone.   Some surrounds are glued to the cone on the angled edge, as shown to the left.   This is called an angle surround.
Other surrounds attach to the cone along a thin flat edge on the outside of the cone, as shown to the left.   The type of surround that attaches in this way is called a flat surround.
6" Angled Kit
Contains two 6" angled foam surrounds.   Download instructions here.   Order additional needed supplies (glue, gaskets, knife, dust caps, etc below) Measurements:
A = 6 in
B = 4 1/8 in

How to measure
Angled vs Flat?
$13.95
(Contains two 6" angle surrounds)
Stock no: 6-AS
$13.95



8" Angled Kit

7 7/8" OD - 5 1/2" ID
Contains two 8" angled foam surrounds.   Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below) Measurements:
A = 7 7/8 in
B = 5 1/2 in

How to measure
Angled vs Flat?
$14.95
(Contains 2 8" angle surrounds)

Stock no: 8-AS-1
$14.95



8" Flat Kit

7 3/8" OD - 5 1/2" ID
Contains two 8" flat attach foam surrounds.   Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below) Measurements:
A = 7 3/8 in
B = 5 1/2 in

How to measure
Angled vs Flat?
$14.95
(Contains two flat 8"
 surrounds)
Stock no: 8-FS
$14.95



8" Cerwin-Vega
 Kit

Refoam Kit for 8" Cerwin-Vega foam-edge woofers.   Angle type attachment to the cone.   Contains two 8" angle attach red foam surrounds, sized to properly fit all 8" Cerwin-Vega foam-edge speakers. $18.95
(1 kit completes two speakers)
Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)
Stock no: 8-VEGA
$18.95



10" Angled Kit #1

9 3/4" OD - 7 1/2" ID
Contains two 10" angled foam surrounds.   Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)  Measurements:
A = 9 3/4 in
B = 7 1/2 in
How to measure
Angled vs Flat?
$15.95
(Contains two angle 10"
 surrounds)
Stock no: 10-AS-1
$15.95



10" Angled Kit #2

9 3/4" OD - 7" ID
Contains two 10" angled foam surrounds.   Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)     Measurements:
A = 9 3/4 in
B = 7 in
How to measure
Angled vs Flat?
$15.95
(Contains two angle 10"
 surrounds)
Stock no: 10-AS-2
$15.95



10" Flat Kit

9 1/2" OD - 7 1/4" ID
Refoam Kit for 10" woofers which attach to the flat outside edge of the cone.  Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)     Measurements:
A = 9 1/2 in
B = 7 1/4 in

How to measure
Angled vs Flat?
$15.95
(Contains two flat 10"
 surrounds)
Stock no: 10-FS
$15.95

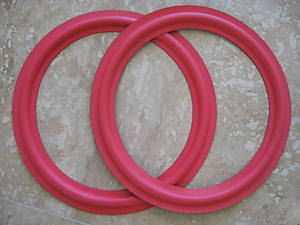

10" Cerwin-Vega
 Kit

Contains two 10" angle attach red foam surrounds, sized to properly fit all 10" Cerwin-Vega foam-edge speakers.  Download instructions here. $20.95
(1 kit completes two speakers)
Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)
Stock no: 10-VEGA
$20.95



12" Angled Kit #1

11 1/2" OD - 8 7/8" ID
Refoam Kit for 12" woofers which attach to the angled outside edge of the cone.  Download instructions here.   Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)   Measurements:
A = 11 1/2 in
B = 8 7/8 in
How to measure
Angled vs Flat?
$16.95
(Contains two angle 12"
 surrounds)
Stock no: 12-AS-1
$16.95



12" Angled Kit #2

11 3/4" OD - 8 1/2" ID
Refoam Kit for 12" woofers which attach to the angled outside edge of the cone.  Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below) Measurements:
A = 11 3/4 in
B = 8 1/2 in
How to measure
Angled vs Flat?
$16.95
(Contains two angle 12"
 surrounds)
Stock no: 12-AS-2
$16.95



12" Flat Kit

11 1/2" OD - 8 15/16" ID
Refoam Kit for 12" woofers which attach to the angled outside edge of the cone. Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)    Measurements:
A = 11 1/2 in
B = 8 15/16 in
How to measure
Angled vs Flat?
$16.95
(Contains two flat 12"
 surrounds)
Stock no: 12-FS
$16.95




12" Cerwin-Vega
 Kit

Contains two 12" angle attach red foam surrounds, sized to properly fit all 12" Cerwin-Vega foam-edge speakers.  Download instructions here. $23.95
(1 kit completes two speakers)
Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)
Stock no: 12-VEGA
$23.95



15" Angled Kit

14 1/4" OD - 11 5/8" ID
Refoam Kit for 15" woofers which attach to the angled outside edge of the cone.  Download instructions here.   Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)  Measurements:
A = 14 1/4 in
B = 11 5/8 in

Type = Angle Surround
How to measure
Angled vs Flat?
$19.95
(Contains two angle 15"
 surrounds)
Stock no: 15-AS
$19.95



15" Flat Kit

14 1/2" OD - 12" ID
Refoam Kit for 15" woofers which attach to the flat outside edge of the cone.  Download instructions here.   Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)  Measurements:
A = 14 5/8 in
B = 12 in

Type = Flat Surround
How to measure
Angled vs Flat?
$19.95
(Contains two flat 15"
 surrounds)
Stock no: 15-FS
$19.95





15" Realistic Mach 1 Kit
Fits the popular Radio Shack Realistic Mach I 15" Woofer

14 3/4" OD - 12" ID
Refoam Kit for the Realistic Mach 1 15" speaker.  Download instructions here.  Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)  Type = Angle Surround
Angled vs Flat?
$25.95
(Contains two angle 15"
 surrounds for the Mach 1 speakers)
Stock no: 15-MACH
$25.95



15" Cerwin-Vega
 Angled Kit

Contains two 15" angle attach red foam surrounds, sized to properly fit all 15" Cerwin-Vega foam-edge speakers with an angled attachment.  Download instructions here. $26.95
(1 kit completes two speakers)
Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)
Angled vs Flat?
Stock no:
15-VEGA-ANGLE
$26.95



15" Cerwin-Vega
 Flat Kit

Contains two 15" flat attach red foam surrounds, sized to properly fit all 15" Cerwin-Vega foam-edge speakers with a flat attachment.  Download instructions here. $26.95
(1 kit completes two speakers)
Order additional needed supplies (glue, gaskets, knife, dust caps, etc below)
Angled vs Flat?
Stock no:
15-VEGA-FLAT
$26.95



DUST CAPS


POLY
Heavy duty, black, pressed paper, poly coated, black shiny finish, has edge for gluing.   Sold individually - order two if you are repairing a pair of speakers!.
DCY2500   2 1/2"   $2.00



DCY3000     3"        $2.15



DCY3188   3  3/16"  $2.30



DCY3500   3 1/2"    $2.60



DCY4000      4"        $2.75



DCY5000      5"        $3.00

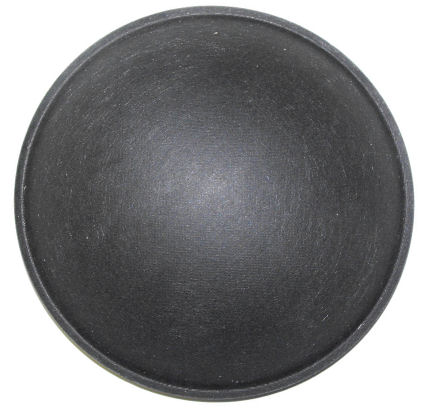

PAPER
Heavy duty, pressed paper, very dark gray flat/satin finish, has edge for gluing.   Sold individually - order two if you are repairing a pair of speakers!.
DCP2562   2 9/16"   $2.00



DCP2825   2 13/16"  $2.10



DCP3233   3 1/4"     $2.50



DCP4000      4"         $3.15



DCP4662   4 11/16"    $3.50



DCP5400    5 7/16"      $3.90

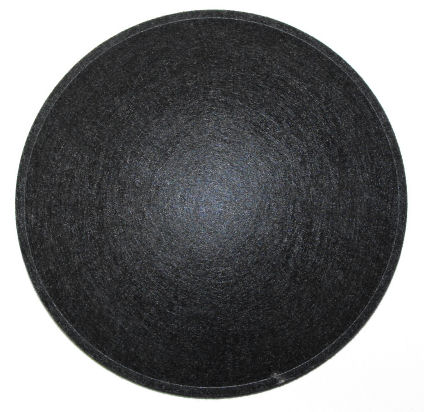

FELT
Heavy duty, pressed felt, black flat/satin finish, has edge for gluing.   Sold individually - order two if you are repairing a pair of speakers!.

DCF1750     1 3/4"      $1.50



DCF2150     2 1/8"      $1.65



DCF2750     2 3/4"      $1.75



DCF3750     3 3/4"      $2.15



DCF4500     4 1/2"      $2.60



CERWIN VEGA
Heavy duty, pressed felt, black flat/satin finish, has edge for gluing.   With white Cerwin Vega logo.  Sold individually - order two if you are repairing a pair of speakers!.
VEGA2750     2 3/4"      $2.75



VEGA3750     3 3/4"      $3.25







FOAM GASKET SETS
(See chipboard gasket sets below.  Foam gaskets are made of a stiff black foam-like material which is softer than chipboard and gives a bit when compressed.)
Foam gasket set for one 10" speaker.   Contains 4 sections which interlock around a standard 10" speaker.  One gasket set will handle one speaker.  Be sure to order two sets if you are rebuilding a pair of speakers!
$3.00

Stock no: GAS-10
$3.00



Foam gasket set for one 12" speaker.   Contains 4 sections which interlock around a standard 12" speaker.  One gasket set will handle one speaker.  Be sure to order two sets if you are rebuilding a pair of speakers!
$3.50

Stock no: GAS-12
$3.50



Chipboard gasket set for one 10" speaker.   Contains 4 sections which interlock around a standard 10" speaker.  For speakers with either 4 or 8 mounting holes.

One gasket set will handle one speaker.  Be sure to order two sets if you are rebuilding a pair of speakers!
$3.00

Stock no: CHIP-10
$3.00



Chipboard gasket set for one 12" speaker.   Contains 4 sections which interlock around a standard 12" speaker.  One gasket set will handle one speaker.  Be sure to order two sets if you are rebuilding a pair of speakers!
$3.50

Stock no: CHIP-12
$3.50



Chipboard gasket set for one 15" speaker.   Contains 8 sections which interlock around a standard 15" speaker.  One gasket set will handle one speaker.  Be sure to order two sets if you are rebuilding a pair of speakers!
$4.50

Stock no: CHIP-15
$4.50






Click on photo for close-up view

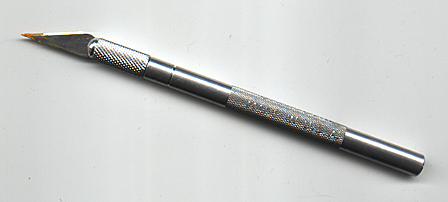

Standard Hobby Knife with blade.  Equivalent to the X-Acto type hobby knife. Perfect for speaker work, and dozens of uses around the home or workshop.  If you've never owned or used an X-Acto type knife, take note:  This is the sharpest knife you have probably ever seen.   Use with caution! Stock no: X-Knife
$3.95



Speaker terminal - replace broken terminals on your woofers or midrange speakers.   3/16" tab connections, or wires can be soldered to tabs.  Pop-rivet the terminal to the speaker basket, or attach with screw and nut. One replacement speaker terminal.
$1.50

Stock no: RST-1
$1.50


A quick drying adhesive that is specially designed for speaker repair. It forms a hard, durable and vibration resistant bond with minimal shrinkage.  Great for foam surround and dust cap attachment. Black in color.  Two applicator brushes included.  Direct cross to Moyen Speaker Repair Adhesive Part No. RS-3087. Sold only in the United States Two ounce (55ml) bottle of MG Chemicals Speaker Service Cement
$16.95

Sold only in the United States

Stock no: SCC-8337
$16.95



Polyvinyl Acetate Adhesive - the same speaker foam adhesive that we include in our kits.   Won't attack and deteriorate the foam surround as many other glues do.   Convenient 1 ounce needle-tip applicator bottle.   Remove the reusable cap, and cut off the tapered tip to the desired hole size to determine the rate of flow of the adhesive.  Sold only in the United States One ounce bottle of polyvinyl acetate adhesive.
$3.95

Sold only in the United States

Stock no: PAA-1
$3.95




Speaker Refoaming Instructional Video on DVD.   The same DVD that we include in our complete refoam kits is now available for purchase separately.   Approx 22 minutes, covers the complete process of replacing the foam surround on a speaker. One instructional DVD on the art of replacing the foam surround on a speaker.
$8.95
Stock no: SRD-1
$8.95




Other Speaker-Related Parts

Click on photo for close-up view

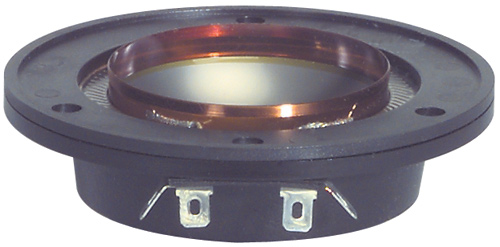

Eminence
PSD2002-8DIA Diaphragm
8 Ohm

REPLACEMENT GENUINE EMINENCE8-OHM AUDIO DIAPHRAGM. TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 8 OHM IMPEDANCE, 1,200-20,000HZ.   USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
$39.95 Stock no:
PSD2002-8DIA
8 Ohm
$39.95





Click on photo for close-up view

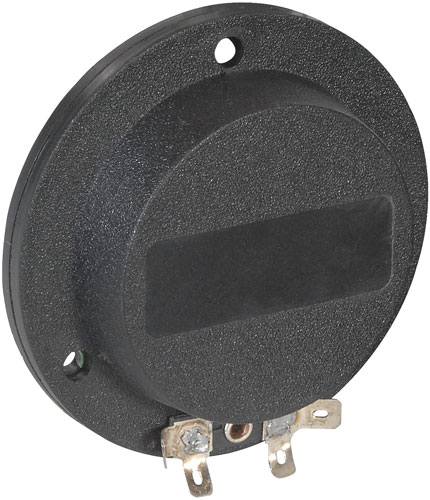

Eminence
PSD2002-16DIA Diaphragm
16 Ohm

REPLACEMENT GENUINE EMINENCE8-OHM AUDIO DIAPHRAGM. TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 16 OHM IMPEDANCE, 1,200-20,000HZ.   USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
$39.95 Stock no:
PSD2002-16DIA
16 Ohm
$39.95

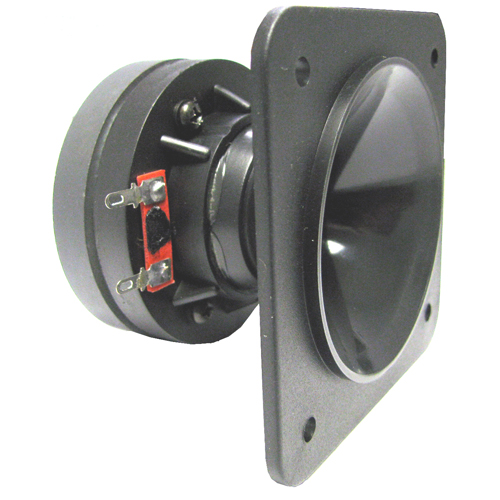

Standard Piezo Horn Driver - 100W Max
Due to the high efficiency of the piezo system, the loading on the amplifier is negligible. For use with any reflector horn with 1 3/8" thread connection.
* Highly efficient Piezo system
* Impedance - 1k ohms @ 1kHz
* Impedance - 50 ohms @ 25kHz
* Frequency resp. -  3kHz–29kHz
* Body diameter - 2.5 inches

Part #DUV-100

$2.95
Stock no: DUV-100
$2.95







Heavy-Duty Piezo Horn Driver - 300W Max
Due to the high efficiency of the piezo system, the loading on the amplifier is negligible. For use with any reflector horn with 1 3/8" thread connection.
* Highly efficient Piezo system
* Impedance - 1k ohms @ 1kHz
* Impedance - 50 ohms @ 25kHz
* Frequency resp. - 3kHz–29kHz
* Body diameter - 4.1 inches

Part #DUV-300

$4.95
Stock no: DUV-300
$4.95







Piezo Super Horn- 75 Watts
Due to the high efficiency of the piezo system, the loading on the amplifier is negligible.
* 2 1/4" x 2 1/4"
* Highly efficient Piezo system
* Impedance - 1k ohms @ 1kHz
* Impedance - 50 ohms @ 25kHz
* Frequency resp. - 3kHz–29kHz
*Crossover Capacitor Included

Part #PET-1100C

$2.95 ea
Stock no: PET-1100C
$2.95






Click on photo for
larger view

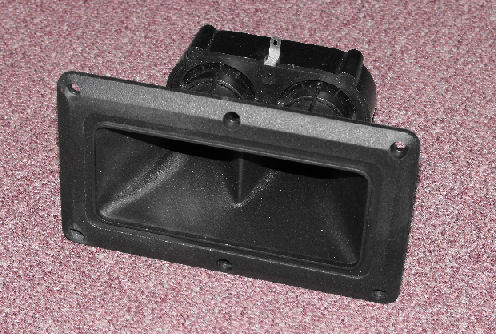

Double Piezo Tweeter

Super bargain price on these versatile tweeters! Used in both home stereo and professional applications. Adds high frequency response to stereo cabinets, PA cabinets, monitor speakers, DJ enclosures. No crossover needed - a series resistor (50 ohms, 5 watts) may be used on high powered systems to prevent distortion. Piezo tweeters are high impedance - their effect on your overall system impedance is negligible.
Part #DPZ-1


$5.95 ea


Dimensions 3.75" x 6.50"
Impedance High
Power 150 watts
Freq Resp 3Khz - 25KHz
Magnet Wt Ceramic Element
SPL 95 dB
Depth 4 in
Hole Cut 2.5" x 5.0"
Stock no: DPZ-1
$5.95
