Amplifier Fans




Fans



Click on photo for
larger view
TRACE ELLIOT FAN™ - 12V FAN FOR SM / SMX AMPS
Original Trace Elliot
replacement fan for SM and SMX series amps which use a 12V fan, such as the GP7SM250.   80mm x 80mm x 25mm (3-1/8" x 3-1/8" x 1"), 12 volts DC, 0.13 amps.
Part #D08T12LWS
$13.95


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG SERIES AMPS - PREMIUM TYPE (DUAL BALL BEARINGS), HIGH AIRFLOW, LOWER NOISE
Fits many of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2" x 2" x 3/8", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a larger fan (2 3/8" x 2 3/8" x 1").   If your amp has the larger fan, order the OD6025-12, below.   12 volts DC, 1.10 Watts, 5000 RPM, 11.0 Cubic Feet/Minute Airflow, 26dBA Noise.   Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B-
Part #OD5010-12

Installation video for fan:



$20.95


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG Series PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOW NOISE
Fits some versions of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2 3/8" x 2 3/8" x 1", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a smaller fan (2"  x 2" x 3/8").   If your amp has the smaller fan, order the OD5010-12, above.  12 volts DC, 1.70 Watts, 3500 RPM, 18.0 Cubic Feet/Minute Airflow, 27dBA Noise.    Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   B,  Price:  B
Part #OD6025-12
$19.95


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MODE 4 MF350 HEAD - PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOW NOISE
Fits only the Marshall™ MF350 Mode 4 350W Head.   60mm x 60mm x 25mm.  24 volts DC, 3.50 Watts, 4500 RPM, 24.0 Cubic Feet/Minute Airflow, 33dBA Noise.   Note:  The MF350 Mode 4 Head has two of these fans.     Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   B,  Price:  B
Part #OD6025-24
$19.95


Click on photo for
larger view
Fan Grill, Chrome, 60 mm   Made to fit 60mm fans, such as the OD6025-12 or OD6025-24.   Attaches with the same screws which hold the fan in place.   Limited quantity of this item.

Part #FGC-60
$1.50


Click on photo for
larger view
ECONOMY OUTPUT MODULE FAN - Marshall™ AVT SERIES AMPS.  SEALED SLEEVE BEARINGS
Fits only the Marshall™ AVT50, AVT100, AVT150 and AVT275 models.  This is the newer style 1cm thick version, which replaces the older style 2cm thick type.  40mm x 40mm x 10mm.  24 volts DC, 1.4 Watts, 6000 RPM, 6 CF/M Airflow, 25dBA noise rating, sealed sleeve bearings.   Comes with tinned leads - cut off and splice connector from original fan.
Part #OD4010-24SS
$10.95


Click on photo for
larger view
QUIET PREMIUM OUTPUT MODULE FAN - Marshall™ AVT SERIES AMPS.  DUAL BALL BEARINGS  Fits only the Marshall™ AVT50, AVT100, AVT150 and AVT275 models.  This is the newer style 1cm thick version, which replaces the older style 2cm thick type.  40mm x 40mm x 10mm.  24 volts DC, 1.4 Watts, 4800 RPM, 6 CF/M Airflow, 20dBA noise rating, dual ball bearings.   Comes with tinned leads - cut off and splice connector from original fan.
Part #OD4010-24MB
$20.95


Click on photo for
larger view

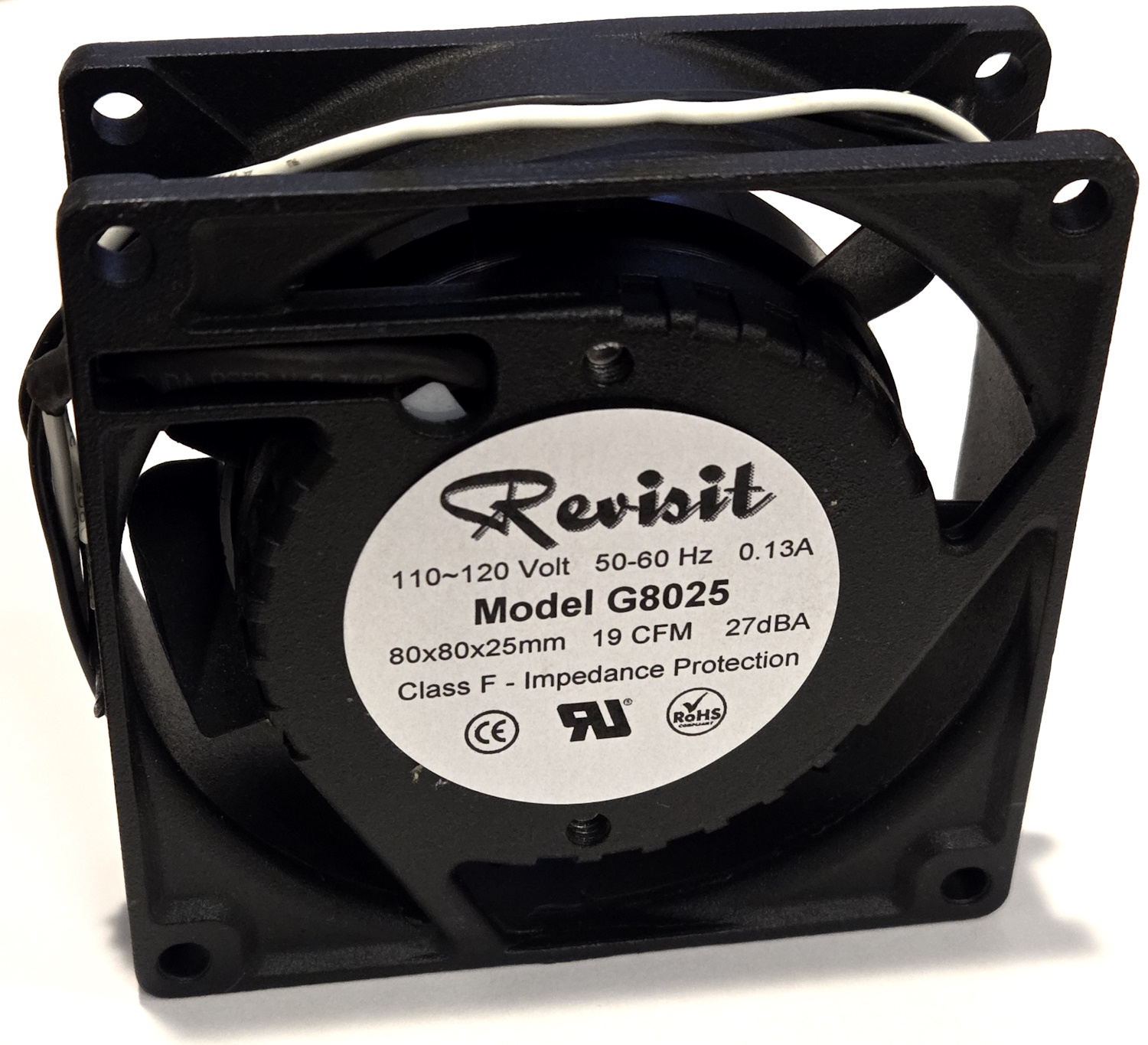

ThermoCool Fan.  80 x 25mm Sleeve Bearing 19 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.  For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: Power: 100-125V AC, 50-60 Hz Sleeve bearing Lead wire connection included 0.13 amps 2300 RPM 27dB noise level 19 CFM air flow Dimensions: 80 mm (H) x 80 mm (W) x 25 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1" (D)]
Part #G8025HAS
$15.95


Click on photo for
larger view

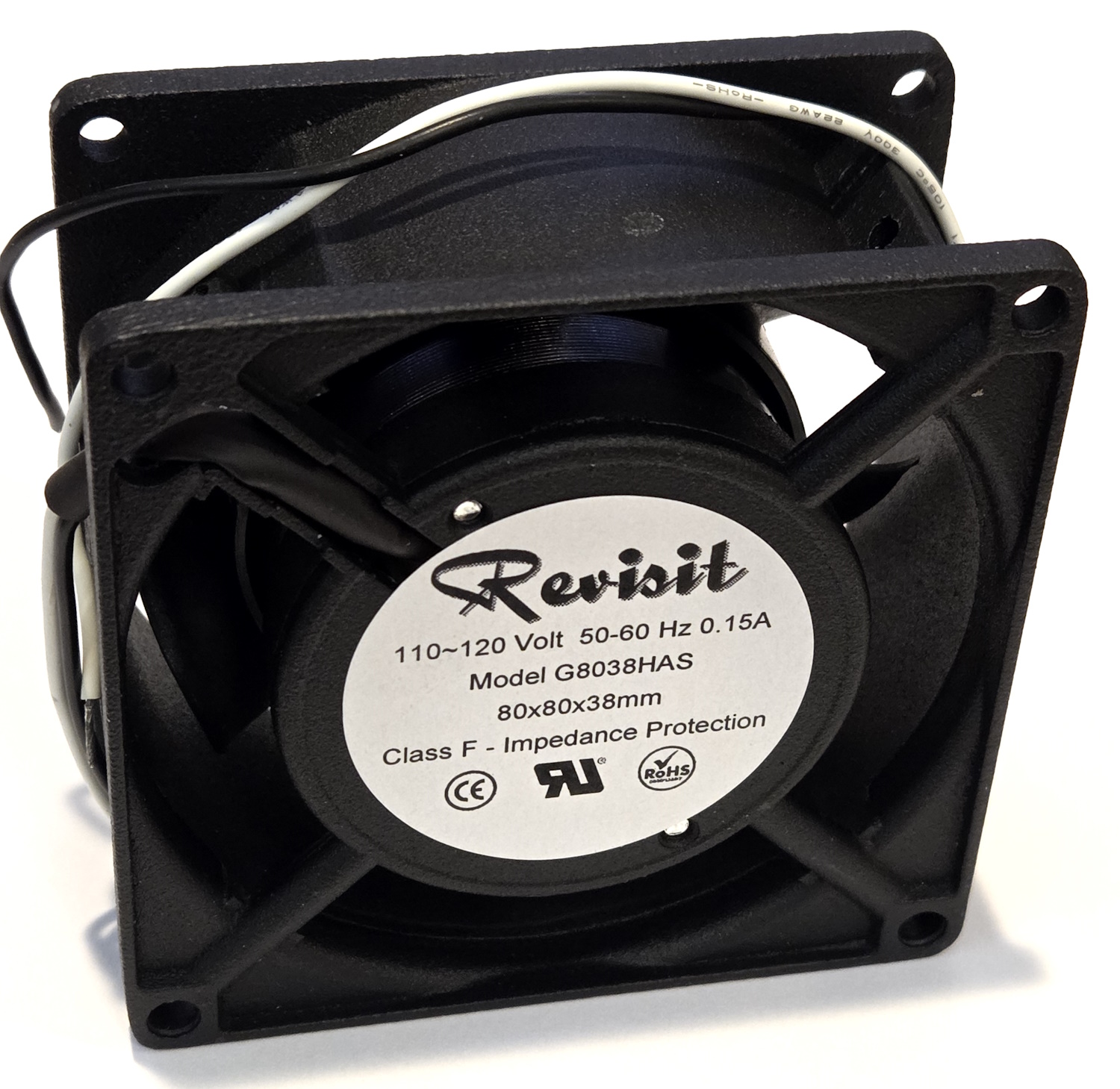

ThermoCool Fan.  80 x 38mm Sleeve Bearing 23 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   This fan is the replacement for the fan used in the Ampeg SVT Classic, Ampeg™ part number 24-321-03.   For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: Power: 100-125V AC, 50-60 Hz Sleeve bearing Lead wire connection 0.13 amps 2400 RPM 28dB noise level 23 CFM air flow Dimensions: 80 mm (H) x 80 mm (W) x 38 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1 1/2" (D)]
Part #G8038HAS
$19.95


Click on photo for
larger view
ThermoCool Fan.  120 x 25mm Sleeve Bearing 57 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   For plug in wiring harness, order 25-0050 fan cord separately.   For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: Power: 100-125V AC, 50-60 Hz Sleeve bearing Terminal connection 0. 20 amps 2300 RPM 39dB noise level 57CFM air flow Dimensions: 120 mm (H) x 120 mm (W) x 25 mm (D).
[4 3/4" (H) x 4 3/4" (W) x 1 " (D)]
Part #G12025HAS
$19.95


Click on photo for
larger view
ThermoCool Fan.  120 x 38mm Ball Bearing 72 CFM.
This size is commonly found in Mesa-Boogie Mark series amps.   For plug in wiring harness, order 25-0050 fan cord separately.  For use on 100-125VAC System only, as found in North America, Japan, etc.   This size is commonly found in Mesa-Boogie amps which use a 4 inch fan and were designed and built prior to 2000.
Specifications: Power: 100-125V AC, 50-60 Hz Ball bearing Terminal connection 0.22 amps 2200 RPM 39dB noise level 72CFM air flow Dimensions: 120 mm (H) x 120 mm (W) x 38 mm (D).  Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B-
[4 3/4" (H) x 4 3/4" (W) x 1 1/2" (D)]
Part #G12038MAS
$21.95


Click on photo for
larger view
Standard 24" fan cord with 90 angled plug. For use with 110~120 VAC cooling fans with .110" terminals; non-terminated on opposite end.   Great for use with G12038MAS fans, above.
Part #25-0050
$3.59


Click on photo for
larger view
Fan Grill, Chrome, 60 mm   Made to fit 60mm fans, such as the OD6025-12 or OD6025-24.   Attaches with the same screws which hold the fan in place.   Limited quantity of this item.

Part #FGC-60
$1.50
