Fender™ Style Capacitors

We carry a complete selection of Fender™ Amplifier parts for both vintage and modern amps.

Back to Fender™ Parts Index




Description

Price Purchase


Click on photo for
larger view
Electrolytic Capacitor Kits for Fender™

The capacitor kits are assembled from premium capacitors made by F&T, Tube Amp Doctor, Ruby Gold, JJ Electronics, or Illinois Capacitor.   Some kits are available in standard, pro or premium grade.   Most kits contain the main filter capacitors, decoupling filters, bias filters, and cathode bypass capacitors.
Prices starting at $12.95 and up Click here to see
the full selection of
electrolytic capacitor kits.
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance 5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

Part #C-SM-XX
Starting at
$0.80
Select Option:


Quantity:


CAPACITOR, POLYPROPYLENE, RADIAL.
  Similar to orange drop style, rated at 630 volts.  Values from 0.001uF to 0.47uF   Radial leads.  (See Options)


Part #C-PR-XX
Starting at
$0.30
Select Option:


Quantity:


CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 1.0uF.  Axial Leads.   (See Options)

Part #C-MF-XX
Starting at
$0.90
Select Option:



Quantity:


CAPACITOR, CERAMIC DISC, RADIAL.
  Replacement for the ceramic disc vibrato phase shift capacitors in vintage Blackface and Silverface Fender™ amplifiers from the 60s and 70s.   Rated at 500 volts.  Available in .01uF and .02uF (See Options to select value)   Tips:  (1) If you would like to slow down the vibrato speed range (popular for jazz players):  There are three caps in the vibrato phase shift circuit - two .01s and a .02.  You can slow the vibrato speed down by replacing the .01s with .02s (so that all three ceramic disc caps are .02).  (2) Background ticking sound in the vibrato?   Install a .02 cap from ground to the leg of the optoisolator that connects to the 10 Meg resistor (brown/black/blue).

Part #C-CD-XX
$0.75

Select Option:


Quantity:



Click on photo for
larger view
Fender™ Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter, bias filter and preamp cathode bypass electrolytic capacitors for most amps from the blackface and silverface eras.
Prices starting at $32.95 Click here to see the full selection of Fender capacitor kits.
  F&T Premium Capacitors

Click on photo for
larger view

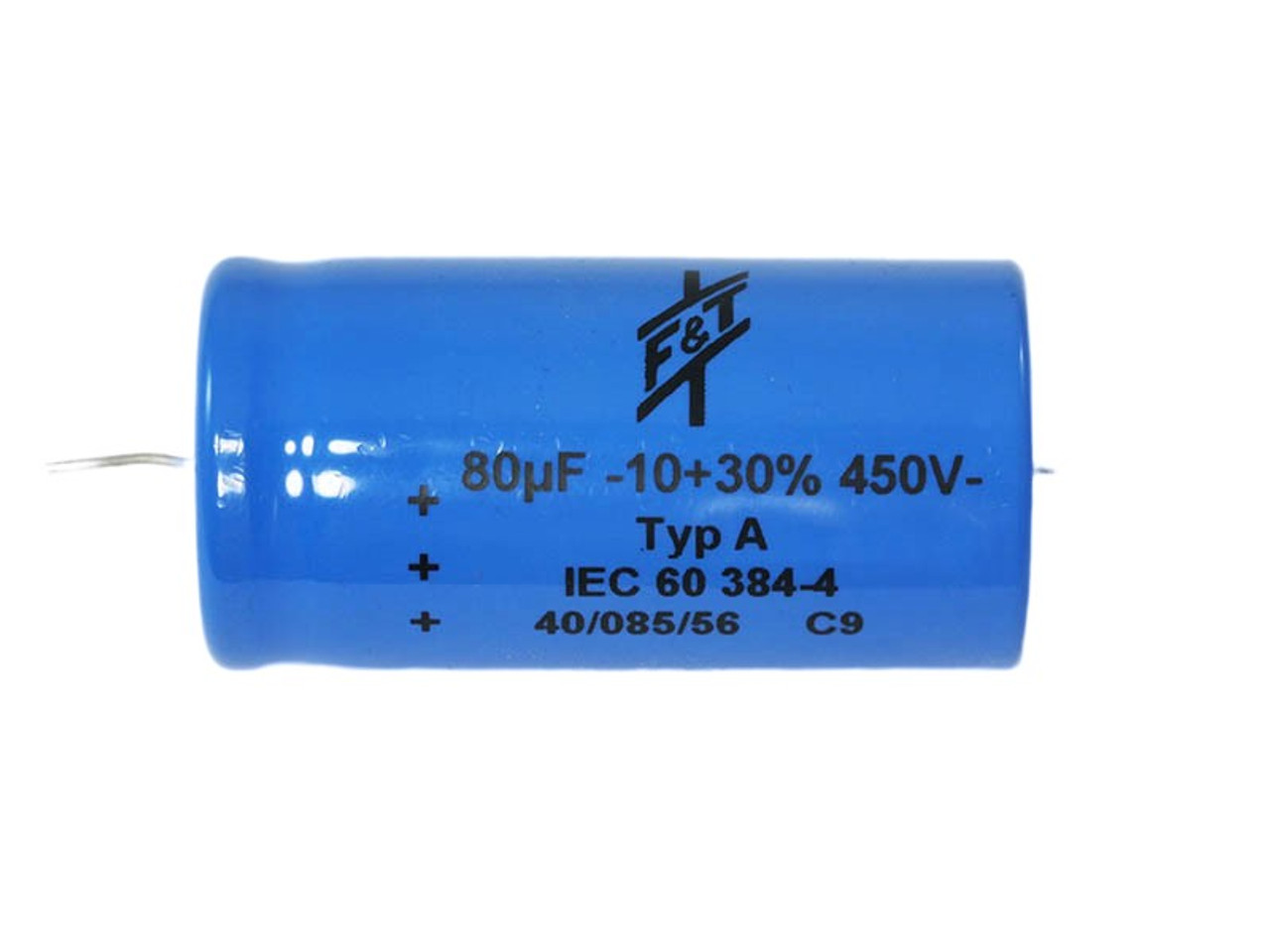

CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 70 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:

  Sprague Premium Cathode Bypass Axial Capacitors

Click on photo for
larger view
SPRAGUE AXIAL 5uf/50V  Replacement for the 5uF/25V or 5uF/50V axial cathode bypass capacitor commonly found in the vibrato circuit of vintage Fender silverface amps from the 1970s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-5-50

$3.95


Click on photo for
larger view
SPRAGUE AXIAL 25uf/50V  Replacement for the 25uF/25V axial cathode bypass capacitors commonly found in vintage Fender amps from the 1950s through the 1980s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-25-50

$3.95

  Tube Amp Doctor Premium Capacitors


Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 8uF-475V

12mm diameter x 26mm Length
Rated
105 C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.


Part #TAD-CAP-8-475
$4.35
In stock



Click on photo for
larger view

Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor 16uF-475V

12mm diameter x 30mm Length
Rated
105 C for Long Life
16uF - 475 Volts DC


Part #TAD-CAP-16-475
$4.50
In stock



Click on photo for
larger view


Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105 C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$4.95
In stock



Click on photo for
larger view
Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor  220uF-350V

25mm diameter x 51mm Length
Rated
105 C for Long Life
220uF - 350 Volts DC


Part #TAD-CAP-220-350
$11.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 25uF-25V

6mm diameter x 14mm Length
Rated
105 C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps


Part #TAD-CAP-25-25
$1.45
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 5uF-50V

5mm diameter x 13mm Length
Rated
105 C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit of many Fender amps


Part #TAD-CAP-5-50
$2.95
In stock



Click on photo for
larger view

Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor 47uF-500V

22mm diameter x 39mm Length
Rated
105 C for Long Life
47uF - 500 Volts DC


Part #TAD-CAP-47-500
$7.95
In stock



Click on photo for
larger view

Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor 70uF-350V

18mm diameter x 40mm Length
Rated
105 C for Long Life
70uF - 350 Volts DC


Part #TAD-CAP-70-350
$7.95
In stock



Click on photo for
larger view

Tube Amp Doctor Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105 C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$7.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 50uF-100V

8.0mm diameter x 21.0mm Length
Rated
105 C for Long Life
50uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-50-100
$3.30
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 80uF-100V

9.5mm diameter x 21.5mm Length
Rated
105 C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-80-100
$4.60
In stock

  Ruby Gold Premium Capacitors

Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Ruby Gold capacitors are used by many original amplifier manufacturers in Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105 C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.   Ideal as replacement in vintage audio and guitar amplifiers.  Values available include 50uF/50V and 220uF/350V. Choose capacitor value under the Select Option box.
Part #RG-CAP-XX
Starting at
$1.00
Select Option:


Quantity:

  MOD Axial Capacitors

Click on photo for
larger view
MOD CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Mod™ Electronics electrolytic capacitors offer long-lasting performance at the highest degree. These capacitors are designed with tube amplifiers in mind; each capacitor is rated at 105C. This temperature rating provides a highly-stable capacitance in any device, be it vacuum tube or solid state. The Mod™ electrolytic capacitor line features capacitance values that are common in many vintage amplifiers.   Values available include 8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.   Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX
Starting at
$0.79
Select Option:


Quantity:

  Illinois Capacitor Electrolytic Capacitors

Click on photo for
larger view
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years later continues to produce benchmark quality capacitors for industry.     Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American capacitor manufacturer tracing its roots to 1909.  Values available include 2.2uF/50V, 2.2uF/100V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.
Part #IC-CAP-XX
Starting at
$0.99
Select Option:


Quantity:

  Axial Electrolytic Capacitors - Other Brands

Click on photo for
larger view

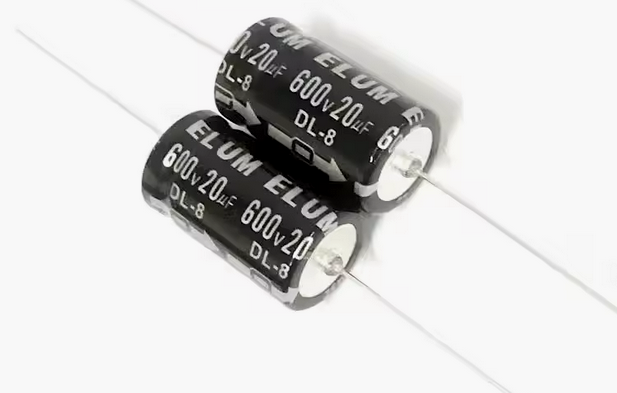

CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Values available include the following:
25uF/25V 100uF/25V 220uF/25V 2200uF/25V
100uF/50V 0.68uF/50V 25uF/50V 50uF/50V
2200uF/50V 47uF/63V 70uF/100V 100uF/100V
220uF/100V 8uF/150V 10uF/160V 100uF/350V
220uF/350V 4.7uF/450V 8uF/450V 10uF/450V
16uF/450V 22uF/450V 33uF/450V 47uF/450V
16uF/475V 20uF/500V 20uF/600V 80uF/500V

Choose capacitor value under the Select Option box.
Part #EL-CAP-XX

Starting at
$1.00
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, EPCOS.   22uF / 560V.   Commonly used in Fender Brown and Blonde amps from 1960-1963.  Rated 105 degrees C, -10%/+20% tolerance.
Part #EL-CAP-22/560
$5.50


Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, DJE.

80uF/500V.   Commonly used in Fender amps from 1962-present.  Rated 85 degrees C, -10%/+20% tolerance.

Part #EL-CAP-80/500

$4.95


Click on photo for
larger view
CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 20uF/20uF/20uF/20uF @ 475V,  1 3/8" D X 2" H.  Twist-lock tabs for mounting to chassis.    Replacement for Fender Princeton and Princeton Reverb main filter capacitor on blackface and silverface amps from the 1960s and 1970s.    Also may be used for Fender Champ, Vibro-Champ and Bronco amps from the same era (one extra 20uF section unused on these amps.     Rated 85 degrees C, -10%/+50% tolerance.
Part #C-EC20X4-475
$46.99


Click on photo for
larger view

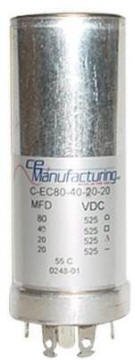

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 80uF/40uF/20uF/20uF @ 525V,  1 3/8" D X 3-1/2" H.  Made in USA.  Twist-lock tabs for mounting to chassis.    Replacement for Fender main filter capacitor on Princeton Reverb II, Deluxe Reverb II, Bassman 20, Super Champ, and Champ II from the 1980s.   Rated 85 degrees C, -10%/+50% tolerance, 1-3/8" diameter x 3-1/2" tall.
Part #C-EC-80402020

$56.99
