What are ICE Modules? In the audio
industry, ICE is a trademarked technology for Class D audio amplifier modules
with built-in switched-mode
power supplies. An ICE module is a small circuit board which
contains both a power amplifier and a power supply capable of powering not only
the associated power amp, but also the complete circuitry of the guitar
amplifier.
Fender is a pioneer in using ICE modules in guitar amps.
They are found in the Rumble 150, Rumble 200, Rumble 300, Rumble 500, Bassman
500 bass amps, as well as the new Tone Master series of modeling guitar amps.
IMPORTANT NOTE: Troubleshooting of
the amplifier must be performed by a qualified individual to ensure that the
original ICE module is actually the cause of the problem. A
failed ICE module typically causes the following symptoms: No
power, including no illumination of the pilot light, along with no sound
whatsoever. Note that the identical symptoms could also be
caused by something as simple as a dead power outlet in the building, a bad
power cord, or a defective power switch on the amplifier. Lack of
any sound could also be caused by a failed speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Back to Fender™ Parts Index
|
|
Photo |
Description |
Price |
Purchase |
|
|
FENDER RUMBLE
SERIES ICE MODULES |
|
|
Click on photo for
larger view |
 Fender™
Rumble 150 or Rumble 200 Power Supply with Class D Power Amp Circuit Board.
Fender part number 0076030000. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC, or 220-240 VAC). Used in Rumble 150 (v2) and
Rumble 200 (v3) combo amps. Does not fit any other Rumble models.
IMPORTANT NOTE: Troubleshooting of
the amplifier must be performed by a qualified individual to ensure that the
original ICE module is actually the cause of the problem. A
failed ICE module typically causes the following symptoms: No
power, including no illumination of the pilot light, along with no sound
whatsoever. Note that the identical symptoms could also be
caused by something as simple as a dead power outlet in the building, a bad
power cord, or a defective power switch on the amplifier. Lack of
any sound could also be caused by a failed speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326214 |
$182.95
(Special order - ready to ship in 3-4 working days) |
|
Click on photo for
larger view |
Fender™
Rumble 350, Rumble 500 Power Supply with Class D Power Amp Circuit Board.
Fender part number 0077199000. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC, or 220-240 VAC). Used in Rumble 350 (v2) and Rumble 500
(v3) combo amps. Does not fit any other Rumble models.
IMPORTANT NOTE: Troubleshooting of the amplifier must be performed by
a qualified individual to ensure that the original ICE module is actually the
cause of the problem. A failed ICE module typically causes the
following symptoms: No power, including no illumination of the
pilot light, along with no sound whatsoever. Note that the
identical symptoms could also be caused by something as simple as a dead
power outlet in the building, a bad power cord, or a defective power switch on
the amplifier. Lack of any sound could also be caused by a failed
speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326268 |
$279.95
(Special order - ready to ship in 3-4 working days) |
|
Click on photo for
larger view |
Fender™
Rumble 800 Head or Rumble 800 Combo Power Supply with Class D Power Amp Circuit
Board. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC or 220-240 VAC.) Used in Rumble 800 head and
Rumble 800 combo amps. Does not fit any other Rumble models.
IMPORTANT NOTE: Troubleshooting of the amplifier must be performed by
a qualified individual to ensure that the original ICE module is actually the
cause of the problem. A failed ICE module typically causes the
following symptoms: No power, including no illumination of the
pilot light, along with no sound whatsoever. Note that the
identical symptoms could also be caused by something as simple as a dead
power outlet in the building, a bad power cord, or a defective power switch on
the amplifier. Lack of any sound could also be caused by a failed
speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326115 |
$369.95
(Special order - ready to ship in 3-4 working days) |
|
|
|
FENDER BASSMAN 500 ICE MODULE |
|
|
Click on photo for
larger view |
Fender™ Bassman 500 Power Supply with Class D Power Amp Circuit Board.
Fender part number 0077199000. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC, or 220-240 VAC). Used in the Bassman 500 amp.
IMPORTANT NOTE:
Troubleshooting of the amplifier must be performed by a qualified individual to
ensure that the original ICE module is actually the cause of the problem.
A failed ICE module typically causes the following symptoms:
No power, including no illumination of the pilot light, along with no sound
whatsoever. Note that the identical symptoms could also be
caused by something as simple as a dead power outlet in the building, a bad
power cord, or a defective power switch on the amplifier. Lack of
any sound could also be caused by a failed speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326268 |
$279.95
(Special order - ready to ship in 3-4 working days) |
|
|
|
FENDER TONE MASTER SERIES ICE
MODULES |
|
|
Click on photo for
larger view |

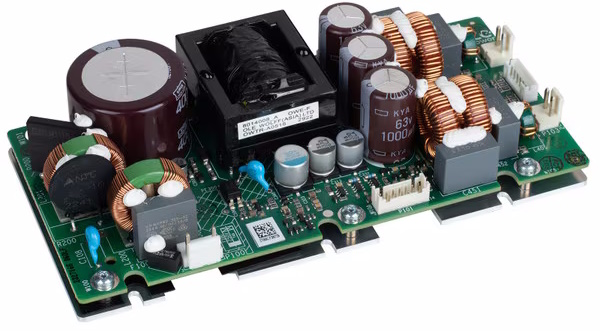

Fender™
Super Reverb (Tone Master Series) Power Supply with Class D Power Amp Circuit
Board. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC, or 220-240 VAC). Used in the Super Reverb Tone Master
modeling amp.
IMPORTANT NOTE:
Troubleshooting of the amplifier must be performed by a qualified individual to
ensure that the original ICE module is actually the cause of the problem.
A failed ICE module typically causes the following symptoms:
No power, including no illumination of the pilot light, along with no sound
whatsoever. Note that the identical symptoms could also be
caused by something as simple as a dead power outlet in the building, a bad
power cord, or a defective power switch on the amplifier. Lack of
any sound could also be caused by a failed speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326272 |
$198.95
(Special order - ready to ship in 3-4 working days) |
|
Click on photo for
larger view |

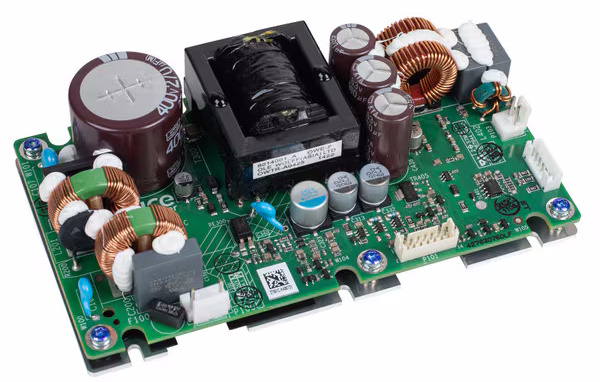

Fender™
Deluxe Reverb and Twin Reverb (Tone Master Series) Power Supply with Class D Power Amp Circuit
Board. Combines a highly efficient
resonant switched-mode power supply with a powerful audiophile class D
amplifier. Built-in circuits for shorts, over-current, and thermal
protection Selectable AC voltage for worldwide versatility
(100-120VAC, or 220-240 VAC). Used in the Deluxe Reverb and Super
Reverb Tone Master
modeling amps.
IMPORTANT NOTE: Troubleshooting of the amplifier must be performed by
a qualified individual to ensure that the original ICE module is actually the
cause of the problem. A failed ICE module typically causes the
following symptoms: No power, including no illumination of the
pilot light, along with no sound whatsoever. Note that the
identical symptoms could also be caused by something as simple as a dead
power outlet in the building, a bad power cord, or a defective power switch on
the amplifier. Lack of any sound could also be caused by a failed
speaker.
ICE Modules are special order, and are therefore not returnable.
All modules are checked for proper operation before they are shipped.
Save yourself an unnecessary costly expenditure by determining first that your
ICE module is actually defective before placing an order. Having a
reputable and qualified technician check out the amplifier is recommended.
Part #ICE-326271 |
$198.95
(Special order - ready to ship in 3-4 working days) |
|
|
|
NOTE: If you have a need for
a replacement ICE Module for another of the new Tone Master series not listed
here, visit our
Ask-A-Tech page
and send us a few photos of the
existing ICE module from various angles. |
|
|
