Fender™ Jacks

We carry a complete selection of Fender™ Amplifier parts for both vintage and modern amps.

Back to Fender™ Parts Index



Description

Price Purchase



Click on photo for
larger view

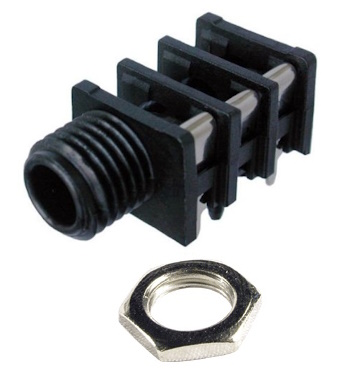

JACK, 1/4", TIP/SLEEVE 4 PIN, PC MOUNT.   Mono, 4 pin. Fits certain Fender™, Hartke™ and Vox™ amp models 1988 - present.  Nut and washer are included.  Replacement nut/washer set is the JN-916.


Part # J-506
$2.89



Click on photo for
larger view

SAVE WITH MULTIPACK!  JACK, 1/4", TIP/SLEEVE 4 PIN, PC MOUNT, Fender STYLE  1988 - Present.   PACK OF 6 JACKS.
Fender
Style PC mount 1/4" jack. Mono, 4 pin. Fits certain Fender amp models 1988 - present.  Also commonly found on Hartke™ amps.    Fender™ part numbers 0990912000, 0037036000, 990912, and 037036.   Pack of 6 Jacks, including nuts and washers.  Replacement nut/washer is the JN-916.

Part # J-506-6
$15.95
(For 6 Jacks)



Click on photo for
larger view

SAVE WITH ASSORTMENT MULTIPACK!  THIS PACK CONTAINS THREE J-506 (4 PIN) AND THREE J-507 (9-PIN) JACKS.
Many amps contain both the 4 pin and the 9 pin jacks.   This assortment gives you 3 of each jack ...  Three J-506, and three J-507.    Replaces Fender™ part numbers 0990912000, 0037036000, 990912, 037036,  and 0990913000, 025931, 990913.  Pack of 6 Jacks, including nuts and washers

Part # J-5067-6
$14.99
(For 3 J-506 Jacks
and 3 J-507 Jacks)




Click on photo for
larger view

JACK, 1/4", TIP/RING/SLEEVE, 9 PIN, PC MOUNT, Fender STYLE 1988 - Present.
Fender
PCB mount 1/4" jack.  Stereo, 9 pin. Fits certain Fender amp models 1988 - present.   Used as the input jack on the Ultimate Chorus, Princeton Chorus, and similar solid-state models from the 1990's.  Replaces Fender™ part numbers 031570, 031570000, 0990913000, 025931, 990913, and 0025931000.   Also used by other amp manufacturers.   Click here for specifications.  Includes nut and washer. Replacement nut/washer set is the JN-916.

Part # J-507
$3.05



Click on photo for
larger view

SAVE WITH MULTIPACK!  JACK, 1/4", TIP/SLEEVE 9 PIN, PC MOUNT, Fender STYLE  1988 - Present.   PACK OF 6 JACKS.
Fender
style PC mount 1/4" jack. Stereo, 9 pin. Fits certain Fender amp models 1988 - present.  Also commonly found on Hartke amps.   Used as the input jack on the Ultimate Chorus, Princeton Chorus, and similar solid-state models from the 1990s.  Replaces Fender™ part numbers 0990913000, 025931, 990913, and 0025931000.  Nuts and washers included.  Click here for specifications.   Pack of 6 Jacks.

Part # J-507-6
$16.95
(For 6 Jacks)


Click on photo for
larger view



JACK, 1/4", Fender™, 4-PIN.  Used as the input jack on some versions of the Fender™ Sidekick amp series.  Includes nut and washer.


Part # J-6075

$5.95


Click on photo for
larger view



JACK, 1/4", 7-PIN, HEADPHONE,  USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT
Used as the headphone jack in the Marshall™ G15RCD and G30RCD.   Original Marshall™ part number V4550.   Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and other models.   Original Yamaha part number LB10187R.   Used in the Fender Sidekick Bass Amp as the headphone jack, Fender part number 022923.  Used in the Korg Triton Studio, Triton extreme, M3, CI8600, CI9600.  Korg part number 454005600, YKB21-5006.  Casio Part # 36120665.  Note:  No trim ring at jack opening.
   Includes nut and washer.

Part # J-540


$6.70


Click on photo for
larger view



JACK, 9-PIN Low Profile, 1/4", Fender™.  Used in a few unique Fender models.  Nut and washer are NOT included.   Chrome trim ring.  Jack data here.  Includes nut and washer.

Part # J-560F

$6.50



Click on photo for
larger view

JACK, 1/4", TIP/SLEEVE 3 PIN, PC MOUNT, Used in Fender Squire and Sidekick Amps from the Rivera-era (80s, early 90s)
PC mount 1/4" jack. Mono, 3 pin.   Also used in some Fender
Squire amps, such as the Champ 12 Champ 15, 15G and Sidekick 15 and 15B.  Used in the Marshall MS-2 Mini Amp.  Nut and washer are included.  Replacement nut/washer set is the JN-916.  Fender part number 025929 or 0025929000.

Part # J-506B
$4.95



Click on photo for
larger view

Available with or without nut and washer.

JACK, 1/4", TIP/RING/SLEEVE, 7 PIN, PC MOUNT, Fender, Hartke, B-52, Randall, and Crate Amps.  Fender™, Hartke™, Randall™, B-52™ or Crate™ PCB mount 1/4" jack.  7 pins.   Fits several Hartke amp models 1990 - present, and several Crate models, especially in the GX series.  Used in the Fender SKX65R and SKX100R for the input jacks.  Used in some Fender Squier and Sidekick amps as the headphone jack.   Replaces Hartke part number 350023 and 300519.  Replaces Fender part number 022923.  Replacement nut/washer set is the JN-916.

Available with or without nut/washer - choose in "Options"

Part # J-545
Starting at
$5.95
Select Option:


Quantity:


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT MONO, PC MOUNT, Switchcraft STYLE, NON-ISOLATED
Common PC mount input jack.   3 pins, mono, tip shunt. Shield tied to chassis mount.   Used in many amplifiers.   Fender™ part number 030771.   Nut and washer included.

Part #J-112APC
$5.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT MONO, PC MOUNT, Switchcraft STYLE, ISOLATED NYLON BUSHING
Found in many applications.     3 pins, mono, tip shunt. Isolated sleeve.  Used as the `Fat` footswitch jack in the Blues Junior.   Fender™ part number 0027674000.  Nut and washer included.

Part #J-N112APC
$5.50


Click on photo for
larger view
ECONOMY JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed).  5 pins.     Used in Peavey™, Mesa/Boogie, Mackie and many other brands.  Replaces Switchcraft 114BPCX and 114BPCSX.  Nut and washer included.

Part #J-529
$2.99


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC BOARD MOUNTING, Switchcraft, METAL BUSHING
Common PC mount jack in guitar amps, mixers, etc.   5 pins for inserting into PC board, stereo, tip and ring shunt. Shield tied to chassis mount.   Often used for headphone jacks, insert jacks, FX loop jacks, etc.   Nut and washer included.   Genuine Switchcraft.

Part #J-114B-PC
$6.95


Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for inserting into PC board, metal bushing.  Nut and washer included.  Genuine Switchcraft

Part #J-113B-PC
$6.95


Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for inserting into PC board, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft

Part #J-113F-PC
$6.95



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT MONO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Common input jack in guitar amps.  T/S closed circuit, switched, metal bushing, 3 pins for wiring.  Nut and washer included.  Fender part number 0066439000.   Found in a number of SWR amps as the input jack.

Part #J-112AX
$4.50


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft STYLE, NYLON THREADS, 3 PINS
Common input jack in Crate
& Ampeg, and in some solid state products from Fender during the early 1980s.   Nut and washer included.   Fender part number 018594.


Part #RN112APC
$5.98

JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)




Click on photo for
larger view



JACK, 1/4", Marshall™ G SERIES, INPUT, LINE OUT, FOOTSWITCH,  PC MOUNT, HAS RED STRIPE.    MONO, SWITCHED.
Used as the input jack on certain Fender™ SideKick amps, such as the SideKick Chorus 20.
  Does not include nut and washer - order separately here.

Replacement nut/washer set ordered separately here.


Part # J-531

$4.75


Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, USED IN FENDER CHAMPION 600.   Input jack for the Champion 600 reissue.   Stereo T/R/S jack, no switching.  Fender part number 0073909049, 0073909000, 007-3909-049.  Nut and washer included.
Part #J-739
$3.95


Click on photo for
larger view
JACK, 1/4", Used in Fender, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit.   Original Fender™ part number 0037117000.    Nut and washer are included.
Part #J-512
$8.50

NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531G, J-532, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75


Click on photo for
larger view

JACK, 1/4", MONO 4-PIN, PC MOUNT, Fender  Fender PCB mount 1/4" jack. Tip/Sleeve, 4 pin. Used as the input jacks on the Fender Mustang amps (I through IV).   Used as the footswitch jack on the Ultimate Chorus DSP Amp from 2000-2002.  Also used on some Squier models.   Nut is included.   Original Fenderpart numbers 0091653000 and 0051658000.
Part #J-517

$2.95


Click on photo for
larger view
JACK, 1/4", STEREO 6-PIN, PC MOUNT, Fender  Fender PCB mount 1/4" jack. Tip/Ring/Sleeve, 6 pin. Used as the effects jacks and headphone jacks on the Fender Mustang amps (III through V).  Also used as the input jacks and all FX Loop Jacks on the Ultimate Chorus DSP Amp from 2000-2002.   Nut is included.   Original Fenderpart numbers 0091655000 and 0053450000.
Part #J-514
$3.50



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510.

JACK, 1/4", STEREO, PC MOUNT, TIP/RING/SLEEVE 6 Pins, Fender
Fender PCB mount 1/4" jack.  Fender™ part number 0053450000.   Stereo, 6 pin. Fits certain Fender amp models 1999 - present.  Save money on multiple jacks with the J-508-6 jack multipack, below.   Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.
Part #J-508

$2.95



Click on photo for
larger view

Note:  Nuts NOT included - reuse original, or order J-510.

SAVE WITH MULTIPACK!  JACKS, 1/4",  TIP/RING/SLEEVE 6-PIN, PC MOUNT, Fender,  SET OF 6 JACKS.
Fender
PCB mount 1/4" jack.  Fender™ part number 0053450000.  Stereo, 6 pin.  Fits certain Fender amp models 1999 - present.  Set of 6 Jacks.  Nuts NOT included.   Reuse existing nuts or order nuts separately as part #J-510.
Part #J-508-6

$12.95
(For Set of 6 Jacks)



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510.

JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Fender
Fender
PCB mount 1/4" jack. Mono, 4 pin. Fits certain Fender amp models 1999 - present (including certain jacks on the newer Hot Rod Deluxe & Deville, and Blues Deluxe & Deville).  Fender™ part number 0051658000.   Save money on multiple jacks with the J-509-6 jack multipack, below.   Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.
Part #J-509

$2.95



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510.

SAVE WITH MULTIPACK!  JACKS, 1/4", MONO 4-PIN, REAN TYPE, PC MOUNT, Fender  SET OF 6 JACKS.
Fender
PCB mount 1/4" jack. Mono, 4 pin. Fits certain Fender amp models 1999 - present (including certain jacks on the newer Hot Rod Deluxe & Deville, and Blues Deluxe & Deville).  Fender™ part number 0051658000.  Set of 6 Jacks.  Nuts NOT included.   Reuse existing nuts or order nuts separately as part #J-510.
Part #J-509-6

$12.95
(For Set of 6 Jacks)



Click on photo for
larger view

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads, Fender AMPS 1998 - Present.
Fender
PCB mount 1/4" jack. Stereo, 6 pin.  Fender™ part number 0059889000.  Princeton™ Recording Amp, Jazz-King™, TB 600/1200, Bassman™ TV Series, Super Bassman™ (2012), Machete™, Acoustasonic™ SFX II, Princeton™ 650, Deluxe™ 900, Stage™ 1000/1600, EVH 5150III, Cyber-Twin™ SE, JazzMaster™ Ultralight, Bassman™ 250, Steel King and Super-Champ™ X2 amplifiers (1998-present).   Identical to J-508 jack above, except for the metallic threads, which uses a different size nut.  Nut and washer are included.
Part #J-563

$ 4.75



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads, Grounding type,  Fender AMPS 1998 - Present.
Fender
PCB mount 1/4" jack. Stereo, 6 pin.  Fender™ part number 0079774000.  Shield grounded to chassis via metal bushing, tip and ring switched.  Nut NOT included.   Reuse existing nut or order nut separately as part #JNUT-38.
Part #J-564

$ 3.95


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$4.29


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$5.39


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft
Found in vintage Fender
(and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$4.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$5.50


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$5.99


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
Part #J-12B
$4.35


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$5.99


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender™ models.   Isolated switch is normally open - closes when a plug is inserted.
Part #J-13
$10.50


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender™ part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$9.95


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$9.95


Click on photo for
larger view
RCA JACK, PANEL MOUNT
Exact
replacement for the reverb tank and footswitch jacks on the rear panel of Fender™ Blackface and Silverface amplifiers.  Made by Switchcraft.
Part #J-122
$2.99


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK.  RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Chrome RCA jack.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351
$3.50


Click on photo for
larger view
FENDER HEADPHONE OR AUXILAIRY JACK - MUSTANG AMPLIFIERS  Fender part number 0082046000.   Used only in the Mustang series of amps as the 1/8" stereo headphone or aux jack.
Part #J-820
$5.99


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
 Part #J-5NT
$0.50


Click on photo for
larger view

NUT, NICKEL, REAN TYPE, Fender, AMPS 1999 - Present.
Fender
nut, fits J-508 and J-509 jacks.   (Note:  you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amps appearance.)
Part #J-510

$ 0.85


Click on photo for
larger view
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and chrome nut jacks to provide proper spacing.   Jacks come with the washers included, but the washers are easily lost.  Without the washers, the jacks will not fit properly.

Part #W-583
$0.18
for each washer.
(Jacks not included).



Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.   Unfortunately, we cannot supply the Roland jack nuts.
 Part #J-5NT-6
$2.39

NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531G, J-532, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)



Click on photo for
larger view
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
Part #W-38
$0.49


Click on photo for
larger view
Fender™ STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two
nickel jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 inch thick.   Keep your vintage Fender™ cabinet looking original!
Part #JPC-577
$16.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.89



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95


Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
