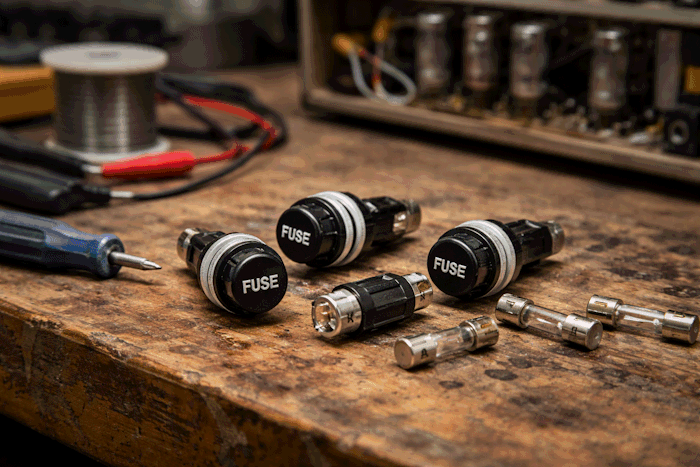

Fuse Holders


  Fuse Holders

Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, USED ON VINTAGE Marshall® AMPS
Marshall® style fuse holder. Snap-in mount for chassis hole diameters between 5/8" and 11/16".   Flush design, fuse cap removed with screwdriver.  Rugged, reliable, tough - better than OEM.  Used on Marshalls from the 60's, 70's and 80's.   Fits AGC size fuses.
Part #FH-200
$5.50


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, USED ON VINTAGE Marshall® AMPS
Marshall® style fuse holder. Threaded mount for chassis hole diameters between 5/8" and 11/16".   Flush design, fuse cap removed with screwdriver.  Used on Marshalls from the 60's, 70's and 80's, including the
JCM 800. This low profile fuse holder will make an excellent replacement for your original amplifier that is in need of repair or restoration. Easy to install and ready to serve you for years!  Fits AGC size fuses.
Part #FH-421
$6.50


Click on photo for
larger view
FUSE HOLDER, Fender® STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender® style fuse holder, replacement for many other brands.   Twist-lock cap.   Durable, rugged design - better than OEM.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201
$3.95


Click on photo for
larger view
FUSE HOLDER, MODERN TWEED Fender® STYLE,  This fuse holder is similar to the fuse holders used on the Fender Tweed Series Amplifiers back in the late 1940s to the early 1960s. This fuse holder will serve as an excellent replacement for any Fender Tweed Amplifier in need of a repair. Amplifiers like the Fender Tweed Champ, Fender Tweed Princeton, Fender Tweed Deluxe, and so on. In the event your original fuse holder cap was lost or damaged, the cap on this fuse holder will fit on your original fuse holder.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-211
$4.95


Click on photo for
larger view
FUSE HOLDER, ORIGINAL Fender®,  FITS MOST LATER MODEL FENDER AMPS    Fits full-size fuse. Chassis mount type with push-on tab connectors.  For standard full size 1.25" X .25" fuses. Fits through a .50" hole in the chassis. As used on the Fender '60s Super Reverb reissue and many other Fender, SWR and other amps. Brand New. Genuine Fender 0036702049. UPC 717669612139. Used on '65 Twin, Hot Rod Deluxe™, Hot Rod DeVille™, Blues Deluxe™, Blues DeVille™, Prosonic™, Vibrosonic, Pro Reverb™, Showman® 50, '59 Bassman®, Tone Master®, Vibro-King, '63 Fender Tube Reverb and Dual Professional amplifiers.  Also fits '94 Twin, '65 Super Reverb®, Pro Tube Twin, '64 Vibroverb™, '57 Twin, Super-Sonic™ series, Princeton Recording Amp, Band-Master® VM Head, Deluxe™ VM, Super Bassman and Super Champ™ XD/X2 amplifiers.
Part #FH-367
$6.49


Click on photo for
larger view
FUSE HOLDER, LOW PROFILE, FOR AGC, MDL, OR 3AG TYPE FUSE.
This low profile fuse holder is made of high temperature, flame retardant, thermoplastic capable of withstanding years of heavy road abuse. The single turn cap holds a standard 1-1/4" x 1/4" AGC, MDL, or 3AG type fuse and the rear nut mounting design is perfect for reliable installation. With a 1/2" hole, installation is quick and easy and the included environmental washer helps keep dust and moisture out of your amp. Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.   Flat screwdriver required to remove and insert the cap.
Part #FH-569
$5.49


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, FOR AGC, MDL OR 3AG TYPE FUSE.
Fuse holder, Twist-lock cap.   Durable, rugged design - better than OEM.   Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC fuses (1/4" x 1 1/4")  Connection by 1/4" push-on terminals, or wires may be soldered to the terminals.
Part #FH-301
$3.95


Click on photo for
larger view
FUSE HOLDER, ORIGINAL MESA/BOOGIE, FOR AGC, MDL OR 3AG TYPE FUSE
Fuse holder, Twist-lock cap.   Used on current model Mesa/Boogie amps built for domestic distribution in the USA or Canada.   Original Mesa/Boogie part number 790347.   Fits "American" style AGC, MDL or 3AG fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.
Part #FH-347
$6.95


Click on photo for
larger view
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many amplifiers and effects units.   Designed to snap into  1.25" x 1.10" rectangular panel hole.   Uses GMA type fuses (5mm x 20mm).   Space for spare fuse.   Rated up to 10 amps.   Fuse not included.
Part #P-S2-120-3
$3.95


Click on photo for
larger view
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many Orange® amplifiers.   Designed for screw mounting into 1.25" x 1.10" rectangular panel hole.   Uses GMA type fuses (5mm x 20mm).   Space for spare fuse.   Rated up to 10 amps.   Fuse not included.
Part #P-S2-719
$3.95


Click on photo for
larger view
REPLACEMENT CAP FOR FUSE HOLDER - Peavey®
Cap for fuse holder found in many Peavey® products.   Common failure item in Peavey®.   Original Peavey® part number
30900281.   For AGC or MDL type 1/4" x 1-1/4" fuses.
Part #FH-203
$3.99


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-815 FUSE HOLDERS - Marshall®
Cap for the "HT" fuse holder only in the JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The Mains fuse holder in the TSL and DSL models uses the FH-816 cap (below).
Part #FH-204
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-810 FUSE HOLDER - Marshall®
Cap for the "Mains" fuse holder found on the Marshall® JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The HT fuse holder in the TSL and DSL models uses the FH-204 cap (above).  Common failure item in Marshall®.   Designed to work with AGC type fuses (1/4" x 1 1/4")  If you would like to switch your TSL or DSL Mains Fuse to a GMA fuse (5mm x 20mm), order the FH-815 fuse cap below.
Part #FH-816
$4.39


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE CAP KIT  Marshall® TSL100, TSL122, DSL100, DSL50
This kit contains the large fuse cap for the "Mains" fuse holder and the small fuse cap for the HT fuse holder found on the Marshall® TSL100, TSL122, DSL100, DSL50.

Part #FH-416
$6.95
(for a set of two fuse caps)



Click on photo for
larger view
ALTERNATE CAP FOR FH-810 FUSE HOLDER - Marshall® - FOR GMA STYLE FUSE
Cap for the "Mains" fuse holder found on the Marshall® JCM2000 series (TSL100, TSL122, DSL100, etc).  NOTE:   This cap is NOT the original cap - this cap will change the type of fuse used in in the Mains fuse holder from the original AGC type to the GMA type (GMA is the same physical size (5mm x 20mm) as used in the HT fuse holder).
Part #FH-815
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall®
Replacement for mains and HT fuse holders found on the Marshall® JCM900 series.   Replacement fuse holder for the HT fuse only in the larger TSL and DSL models in the JCM2000 series (TSL100, TSL122, DSL100, DSL50).   Includes the FH-204 cap (above).  Common failure item in Marshall®.   Designed to work with GMA type fuses (5mm x 20mm)
Part #FH-830
$8.50


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall®
Replacement fuse holder for the Mains fuse only in the JCM2000 TSL and DSL models (TSL100, TSL122, DSL100, DSL50).  Includes the FH-816 cap (above).  Common failure item in Marshall®.   Not for the JCM900 series - JCM900 series amps use the FH-830 as both the mains and HT fuse holders.   Designed to work with AGC type fuses (1/4" x 1 1/4").   May be converted to GMA fuses with the FH-815 cap.
Part #FH-810
$9.95


Click on photo for
larger view
FUSE HOLDER -  Peavey®, Fender®, many other brands - AGC or MDL (1/4 inch x 1 1/4 inch) TYPE FUSE
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  For example, this fuse holder is used in the Peavey Valve King series.  Also used by Fender® - Fender® part number 0022546000.  Used in the  The following Fender® amps:   Twin Amp Pro Tube (2001), Pro Reverb Pro Tube (2001), Concert Reverb Pro Tube (2001).     PC Board mounted.   Uses AGC type 1/4" x 1 1/4" fuse.  Fuse cap is removed and inserted with flat screwdriver.
Part #FH-2709
$9.95


Click on photo for
larger view
FUSE HOLDER -  Egnater®, Orange®, Trace Elliot®, Blackstar®, other brands - GMA OR GDC TYPE FUSE (5mm X 20mm)

Fuse holder found in many models of  Egnater®, Orange®, Blackstar®, and Trace Elliot® amplifiers.   Designed for the 5mm x 20mm mini glass fuse (GMA or GDC type).  PC Board mounted.

Part #PTF-50
$3.95
