Circuit Protection
Fuses:


GMA - Fast Blow     GDC - Slow Blow     AGC - Fast Blow

MDL - Slow Blow     2AG Pigtail - 1 Amp Slow Blow

In-Rush Thermistors:

NTC Type

IC Protectors:

N-Type

Speaker Protectors:

Bulb Type







GMA Fuses - Fast Blow



(Sold in packs of five fuses.
20mm long x 5mm diameter)

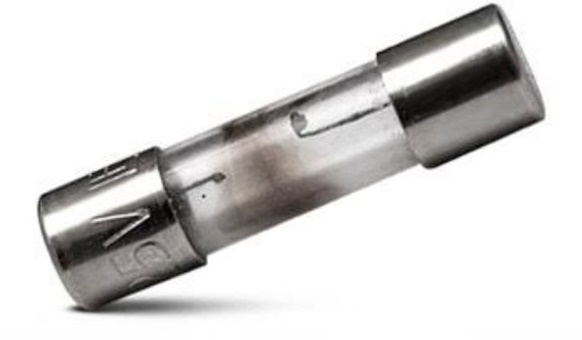

GMA fuses are smaller European fuses, fast blow, 5mm diameter x 20mm long.   Measure your old fuse.  In English dimensions, they are about 3/16 inches x 3/4 inches.  Sold in packs of 5 fuses.  Choose amperage value in Options.
Part #GMA-X

$2.95
(Pack of 5 fuses)

Select Option:


Number of 5-packs:




GDC Fuses - Slow Blow



(Sold in packs of five fuses.
20mm long x 5mm diameter)

GDC fuses are smaller European fuses, slow blow, 5mm diameter x 20mm long.   Measure your old fuse.  In English dimensions, they are about 3/16 inches x 3/4 inches.  GDC fuses are sometimes listed as 5 x 20 fuses, or "T" fuses, such as T1A.  GDC fuses are the same physical size as GMA fuses, except that they are "slow blow", or "time delay".  The GDC fuses are engineered to withstand normal surge current without blowing needlessly.   During steady-state operation, they protect to the same value as fast-blow fuses.  Sold in packs of 5 fuses.  Choose amperage value in Options.
Part #GDC-X

$4.95
(Pack of 5 fuses)

Select Option:


Number of 5-packs:




AGC Fuses - Fast Blow



(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)

AGC fuses are larger American fuses, fast blow, 1/4" diameter
x 1 1/4" long.   Measure your old fuse.   AGC fuses are sometimes listed as 3AG fuses.   In metric dimensions, they are 6.3mm x 31.75mm (or 6 x 32 for short).  Sold in packs of 5 fuses.  Choose amperage value in Options.
Part #AGC-X

$2.95
(Pack of 5 fuses)

Select Option:


Number of 5-packs:




MDL Fuses - Slow Blow



(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter.  Same as the MDL1 fuse)

MDL fuses are larger American fuses, slow blow, 1/4" diameter x 1 1/4" long, the same size as AGC fuses.   Measure your old fuse.  Slow Blow (also called Time Delay) fuses are engineered to withstand normal surge current without blowing needlessly.   During steady-state operation, they protect to the same value as fast-blow fuses.    In metric dimensions, they are 6.3mm x 31.75mm (or 6 x 32 for short).  Sold in packs of 5 fuses.  Choose amperage value in Options.
Part #MDL-X

$4.95
(Pack of 5 fuses)

Select Option:


Number of 5-packs:




2AG Pigtail Fuses - Slow Blow



(Sold individually.
9/16" long x 3/16" diameter)

Click on photo for
larger view
2AG Pigtail fuses are subminiature 5mm diameter x 15mm long, with axial leads for soldering.  Measure your old fuse.   These pigtail fuses are designed to be soldered to a circuit board.  In English dimensions, they are about 3/16 inches x 9/16 inches.   1 amp slow-blow.   These fuses are commonly found on circuit boards in some Peavey equipment.
Part #2AG-P-1A
$1.69
(each)




NTC Thermistors




Click on photo for
larger view
5 OHM NTC (Negative Temperature Coefficient) type Thermistor. As the temperature increases, the resistance decreases and is used for over current inrush protection. It is installed in series in a circuit, usually in series with incoming AC power.   This thermistor is rated for 3A maximum current, and is 8mm in diameter.   At room temperature with no current, its resistance is 5 ohms.  At full rated current, its resistance drops to 0.26 ohms.    It offers a small series resistance to the power transformer when current is first applied, and then quickly drops its resistance as current picks up for normal operation.   By limiting inrush current, it protects the transformer and other components in the power supply at turn-on.   This thermistor should only be used on amps which have a 3 amp fuse or less.   Download data sheet here.
Part #SCK-08053
$0.99
(each)



Click on photo for
larger view
10 OHM, 5A NTC (Negative Temperature Coefficient) type Thermistor.   Fender part number 028503.    Used in many Fender amp models since the 1990s.  Also used in some Mesa Boogie amps.  It is installed in series in a circuit between the transformer and incoming AC power.   This thermistor is rated for 5A maximum current, and is 19mm in diameter.   By limiting inrush current, it protects the transformer and other components in the power supply at turn-on.   This thermistor should only be used on amps which have a 5 amp fuse or less.   Download data sheet here.
Part #CL-60
$3.99
(each)




IC Protectors - N Type



ICP-Nxx IC Protector  These IC protectors come in a 2-leg TO-92 style case.   They are non-resetting solid-state fuses, designed for overcurrent protection.   Their rating in amperes is shown below.  Choose part number value in Options.
Part # Ampere rating
ICP-N5 0.2
ICP-N10 0.4
ICP-N20 0.8
ICP-N25 1.0
ICP-N38 1.5

Part #ICP-N-XX

$1.00

Select Option:


Quantity:




Speaker Protectors



Click on photo for
larger view
1141 Speaker Protection Limiter Lamp
This lamp is used in many crossovers for medium sized horn drivers - this size is commonly found in Peavey.   As the audio power increases, this device heats up (and even lights up at high power levels).  As it heats its resistance increases, thereby reducing the audio power reaching the driver.   This lamp fits a standard automotive style twist receptacle on the crossover board.
Part # 1141
$1.49


Click on photo for
larger view
1156 Speaker Protection Limiter Lamp
This lamp is used in many crossovers for larger sized horn drivers - this size is commonly found in Peavey.   As the audio power increases, this device heats up (and even lights up at high power levels).  As it heats its resistance increases, thereby reducing the audio power reaching the driver.   This lamp fits a standard automotive style twist receptacle on the crossover board.
Part # 1156
$1.49
