Guitar Electronics Parts




Mini Toggles




Click on photo for
larger view

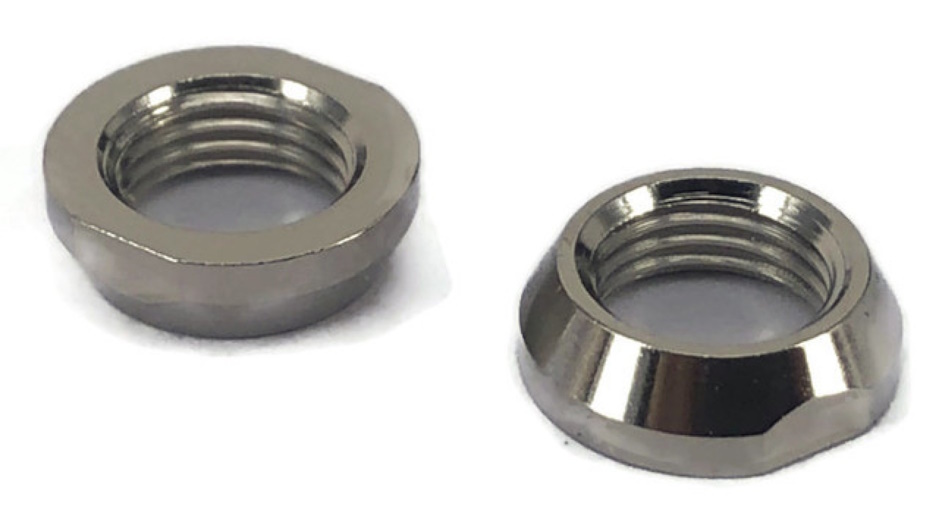

Genuine Carling Technologies dress nuts for use with all mini toggle switches. These plated dress nuts feature a chamfered edge for a professional look and work on any 15/32-32 UNS threaded bushing.  Note:  The dress nut will only tighten down to the point where the threads of the switch have reached the top of the nut.   To use this nut properly, adjust the back nut on the switch to allow 1/8 inch or 3.4mm thread extension beyond the panel. Two sides are flatted for use with a tool when fastening.
Part #DN-154
$0.79


ON-ON
Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-on Switching (no Center Off Position). (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (North)   2. Series Humbucker / Coil Tap (South)   3. Pickup On/Off   4. Kill Switch
Part #SW-MTS-S11
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches.  3 solder lug terminals, 2 position switch with short bat handle lever. (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (North)   2. Series Humbucker / Coil Tap (South)   3. Pickup On/Off   4. Kill Switch

Part #SW-MTS-S11-SL
$1.95


ON-OFF-ON
Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-Off-On Switching (Center Off Position). (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, CARLING™ TECHNOLOGIES MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
0.354" Bushing length
1/4" Mounting hole
Solder lugs
High quality Carling™ brand


Part #SW-MTS-
S101-CAR
$4.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, SHORT HANDLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)  SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION). (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101-SL
$1.95


ON-ON
Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-on Switching (no Center Off Position). (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)

Part #SW-MTS-D11
$2.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, SHORT HANDLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION). (Note:  Color of switch body may vary from photo)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)
Part #SW-MTS-D11-SL
$2.95


ON-OFF-ON
Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE,  Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-Off-On Switching (Center Off Position) (Note:  Color of switch body may vary from photo).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (North)   2. Series Humbucker / Off / Coil Tap (South)   3. Coil Tap (North) / Series Humbucker / Coil Tap (South)  4. In Phase / Off / Out of Phase  5. Series / Off / Parallel

Part #SW-MTS-D101
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING, SHORT HANDLE
Same as the SW-MTS-D101 above, except with a short bat handle.

Part #SW-MTS-D101-SL
$2.95


ON-ON-ON
Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-On-On Switching (see diagram below)(Note:  Color of switch body may vary from photo).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker/Coil Tap/Parallel Humbucker   2.   Humbucker/Coil Tap/Humbucker Out of Phase     3.  Neck Pickup/Both Pickups/Bridge Pickup

Part #SW-MTS-D111
$2.95


ON-ON
3PDT

Click on photo for
larger view
SWITCH, MINI 3PDT TOGGLE, Used In Guitars For Specialty Pickup Switching (coil Tap, Etc.). Also Used In Some Electronics Gear (effects, Etc) Soldered Wire Type Terminals. On-on Switching (no Center Position)  (Note:  Color of switch body may vary from photo)

Part #SW-MTS-311
$3.95


Click on photo for
larger view

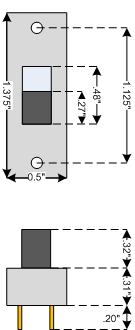

SWITCH, SLIDE, SWITCHCRAFT™, DPDT (6 TERMINALS),  REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Also used as the slide switch on Jazzmaster and Jaquar guitars.  Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.    Click here for physical specifications.   Two screws are included with the switch.
Part #SW-116S - CURRENTLY OUT OF STOCK. NO NEW STOCK EXPECTED FROM SWITCHCRAFT UNTIL JULY, 2022.
$4.95


Click on photo for
larger view
FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board.  Found in the Line 6™ XPS-AB power supply for their Variax guitars.  Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC
$3.95

  Guitar Cables


Click on photo for
 larger view
Revisit™ INSTRUMENT CABLE 15 FEET
Revisit 1/4" musical instrument cables provide the reliable link that lets you concentrate on a great performance. Also great for unbalanced line level interconnection, too.   15 feet long, 1/4" straight connectors.
  • 22 AWG oxygen-free copper stranded center conductor for maximum signal transfer
  • Coaxial construction and copper 95% braided shield reduce noise
  • Premium jacket materials provide ease of handling and long service life
  • Gold plated straight 1/4" connectors for long-term conductivity
  • Part #GCB-15

    $11.99

      Guitar Hardware

    Click on photo for
    larger view
    JACK LOCK WASHER, METAL
    Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
    Part #W-38
    $0.49


    Click on photo for
    larger view
    SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
    Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
    Part #JNUT-38-6
    $4.50
    (Set of 6 washers and 6 nuts)


    JACK NUT AND WASHER, METAL, SWITCHCRAFT
    Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
    Part #JNUT-38
    $0.89
    (Set of 1 washer and 1 nut)



    Click on photo for
    larger view
    GUITAR PICKGUARD SCREWS, CHROME.   Set of 12 chrome screws for electric guitar pickguards.

    Part #PGSC-12
    $2.49
    (pack of 12 screws)



    Click on photo for
    larger view
    GUITAR PICKGUARD SCREWS, BLACK.   Set of 12 black screws for electric guitar pickguards.

    Part #PGSB-12
    $2.49
    (pack of 12 screws)


      Guitar Pots

    Click on photo for
    larger view

    GUITAR POT, CTS, 24mm DIAMETER, 500KA, KNURLED SHAFT FOR PUSH-ON KNOBS.  Quality replacement pot from CTS.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Audio Taper.   Nut and lock washer included.  Note: threaded bushing diameter is 3/8".   See data sheet here.
    Part #450GP-500KA
    $6.95


    Click on photo for
    larger view
    GUITAR POT, 16mm DIAMETER, 250KA, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
    Quality replacement pot from Bourns.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  250K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.  Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
    Part #GP-250KA-16
    $6.95


    Click on photo for
    larger view
    GUITAR POT, 16mm DIAMETER, 500KA, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
    Quality replacement pot from Bourns.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
    Part #GP-500KA-16
    $6.95


    Click on photo for
    larger view
    GUITAR POT WITH SWITCH, 250KA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
    Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  250K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.   Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
    Part #GP-250KA-DPDT-16
    $11.95


    Click on photo for
    larger view
    GUITAR POT WITH SWITCH, 500KA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
    Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.   Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
    Part #GP-500KA-DPDT-16
    $11.95


    Click on photo for
    larger view
    GUITAR POT WITH SWITCH, 1MA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
    Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  1 Meg Ohm, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.   Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
    Part #GP-1MA-DPDT-16
    $11.95


    Click on photo for
    larger view
    GUITAR BLEND/BALANCE POT, 500KA.  Bourns dual MN taper blend-balance with center detent. Split shaft. 17 mm body diameter. 1/4" knurled shaft diameter. Solder lugs. 3/8" bushing.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special MN taper used for balance/blend pots.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
    Part #BP-500KMNX2-17
    $4.95

      Pots for Acoustic-Electric
    Guitar Preamps


    Click on photo for
    larger view
    ACOUSTIC-ELECTRIC GUITAR PREAMP POT, 9mm DIAMETER
    Exact replacement pot for volume / tone controls in many built-in preamps in acoustic-electric guitars, such as Alvarez and many others.   10K Ohms, Linear taper (B10K)

    Part #AEP-10KL
    $2.99


    Click on photo for
    larger view
    ACOUSTIC-ELECTRIC GUITAR PREAMP POT, 9mm DIAMETER
    Exact replacement pot for volume / tone controls in many built-in preamps in acoustic-electric guitars, such as Alvarez and many others.   50K Ohms, Linear taper (B50K)

    Part #AEP-50KL
    $2.99

      Guitar Jacks

    Click on photo for
    larger view
    JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, AUTHENTIC Lumberg
    German craftsmanship in a compact 1/4" jack.   Mono, open circuit.  Features the most compact size for a 1/4" jack available.   Perfect for tight fits in guitars.    Download datasheet
    Part #J-303
    $3.89


    Click on photo for
    larger view
    JACK, 1/4", STEREO, OPEN CIRCUIT, WIRED, AUTHENTIC Lumberg
    German craftsmanship in a compact 1/4" jack.   Stereo, open circuit.  Features the most compact size for a 1/4" jack available.  Perfect for tight fits in guitars.    Download datasheet
    Part #J-304
    $3.99


    Click on photo for
    larger view
    JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
    Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
    Part #J-11
    $3.39


    Click on photo for
    larger view
    JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
    Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
    Part #J-L11
    $4.79


    Click on photo for
    larger view
    JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
    Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

    Part #J-L11W
    $4.99


    Click on photo for
    larger view
    JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft
    Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
    Part #J-12B
    $4.35


    Click on photo for
    larger view
    JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
    Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
    Part #J-L12B
    $5.99


    Click on photo for
    larger view
    JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
    Common input jack in guitars, hand-wired effects pedals.  2 pins T/S, open circuit, non-switched.  Nut and washer included.

    Part #J-111X
    $4.39


    Click on photo for
    larger view
    JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
    Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched.  Nut and washer included.

    Part #J-112BX
    $4.50


    Click on photo for
    larger view
    JACK, 1/4", MONO, OPEN CIRCUIT STEREO, PC MOUNT, Switchcraft STYLE, NON-ISOLATED METAL THREADS.
    Common PC mount input jack.   3 pins, stereo, tip/ring/sleeve, no switching.  Shield tied to metal threads.   Used in many pedals and acoustic guitars.    Nut and washer included.

    Part #J-112BPC
    $3.99


    Click on photo for
    larger view

    Neutrik Rean NYS221 1/4" Stereo Jack Thick Panel
    1/4" phone jack for thick panels, guitar bodies, etc. with special designed head for guitar strap, 3-pole (TRS), long-threaded bushing with washer and nut, and full metal housing.
    Part #NYS221

    $4.50
