Jack Plates




Upgrade your PA Cabinets to Neutrik® speakON™!




Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Neutrik® NL4MP speakON connectors  Steel dish pre-punched.  Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   See full dimensions here
Part #JP-028

$4.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Neutrik® NL4MP speakON connectors  Steel dish pre-punched.  Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Jacks not included - order separately.   Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JP-334

$4.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For one Neutrik® NL4MP speakON connector.  Steel dish pre-punched.  Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Jack not included - order separately.   Dimensions: 4" x 4 3/8".   See full dimensions here

Part #JP-036

$4.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Switchcraft #11 jacks and two Neutrik® NL4MP speakON connectors.   This allows you to connect to the cabinet via speakON connectors or 1/4" plugs.  Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Jack not included - order separately.   Dimensions: 4" x 4 3/8".   See full dimensions here

Part #JP-322

$4.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Switchcraft® #11 or two British J-502 jacks.   Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Four #8 x 3/4" black mounting screws are included.  Jacks not included - order separately.   Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JP-344

$5.99


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Peavey®.

Part #J-NL4MP
$4.95


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR PC BOARD (SOLDER PINS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Peavey®.

Part #J-NL4MD-V
$4.95


Click on photo for
larger view

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$8.95



Guitar Cabinet Plates




Click on photos for
larger views

JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in. Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.  Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet.  Direct easy replacement for many existing small jack dishes.   No soldering required.  Complete wiring directions included - click here for more details.  Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12 cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.  Can be used for the following configurations:
  • 4 ohm mono
  • 8 ohm left + 8 ohm right stereo
  • 8 ohm left only mono
  • 8 ohm right only mono
  • 16 ohm mono

Part #CJP-1

$32.95


Click on photo for
larger view

Complete Genuine Marshall® JACK PLATE, STEREO / MONO
Marshall® jack plate as found on the  Marshall® 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.   Marshall part number M-196X-50-01.
Part #JP-800

$56.95


Click on photo for
larger view

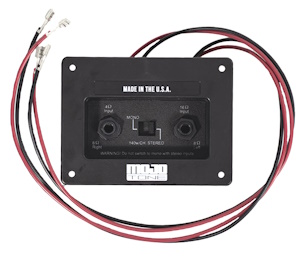

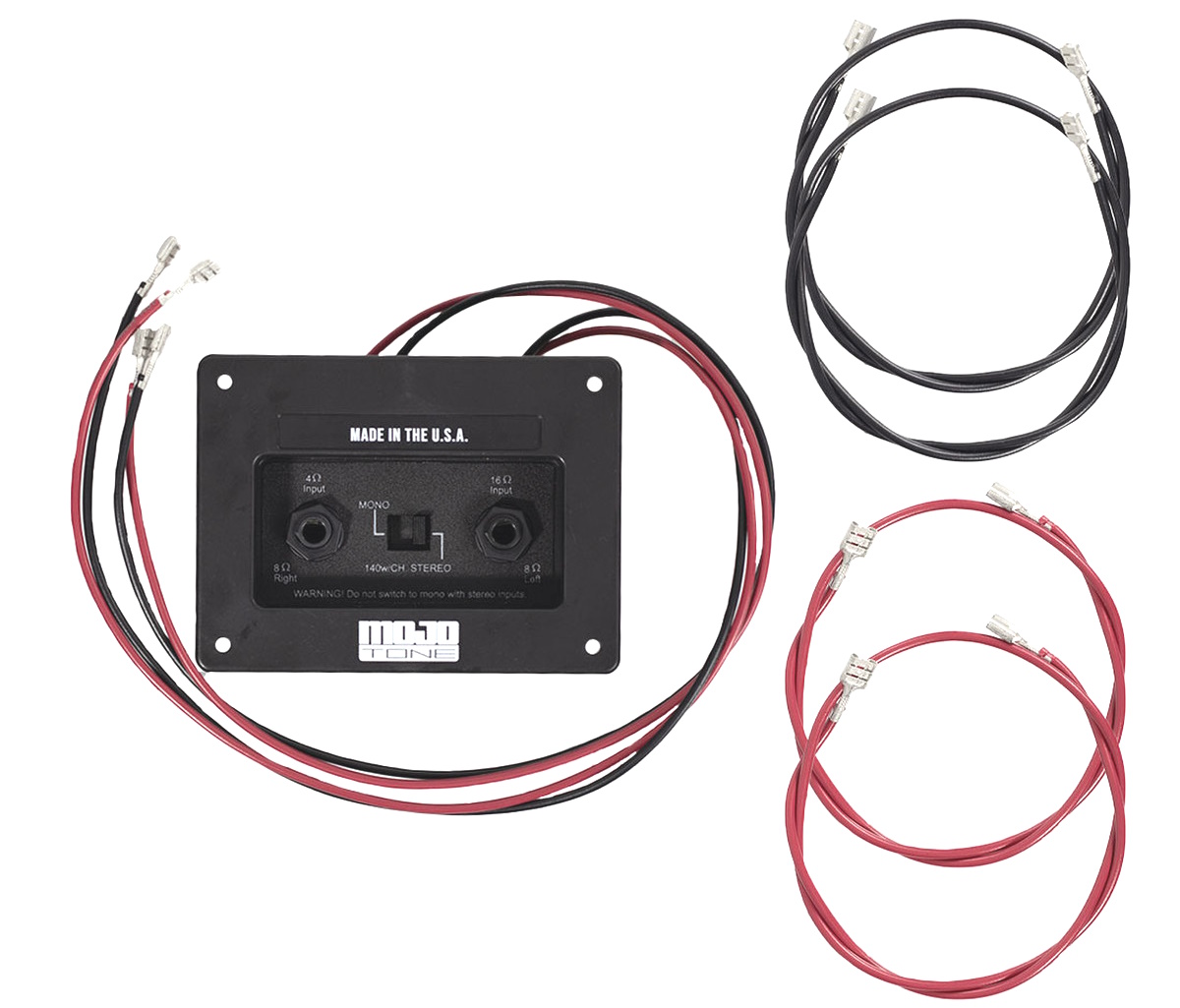

Marshall® STYLE JACK PLATE, STEREO / MONO
Marshall® style reproduction jack plate as found on the  Marshall® 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.   Replaces Marshall part number M-196X-50-01.  Includes speaker wires terminated in 1/4" push-on connectors.
Part #JP-800R

$49.95


Click on photo for
larger view

Marshall® JACK PLATE REPAIR KIT
Replaces the common failure parts on the JP-800 mono/stereo jack plate (shown above) as found on the 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.   Kit contains both jacks and a new mono/stereo select switch.   If the plastic housing and the PC board are intact, this kit replaces all of the functional components on the jack plate.
Part #RK-800

$13.95


Click on photo for
larger view

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$8.95


Click on photo for
larger view
JACK CUP, ORIGINAL MARSHALL®, BLACK PLASTIC, FOR SINGLE 1/4" JACK.

Jack is not included.   Plastic jack cup for input jack on Marshall® speaker cabinets.   Diameter = 3 3/4''.  Center-to-center screw hole spacing = 2 1/8''.  Screws are included.

Part #JP-150

$12.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender® jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.49


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Switchcraft® #11 or two British J-502 jacks.   Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.  Four #8 x 3/4" black mounting screws are included.  Jacks not included - order separately.   Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JP-344

$4.95



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95



Click on photo for
larger view
Fender® STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two
nickel jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 inch thick.   Keep your vintage Fender® cabinet looking original!
Part #JPC-577
$16.95


Click on photo for
larger view
CRATE® JACK PLATE, BLACK PLASTIC, DUAL 1/4" JACK, SIZE 3 3/8" x 3 3/8".   Designed to fit in a 3" round hole, easily cut in a cabinet with a 3" hole saw.   Jack mounting hole is 3/8", for most Switchcraft and British type jacks.  Easy to install, economical.   Found in many Crate® speaker cabinets, including the Crate® G412SL, GX412XSA, GX412XR, GT112SL, BX-115E and other cabinets.   Priced per jack plate.   Jacks not included - order separately below.
Part #JP-225
$2.79



Click on photo for
larger view
JACK SET OF 2, FOR ABOVE JP-225 JACK PLATE, 1/4", MONO PLASTIC, BRITISH STYLE, SOLDER TERMINALS,  REPLACEMENT FOR Crate®
4 solder terminals, switched. Used in the above JP-225, as found in some Crate
® speaker cabinets.  With nut and washer.  Original Cliff UK part number 1160A.  Set of 2 Jacks.
Part #J-502-2
$3.95
(for a set of 2 jacks)
