DSL50 Parts

We carry an extensive selection of Marshall™ Amplifier parts for both vintage and modern amps.

Back to Marshall™ Amp Parts Index



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Used in many modern Marshall™TM amp models, including the JCM900 series, JCM2000 series, the Valvestate Series 1 models, and several others.   Also used in many others brands of amps.   With nut and washer.    Marshall part number J3B6005A or S122.
Part #J-503
$1.89


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, PACK OF 6
4 PC board terminals, switched. Used in many modern Marshall™TM amp models, including the JCM900 series, JCM2000 series, the Valvestate Series 1 models, and several others.   Also used in many others brands of amps.   With nut and washer.    Marshall part number J3B6005A or S122.
Part #J-503-6
$9.99
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE,  RED NUT, REPLACEMENT FOR Marshall™ SPEAKER JACKS.
4 PC board terminals, switched. Used in modern Marshall™TM amp heads (JCM2000 series TSL and DSL, for example) as the output jack for the speaker cabinet.  With red nut and washer.
Part #J-503R
$2.39



Click on photo for
larger view

Available with or without nut and washer.

JACK, 9-PIN Low Profile, 1/4",  Marshall™,  GOLD Trim Ring  Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.    GOLD trim ring.  Jack data here.   Replacement nut/washer set is the JN-916.

Available with or without nut/washer - choose in "Options"

Part # J-560G
Starting at
$3.50
Select Option:


Quantity:



Click on photo for
larger view


Available with or without nut and washer.

JACK, 9-PIN Low Profile, 1/4",  Marshall™, Fender™, CHROME Trim Ring.  Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.  Nut and washer are NOT included.   CHROME trim ring.  Jack data here.  Replacement nut/washer set is the JN-916.

Available with or without nut/washer - choose in "Options"

Part # J-560
Starting at
$3.95
Select Option:


Quantity:



Click on photo for
larger view

Available with or without nut and washer.

JACK, 5-PIN Low Profile, 1/4", Marshall™, GOLD Trim Ring.  Used as the Effects A send jack and Effects B send jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL-122 and TSL-100.   Nut and washer are NOT included, order nut and washer separately below.   Note:  GOLD trim ring on face of jack.

Available with or without nut/washer - choose in "Options"

Part # J-565G
Starting at
$3.95
Select Option:


Quantity:


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the J-503, J-504 jacks.
Part #J-5NT
$0.50


Click on photo for
larger view

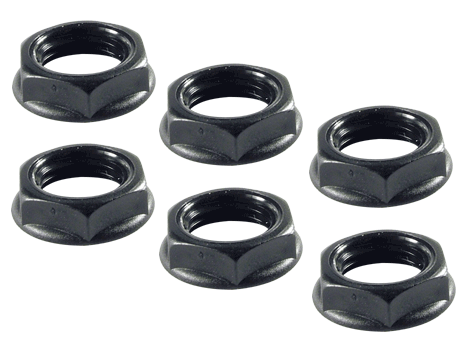

JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the  J-503, J-504 jacks
Part #J-5NT-6
$2.39


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to designate the 'speaker' jacks.
Part #J-5NTR
$0.89

NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531G, J-532, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75


Click on photo for
larger view
POT, JCM2000 SERIES 22K LINEAR BIAS ADJUST POT FOR Marshall™
Marshall part number POTTR22K, used as bias adjust pots.   Found in the DSL-50, DSL-100, TSL-100, TSL-122 models in the JCM2000.    Each amplifier uses two bias pots.
Part #POT-TR22K
$3.50


Click on photo for
larger view
POT, 11mm, Marshall™ TYPE, PC MOUNT.
This pot has 4 pins.  Includes mounting nut.
POT VALUE
MARSHALL  PART NUMBER
APPLICATION
B5K POT7 PRESENCE VR10
B20K POT2 REVERB A VR5, REVERB B VR6, MIDDLE VR8
B200K POT5 TREBLE VR9
A1M POT6 CHANNEL A CLASSIC GAIN  VR1, CHANNEL A CLASSIC VOLUME VR2, CHANNEL B ULTRA GAIN VR3, CHANNEL B ULTRA VOLUME 1 VR 4, BASS VR7

Select Pot Value in Options

Part #P-VKG-XX

$6.95

Select Option:


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 10 POTS TOTAL.  ORIGINAL Marshall™ REPLACEMENT PARTS.  Marshall™ MODEL DSL50 in the JCM2000 SERIES.
Complete replacement Potentiometer Kit for the Marshall™ Model DSL50 in the JCM2000 amp series.  10 pots on the front panel.
Part #MPK-26
$56.95


Click on photo for
larger view
KNOB, Marshall™, PUSH ON D-SHAFT
Standard original Marshall™ control knob, push-on type, for D-Shaft pots used in the following Marshall™ amp models:   DSL-50 Head. Original Marshall™ part.
The MKDS Knob is constructed so that the pointer on the front of the knob is directly behind the flat spot in the shaft hole on the back side of the knob.

Note:   In most cases, the gold color on the new knob will be deeper than the other old knobs on your amp - the gold caps on Marshall™ knobs fade over time.   Especially true if your amp is ~20 years old.

Note:  Marshall recently switched to a new subcontractor to produce these knobs (late in 2016).   These new knobs are (1) more of an "orangey" shade of gold than the previous Marshall knobs and (2) the gold caps have more of a matte finish than the previous caps which were shinier.  These new Marshall™ knobs are unfortunately less likely to match the existing knobs on your amplifier.
Part #MKDS

$2.99
(Single Knob)



Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replacement cord for many guitar amps, power amps, effects units, etc. 10 ft length giveS extra flexibility in equipment placement, reduces use of extension cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL
Popular IEC type AC connector found in many amplifiers and effects units.   Designed to mount in 0.8" x 1.10" rectangular panel hole.   Screw holes are 1.57" apart, center-to-center. Connectors are for push-on terminals, or may be soldered.  Rated at 10 amps.
Part #P-S2-106
$2.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall™ , FOUND IN Marshall™ JVM, DSL, and JCM2000 SERIES   Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.   Also found in the DSL-5, DSL-15, and the Mode 4 MF-350.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.  For use on 125VAC or 250VAC.  15/16" x 1 1/16" x 1" deep.  Internal neon lamp. Original Marshall part number B8C75184.
Part #SW-493
$10.95


Click on photo for
larger view
ROCKER SWITCH, STANDBY, ORIGINAL Marshall™ , FOUND IN Marshall™ JVM, JCM2000, DSL, TSL SERIES  Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.   15/16" x 1 1/16" x 1" deep.  Original Marshall part number B8B64025B.   (For the similar standby switch used in previous model series such as the JCM-900, early versions of the TSL and DSL series, see the SW-490 switch.)
Part #SW-490C
$9.95


Click on photo for
larger view
Marshall™ Impedance/Mode Selector switch.  Correct replacement for PCB mount impedance and high-low mode switch found on the back of many Marshall™ JCM900 and JCM2000 series amplifiers.  Also used as the impedance switch in Marshall™ 4x12 Cabinets (such as the 1960 series cabinets).    Found in other British-made amplifiers and cabinets as well.    Marshall™ part number S208.
Part #SW-4500
$9.95


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-815 FUSE HOLDERS - Marshall™
Cap for the "HT" fuse holder only in the JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The Mains fuse holder in the TSL and DSL models uses the FH-816 cap (below).
Part #FH-204
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-810 FUSE HOLDER - Marshall™
Cap for the "Mains" fuse holder found on the Marshall™ JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The HT fuse holder in the TSL and DSL models uses the FH-204 cap (above).  Common failure item in Marshall™.   Designed to work with AGC type fuses (1/4" x 1 1/4")  If you would like to switch your TSL or DSL Mains Fuse to a GMA fuse (5mm x 20mm), order the FH-815 fuse cap below.
Part #FH-816
$4.39


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE CAP KIT  Marshall™ TSL100, TSL122, DSL100, DSL50
This kit contains the large fuse cap for the "Mains" fuse holder and the small fuse cap for the HT fuse holder found on the Marshall™ TSL100, TSL122, DSL100, DSL50.

Part #FH-416
$6.95
(for a set of two fuse caps)



Click on photo for
larger view
ALTERNATE CAP FOR FH-810 FUSE HOLDER - Marshall™ - FOR GMA STYLE FUSE
Cap for the "Mains" fuse holder found on the Marshall™ JCM2000 series (TSL100, TSL122, DSL100, etc).  NOTE:   This cap is NOT the original cap - this cap will change the type of fuse used in in the Mains fuse holder from the original AGC type to the GMA type (GMA is the same physical size (5mm x 20mm) as used in the HT fuse holder).
Part #FH-815
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall™
Replacement for mains and HT fuse holders found on the Marshall™ JCM900 series.   Replacement fuse holder for the HT fuse only in the larger TSL and DSL models in the JCM2000 series (TSL100, TSL122, DSL100, DSL50).   Includes the FH-204 cap (above).  Common failure item in Marshall™.   Designed to work with GMA type fuses (5mm x 20mm)
Part #FH-830
$8.50


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall™
Replacement fuse holder for the Mains fuse only in the JCM2000 TSL and DSL models (TSL100, TSL122, DSL100, DSL50).  Includes the FH-816 cap (above).  Common failure item in Marshall™.   Not for the JCM900 series - JCM900 series amps use the FH-830 as both the mains and HT fuse holders.   Designed to work with AGC type fuses (1/4" x 1 1/4").   May be converted to GMA fuses with the FH-815 cap.
Part #FH-810
$9.95


Click on photo for
larger view
FUSE CLIP -  GMA OR GDC TYPE FUSE (5mm x 20mm)
Fuse clips found in many styles of guitar amplifiers, power amps and effects units.  PC board mounted.   ONLY for the smaller European style 5mm x 20mm fuse (3/16" x 3/4" fuse).  Sold in pairs.
Part #FC-520
$0.59
(for a set of 2 fuse clips)


Click on photo for
larger view
OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power tube or rectifier with a broken keyway, here is a great solution. By cleaning the remainder of the broken keyway from the tube base and properly installing this keyway replacement (a little dab of silicone sealant works great to hold it in place), your tube can safely be reinstalled into your equipment.   These great tube-savers are sold in sets of 2.   Note:  When using an adhesive to secure the keyway to the tube base, DO NOT use a water-based glue.   Silicone sealant (RTV) which is acryllic-based or butyl-based is fine.   Latex sealant or hot-glue is NOT.
Part #OTK8-2
$6.99
(for a set of 2 tube keyways)


Click on photo for
larger view
OCTAL TUBE BASE, SOLD INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state rectifiers, bias probes, etc.   8-pin plug with room inside the base for circuitry and wiring.  Sold individually.
Part #OTB-100

$3.99 ea


Click on photo for
larger view
TUBE SOCKET, OCTAL 8-PIN, commonly used with the OTB-100 Octal Tube Base to build bias probes, tube socket savers, tube extenders, etc.   This socket has no mounting bracket.
Part #TS-8-810
$3.50


Click on photo for
larger view
9 pin Belton Micalex socket for PC board mounting.   Mounts under the PC board.  Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   Used in Marshall™ , Peavey™ and other brands.  Click here for additional specs.
Part #TS-9-BEL
$2.79



Click on photo for
larger view

Socket - Belton, Micalex, 8 Pin, Octal PC Mount, Long Lead Micalex, PC mount, long leads (Belton) - MB/MT. 1 ½" mounting centers 1 1/4" chassis hole. Applicable for use with all types of electric and electronic equipment using vacuum tubes.  Paddle saddle mounting, easy mount with the saddle of extruded screw hole.   Phosphorous bronze pin terminal with tin plating, glass fiber field PPS Insulating material
Part # TS-8-209

$3.50


Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Marshall™ and many other amps.     1 1/2" mounting centers.  Made by Belton.
Part #TC-142
$1.79


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$3.99
(Set of 6 rings)

Diode, Silicon Rectifier, 1A, 1000PIV
Part #1N4007
$0.15

Diode, Silicon Signal, 150mA, 100PIV
Part #1N4148
$0.12

Diode, Silicon Rectifier, 3A, 1000PIV
Part #1N5408
$0.60

Bridge, Silicon Rectifier, 8A, 600PIV

Upgraded replacement for original part KBPC602, which tends to overheat and shut down, causing loss of preamp tube filaments.   Recommend mounting replacement bridge extended on its legs about 1/2 inch above the PC board.

Part #KBPC806/BR86

$2.95

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D
$1.00

Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1D.   Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded.    Mounts on vertical wall, long axis horizontal, connectors down.   Common replacement for  Marshall™ DSL50.  Also found in certain Laney™ models.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4BB3C1D

"Bringing back the sound of vintage Accutronics tanks"

$43.79
In Stock






Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets - In Stock)



Click on photo for
larger view

4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In stock



Click on photo for
larger view

Marshall™ STYLE FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Replaces Marshall™ stock numbers PED801 and PEDL-00001.   Fits the Marshall™ DSL50.   Mono 1/4" Plug, 16 ft. cable.   LED indicates condition of switch.
Part #FBS-470L
$31.95


Click on photo for
larger view
Marshall™ CORNERS, FRONT OF CABINET
Front corner set, ¾" radius. Includes 12 gold rivets for attaching to cabinet.  For heads, combos and straight speaker cabinets.   Will not fit slanted speaker cabinets, such as the 1960A.  For slanted cabinets, see the MC-1092 set.

Part #MC-1091
$10.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
Revisit Quality  Reproduction of Marshall™ CORNERS, FRONT OF CABINET
Front corner set, ¾" radius. Includes 12 gold rivets for attaching to cabinet.  For Marshall™ heads, combos and straight speaker cabinets.  Replace your Marshall™ corners with quality parts at 25% less than Marshall™ prices.   Will not fit slanted speaker cabinets, such as the 1960A.  For slanted cabinets, see the MC-1092 set.

Part #RC-1091
$7.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
Marshall™ SPECIAL CORNERS, FRONT OF SLANTED SPEAKER CABINETS
Front corner set, ¾" radius. Includes 12 gold rivets for attaching to cabinet.   Two top angled corners for the left and right top corners of angled speaker cabinets, and two straight corners for the bottom front corners.  For slanted speaker cabinets ONLY, such as the 1960A, MG412AG, MX412A
Part #MC-1092
$16.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
Marshall™ CORNERS, REAR OF CABINET
Rear corner set, ¾" radius. Includes 16 gold rivets for attaching to cabinet.  For heads, combos and speaker cabinets.

Part #MC-1090
$11.95
(For a set of 4 corners with 16 rivets)


Click on photo for
larger view
Revisit Quality  Reproduction of Marshall™ Corners, Rear of Cabinet  Rear corner set, ¾" radius. Includes 16 gold rivets for attaching to cabinet.  For Marshall™ heads, combos and speaker cabinets.   Replace your Marshall™ corners with quality parts at 25% less than Marshall™ prices.

Part #RC-1090
$8.95
(For a set of 4 rear corners with 16 rivets)



Click on photo for
larger view
Marshall™ GOLD RIVETS
For attaching Marshall™ corners to cabinets.  Gold, package of 12 rivets.
Part #MR-109
$4.95
(For a set of 12 gold rivets)


Click on photo for
larger view
Marshall™ SILVER RIVETS
For attaching Marshall™ corners to cabinets.  Silver, package of 12 rivets.
Part #MR-109S
$4.95
(For a set of 12 silver rivets)


Click on photo for
larger view
MARSHALL™ SPRUNG FOOT FOR DSL50 HEAD.  Original Marshall™ Sprung foot. Sold individually.  Screws are included  3 1/4" Long, 2" Wide, 1" Tall.   2-5/16" Mounting Centers.
Part #MSF-252
$8.95
(each)


Click on photo for
larger view
MARSHALL™ ANTI-SKID TRAY FOR 1960A ANGLED CABINETS.  Genuine Marshall Anti-Skid Tray. Sold individually.   For the Marshall™ 1960A slant cabinets. Gold rivets are included.  9-7/8" Long, 3" Wide, 1/8" Thick.  With Marshall logo.
Part #AST-1960
$18.65
(each)


Click on photo for
larger view
MARSHALL™ CASTER CUPS FOR 1960B STRAIGHT CABINETS - SET OF 4.  Genuine Marshall Caster Cups. Complete set of 4 for one cabinet.  Package of 4 includes 16 gold rivets.  For the Marshall™ 1960B straight cabinets.  3.9" Long, 2.07" Wide.
Part #MCC-1960
$18.95
(Set of 4)


Click on photo for
larger view
MARSHALL™ HANDLE STRAP FOR DSL50 HEAD.  Original Marshall™ handle strap for the MAH-294 Handle. Sold individually.  Includes metal strap insert and rubber strap.   Genuine Marshall.   Found primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Save money by replacing only the worn strap!  Ends and clamps not included.
Part #MHS-294
$7.95
(each)


Click on photo for
larger view
MARSHALL™ END CAPS FOR MAH-294 HANDLE.  Handle end caps for the MAH-294 Handle. Sold in sets of two caps.   NOTE:  DOES NOT HAVE THE MARSHALL LOGO ON THE CAPS.   Found primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Save money by replacing only the parts the handle needs!  Strap, screws and clamps not included.   Set of two end caps.
Part #MHC-294-2
$4.95
(for a set of 2 end caps)


Click on photo for
larger view
MARSHALL™ INTERNAL END CLAMPS FOR MAH-294 HANDLE.  Handle internal clamps for the MAH-294 Handle. Sold in sets of two end clamps.   Genuine Marshall.   Found primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Save money by replacing only the parts the handle needs!  Strap, black end caps, screws and strap not included.   Note:  These are unfinished metal caps - designed to be used only with the snap-on MHC-294-2 end caps.  Set of two end clamps.
Part #MIC-294-2
$2.99
(for a set of 2 end clamps)


Click on photo for
larger view

Marshall™ METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall™   MAH-294 handle.   Original Marshall™ , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps.
Part #SC-404
$1.99
(for a pack of 2 Marshall™ metric screws)



Click on photos for
larger view


(Assembled)

Marshall™ HANDLE
Genuine Marshall™ Handle for modern heads and combo amps.   Used primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Original Marshall™ part number M-PACK-00031.    Kit contains:

  • (2) Countersunk screws - M5 x 0.8, overall length of 25 mm

  • (2) Mounting brackets
  • (2) Black bracket covers with Marshall™ logo
  • (1) Rubber handle with metallic insert
  • Center-to-center screw mounting distance is 8 3/8" (213mm).
  • Overall length of assembled and mounted handle is 101/4" (260mm).
  • Replacement screws are the Marshall™ SC-404 screws, below

Part #MAH-294

$19.95





Click on photos for
larger view


(Assembled)
Marshall™ AFTERMARKET HANDLE
Identical to the Genuine Marshall™ Handle MAH-294 (above), except does not have the "Marshall" name imprinted on the end caps.   Save over 40% compared to the price of the original Marshall™ handle.  For modern heads and combo amps.   Used primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Replaces Original Marshall™ part number M-PACK-00031 or stock number MAH-294.    Kit contains:
  • (2) Countersunk screws - M5 x 0.8, overall length of 25 mm
  • (2) Mounting brackets
  • (2) Black bracket covers (no Marshall™ logo)
  • (1) Rubber handle with metallic insert
  • Center-to-center screw mounting distance is 8 3/8" (213mm).
  • Overall length of assembled and mounted handle is 101/4" (260mm).
  • Replacement screws are the Marshall™ SC-404 screws, below

Part #RAH-294

$10.99


Click on photo for
larger view

Marshall™ METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall™   MAH-294 handle.   Original Marshall™ , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps.
Part #SC-404
$1.99
(for a pack of 2 Marshall™ metric screws)



Click on photo for
larger view
Marshall™ LOGO, WHITE PLASTIC, 11" LONG - DSL50
The 11 inch long Marshall™ logo - large size. As used on the DSL50 head.  This logo is 11" long - please measure the old logo in order to ensure that you order the correct size.
Part #ML-1101
$37.95


Click on photo for
larger view
Marshall™ TOP VENT, 8 SCREW OR RIVET HOLES - DSL50 HEAD
Check the measurement of your existing vent - the MV-211 vent measures 17 5/8" x 3".  Rivets/screws not included.
Part #MV-211
$13.95


Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Marshall™ METRIC
Replacements for the standard M6 metric screws used to hold the chassis in virtually every Marshall™ head.  Washers included.   Package of 4 stainless steel screws, with 4 washers.
Part #MCB-4
$3.99
(Set of 4 screws w/washers)



Click on photo for
larger view
Marshall™ CHASSIS WASHERS
Replacements for the standard washers used with the MCB-4 chassis screws under virtually every Marshall™ head.   Note:  Not for Marshall Combo amps.   Also fits Orange and Trace Elliot amps which use chassis bolts to secure the chassis.  Package of 4 washers.
Part #MCW-4
$1.99
(Set of 4 washers)



Click on photo for
larger view
CHASSIS CAGE NUTS, Marshall™ M6 METRIC, DSL50
Replacements for the standard M6 metric cage nuts used on the chassis in virtually every Marshall™ head.   Package of 4 cage nuts.   Mates with the MCB-4 screws, above.
Part #MCN-4
$4.59
(Set of 4 nuts)




Click on photo for
larger view
Marshall™ HEAD BACK PANEL STAINLESS STEEL SCREWS AND WASHERS (SET OF 4) FOR FULL SIZE HEADS.  Set of 4 screws, Stainless Steel, 1 1/2" long, Phillips, oval head, with matching cup washers.  Fits most large Marshall™ heads starting in the 1980s, including the JCM-800, JCM-900, JCM-2000 and JVM series.   Note:  The screw heads in this package have a slight oval shape, as opposed to many Marshall™ head back panel screws which have a flat head.  This oval shape helps improve the "bite" of the screwdriver, and helps prevent the screw head from being mangled over time.
Part #
MBP-4
$1.49
(for a pack of 4 screws and 4 washers)



Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2022 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
