Peavey Hardware

Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Fender™ and many other amps.     1 1/2" mounting centers.  Made by Belton.  Fender part number 099072500.
Part #TC-142
$2.25


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket
Part #TS-370
$4.99


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S
$2.29


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   This is a great kit to replaced all 6 of the tube shields in many Fender™ amps with 6 preamp tubes.  Shield and base only - socket not included.

Part #TS-325S-6
$12.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$4.95
(Set of 6 rings)


Click on photo for larger view

Belton 8 pin socket, Micalex, for PC board mounting  Belton 8 Pin Octal Auto Wave Solder Micalex Socket. Very high quality. This is a specially designed socket that mounts under the PCB.  Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.  Click here for additional specs.
Part #TS-8-BEL

$3.99


Click on photo for
larger view
9 pin Belton Micalex socket for PC board mounting.   Mounts under the PC board.  Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   Used in Marshall™ , Peavey™ and other brands.  Click here for additional specs.
Part #TS-9-BEL
$2.79


Click on photo for
larger view
REPLACEMENT CAP FOR FUSE HOLDER - Peavey™
Cap for fuse holder found in many Peavey™ products.   Common failure item in Peavey™.   Original Peavey™ part number
30900281.   For AGC or MDL type 1/4" x 1-1/4" fuses.
Part #FH-203
$7.95




Click on photo for
larger view
FUSE HOLDER -  Peavey™, Fender™, many other brands - AGC, 3AG or MDL (1/4 inch x 1 1/4 inch) TYPE FUSE
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  For example, this fuse holder is used in the Peavey Valve King series.  PC Board mounted.   Uses AGC type 1/4" x 1 1/4" fuse.  Fuse cap is removed and inserted with flat screwdriver.
Part #FH-2709
$11.95


Click on photo for
larger view
FUSE CLIP -  Peavey™, Fender™,  many other brands - GMA OR GDC TYPE FUSE (5mm x 20mm)
Fuse clips found in many styles of guitar amplifiers, power amps and effects units.  PC board mounted.   ONLY for the smaller European style 5mm x 20mm fuse (3/16" x 3/4" fuse).  Sold in pairs.
Part #FC-520
$0.59
(for a set of 2 fuse clips)


Click on photo for
larger view
Peavey™ Stainless Steel Screw - 4 inches long, 10-24 thread.  Used on a variety of vintage Peavey amps which had chassis straps on top of the amp cabinet. Sold individually - ordering quantity of 1 delivers 1 screw.    Each amplifier requires a total of 4 screws.
Part #PBCB
$1.39

(Sold individually - Each amp uses 4 screws)




Click on photo for
larger view
ThermoCool Fan.  80 x 38mm Sleeve Bearing 23 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power: 100-125V AC, 50-60 Hz • Sleeve bearing • Lead wire connection • 0.13 amps • 2400 RPM • 28dB noise level • 23 CFM air flow • Dimensions: 80 mm (H) x 80 mm (W) x 38 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1 1/2" (D)]
Part #G8038HAS
$21.95


Click on photo for
larger view
GENUINE PEAVEY BLACK ENDS /BLACK STRAP GUITAR AMP HANDLEBlack handle strap, metal reinforced.  Black metal caps.   Screws and T-Nuts are NOT included.  Screws and T-Nuts to fit are found here.  Handle strap is 7/8" wide.   Designed for screw holes set 7 3/4 inches apart.   Total length of handle when properly mounted is 9 1/2 inches.
Part #PAH-301
$11.95



Click on photo for
larger view
GENUINE PEAVEY CHROME ENDS /BLACK STRAP GUITAR AMP HANDLEBlack handle strap, metal reinforced.  Chrome metal caps.   Screws and T-Nuts are NOT included.  Screws and T-Nuts to fit are found here.  Handle strap is 7/8" wide.   Designed for screw holes set 7-3/4 inches apart.   Total length of handle when properly mounted is 9-1/2 inches.
Part #PAH-302
$10.95



Click on photo for
larger view

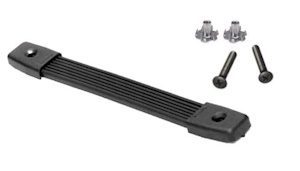

Revisit™ BLACK GUITAR AMP HANDLE, WITH HARDWARE Rugged rubber black handle strap, steel reinforced.  Black metal caps.   Black 10-32 screws and  T-Nut mounting hardware are included.  Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 to 8 3/8 inches apart.   Total length of handle when properly mounted is 10 1/4".  Great replacement for the Budda Superdrive 30 (Series 1 only, pre-Peavey).
Part #GAH-271B
$11.99



Click on photo for
larger view
Revisit™ GUITAR AMP HANDLE - BLACK.  Rugged rubber black handle strap, steel reinforced.  Black metal caps.   Screws not included - recommend using our SC-403B Black 10-32 type screws along with a 10-32 T-Nut for secure mounting.   Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 10 1/4".
Part #GAH-1
$10.99


Click on photo for
larger view

BLACK HANDLE SCREWS
Pack of 2 stainless-steel handle screws finished in satin black for use with black end-cap handles, such as our GAH-1 or GAH-271B or PAH-301 Handle.  1-1/4" Long, 10-32 threads, finished in satin black to match black end caps.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".   See Data Sheet here
Part #SC-403B
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

HANDLE SCREWS
Pack of 2 stainless steel handle screws for GAH-271C or PAH-302 Handle.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

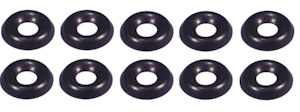

CUP WASHER, BLACK METAL, PACK OF 10.  Used with #8 Black screws, on amps and speaker cabinets.
Part #BCW-10
$1.69
(pack of 10)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 4.
Part #SC-409-4
$4.50
(For a pack of 4 screws with nuts and lock washers)



Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #6 screw, Pack of 10.
Part #SCR-435
$0.79
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.
Part #BWS8-5
$0.99
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.
Part #BWS8-75
$1.10
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.
Part #BWS8-1
$1.25
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.
Part #BWS8-15
$1.39
(pack of 10)




Click on photo for
larger view
CAGE NUT, ZINC, 10-32 THREAD.   Used on square-punched amp chassis rails to secure the chassis to the cabinet.   Frequently found in Peavey, Crate, Ampeg, other brands.   NOT used in Marshall™ - see the MCN-4.   Works with all 10-32 screws.   Verify screw thread before ordering, as not all cage nuts are 10-32.   Zinc coating retards oxidation.   Pack of 4 nuts.   Made in Canada by Hammond Industries.
Part CNA-1421
$4.29
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750
$4.95
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
Part #BRF-723
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

Part #BRF-1691
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

Part #BRF-9105
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   TAPERED -1 3/16" DIAMETER AT SMALL END, 1 1/4" DIAMETER AT LARGE END.   1/2" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT EFFECTS, AMPS,  MIXERS.   MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9112
$4.95
(pack of 4)



Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4.   TAPERED -  1 5/8" DIAMETER AT LARGE END, 1 1/4" AT SMALL END.  3/4" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT AMP HEADS, SPEAKER CABINETS.  MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9107
$7.95
(pack of 4)



Click on photo for
larger view
Fender™ Style Flat Mount 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.   Specifications found here.   Note:  Mounting screws NOT included.
Part #FCW-4F
$29.95
(Set of 4 casters)

NOT SOLD OUTSIDE the USA



Click on photo for
larger view
Fender™ Style Pop-Out 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.  The same type of removable caster wheels used on Fender™ amps since the 1960s.   Note:  Mounting screws NOT included.   Must drill 5/8" hole in bottom of cabinet to accomodate post for wheel.
Part #FCW-4R
$28.95
(Set of 4 pop-out casters)

NOT SOLD OUTSIDE the USA


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender™ amps.   Designed for 5/16" cord diameter (3 conductor 18ga power cable).   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 - Note: Limited Quantity available at the moment.
$12.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280 - NOTE: ONLY 1 LEFT IN STOCK!
$6.99


Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99



BUILD YOUR OWN Speaker Harness for Combo Amps:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view
PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.
Part #P-287
$3.95
