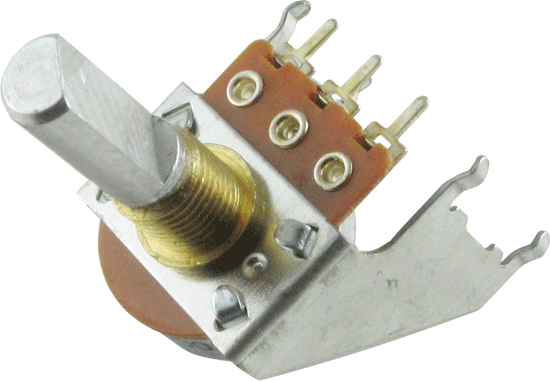

Fender® Snap-In,
D-Shaft
90s - present


Fender® Bracket, Smooth 1/4" Shaft
90s - present
(Hot Rod, Blues, 65 Reissues)



Fender® Bracket, D-Shaft
90s - Present


Marshall® bias pots

Marshall® JCM800 pots for PC board mounting

Marshall® amps up until 1979 with solder lugs and set-screw knobs (also a few early JCM800)

Marshall® JCM900
and the early Valvestate Series 1 amps

Marshall® JCM2000 (DSL/TSL) and the later Valvestate Series 2 amps.  Also Peavey Studio Pro 112

The 2010 and later Marshall® MG series amps (such as the MG100FX) with the large "MG" on the front faceplate

Marshall® MG Series Amps from 1990-2009

Short shaft Alpha 16mm Potentiometers

Vox 16mm Potentiometers (1990-Present)

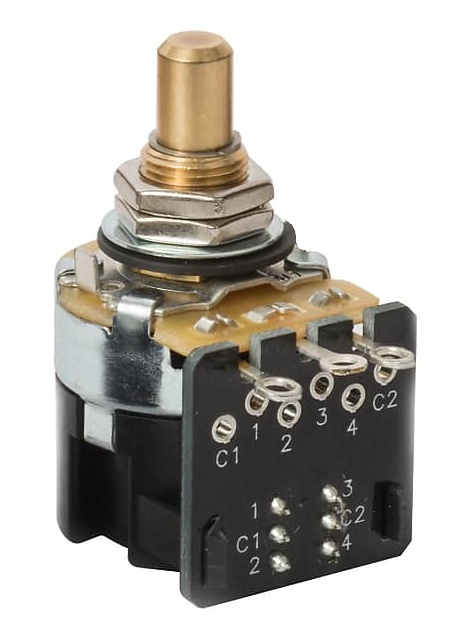

Switched Pots


Bias Pots


Pot Nuts and Washers

13mm D-Shaft Pots

Peavey Spider Pots


Peavey Bracket Potentiometers


Orange 16mm Potentiometers

16mm Short Shaft Pots

16mm Medium Shaft Pots

16mm Long Shaft Pots

16mm D-Shaft Pots

Right-Angle PCB Mount
Effects Pedal Pots

Wire Terminal 16mm Knurled Shaft Pots

Pro Audio Pots


Wah Pedal Pots

Guitar Pots

Fender® Pot Kits

Marshall Potentiometer Kits

Acoustic-Electric Guitar Preamp Pots, Misc Pots

Mesa/Boogie Pots





Potentiometers - Marshall® Bias



Click on photo for
larger view
POT, 22K VERTICAL LINEAR BIAS ADJUST POT FOR Marshall®
Used in many previous Marshall® models with PC board circuitry.  Mounted on the main PC board - used to set the bias on the output tubes.   Common failure item.  This is the original Marshall® part.  Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-V
$2.95

Quantity:


Click on photo for
larger view

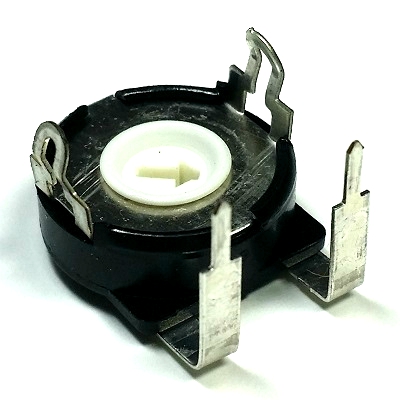

POT, 22K HORIZONTAL LINEAR BIAS ADJUST POT FOR Marshall®  - TYPE 1
Mounted on the main PC board or turret boards - used to set the bias on the output tubes.  This style has 2 pins plus 2 tabs for mounting - see photo.  Common failure item.   This is an alternate horizontal style - particularly useful in modifications, kit builds, etc.   Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-H1
$2.95

Quantity:


Click on photo for
larger view

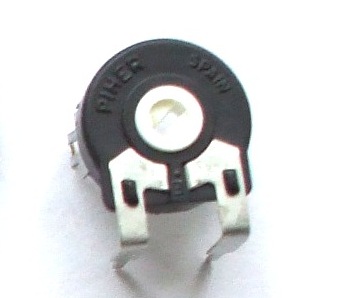

POT, 22K HORIZONTAL LINEAR BIAS ADJUST POT FOR Marshall®  - TYPE 2
Mounted on the main PC board or turret boards - used to set the bias on the output tubes.  This style has 3 pins for mounting - see photo.  Common failure item.   This is an alternate horizontal style - particularly useful in modifications, kit builds, etc.   Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-H2
$2.95

Quantity:


Click on photo for
larger view

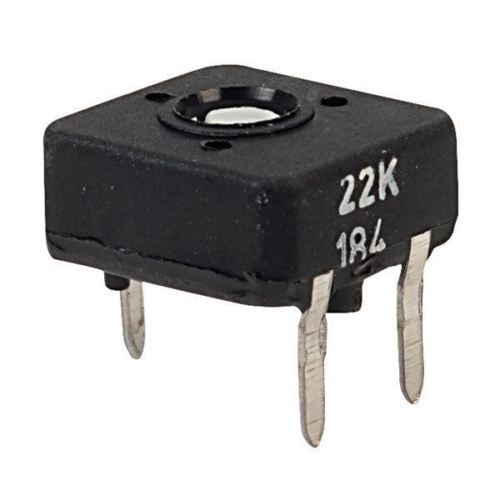

POT, JCM2000 SERIES 22K LINEAR BIAS ADJUST POT FOR Marshall®
Marshall part number POTTR22K, used as bias adjust pots.   Found in the DSL-50, DSL-100, TSL-100, TSL-122 models in the JCM2000.    Each amplifier uses two bias pots.
Part #POT-TR22K
$3.50

Quantity:

Potentiometers - Marshall® 24mm (JCM800)



Click on photo for
larger view

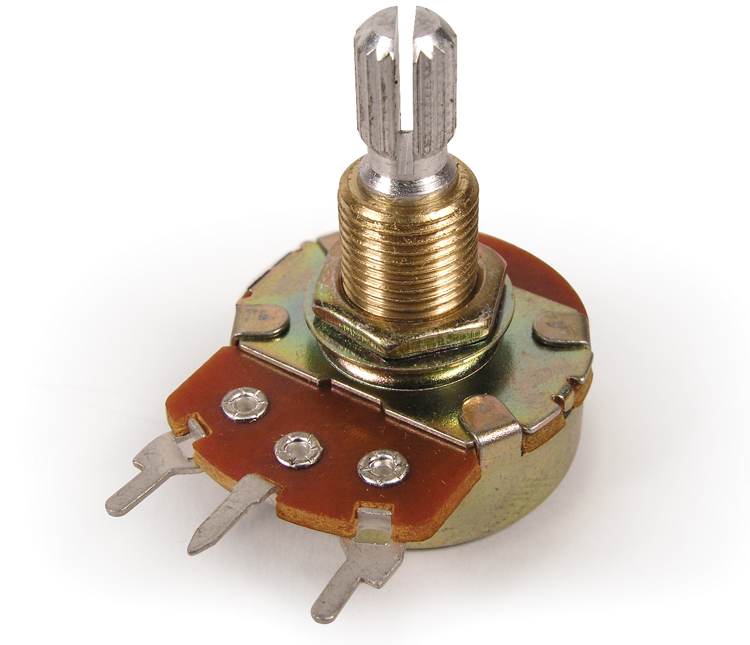

POT, ORIGINAL Marshall® , PC MOUNT, 24mm DIAMETER BODY, 9.5mm DIAMETER THREADED BUSHING.
Used in many previous Marshall® models with PC board circuitry (such as the later JCM800 series).   Original Marshall replacement with 8.8mm (nominal 9mm) diameter threaded bushing.  Bushing length is 9.5mm.  Diameter of the body of the pot is the size of a quarter (about 1 inch or 24mm).   Includes washer and two nuts.  Replacement nut is the JN-975.  Pots are manufacturered by Alpha, Song Huei, or Di Ya for Marshall. Select Pot Value in Options
Part #P-VM24-XX
$6.95
Note - the B4.7K and the B22K sizes are currently unavailable from Marshall.   Use the B4.7K and/or the B22K in the P-VM24AP style pot below as alternatives.

Select Option:


Quantity:



Click on photo for
larger view
ALTERNATIVE POT, AFTERMARKET Marshall® TYPE, PC MOUNT, 24mm DIAMETER BODY, 8mm DIAMETER THREADED BUSHING.
This is an alternative pot for 24mm Marshall pots - made by Alpha.  7.8mm (nominal 8mm) diameter threaded bushing.  Bushing length is 10.5mm.  Diameter of the body of the pot is the size of a quarter.   This pot has a smaller diameter bushing than the original - however, unlike many other suppliers, we include all necessary washers (2) and nuts (2) to be a drop-in replacement for the original Marshall® pot.  Replacement nut is our JN-1016.  Select Pot Value in Options
Part #P-VM24AP
$4.95

Select Option:


Quantity:


Click on photos for
larger view

BRASS POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on your 1/4" knurled shaft potentiometer?  Do you need to eliminate the off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?

Just slip one of our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft or 6mm pot shaft to ensure a snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!

Note:  Will NOT work with 3/16" knurled shaft pots.  Those smaller knurled shafts are typically found in Crate and Peavey amps.  Not recommended for D-shaft type shafts.

Part #PAS-635

$0.95


Click on photo for
larger view
POT NUT, METAL
Replacement metric nut for the Marshall® 24mm pots (P-Vxxxx-M24) which have brass colored threaded bushings.   Metric threads M9x.075 zinc plated.    These nuts typically fit the original pots used in vintage Marshalls, and the original Marshall® replacement pots that we sell. For the matching washer, see the JW-9.  The JN-975 does not fit the newer Alpha replacement 24mm pots which have silver colored threaded bushings - for those pots, see our JN-1016 8mm nut.

Part #JN-975
$0.49

Quantity:


Click on photo for
larger view
POT WASHER, METAL
Replacement metric washer for the Marshall® 24mm pots (P-Vxxxx-M24) which have brass colored threaded bushings.  9mm ID, 15mm OD.    These washers typically fit the original pots used in vintage Marshalls, and the original Marshall® replacement pots that we sell.
They do not fit 3/8" diameter pot bushings (such as pots in vintage Fender amps), or Switchcraft jacks.
Part #JW-9
$0.19

Quantity:


Click on photo for
larger view
POT NUT, METAL, 8MM
Replacement nut for the Fender® bracket mount pots with smooth 1/4" shafts (FPHD-xxxx), such as used on the Hot Rod Deluxe/Deville, Blues Deluxe/Deville.    Also fits the substitute replacement pots for Marshall® 24mm with silver-colored threaded bushings, and our P-VA-XX pots   Metric threads M8x.075 zinc plated.
Part #JN-1016
$0.39

Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT®, SET OF 6
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)

Quantity:

JACK NUT AND WASHER, METAL, SWITCHCRAFT®
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)

Quantity:


Click on photo for
larger view
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
Part #W-38
$0.49

Quantity:

16mm Potentiometers, Long
Shaft Length (Marshall® Style - JCM900 and Valvestate Version 1)



Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.  ORIGINAL Marshall® REPLACEMENT PART.
Used in Marshall® Valvestate I, JCM900, JCM600, JTM30, JTM60, and 6100 Series. Used in Marshall® models: AS80R, 8040, 8080, 8100, 8200, 8240, 8280, JCM900 Models: 2100, 2101, 2500, 2501, 4100, 4500, 4101, 4102, 4501, 4502, SL-X 2100, SL-X 2500, 6100, 6101, JTM60 and JTM30 Series.  Also used in other amps besides Marshall®.   Available values:  B4.7K, B10K, B22K, B50K, A100K, B100K, B220K, and A1M.   Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:


Click on photo for
larger view

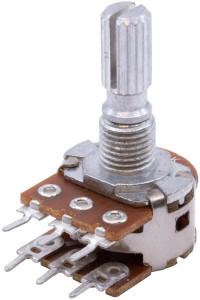

POT, 10K OHM X2 LINEAR DUAL, (B10K), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in Marshall® Valvestate I, JCM900 and JCM600 Series. Also used in the JMP1 Preamp as Output Level Control.  Used in Marshall® models:  AS80R, 8080, 8100, 8200, 8240, 8280, JCM900 Models: 4100, 4500, 4101, 4102, 4501, 4502, SL-X 2100, SL-X 2500, 6100, 6101, JTM60 and JTM30 Series.  Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 11.5mm.  Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V10KLX2-M16
$6.95

Quantity:


Click on photo for
larger view
POT, 100K OHM X2 REVERSE AUDIO DUAL, (C100K), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 11.5mm.  Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V100KRAX2-M16
$6.95

Quantity:

Other Long Shaft 16mm Potentiometers:



Click on photo for
larger view

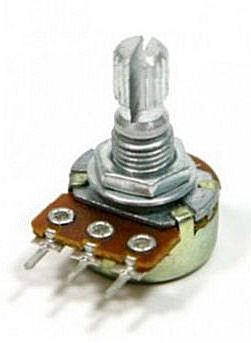

POT, 10K OHM AUDIO, (A10K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Used in Marshall® and other amps, including the Marshall 8015 keyboard amp.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V10KA-M16
$2.95

Quantity:


Click on photo for
larger view
POT, 250K OHM X2 LINEAR DUAL, (B250K), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 11.5mm.  Fits many  amps
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V250KLX2-M16
$6.95

Quantity:

11mm Pots, D-Shaft (Marshall® Style - JCM2000 and Valvestate Version 2, Fender® Champion, Peavey Studio Pro 112)



Click on photo for
larger view
POT, 11mm, Marshall® TYPE, PC MOUNT.
Used in many later Marshall® models with PC board circuitry, including the JCM2000 series TSL100, TSL122, DSL100, DSL50, as well as some of the late 90s ValveState models and the MA50/MA100 amps.   This pot has 4 pins.  Includes mounting nut.  Available values:  B5K, B10K, A10K, B20K, B50K, A100K, B100K, A200K, B200K, A500K, and A1M.   This style of pot is also used in the Engl Screamer 50 (E335) and the Engl Thunder 50 (E320).   Select Pot Value in Options
Part #P-VKG-XX
$6.95

Select Option:


Quantity:


Click on photo for
larger view
POT, DUAL TANDEM, 7 pins, 14mm, A200K, Marshall® TYPE, PC MOUNT.
Used in the Marshall® DSL401 as the master volume control.  This pot has 7 pins. Marshall® part number POTP00076.  Includes mounting nut.
Part #P-VKG-A200KX2
$15.95

Quantity:


Click on photo for
larger view
POT, 1 MEG AUDIO, 11mm, Fender® TYPE, PC MOUNT.
Used in the Fender® Champion 600.  Fender® part number 0073912049.  This pot has 4 pins.  Includes mounting nut.  This pot is also used in the Engl Screamer 50 (E335) and the Engl Thunder 50 (E320).
Part #P-VKG-A1M
$6.95

Quantity:


Click on photo for
larger view

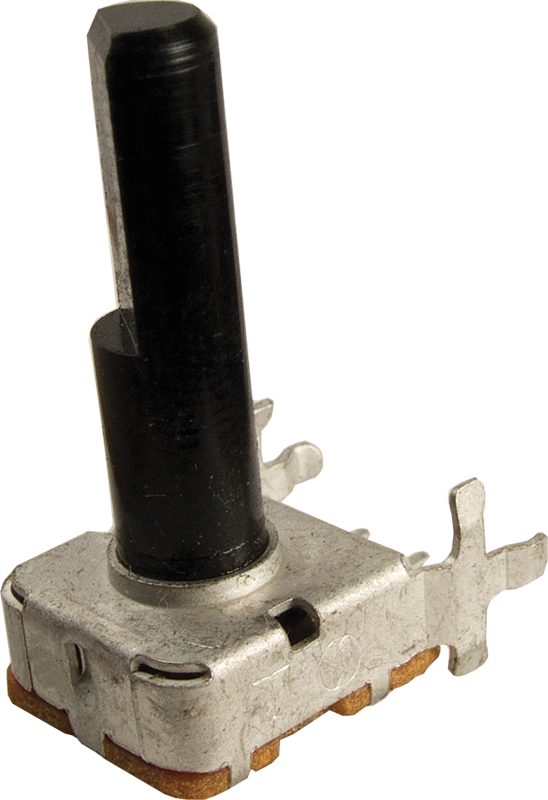

Peavey Potentiometer, Plastic D-Shaft, 11mm, PC-mount with bracket, for Peavey Studio Pro 112.  This pot has 4 pins.  Includes mounting nut.
NEW PEAVEY # OLD PEAVEY # VALUE STUDIO PRO 112
FUNCTION
31190900 71190900 B10K REVERB LEVEL
31190903 71190903 B20K CLEAN & LEAD MID
31190906 71190906 A100K CLEAN VOLUME
31190907 71190907 A200K LEAD PRE GAIN, LEAD HIGH
31190908 71190908 B200K LEAD POST GAIN
31190910 71190910 A1M CLEAN & LEAD LOW

Part #P-VKG-XX

$6.95

Select Option:


Quantity:

9mm Potentiometer, D-Shaft (Marshall® Style - MG100FX, etc)

Click on photo for
larger view

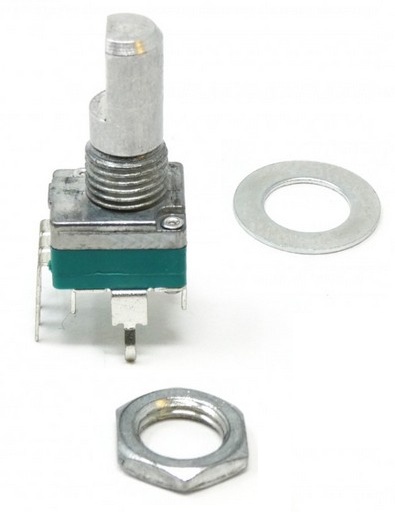

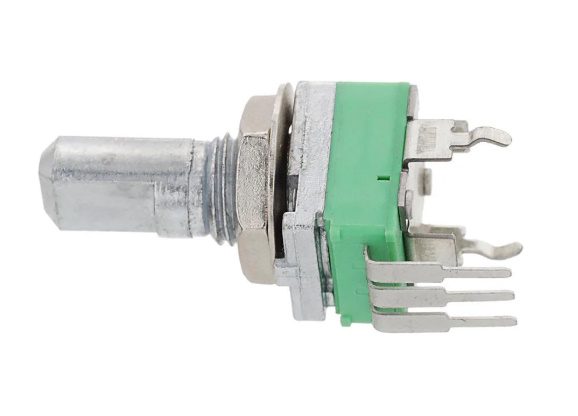

POT, 10K LINEAR, 9mm, Marshall®, PC MOUNT.  LABELED "B10K", D-Shaft.
Used in the fourth series of MG amplifiers - the ones with the large MG on the faceplate (see photo), such as the MG100FX.    Includes nut and washer.   In the MG100FX, this pot is used in all control locations, all functions.   Replaces original Marshall® part number M-POTP-91001.

Part #P-VMG-10KL
$9.95

Quantity:

16mm Potentiometer, Orange

Click on photo for
larger view
POT, ORANGE™, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SHAFT
Used in many modern Orange™ amp models including the AD30, Rockerverb, Dual Terror, Tiny Terror, TH30, Rocker 30, Thunderverb, and others.  Diameter of the body of the pot is slightly smaller than a dime.  Click on photo for more detail.  These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Download cross-reference guide for these pots.   Choose pot value and dust cap option in "Select Options".


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VOR-XX

$2.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, ORANGE™, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror, AD30, and AD140   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V1MBX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 500K OHM AUDIO, (A500KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Exact replacement for the gain control pot  on the Orange Tiny Terror.   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V500KAX2-M16M
$6.95

Quantity:

16mm Potentiometer, Vox, 1990-Present

Click on photo for
larger view
POT, VOX, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING
Used in many later Vox amp models with PC board circuitry, including AC30C2, V9158 Pathfinder, V9159, V9310, Night Train, etc.  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.  These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Download cross-reference guide for these pots.   Choose pot value and dust cap option in "Select Options".


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-XX

$2.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, Vox® DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the
Vox® Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-B10KX2
$6.95


Click on photo for
larger view
POT, Vox® DUAL 100K OHM LINEAR, (B100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the
Vox® Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-B100KX2
$6.95


Click on photo for
larger view
POT, Vox® DUAL 200K AUDIO, (A200KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used as the Master Volume Pot in the
Vox® Night Train.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-A200KX2
$6.95


Click on photo for
larger view
POT, Vox® 10K OHM LINEAR, (B10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT FOR  VOX VALVETRONIX SERIES.
Replacement for most pots in the ADxxVT Valvetronix Series.   B10K Ohms - 10K Linear.   In the AD15VT, AD30VT, AD50VT, AD60VT, and AD100VT, replaces the Gain, Volume, Treble, Middle, Bass, Edit 1 and Master Volume.  In the AD60VT and AD120VT, also replaces the Presence, Drive, Level, Speed, Feedback and Depth.   Replaces
Vox® part numbers V903620015, RV1620-40-15S-B1, and VR RV160-40-15S-B10K-C0.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B10K
$3.95


Click on photo for
larger view
POT, 10K OHM AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used in the Vox® DA5, DA10, DA10CL, AD60VTH, and AD60VTX.  A10K Ohms - 10K Audio.  Replaces Vox® part numbers 530000000288, V903620014, and RV160-40-15S-A10K-C0.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10K
$3.95

Click on photo for
larger view
POT, B100K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Reverb Mix pot in the AC15CC1, ACC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  This style of pot is NOT used in the AC15C1 or AC30C1.  Replaces Vox® part number 550020-1044111000.   100K Ohms, Linear Taper (B100K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B100K
$3.95


Click on photo for
larger view
POT, A200K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Tone Cut pot in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces Vox® part number 550020-2044110000.   200K Ohms, Audio Taper (A200K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A200K
$3.95


Click on photo for
larger view
POT, A500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Top Boost Volume, Master Volume and Tremolo Depth in the AC15CC1 and AC15CC1X.   Used as the Top Boost Volume, Normal Volume, Master Volume, and Reverb Tone in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces Vox® part number 550020-5044110000.   500K Ohms, Audio Taper (A500K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A500K
$3.95


Click on photo for
larger view
POT, B500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Tremolo Depth pot in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  This style of pot is NOT used in the AC15C1 or AC30C1.  Replaces Vox® part number 550020-5044111000.   500K Ohms, Linear Taper (B500K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B500K
$3.95


Click on photo for
larger view
POT, A1M, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Top Boost Treble and Bass pots in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces Vox® part number 550020-1054110000.   1 Meg Ohms, AudioTaper (A1M)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A1M
$3.95


Click on photo for
larger view
POT, DUAL 10K OHM STEREO AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT FOR  VOX VALVETRONIX AD120VT SERIES.
Replacement for the Master Volume control pot in the AD120VT, AD120VTH, and AD120VTX Valvetronix models.   Stereo (dual gang) right angle A10K Ohms - 10K Audio Taper.   Replaces Vox part numbers V903620010 or RV1620-40-15S-A10K-CO.

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10KX2
$6.95

Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:

Bias / Balance Pots


New Style:

Old Style:

Click on photo for
larger view
POT - Fender® BIAS POT 25K LINEAR, SCREW
New style Fender® 25K linear bias potentiometer.  Used in the reissue 59 Bassman, reissue Hot Rod Deluxe/Deville, reissue Blues Deluxe/Deville.  Fender® part # 0027873000.   This pot is a drop-in replacement for the original discontinued "blue" bias pot.

Part #FBP-AP25KL
$2.95

Quantity:


Click on photo for
larger view
POT, 22K VERTICAL LINEAR BIAS ADJUST POT FOR Marshall®
Used in many previous Marshall® models with PC board circuitry.  Mounted on the main PC board - used to set the bias on the output tubes.   Common failure item.  This is the original Marshall® part.  Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-V
$2.95

Quantity:


Click on photo for
larger view
POT, 22K HORIZONTAL LINEAR BIAS ADJUST POT FOR Marshall®
Mounted on the main PC board or turret boards - used to set the bias on the output tubes.   Common failure item.   This is an alternate horizontal style - particularly useful in modifications, kit builds, etc.   Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-H
$2.95

Quantity:



Click on photo for
larger view
TRIM POT, 20K Ohms.  This 6mm pot may be used to modify some amplifiers and install a bias adjust control.   With some design work, may be used in the Fender Blues Junior, for example.   20K ohms, 0.6 watt.   Datasheet here.
Part #
TP-20K
$1.69

Quantity:



Click on photo for
larger view
TRIM POT, 50K Ohms.  This 6mm pot may be used to modify some amplifiers and install a bias adjust control.   With some design work, may be used in the Fender Blues Junior, for example.   50K ohms, 0.6 watt.  Datasheet here.
Part #
TP-50K
$1.69

Quantity:


Click on photo for
larger view
MULTI-TURN TRIM POT, 25K Ohms, TOP ADJUSTMENT SCREW.  This 3/8" X 3/8" X 1/8" pot may be used to modify some amplifiers and install a bias adjust control.    25k Ohms, 0.5 watts, 25 turns.   Allows a very precise bias adjustment which is immune to changing due to amp chassis vibrations.  Adjustment screw on the top.
Part #
3296W-B25K
$2.79

Quantity:


Click on photo for
larger view
MULTI-TURN TRIM POT, 50K Ohms, TOP ADJUSTMENT SCREW.  This 3/8" X 3/8" X 1/8" pot may be used to modify some amplifiers and install a bias adjust control.    50k Ohms, 0.5 watts, 25 turns. This is the pot most often used to add adjustable bias to the Fender Blues Junior.
Instructions for the Blues Junior Bias Mod are found here.
Part #3296W-B50K
$2.79

Quantity:


Click on photo for
larger view
POT - Fender® BIAS POT 10K LINEAR, SCREW
Original Fender® 10K linear, screw, bias potentiometer.  Used in blonde, brownface and blackface models primarily.   Does not have a center tap, so it is not applicable to silverface models unless the bias circuit has been restored to the blackface design. Original Fender® part # 0017502000.    Includes lock washer, smooth washer and nut.

Part #P-BPF-10KL
$4.95

Quantity:

Bias / Balance Pots - Fender®



Click on photo for
larger view
POT - Fender® BIAS POT 10K LINEAR, SCREW
Original Fender® 10K linear, screw, bias potentiometer.  Used in blonde, brownface and blackface models primarily.   Does not have a center tap, so it is not applicable to silverface models unless the bias circuit has been restored to the blackface design. Original Fender® part # 0017502000.    Includes lock washer, smooth washer and nut.

Part #P-BPF-10KL
$4.95

Quantity:


Click on photo for
larger view
POT - Fender® BIAS POT 25K LINEAR, SCREW
Alternate Fender® 25K linear bias potentiometer.  Used in the reissue 59 Bassman, reissue Hot Rod Deluxe/Deville, reissue Blues Deluxe/Deville. Replaces original Fender® part # 0027873000.   This pot is a drop-in replacement for the original discontinued part.
Part #FBP-AP25KL
$2.95

Quantity:

Potentiometers - Fender® & Others




Click on photo for
larger view
POT - CTS,  3/8" BUSHING
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter solid metal shaft, 3/8" bushing, solder lugs. Fits perfectly in vintage amps like Fender® (Tweed, Brownface, Blonde, original Blackface and original Silverface Models), all Marshalls up to 1979 and some of the JCM800 versions, vintage Vox, vintage Orange, vintage Hiwatt, vintage Boogie, Sound City and many more. With correct 1/4" shaft and 3/8" bushing. Superior quality, solderable back!    CTS was the original OEM supplier for vintage Fender® pots.  Note:  250K J-Taper, 1 Meg J-Taper, and 3 Meg Reverse Audio (C3M) pots have brass colored shafts.
Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VC-XX
Starting at
$4.95
Select Option:


Quantity:



Click on photo for
larger view
POT - CTS, 3/8" BUSHING, NYLON SHAFT
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter nylon shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others.   Nylon shaft pots were used in most Fender silverface series amps from the late 60s and 70s.  CTS was the original OEM supplier for vintage Fender® pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VCT-XX
$3.95
Select Option:


Quantity:



Click on photo for
larger view
POT, Revisit™, 3/8" BUSHING, 24mm, SMOOTH SHAFT.
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender® and others.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-38-XX
Starting at
$1.99

Select Option:


Quantity:



Click on photo for
larger view
POT - Revisit™, 24mm BODY WITH 8mm (5/16") BUSHING
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm bushing, solder lugs.  Available in A50K, B50K, and A250K values.  Select Pot Value in Options

NOTE THAT THIS POT HAS AN 8mm (5/16") BUSHING, NOT 3/8".
INCLUDES NUT & WASHER

Part #P-VA-XX

$1.99

Select Option:


Quantity:



For PPIMV designs!


Click on photo for
larger view
POT - Revisit™, DUAL 250K AUDIO, 8mm BUSHING
Made by Alpha.  24 mm carbon composition. 300° rotation. 1/4 watt, 250VDC rating. 1/4" diameter shaft, 8mm diameter bushing, solder lugs. This pot is used most often for a post-phase inverter master volume (PPIMV) control on many amplifiers.   The 1/4" shaft accepts chicken head, Marshall® set-screw, or vintage Fender® knob.
INCLUDES NUT & WASHER  (For spare or replacement nut, order our JN-1016 nut.)
Part #P-38-2X250KA
$4.95

Quantity:


For PPIMV designs!


Click on photo for
larger view
POT - Revisit™, DUAL 1 MEG AUDIO, 3/8" BUSHING
Made by Alpha.  24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. This pot is used most often for a post-phase inverter master volume (PPIMV) control on many amplifiers.   The 1/4" shaft accepts chicken head, Marshall® set-screw, or vintage Fender® knob.
INCLUDES NUT & WASHER  (For spare or replacement nut, order our JN-1016 nut.)
Part #P-38-2X1MA
$4.95

Quantity:



Click on photo for
larger view
POT - Revisit™, DUAL 10K AUDIO, 8mm BUSHING
Made by Alpha.  24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm bushing, solder lugs.  The 1/4" shaft accepts any 1/4" set-screw knob, such as chicken head, Marshall® set-screw, or vintage Fender® knob.
INCLUDES NUT & WASHER
Part #P-38-2X10KA
$4.95

Quantity:




Click on photo for
larger view
POT, Alpha™, 1 MEG AUDIO TAPER, 24mm, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" diameter bushing, solder lugs, with rotary SPST (two terminal) switch.  Note:  Unlike a push-pull switch, the switch on this pot can only be operated when the pot is turned completely "off" (fully counter clockwise).   Good for on-off switches on vintage amps.   Not for pull-boost, pull-bright, channel switching, etc.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-38-1MA-RS
$4.95

Quantity:




Click on photo for
larger view
POT - CTS, 3/8" BUSHING, WITH SPST PUSH-PULL SWITCH - VARIOUS VALUES
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" diameter bushing, solder lugs, with push-pull SPST (two terminal) switch.  For hand-wired American made amplifiers such as vintage Fender® and others.  Available in A10K, B10K, B25K, C50K, A100K, B100K, A250K, B250K, A500K, A1M, or C3M.  INCLUDES NUT & WASHER.


Part #P-VCPS-XX
Starting at
$12.95
Select Option:

Quantity:


Click on photo for
larger view
POT - CTS, 3/8" BUSHING, WITH DPST PUSH-PULL SWITCH - A1M
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter smooth shaft, 3/8" diameter bushing, solder lugs, with push-pull DPDT (six terminal) switch.  For use as the master volume control with push-pull switch in vintage Fender® silverface amps from the 1970s and early 1980s.  Note:   Will fit most silverface amps, as long as the angle between the front panel and the base of the chassis is greater than or equal to 65 degrees.    Not all Fender silverface amps have the same angle on the front panel.   Those with angles less than 65 degrees will not have sufficient room to mount the pot.

Wiring for the switch is connected via 6 solder points (holes) on the PC board, immediately below the 3 pot terminals.   When the potentiometer knob is pulled out, C1 is connected to 1, and C2 is connected to 3.

INCLUDES NUT & WASHER.


Part #P-DPPS-A1M



$22.95




Click on photo for
larger view
POT - CTS, 3/8" BUSHING, WITH DPST PUSH-PULL SWITCH - VARIOUS VALUES
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter smooth shaft, 3/8" bushing, solder lugs, with push-pull DPDT (six terminal) switch.  For hand-wired American made amplifiers such as vintage Fender® and others.  Available in A10K, B10K, B25K, C50K, A100K, B100K, A250K, B250K, A500K, A1M, or C3M.

With the proper rewiring, the A1M version of this pot may be used as the master volume with pull switch in the silverface Fender® amps from the 1970s.  Note:   Will fit most silverface amps, as long as the angle between the front panel and the base of the chassis is greater than or equal to 65 degrees.    Not all Fender silverface amps have the same angle on the front panel.   Those with angles less than 65 degrees will not have sufficient room to mount the pot.

Wiring for the switch is connected via 6 solder points (holes) on the PC board, immediately below the 3 pot terminals.    When the pot knob is pushed in, C1 is connected to 2, and C2 is connected to 4.  When the knob is pulled out, C1 is connected to 1, and C2 is connected to 3.    Other values may be used in other positions for various modifications in vintage Fender amps, including pull boost, vibrato or reverb on-off, tone slope shift, etc.

 INCLUDES NUT & WASHER.


Part #P-DPPS-XX

Priced from $17.95 to $22.95
Select Option:

Quantity:

Pots for Original Blonde and Brown Series Amps from 1960-1963
(Not Reissues)



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender® and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$1.99
Select Option:

Quantity:



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT, 3M & 10M REVERSE AUDIO
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender® and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$3.50
Select Option:

Quantity:



Click on photo for
larger view
POT -  Revisit™, 350K AUDIO WITH 70K TAP, 9MM BUSHING, FENDER® BROWNFACE SERIES TREBLE POT
16mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 9mm" bushing, solder lugs. Special manufacture, to replace the treble pots on certain Fender® 1961-1963 Brownface models, such as Bassman 6G6, Concert 6G12A, Pro 6G5A, Showman 6G14, Super 6G4A, Tremolux 6G9, Vibrolux 6G11, and the Vibroverb 6G16.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-350KA-70KT
$4.95

Quantity:


Pots for Original Tweed Amps from 1947-1959
(Not Reissues)



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender® and others.     For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
$1.99
Select Option:

Quantity:



Click on photo for
larger view
POT - Revisit™, 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with rotary SPST (two terminal) switch.  Replacement for the volume control with AC switch on the 5C1 Champ, 5E1 Champ, 5F1 Champ, 5B3 Deluxe.   Replacement for the tone control with AC switch on the 5B2 Princeton, 5C2 Princeton, and 5D2 Princeton.  For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-1MA-RS
$4.95

Quantity:

Fender® Snap-In, Blues Junior and Others



Click on photo for
larger view
POT - SNAP-IN, 25K LINEAR, USED IN BLUES JUNIOR (MIDDLE CONTROL) AND SIMILAR AMPS.  Fender® PART NUMBER 0049402000 AND 0049621000.

Part #FPBJ-25KL
$6.95

Quantity:


Click on photo for
larger view
POT - SNAP-IN, 50K AUDIO, Used In Princeton 65, 65 DSP, and 650 (Normal Volume), Princeton 112 & 112 Plus (Clean Treble & Bass), KXR 60 (2 Volumes), KXR100 (3 Volumes) Frontman 15G & 25R (Normal Volume), Champion 30 & 30 DSP (Volume) Bullet Reverb (Volume) And Similar Amps. Original Fender® Part Number 00373230049.
Part #FPBJ-50KA
$11.95

Quantity:


Click on photo for
larger view
POT - SNAP-IN, 50K LINEAR, Used In Blues Junior (reverb Control) And Similar Amps. Original Fender® Part Number 006268000 And 00347190000.

Part #FPBJ-50KL
$6.95

Quantity:


Click on photo for
larger view
POT - SNAP-IN, 250K LINEAR, Used In Blues Junior (bass Control) And Similar Amps. Original Fender® Part Number 0040985000.

Part #FPBJ-250KL
$8.95


Click on photo for
larger view
POT - SNAP-IN, 250K AUDIO, USED IN BLUES JUNIOR (TREBLE CONTROL), PRO JUNIOR (VOLUME CONTROL) AND SIMILAR AMPS.  Fender® PART NUMBER 0041913000 AND 0049622000.

Part #FPBJ-250KA
$6.95

Quantity:


Click on photo for
larger view
POT - SNAP-IN, 1MEG AUDIO, USED IN BLUES JUNIOR (VOLUME CONTROL) AND SIMILAR AMPS.  Fender® PART NUMBER 0049401000.

Part #FPBJ-1MA
$6.95

Quantity:

Fender® Snap-In, Solid Shaft, Hot Rod/Blues Deluxe/Deville & Reissue Models



Click on photo for
larger view
FENDER STYLE POT - BRACKET MOUNT,  SMOOTH 1/4" SHAFT, SINGLE GANG.
Found in the Blackface Reissue versions (2000-present) of Deluxe Reverb, Princeton Reverb, Pro Reverb, Super Reverb and Twin Reverb.   Also found in various versions of the Blues Deville, Blues Deluxe, Hot Rod Deville, Hot Rod Deluxe.
POT VALUE REPLACES
FENDER PART #
APPLICATION
A10K 0037598000 MIDDLE CONTROL, 65 REISSUE MODELS:   PRO / SUPER / TWIN
B10K

B25K 0041510000 MIDDLE AND REVERB CONTROLS IN HOT ROD DELUXE / DEVILLE AND BLUES DELUXE / DEVILLE
C25K 0047031000 PRESENCE CONTROL IN HOT ROD DELUXE / DEVILLE AND BLUES DELUXE / DEVILLE
C50K 0037602000 VIBRATO INTENSITY CONTROL, 65 REISSUE MODELS:  DELUXE /  PRO / SUPER / TWIN
A100K 0080527000 MASTER VOLUME CONTROL, HOT ROD DELUXE III / DEVILLE III
B100K 0037600000 REVERB CONTROL, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO SUPER / TWIN.   MASTER VOLUME IN BLUES DELUXE REISSUE / BLUES DEVILLE REISSUE
A250K 0037597000
0047540000
BASS AND TREBLE CONTROLS, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN.  VIBRATO INTENSITY CONTROL, PRINCETON REVERB REISSUE.  VOLUME, DRIVE, BASS, TREBLE CONTROLS  IN ORIGINAL HOT ROD DELUXE / DEVILLE AND BLUES DELUXE / DEVILLE
A1M 0037596000
0036966000
VOLUME CONTROLS, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN.   BASS AND MASTER VOLUME CONTROLS IN ORIGINAL BLUES DELUXE /  DEVILLE.
C3M 0037601000 VIBRATO SPEED CONTROL, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN

INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1016 nut found in this section)
Part #FPHD-XX

Starting at
$3.95
Select Option:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:

Fender® Snap-In, Long D-Shaft, Many Amps



Click on photo for
larger view
FENDER STYLE POT, SINGLE GANG, 1/4" D-SHAFT, BRACKET MOUNT.  Used in many Fender solid-state amplifiers from 1990 to the present.  Select Pot Value in Options
POT VALUE REPLACES
FENDER PART #
FOUND IN (AMONG OTHER MODELS)
A2K 0027937000 ROC PRO, DELUXE 112, ULTIMATE CHORUS, PRINCETON CHORUS
A50K 0027940000 ROC PRO, DELUXE 112, DELUXE 90, BASSMAN 150,  ULTIMATE CHORUS, PRINCETON CHORUS, BXR100, ACOUSTASONIC SFX
B50K 0027941000 SUPER CHAMP XD, ULTIMATE CHORUS DSP, STAGE 1000-1600, DELUXE 90, BASSMAN 150, ACOUSTASONIC PRO
2B50K 0027942000 PRINCETON CHORUS DSP, BASSMAN 150, BASSMAN 250, ACOUSTASONIC PRO, ULTIMATE CHORUS DSP
C50K 0027943000 BASSMAN 150, BASSMAN 250, ACOUSTASONIC PRO
B100K 0027945000 BASSMAN 100-200-400-1200, BXR200, 400 PRO, DELUXE 90
C100K 0027947000 STAGE 100-160-1000-1600, PRINCETON CHORUS DSP, DELUXE 90-900, ULTIMATE CHORUS DSP
C250K 0027949000 STAGE 100-160-1000-1600, PRINCETON CHORUS DSP, DELUXE 90-900-90DSP, ACOUSTASONIC SRX2-PRO

INCLUDES NUT & WASHER (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #FPHD-DS-XX

$3.95

Select Option:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:

16mm Potentiometers, Medium Shaft Length



Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SPLIT KNURLED SHAFT (10mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm, and shaft is knurled for push-on knobs.   Click on photo for more detail.   These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Choose pot value and dust cap option in "Select Options".

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16M-XX
$2.95

Select Option 1:


Select Option 2:


Quantity:

W-TAPER


Click on photo for
larger view
POT, W-TAPER, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SHAFT
Found in many Hartke amps as well as other amps and pedals.  Typically used as an EQ pot.   W-Taper pots are reverse audio taper up to the midpoint, but regular audio taper past the midpoint.   Available with or without "center click detent" which marks the midpoint with a slight click you can feel as you turn the pot.  Diameter of the body of the pot is slightly smaller than a dime.  Available in the two most common values of W20K and W100K.   Both values are available with or without the center click detent.  Click on photo for more detail.

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-W16-XX
$2.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:


Click on photo for
larger view
POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.  Replaces Marshall® part number POTP-90036.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V10KBX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 100K OHM LINEAR, (B100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V100KBX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 200K OHM AUDIO, (A200KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V200KAX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 500K OHM AUDIO, (A500KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V500KAX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm.   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror, AD30, and AD140   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V1MBX2-M16M
$6.95

Quantity:

16mm Potentiometers,
D-Shaft



Click on photo for
larger view
POT, PC MOUNT, ALPHA 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, D-SHAFT.    Hard-to-find D-Shaft type.  Available values:  A5K, B5K, B10K, A20K, B20K, A50K, B50K, A100K, B100K, B250K, A500K, B500K.  For knobs designed for D-Shaft pots.   Click on photo for more detail.     These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Download cross-reference guide for these pots.   Choose pot value and dust cap option in "Select Options".
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VDS16-XX
$3.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, 20K AUDIO TAPER
For all Anchor Liberty portable PA systems.   Anchor part number 470-0058-000

Part #470-0058-000
$3.95

Quantity:

16mm Potentiometers, Short
Shaft Length



Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT (6.5mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.   Click on photo for more detail.  NoteThese pots have a positioning tab to the left of the threaded bushing.   If not needed, this tab may be easily removed with utility pliers or longnose.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16S-XX
$3.95

Select Option:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:


Click on photo for
larger view
POT, DUAL 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V50KLX2-M16S
$6.95

Quantity:


Click on photo for
larger view
POT, PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT FOR SET-SCREW TYPE KNOB
For use in many brands of effects pedals.  For use with 1/4" type set-screw knobs.
  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)Made by Alpha.
Part #P-V41-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POT, PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED 1/4" SHAFT FOR PUSH-ON TYPE KNOB
For use in many brands of effects pedals.  For use with 1/4" type knurled push-on knobs.
  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)Made by Alpha.
Part #P-V91-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 16mm (5/8") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Made by Alpha.  Fits all 16mm potentiometers.   Sold in packs of 4.    Note:   For single-gang pots only - will not fit dual 16mm pots.
Part #PDC-160
$0.69
(For a pack of 4 dust caps)

Quantity:


Click on photo for
larger view
POT, WIRE TERMINALS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED 1/4" SHAFT, SHAFT LENGTH 8mm
For use in many products where the pots are the smaller 16mm and are hand-wired.  Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 8mm.  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)..   Made by Alpha.
Part #P-VKM16-XX
$2.95

Select Option:


Quantity:

Pots for Newer Marshall® MG Series Amps

Click on photo for
larger view
POT, 10K LINEAR, 9mm, Marshall®, PC MOUNT.  LABELED "B10K", Metal Shaft D-Shaft.
Used in the fourth series of MG amplifiers - the ones with the large MG on the faceplate (see photo), such as the MG100FX.    Includes nut and washer.  This pot is an upgraded version with a metal shaft, instead of the original plastic shaft.  10K ohms, linear taper.   In the MG100FX, this pot is used in all control locations, all functions.   Replaces original Marshall® part number M-POTP-91001.

Part #P-VMG-10KL
$5.95

Quantity:

Pots for Previous Marshall® MG Series Amps

Click on photo for
larger view
POT, PC MOUNT, MG SERIES, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the Marshall® G10MKII, G10CD, G15RCD, G30RCD, G215RCD, G50RCD, G80RCD, G100RCD, B25, MG10CD, MG15CD, MG15CDR, MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG250DFX, MG100HDFX.  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.  Click on photo for more detail.  These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Download cross-reference guide for these pots.   Choose pot value and dust cap option in "Select Options".
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-MGP-XX
$3.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the Marshall® MG100HDFX (Loop Level), MG100DFX (Loop Level), MG250DFX (Master Volume).  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.  Click on photo for more detail.  Replaces Marshall® part number POTP-90036.  Download cross-reference guide for these pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-MGP-10KBX2
$6.95

Quantity:


13mm D-Shaft Pots

Click on photo for
larger view
POT, 5K  LINEAR TAPER, (B5K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V5KL-M13
$3.95

Quantity:


Peavey Pots

Click on photo for
larger view
POT, Peavey® "SPIDER" TYPE,  PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a 3/16" metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.   Select part number/value in Options.
DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER the PNW-16 NUT FOUND IN THIS SECTION
NEW PEAVEY # OLD PEAVEY # VALUE CENTER NOTCH
31190337 71190337 A10K NO
31190336 71190336 B10K NO
31190326 71190326 B20K NO
31190335 71190335 B50K NO
31190338 71190338 A100K NO
31190339 71190339 A250K NO
31190311 71190311 A1M NO

Part #P-VS-XX

$7.95

Select Option:


Quantity:


Click on photo for
larger view
POT, Peavey® "BRACKET" TYPE, PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a 3/16" metal knurled shaft.  Select part number/value in Options.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER the PNW-16 NUT FOUND IN THIS SECTION
NEW PEAVEY # OLD PEAVEY # VALUE COMMENTS
31190528 71190528 B10K A10K
31190510 71190510 B10K LINEAR
31190523 71190523 C10K REV. AUDIO
31190518 71190518 B20K LINEAR
31190511 71190511 B50K LINEAR
31190517 71190517 B100K LINEAR
31190531 71190531 C100KX2 DUAL REV. AUDIO
31190514 71190514 A250K AUDIO
31190517 71190517 B100K LINEAR
31190515 71190515 B250K LINEAR
31190516 71190516 A1M AUDIO
31190522 71190522 A1M - 5% AUDIO - 5%

Part #P-VB-XX

$9.95

Select Option:


Quantity:



Click on photo for
larger view
POT - Revisit™, 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with rotary SPST (two terminal) switch.  Replacement for the volume control with AC switch on the 5C1 Champ, 5E1 Champ, 5F1 Champ, 5B3 Deluxe.   Replacement for the tone control with AC switch on the 5B2 Princeton, 5C2 Princeton, and 5D2 Princeton.  For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-1MA-RS
$4.95

Quantity:


Click on photo for
larger view

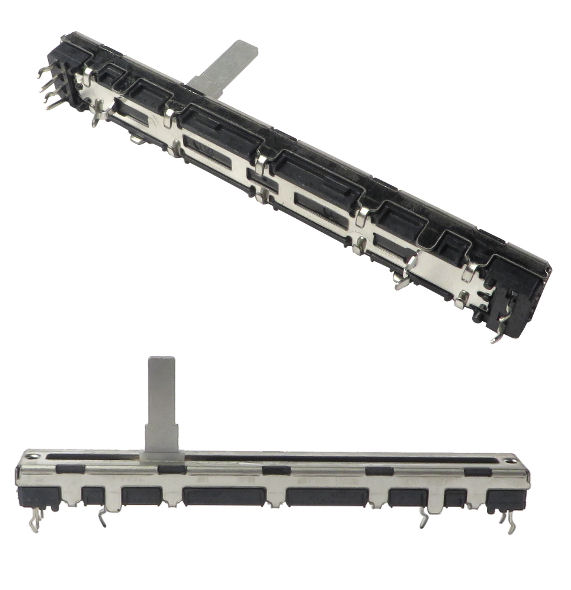

MIXING CONSOLE FADER 60mm TRAVEL, SINGLE A20K (MONO - 6 PIN CONNECTION)
Used in many mixing consoles from Yamaha, Mackie, Behringer, many others.    Fits the Yamaha MG166 and MG206.   Original Yamaha part number WK248400.  Single 20K audio taper.   60mm slide travel, total length 75mm.
Part #WK248400
$6.99

Quantity:


Click on photo for
larger view
MIXING CONSOLE FADER 60mm TRAVEL, SINGLE A20K (STEREO - 6 PIN CONNECTION)
Used in many mixing consoles from Yamaha, Mackie, Behringer, many others.    Fits the Yamaha MG166CX.   Original Yamaha part number WK248500.  Dual 20K audio taper.   60mm slide travel, total length 75mm.
Part #WK248500
$6.99


We only have one of these available

Pro Audio Pots



Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 10K LINEAR YES

Part #P3A1-10KB-CD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.  THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 10K AUDIO YES

Part #P3B2-10KA-CD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 50K AUDIO YES

Part #P3B2-50KA-CD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 10K LINEAR NO

Part #P3C3-10KB-NCD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 50K AUDIO NO

Part #P3D4-50KA-NCD

$3.95


Click on photo for
larger view
DUAL PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  12mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
12mm 10K LINEAR YES

Part #P2A5-10KB-CD

$5.95


Click on photo for
larger view
DUAL PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  12mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
12mm 50K LINEAR YES

Part #P2A5-50KB-CD

$5.95


Click on photo for
larger view
DUAL PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  12mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.   THE
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
12mm 10K AUDIO NO

Part #P2D8-10KA-NCD

$5.95

Guitar Pots

Click on photo for
larger view

GUITAR POT, CTS, 24mm DIAMETER, 500KA, KNURLED SHAFT FOR PUSH-ON KNOBS.  Quality replacement pot from CTS.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Audio Taper.   Nut and lock washer included.  Note: threaded bushing diameter is 3/8".   See data sheet here.
Part #450GP-500KA
$6.95


Click on photo for
larger view
GUITAR POT, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  250K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.  Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
Part #GP-250KA-16
$6.95


Click on photo for
larger view
GUITAR POT, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
Part #GP-500KA-16
$6.95


Click on photo for
larger view
GUITAR POT WITH SWITCH, 250KA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  250K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.  Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
Part #GP-250KA-DPDT-16
$11.95


Click on photo for
larger view
GUITAR POT WITH SWITCH, 500KA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.  Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
Part #GP-500KA-DPDT-16
$11.95


Click on photo for
larger view
GUITAR POT WITH SWITCH, 1MA, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  1 Meg Ohm, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.   Both pot and switch terminals are solder lugs.   Not designed for PC board insertion.
Part #GP-1MA-DPDT-16
$11.95


Click on photo for
larger view
GUITAR BLEND/BALANCE POT.  Bourns dual MN taper blend-balance with center detent. Split shaft. 17 mm body diameter. 1/4" knurled shaft diameter. Solder lugs. 3/8" bushing.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special MN taper used for balance/blend pots.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
Part #BP-500KMNX2-17
$4.95

Pots for Acoustic-Electric
Guitar Preamps, Misc


Click on photo for
larger view
ACOUSTIC-ELECTRIC GUITAR PREAMP POT, 9mm DIAMETER
Exact replacement pot for volume / tone controls in many built-in preamps in acoustic-electric guitars, such as Alvarez and many others.   10K Ohms, Linear taper (B10K)
.  No bushing.  Knurled shaft for finger grip.
Part #AEP-10KL
$2.99


Click on photo for
larger view
ACOUSTIC-ELECTRIC GUITAR PREAMP POT, 9mm DIAMETER
Exact replacement pot for volume / tone controls in many built-in preamps in acoustic-electric guitars, such as Alvarez and many others.   50K Ohms, Linear taper (B50K)
No bushing.  Knurled shaft for finger grip.
Part #AEP-50KL
$2.99


Click on photo for
larger view
MINI FLUSH-MOUNT D-SHAFT POT, TOP ADJUSTMENT, USED IN SYNTHESIZERS, EURORACKS, KEYBOARDS.   7mm DIAMETER METAL D-SHAFT.
Found in many digital effects, synthesizers including eurorack style, digital keyboards and effects pedals.   Threaded shaft is 7mm.   Dimensions of the body are 9.5mm W x 11.2mm W x 6.88mm H.   Shaft length including threaded bushing is 15.3mm.  Value is B10K linear taper.  With nut and washer.

Part #MSP-DS-B10K
$2.99

Wah Pedal Pots

Click on photo for
larger view
POT, GEARED, 100K, DUNLOP HOT POTZ II FOR USE ON DUNLOP CRYBABY
The Jim Dunlop ECB-424B Hot Potz II 100K Potentiometer is a replacement for Dunlop Crybaby wah pedals. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424B
$29.99


Click on photo for
larger view
POT, GEARED, 470K, DUNLOP HOT POTZ II FOR USE ON DUNLOP JIMI HENDRIX CRYBABY
The Jim Dunlop ECB-424A Hot Potz II 470K Potentiometer is a replacement for Dunlop Jimi Hendrix Crybaby wah pedals and the GCB80 High Gain Volume Pedal. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424A
$29.99


Click on photo for
larger view
POT, GEARED, 100K, FOR USE ON Dunlop® CRYBABY AND Vox® WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop® and Vox® pedals.  Replacement pot for Dunlop®, Vox, etc., Wah pedals with gear & rack operation.  Nut and washers included.   100K as used in most wah pedals.  (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.)    Soldering is required to install this replacement pot.   Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH
$11.95

Nuts and Washers for Pots

Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 POT NUT AND WASHER, METAL, SWITCHCRAFT®, SET OF 6
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)


POT NUT AND WASHER, METAL, SWITCHCRAFT®
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view
POT LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
Part #W-38
$0.49


Click on photo for
larger view
POT NUT, METAL
Replacement metric nut for the Marshall® 24mm pots (P-Vxxxx-M24) which have brass colored threaded bushings.     Metric threads M8x.075 zinc plated.  These nuts typically fit the original pots used in vintage Marshalls.
They do not fit the newer replacement 24mm pots which have silver colored threaded bushings - for those pots, see the JN-1016 nut.
Part #JN-975
$0.49


Click on photo for
larger view
POT WASHER, METAL
Replacement metric washer for the Marshall® 24mm pots (P-Vxxxx-M24) which have brass colored threaded bushings.  9mm ID, 15mm OD.    These washers typically fit the original pots used in vintage Marshalls, and the original Marshall® replacement pots that we sell.
They do not fit 3/8" diameter pot bushings (such as pots in vintage Fender amps), or Switchcraft jacks.
Part #JW-9
$0.19


Click on photo for
larger view
POT NUT, METAL, 8MM
Replacement nut for the Fender® bracket mount pots with smooth 1/4" shafts (FPHD-xxxx), such as used on the Hot Rod Deluxe/Deville, Blues Deluxe/Deville.    Also fits the substitute replacement pots for Marshall® 24mm with silver-colored threaded bushings, and our P-VA-XX pots.   Metric threads M8x.075 zinc plated.

Part #JN-1016
$0.39


Click on photo for
larger view
POTENTIOMETER NUT AND WASHER, METAL
Replacement nut for the Fender® bracket mount pots with D shafts (FPHD-xxxx-DS).   Fits the Peavey Bracket Potentiometers (P-VBxxxx) and the Peavey spider pots (P-VSxxxx).   Also fits the Marshall® style 16mm pots (P-Vxxxx-M16 and P-Vxxxx-M16S).   Metric threads M7x.075 zinc plated.
Part #PNW-16
$0.45

8 Ohms

Click on photo for
larger view
L-PAD, 8 Ohms, 3/8" threaded bushing (3/8" long), with plate, knob and hardware.   May also be used with the LFP-380 face plate and knob.    8 ohms - for use with 8 ohm speakers, horn drivers or tweeters.

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 100 watts RMS, is designed to be used with 8 ohm loads, features a 3/8" shaft length, and comes with mounting hardware.   This style of L-Pad is found on many popular bass cabinets to control the horn/tweeter level.   2.5 inches in diameter, 1 inch thick.   Included face plate is 2 1/8" x 2 1/8".
Part #LPD-262

$17.95

16 Ohms

Click on photo for
larger view
L-PAD, 16 Ohms, 3/8" threaded bushing (3/8" long), with plate, knob and hardware.   May also be used with the LFP-380 face plate and knob.   16 ohms - for use with 8 ohm speakers, horn drivers or tweeters.

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 100 watts RMS, is designed to be used with 16 ohm loads, features a 3/8" shaft length, and comes with mounting hardware.   This style of L-Pad is found on many popular bass cabinets to control the horn/tweeter level.   2.5 inches in diameter, 1 inch thick.   Included face plate is 2 1/8" x 2 1/8".
Part #LPD-261

$17.95


Click on photo for
larger view
POT - ALPHA, 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with rotary SPST (two terminal) switch.  Note:  Unlike a push-pull switch, the switch on this pot can only be operated when the pot is turned completely "off" (fully counter clockwise).   Good for on-off switches on vintage amps.   Not for pull-boost, pull-bright, channel switching, etc.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-38-1MA-RS
$4.95




Click on photo for
larger view
POT - CTS, 3/8" BUSHING, WITH DPST PUSH-PULL SWITCH - VARIOUS VALUES
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter smooth shaft, 3/8" bushing, solder lugs, with push-pull DPDT (six terminal) switch.  For hand-wired American made amplifiers such as vintage Fender® and others.  Available in A10K, B10K, B25K, C50K, A100K, B100K, A250K, B250K, A500K, A1M, or C3M.

With the proper rewiring, the A1M version of this pot may be used as the master volume with pull switch in the silverface Fender® amps from the 1970s.  Note:   Will fit most silverface amps, as long as the angle between the front panel and the base of the chassis is greater than or equal to 65 degrees.    Not all Fender silverface amps have the same angle on the front panel.   Those with angles less than 65 degrees will not have sufficient room to mount the pot.

Wiring for the switch is connected via 6 solder points (holes) on the PC board, immediately below the 3 pot terminals.    When the pot knob is pushed in, C1 is connected to 2, and C2 is connected to 4.  When the knob is pulled out, C1 is connected to 1, and C2 is connected to 3.    Other values may be used in other positions for various modifications in vintage Fender amps, including pull boost, vibrato or reverb on-off, tone slope shift, etc.

 INCLUDES NUT & WASHER.


Part #P-DPPS-XX

Priced from $17.95 to $22.95
Select Option:

Quantity:




Click on photo for
larger view
POT - CTS, 3/8" BUSHING, WITH SPST PUSH-PULL SWITCH - VARIOUS VALUES
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with push-pull SPST (two terminal) switch.  For hand-wired American made amplifiers such as vintage Fender® and others.   Used on Fender® amps from the 1980s with control functions on some of the control pots, such as the Princeton Reverb and Concert.    NOT a replacement for the master volume control in the 70s silverface amps, as the switch on those needs to be a DPST (or DPDT).    Available in A10K (Middle), C50K (Vibrato Intensity), B100K (Reverb Level), A250K (Bass or Treble), and A1M (Volume)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VCPS-XX
Starting at
$12.95
Select Option:

Quantity:


Click on photo for
larger view
POT, 16mm PC MOUNT, SMOOTH SHAFT, WITH DPDT PULL SWITCH, AUDIO TAPER, 1 MEG OHM.  These hard-to-find solid shaft w/ DPDT switch A1M pots are perfect for building push-pull switching into your amp. These pots easily replace the standard volume controls for many amplifiers. These pots have PC pins, but wires are easily soldered to these pins without issue. You can use these for: push-pull boosts, channel switching, contour selections, tone control options, feedback in-out, f/x loop in-out, etc.  The choices of potential mods are only limited by your imagination.   They are also OEM replacements for several brands of amps including many Fender models from the 1990s, such as the 93 Concert and others.    Available only in 1 Meg Audio Taper.
Part #P-V16M-PSPC-A1M
$6.95


Click on photo for
larger view
GUITAR POT WITH SWITCH, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  250K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
Part #GP-250KA-DPDT-16
$12.95


Click on photo for
larger view
GUITAR POT WITH SWITCH, 16mm DIAMETER, FOR MANY GUITARS NEEDING A QUALITY MINI-POT ("DIME"-SIZED)
Quality replacement pot from Bourns with DPDT pull switch for coil tap or other switched application.   Knurled 1/4" shaft fits most knobs.  Low torque, carbon resistive element, great replacement in many applications using passive humbucker or single-coil pickups.   Note that length of threaded part of shaft is 3/8" - measure to make sure that this is long enough for your application, especially if the pot mounts through the wooden guitar body.   (This pot will not work on Les Pauls, for example).  500K, Special A2 taper preferred by guitar and bass players.  Nut and washer included.   Note: threaded bushing diameter is 3/8", like most 24mm "quarter-sized" pots.
Part #GP-500KA-DPDT-16
$12.95

  Mesa/Boogie® Potentiometers
POTENTIOMETER, Mesa/Boogie®, A25K, 20% Audio Taper.      1/4" plastic D-shaft.  A25K, 20% audio taper, Mesa/Boogie part number 592736 or 593736.  Used as the Middle Pot in the GREEN channel of the 3-Channel Dual & Triple Rec, the Middle Pot of the GREEN channel in the Nomad.   Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-20A25K

$3.95

POTENTIOMETER, Mesa/Boogie®, B25K, Linear Taper.      1/4" plastic D-shaft.  B25K, linear taper, Mesa/Boogie part number 592737 or 593737.
Used as "MIDDLE" control in Rectifiers, Road King,
Maverick, Nomad, F-Series, DC-5.  Presence Control of 3 Channel Triple/Dual Rectifiers. Used on both channels of the DC-5 as the presence controls, masters, and the mid controls.

Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B25K

$3.95

POTENTIOMETER, Mesa/Boogie®, A100K, Linear Taper.      1/4" plastic D-shaft.  A100K, audio taper, Mesa/Boogie part number 592150 or 593150.
Used as the MASTER control in the Mark IV.  PRESENCE control in the Nomad 45/55 ORANGE and RED channels. And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-A100K

$3.95

POTENTIOMETER, Mesa/Boogie®, B100K, Linear Taper.      1/4" plastic D-shaft.  B100K, linear taper, Mesa/Boogie part number 592151 or 593151.
Used as the PRESENCE control in the 2 channel Dual & Triple Rectifier (ORANGE Channel).  PRESENCE control in the 3 Channel Dual & Triple Rectifier (RED Channel).  Master in the Nomad Orange Channel.   And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B100K

$3.95

POTENTIOMETER, Mesa/Boogie®, A250K, 5%  Audio Taper.      1/4" plastic D-shaft.  A250K, 5% audio taper, Mesa/Boogie part number 592794 or 593794.   Used in Rectifiers (New and old), Roadkings, Tremoverbs as "GAIN", used as "Master" in F30, 50, 100  (# 592794) And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-5A250K

$3.95

POTENTIOMETER, Mesa/Boogie®, A250K,  Audio Taper.      1/4" plastic D-shaft.  A250K, audio taper, Mesa/Boogie part number 592148 or 593148.    Used in Dual and Triple Rectifiers (New and old) and Roadkings as the BASS pot in some channels.  Used as the SOLO control and the OUTPUT control in the 3-ch Dual Rectifier Solo Head.  Used as the TREBLE pot in some Nomads and Road Kings.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-A250K

$3.95

POTENTIOMETER, Mesa/Boogie®, B250K,  Linear Taper.      1/4" plastic D-shaft.  B250K, linear taper, Mesa/Boogie part number 592738 or 593738.  Used as the TREBLE pot on the ORANGE channel in the DC-5 and the Maverick, TREBLE pot on both channels in the Trem-O-Verb, the presence pot in CH 1 and CH 2 in the Road King, TREBLE pot in the ORANGE and RED channels in the Nomad, Dual Rec and Triple Rec Solo Heads.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B250K

$3.95

POTENTIOMETER, Mesa/Boogie®, A1M, 10%  Audio Taper.      1/4" plastic D-shaft.  A1m, 10% audio taper, Mesa/Boogie part number 592739 or 593739.   Used in Rectifiers (New and old), BASS Pot in CH 3 and CH 4 in the Road King, BASS Pot in both channels in the Trem-O-Verb and Dual/Triple Rec, BASS Pot in the ORANGE channel in the DC-5 and the Dual/Triple Rec 3-Channel Solo Heads, GAIN control in all channels of the Nomad and also the Gain control in ORANGE and RED channels of the Nomad, and the Gain control of CH 1 of the Maverick.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-10A1M

$3.95

POTENTIOMETER, Mesa/Boogie®, A1M, 20%  Audio Taper.      1/4" plastic D-shaft.  A1m, 20% audio taper, Mesa/Boogie part number 592792 or 593792.   Used in Rectifiers (New and old), GAIN Pot in GREEN channel of the 3-Channel Dual/Triple Rec Solo head, RED Master Pot in the RED channel of the Dual/Triple Rec 2-Channel Solo Head, Master Pot in all 4 channels of the Road King, GAIN pot in CH 2 of the Maverick, Presence Pot in the GREEN channel of the Nomad, and Master Pot in the RED channel of the Trem-O-Verb.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-20A1M

$3.95

Copyright ©2021 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
