Switches

Select type:

Rocker       Impedance       Slide      Toggle

Mini Toggle       Footswitches     Tact     Other






Rocker Switches



Click on photo for
larger view
ROCKER SWITCH, LARGE BLACK.
Has 4 electrical terminals on back of switch (DPST).   Non-lighted.  1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm)
Part #SW-5072
$3.95


Click on photo for
larger view
LARGE ROCKER SWITCH, LIGHTED POWER, RED.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.    Used on many Engl Amp models.    Replaces the # 700048-3159 power switch in most models of Furman power conditioners.  Replaces American DJ part # Z-PDP/900-PS-N for use in the American DJ PC-100A PC-4 power centers.
Part #SW-5075
$4.95


Click on photo for
larger view
LARGE ROCKER SWITCH, LIGHTED POWER, AMBER.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.  Used on many Engl Amp models.
Part #SW-5076
$4.95


Click on photo for
larger view

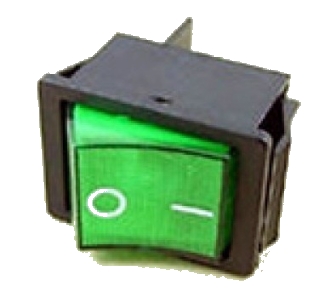

LARGE ROCKER SWITCH, LIGHTED POWER, GREEN.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-5077
$4.95


Click on photo for
larger view
ROCKER SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.    Used for Power or Standby on the Bass 400+.  Original Mesa/Boogie part number 600505.

Part #SW-547
$7.99


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, USED IN Fender® BASSMAN 100, 150 AND 250.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 120VAC.  Needs rectangular cutout of 0.86" wide x 1.18" tall (22mm x 30mm).   Replacement for the discontinued Fender part numbers 0064049000 and 0064050000, used in the Bassman 250, Bassman 150 and the Bassman 100 (the version which has a white control panel only).  Internal neon lamp powered by 120VAC.  Not for use on 230VAC.
Part #SW-493F
$10.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall® , FOUND IN Marshall® JCM900 SERIES
For JCM900 series..  For most JCM800 models, see the SW-492 below.   For the JCM2000 and JVM series, see the SW-493.   Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by 125VAC.  Does your old Marshall® power switch from the JCM800 era have five terminals?   See the SW-492 below, instead.
Part #SW-491
$10.95


Click on photo for
larger view

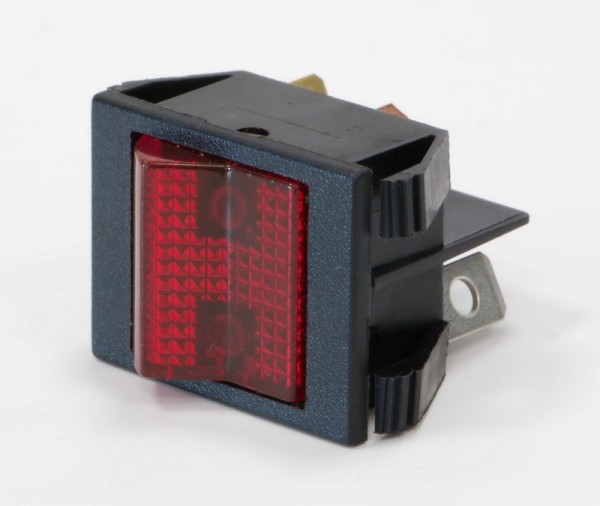

ROCKER SWITCH, LIGHTED POWER, Revisit™ REISSUE, FOUND IN Marshall® JCM800 and LATER JMP SERIES - 5 TERMINALS
Most JCM800 and late JMP series power switches have 5 terminals on the back of the switch.  These switches were originally made by Arrow for Marshall, but have been unavailable for many years.  For those switches with 5 terminals, this Revisit™ switch is the correct replacement.   The terminal locations are a mirror image of the original, but we have a cheat sheet to show you how to easily wire the new switch.   Has 5 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by 125VAC.   For newer JCM900 and JCM2000 series with 4 terminals on the power switch, see the SW-491 switch above.
Part #SW-492
$10.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall® , FOUND IN Marshall® JVM, DSL, and JCM2000 SERIES   Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.   Also found in the DSL-5, DSL-15, and the Mode 4 MF-350.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.  For use on 125VAC or 250VAC.  15/16" x 1 1/16" x 1" deep.  Internal neon lamp. Original Marshall part number B8C75184.
Part #SW-493
$10.95


Click on photo for
larger view
ROCKER SWITCH, BLACK, USED AS STANDBY SWITCH IN Marshall® JCM SERIES & OTHERS.  ORIGINAL Marshall®.
Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   15/16" x 1 1/16" x 1" deep.
Part #SW-490
$8.50


Click on photo for
larger view
ROCKER SWITCH, STANDBY, ORIGINAL Marshall® , FOUND IN Marshall® JVM, JCM2000, DSL, TSL SERIES  Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.   15/16" x 1 1/16" x 1" deep.  Original Marshall part number B8B64025B.   (For the similar standby switch used in previous model series such as the JCM-900, early versions of the TSL and DSL series, see the SW-490 switch.)
Part #SW-490C
$9.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  THIS SET CONTAINS BOTH the POWER AND the STANDBY ROCKER SWITCHES, FOUND IN Marshall® JCM SERIES & OTHERS
Lighted power switch has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by either 125VAC or 250VAC.  Standby switch has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   15/16" x 1 1/16" x 1" deep.
Part #SW-4901
$15.95


Click on photo for
larger view
MARSHALL POWER SWITCH FOR VALVESTATE SERIES II AMPS
Power switch for the second ValveState series, including models VS15, VS30R, VS65R, VS100R, VS100RH, VS102R, VS230, VS232 AND VS265.   Marshall reference numbers S540, S1603, and SW1008.   Switch button not included.   The button for this switch is our stock number K-108.   NOTE:  This switch does not have the 4 pin connections on the bottom, so it is necessary to run wires from the 4 terminals on top (marked in the photo with yellow arrows) to the PC board.   It does have the anchoring pins on the front bracket which are soldered to the PC board.
Part #SW-160
$8.95


Click on photo for
larger view
MARSHALL POWER SWITCH BUTTON FOR VALVESTATE SERIES II AMPS
Power switch button for the second ValveState series, including models VS15, VS30R, VS65R, VS100R, VS100RH, VS102R, VS230, VS232 AND VS265.   Marshall reference numbers SW1008KNOPF.  Fits the SW-160 power switch.
Part #K-108
$2.50


Click on photo for
larger view
MINI ROCKER SWITCH  - MARKED 0-1 FOR ON/OFF
DPST Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.    Replaces Fender part numbers 025935 and 003928700, used in the following Fender amps:   Bullet Reverb, Bullet 15 DSP, Bassman 25, Roc Pro 700, Roc Pro 1000, Rumble 15, Rumble 25, Rumble 30, Rumble 40, Rumble 75, Rumble 100, Rumble 150, Rumble 350, Performer 1000, Princeton 112, Princeton 112 Plus, Princeton Chorus, Princeton Chorus DSP, Princeton 650, Princeton 65 DSP, KXR60, KXR100, Frontman 25R, Frontman 15G, Deluxe 112, Deluxe 112 Plus, Deluxe 90, Deluxe 90 DSP, Champion 30, Champion 30 DSP, Acoustasonic 30, Acoustasonic Jr, Acoustasonic Jr DSP, Mustang I, Mustang II, Mustang III, Mustang IV, Mustang V, Super Champ XD.
Part #SW-287
$3.95


Click on photo for
larger view
ROCKER SWITCH, FENDER, EXTRA-LARGE BLACK, DPDT 6 TERMINAL, OUTPUT HI-LO
Extra large Fender rocker switch - has 6 electrical terminals on back of switch (DPDT)   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found as the Hi-Lo Output Switch on domestic (USA) versions of Fender® amps from the 80s, including the red knob "The Twin" (known as the "Evil" Twin), and red knob Dual Showman.   Used only for the Hi-Lo Output Switch.  Original Fender® part number  026480
Part #SW-518
$9.99


Click on photo for
larger view
ROCKER SWITCH, FENDER, EXTRA-LARGE BLACK
Extra Large Fender rocker switch - has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found on domestic (USA) versions of Fender® amps from the 80s through today - including the Pro 185, "Evil" Twin, Super 60, London 185, Super 112, Super 210, Power Chorus, Red Knob Dual Showman, Stage 100, Stage 185, Stage 112SE, Ultimate Chorus, Cyber Champ, Cyber Deluxe, Cyber Twin, SFX Satellite, Bassman 1200, Acoustasonic SFX,  Metalhead MH-500, MB-1200, Steel King, Bassman 100 (PR420), Bassman 200 (PR419), Bassman 400 (PR412), and others.   Used for Power or Standby.  Original Fender® part numbers 039236, 026479.   For replacing multiple switches, see multipack below.
Part #SW-517
$7.99


Click on photo for
larger view

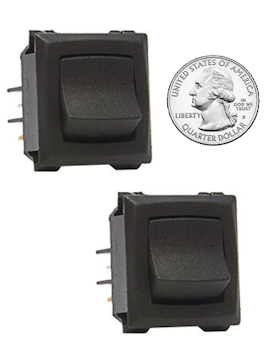

ROCKER SWITCH, FENDER, EXTRA-LARGE WIDE BLACK, SET OF 2 SWITCHES
Save with our MultiPack!  Extra large Fender rocker switch - has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found on domestic (USA) versions of Fender® amps from the 80s through today - including the Pro 185, "Evil" Twin, Super 60, London 185, Super 112, Super 210, Power Chorus, Red Knob Dual Showman, Stage 100, Stage 185, Stage 112SE, Ultimate Chorus, Cyber Champ, Cyber Deluxe, Cyber Twin, SFX Satellite, Bassman 1200, Acoustasonic SFX,  Metalhead MH-500, MB-1200, Steel King, Bassman 100 (PR420), Bassman 200 (PR419), Bassman 400 (PR412), and others.   Used for Power and Standby.    Original Fender® part numbers 039236 and 026479. This kit of two switches lets you replace both power and standby switches on amps so equipped.
Part #SW-517X2
$13.99
(for a set of two switches)



Click on photo for
larger view
ORIGINAL Marshall® MINI ROCKER SWITCH FOR Marshall® MG SERIES - MARKED 0-1 FOR ON/OFF
DPDT Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   Original Marshall®  replacement.   0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.
Part #SW-489
$3.95


Click on photo for
larger view
ORIGINAL Marshall® MINI ROCKER SWITCH FOR Marshall® MG SERIES - LIGHTED
DPDT Mini Rocker Switch with internal light.  Has 4 electrical terminals on back of switch.   Red lighted version - easier to see than the tiny LED Marshall® originally provided as a power-on light.    0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.    To ensure that the light works properly, make sure that the terminals directly behind the "1" on the rocker portion feed the power transformer, while the terminals behind the "0" are connected to the incoming power source.
Part #SW-489L
$4.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, USED IN Peavey® CS-800 and other models
Has 6 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-508
$19.95

Click on photo for
larger view
MINI ROCKER SWITCH, PEAVEY STYLE
Carling miniature rocker switch, SPST with .187" tabs (Peavey Style). 0.51" x 0.76" mounting hole diameter, 5A, 125 VAC
Part #SW-560
$3.95


Click on photo for
larger view
MINI ROCKER SWITCH, PEAVEY
Carling miniature rocker switch, SPST with .187" tabs (Peavey Style). 1/2" x 3/4" mounting hole diameter, 5A, 125 VAC.   Used in the Peavey Classic VTX amp, VTX Series MX, Heritage VTX from the 1980s.
Part #SW-507
$3.95


Click on photo for
larger view
MINI ROCKER SWITCH  - ANCHOR AUDIO, MACKIE, KRK, PRESONUS
DPDT Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.  Replaces Anchor Audio part number 499-0061-000 as found in several Anchor Audio products.   Replaces Mackie part numbers 0030476 and 0029143, as found in the Mackie TH-12A and VLZ3.   Replaces KRK SWTK00020 as found in the KRK models 10S and 12S.   Replaces Presonus part number 340-RL3-4A, as found in the Presonus Studio Live.
Part #SW-388
$3.95


Click on photo for
larger view
ROCKER SWITCH, HARTKE®, OTHERS, LARGE WIDE BLACK
Has 4 electrical terminals on back of switch (DPST).   Termination is 0.187" (4.8mm) push-on terminals.   Made for 0.73" H x 0.85" W mounting hole (19.0mm X 22mm).   Rated 15A @ 125VAC.    Commonly found on Hartke® amp models HA1400, HA2500, HA3500C, HA4000, HA5000, HA5500, HA7000 and other models.  Hartke® part number 8-S310BBIWQ420.   May also be used for the discontinued Marshall®  SWTM0030 power switch found on the Marshall® AVT50, but note that this switch is not lighted like the original Marshall® switch.
Part #SW-1802
$4.95


Click on photo for
larger view
ROCKER SWITCH, ROUND, BLACK
Has 2 electrical terminals on back of switch (SPST).   Termination is 0.187" (4.8m) push-on terminals.   Made for 0.79 inch round mounting hole (20mm or about 13/16")  Rated 10A @ 125VAC, 6A @ 250VAC.   Front of switch is about the size of a US quarter.
Part #SW-138
$1.49


Click on photo for
larger view
ROCKER SWITCH, MACKIE®, LARGE WIDE BLACK
Has 4 electrical terminals on back of switch (DPST).   Termination is 0.187" (4.8m) push-on terminals.   Made for 0.73" H x 0.87" W mounting hole (19.0mm X 22mm.)  Rated 15A @ 125VAC.  Mackie® part number 0033500.   Power switch for Mackie® SR1530 and SWA1501 speaker/subwoofer.
Part #SW-335
$4.95


Click on photo for
larger view
UNIVERSAL MINI ROCKER SWITCH
Carling miniature rocker switch, SPST with .25" tabs (I - O labeled). 0.48" x 1.072" mounting hole diameter, 16A, 125 VAC
Part #SW-562
$4.95


Click on photo for
larger view
UNIVERSAL MINI ROCKER SWITCH
Carling miniature rocker switch, SPST with .25" tabs (Same as SW-562 above, except "On - Off" labeled).  0.48" x 1.072" mounting hole diameter, 16A, 125 VAC
Part #SW-563
$4.95


Click on photo for
larger view
UNIVERSAL NON-LIGHTED ROCKER SWITCH
Has 2 electrical terminals on back of switch. 1/4" push-on terminals, or solder directly to terminals.   Rated 15A @ 125VAC, 10A @ 250VAC.   Rocker is colored red.   Does NOT have an internal light.   Designed for 1 1/8" x 9/16" rectangular mounting hole.   Used in several brands of amplifiers and effects as the main power switch.
Part #SW-26
$2.95


Click on photo for
larger view
EDEN® MINI ROCKER SWITCH FOR EDEN® WT SERIES - LIGHTED
The original Eden power switches are no longer available.   This DPDT Mini Rocker Switch with internal light has been modified so that it can serve as a replacement for the original 3-terminal switches.  Red lighted version, for most earlier versions of the Eden® World Tour Series, including the Traveler models.   WT300, WT330, WT400, WT402, WT405, WT500, WT550, WT800.   New version has the switch marked with "1" and "0" to indicate on/off, as per new electrical code requirements.  0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, with .187" tabs.
Part #SW-305L
$4.95


Click on photo for
larger view

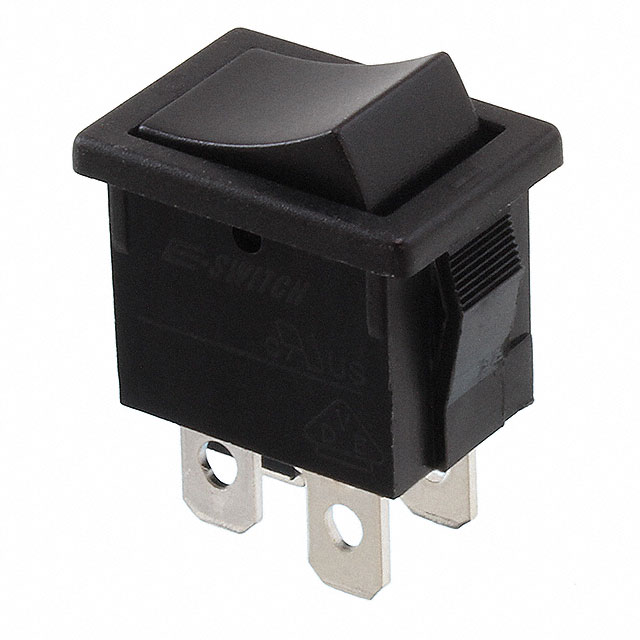

Orange® MINI ROCKER SWITCH  - MARKED 0-1 FOR ON/OFF - USED IN SMALLER ORANGE CRUSH AMPS.
DPDT Mini Rocker Switch for all versions of Crush 12, Crush 20, Crush 25BX, Crush 30, and Crush 35.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.
Part #SW-289
$3.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL ENGL®.  Used in the ENGL Screamer 50 and other models.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.  For use on 125VAC or 250VAC.  15/16" x 1 1/16" x 1" deep.  Internal neon lamp.
Part #SW-335
$9.95



Impedance Switches



Click on photo for
larger view
Marshall® VINTAGE STYLE IMPEDANCE SELECTOR PLUG
This male plug insert fits the speaker impedance selector socket on many vintage Marshall® amps from 25+ years ago.  Frequently lost because it was removable from the rear of the amp.

Part #P-502
$9.95


Click on photo for
larger view
Marshall® Impedance/Mode Selector switch.  Correct replacement for PCB mount impedance and high-low mode switch found on the back of many Marshall® JCM900 and JCM2000 series amplifiers.  Also used as The impedance switch in Marshall® 4x12 Cabinets (such as the 1960 series cabinets).    Found in other British-made amplifiers and cabinets as well.    Marshall® part number S208.
Part #SW-4500
$9.95

  Slide Switches

Click on photo for
larger view
SWITCH, SLIDE, SWITCHCRAFT®, DPDT (6 TERMINALS),  REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender® AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Also used as the slide switch on Jazzmaster and Jaquar guitars.  Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.    Click here for physical specifications.   Two screws are included with the switch.
Part #SW-116S
$4.75


Click on photo for
larger view
SWITCH, SLIDE, DPDT (6 TERMINALS),  MADE BY ALPHA (TAIWAN), MAY BE USED AS A REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender® AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Click here for physical specifications.   Two screws are included with the switch.  See below for a kit of two of these switches with screws included for refurbishing Fender® amps.
Part #SW-242S
$1.95


Click on photo for
larger view
Marshall® Impedance/Mode Selector switch.  Correct replacement for PCB mount impedance and high-low mode switch found on the back of many Marshall® JCM900 and JCM2000 series amplifiers.  Also used as the impedance switch in Marshall® 4x12 Cabinets (such as the 1960 series cabinets).    Found in other British-made amplifiers and cabinets as well.    Marshall® part number S208.
Part #SW-4500
$9.95

  Toggle Switches

Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling® brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling®.   Carling® toggle switches are used in Fender® amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view

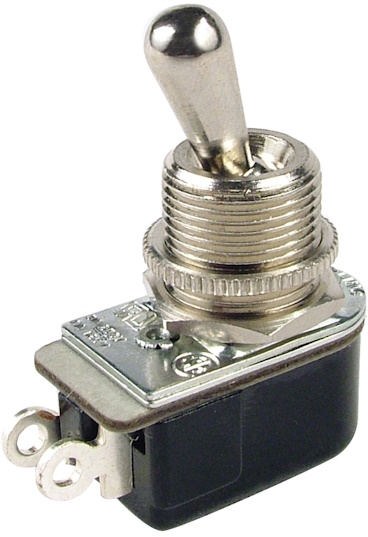

SWITCH, CARLING® SPST TOGGLE Original replacement for 60s and 70s Fender® power and standby switches.   Made by Carling®
Part #SW-495
$5.95


Click on photo for
larger view

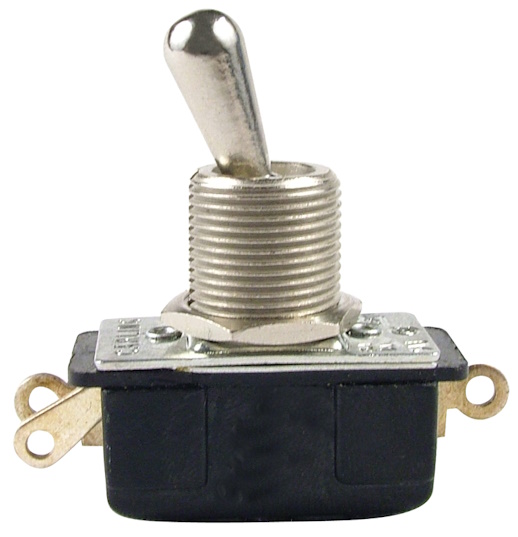

SWITCH, CARLING SPDT 2-POSITION TOGGLE SWITCH, Original Carling® replacement for 60s and 70s Fender® ground switch.
Part #SW-494
$8.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  3 SWITCHES: Two Carling® SPST toggle switches and one Carling® SPDT toggle switch. Original replacement for 60s and 70s Fender® Amps (Power, standby, and ground switches). Change the power,  standby, and ground switches on your Fender® at the same time, and save!
Part #SW-4945
$18.50


Click on photo for
larger view
FULL-SIZE TOGGLE SWITCH, CARLING®, DPDT

Carling, DPDT 2 position toggle with solder lugs (6A, 125V). 6 Solder Lugs - 2 on each end, and 2 on the bottom (common lugs).   0.687" toggle length. On-On (no center position).

Part #SW-527
$9.95


Click on photo for
larger view
FENDER® 59 BASSMAN REISSUE STANDBY SWITCH   Carling® SPST toggle switch with 1/4" push-on connectors.   Original Fender part number 0036572000.   Mounting nuts are included.
Part #SW-514
$9.95


Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    Two position (on/off), single pole (SPST).   Fits 1/2" chassis hole.   1/4" push on terminals.     Original Fender® part number 003703900 (old number 037039).  Made by Carling®   Used as the standby switch in the following Fender® amps:   Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman 300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue.
Part #SW-515
$7.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING - RATED AT 15A/125VAC, 10A/250VAC.    Two position (on/off), double pole (DPST).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on.     Original Fender® part number 003657000 (old number 036570).   Made by Carling®  Used as the power switch in the following Fender® amps:   Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman 300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue, Champion 600 Reissue.
Part #SW-525
$6.95


Click on photo for
larger view
SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPST, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 2 (SPST) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-320
$2.69


Click on photo for
larger view
SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPDT, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 2 (SPDT) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-325
$3.59


Click on photo for
larger view

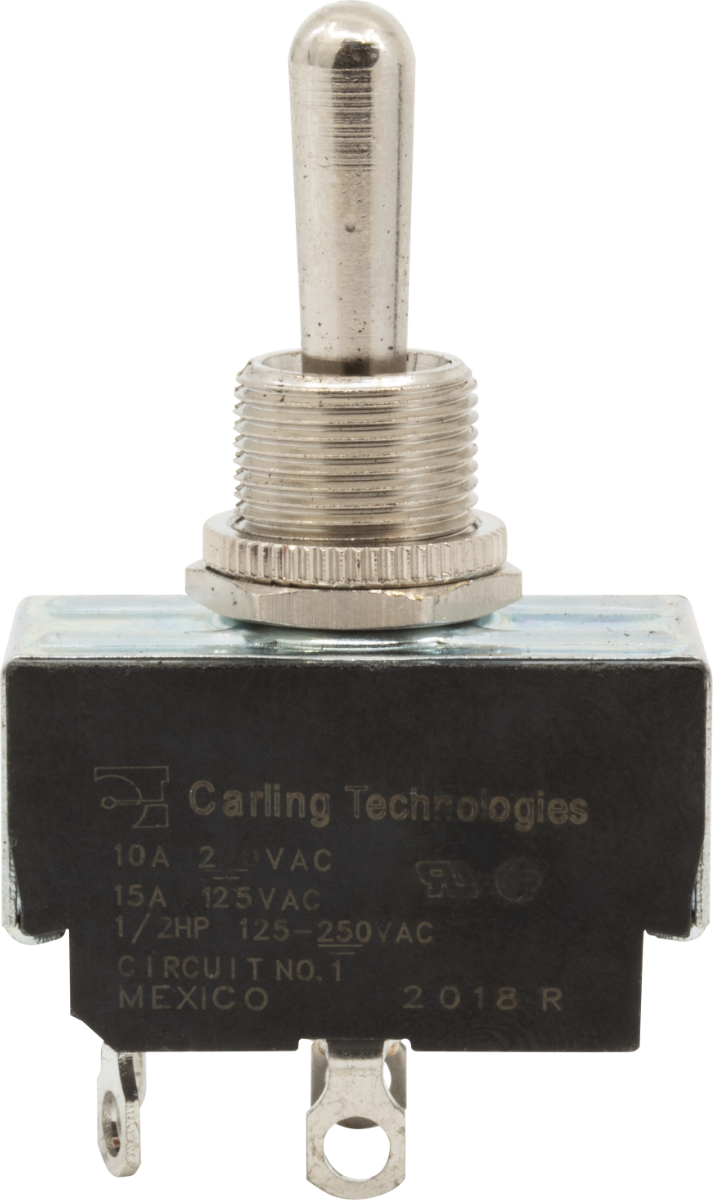

SWITCH, CARLING DPST PROGRESSIVE TOGGLE (OFF-STANDBY-PLAY)  Replacement for amps which use a single toggle switch for both power and standby.   Or, may be used to engineer a modification to amps which have a toggle power switch switch, but do not offer a standby switch (such as the Peavey Delta Blues, Fender® Blues Junior, etc).    See wiring information here.   Made by Carling®
Part #SW-520
$7.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - Rated at 20 Amps (125VAC) or 15 Amps (250VAC).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on, single pole / single throw (SPST).   Two position - on/off.   NOTE:   RATED FOR AC SERVICE ONLY AT 250V MAX - DO NOT USE AS A GUITAR AMPLIFIER STANDBY SWITCH
Part #STS-20
$3.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - Made by Carling® - rated at 15A/125VAC, 10A/250VAC. Two position (on/off), single pole (SPST). Fits 1/2" chassis hole. Solder terminals.
Part #SW-526
$4.95


Click on photo for
larger view
SWITCH, TOGGLE, DPST - Used in Marshall®, Orange® and Trace Elliot®, Hiwatt® and Vox®. Rated at 15A, 125/250VAC.  Two position (on/off), double pole (DPST), 4 terminals.  Fits 1/2" chassis hole.   Solder terminals or push-on terminals.   Found in Marshall® Reissue models such as the 1959HW, 1959SLP, JTM45 (2245), 2245THW, 1987X, 2061X and 1974X.  Original Marshall® part number SWTM-00021.  Found in Orange AD30, AD200, TH50, and TH200.  Found in Trace Elliot Speedtwin C30, Trident, Bonneville, Velocette, Velo 12R, Velo Twin and V-Type tube amps.   Also found in some Hiwatt® and Vox® amps.
Part #SW-641
$19.95


Click on photo for
larger view
POWER SWITCH - LINE 6
Power switch for Line 6 HD147 300W Guitar Amp.  Rated at 20 Amps (125VAC) or 15 Amps (250VAC).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on, single pole / single throw (SPST).   Two position - on/off.   Line 6 part number 24-03-0002
Part #24-03-0002
$3.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - TWO POSITION (ON/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, no center off - two positions (ON/ON).
Part #STS-15-DPDT
$4.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - THREE POSITION (ON/OFF/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, with center off - three positions (ON/OFF/ON).
Part #STS-15-DPDT-CO
$5.95



Mini Toggles




Click on photo for
larger view
Genuine Carling Technologies dress nuts for use with all mini toggle switches. These plated dress nuts feature a chamfered edge for a professional look and work on any 15/32-32 UNS threaded bushing.  Note:  The dress nut will only tighten down to the point where the threads of the switch have reached the top of the nut.   To use this nut properly, adjust the back nut on the switch to allow 1/8 inch or 3.4mm thread extension beyond the panel. Two sides are flatted for use with a tool when fastening.
Part #DN-154
$0.79


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (North)   2. Series Humbucker / Coil Tap (South)   3. Pickup On/Off   4. Kill Switch
Part #SW-MTS-S11
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, SHORT HANDLE,  USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (North)   2. Series Humbucker / Coil Tap (South)   3. Pickup On/Off   4. Kill Switch
Part #SW-MTS-S11-SL
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-S11 above, except designed for PC board insertion.

Part #SW-MTS-S11-PC
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, CARLING® TECHNOLOGIES MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
0.354" Bushing length
1/4" Mounting hole
Solder lugs
High quality Carling® brand


Part #SW-MTS-
S101-CAR
$4.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, SHORT HANDLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101-SL
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-S101 above, except designed for PC board insertion.

Part #SW-MTS-S101-PC
$1.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)
Part #SW-MTS-D11
$2.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, SHORT HANDLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)
Part #SW-MTS-D11-SL
$2.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-D11 above, except designed for PC board insertion.

Part #SW-MTS-D11-PC
2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:

1. Series Humbucker / Off / Coil Tap (North)   2. Series Humbucker / Off / Coil Tap (South)   3. Coil Tap (North) / Series Humbucker / Coil Tap (South)
4. In Phase / Off / Out of Phase
5. Series / Off / Parallel

Part #SW-MTS-D101
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING, SHORT HANDLE
Same as the SW-MTS-D101 above, except with a short bat handle.

Part #SW-MTS-D101-SL
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-D101 above, except designed for PC board insertion.

Part #SW-MTS-D101-PC
$2.95


ON-ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON-ON SWITCHING (WITH SPLIT-ON CENTER POSITION)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker/Coil Tap/Parallel Humbucker   2.   Humbucker/Coil Tap/Humbucker Out of Phase     3.  Neck Pickup/Both Pickups/Bridge Pickup
Part #SW-MTS-D111
$3.95


ON-ON
3PDT

Click on photo for
larger view
SWITCH, MINI 3PDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER POSITION)  (Note:  Color of switch body may vary from photo)

Part #SW-MTS-311
$3.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION), SHORT BAT HANDLE.
Used as three position mini toggle switches.  3 solder lug terminals, 3 position switch with short bat handle lever.

Part #SW-MTS-S101-SL
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches.  3 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-S11-SL
$1.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches.  6 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-D11-SL
$1.95



Foot Switches



Click on photo for
larger view
FOOT SWITCH, CARLING® BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop Crybaby Wah pedals (NOT the version F - see FS-435 below for Crybaby GCB-095F).  Has 3 electrical terminals (single pole, double throw)Solder lugs for wire.
Part #FS-492
$9.95

FOOT SWITCH, LATCHING, CARLING® BRAND, SPST, REPLACEMENT FOR Fender®, ETC.
Carling SPST footswitch. Used in Fender® etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.
Part #FS-493
$9.95

FOOT SWITCH, MOMENTARY, SPST, NORMALLY OPEN
SPST footswitch,
soft touch pushbutton footswitch. Normally open. These are good for tap tempos, loopers (such as the Electro Harmonix 720 Stereo Looper) and anywhere you want the option for a constant or fast foot tap. They are also ok for hand use as they are not too hard to push with fingers.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire, normally open.
Part #FS-552
$4.95

FOOT SWITCH, CARLING BRAND, DPDT, FOR SWITCHING AND EFFECTS.
Has 6 electrical terminals (double pole, double throw)Solder lugs for wire.
Part #FS-497
$13.95


Click on photo for
larger view
FOOT SWITCH, DPDT
Replacement DPDT footswitch for MXR and Dunlop pedals.

Original replacement part for:
Dunlop BG95 Buddy Guy Wah, Dunlop GCB95F Crybaby Classic Wah, Dunlop 535Q Crybaby Wah, Dunlop JD-F2 Fuzz Face Distortion, Dunlop JH-F1 Hendrix Fuzz Face, Dunlop JH-OC1 Jimi Hendrix Octavio, MXR M101 Phase 90, MXR M102 Dyna Comp, MXR M103 Blue Box, MXR M104 Distortion+, MXR M107 Phase 100, MXR M134 Stereo Chorus, MXR M169 Carbon Copy Analog Delay, MXR MC401 Custom Audio Electronics Boost, MXR MC404 Custom Audio Electronics Wah, Dunlop SW95 Crybaby Slash Wah

Part #FS-435
$15.95


Click on photo for
larger view
FOOT SWITCH, DPDT, FOR SWITCHING AND EFFECTS.
Electrically equivalent to FS-497, but with a smaller switch body.  Has 6 electrical terminals (double pole, double throw).   Solder lugs for wire.
Part #FS-498
$3.95


Click on photo for
larger view
FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board.  Used in the 5-way foot controller on the Marshall® TSL-100 amps for the reverb and effects switches.    Marshall® Part number SWTP-00047.  Found in the Line 6® XPS-AB power supply for their Variax guitars.  Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC
$3.95


Click on photo for
larger view
FOOT SWITCH, SPST, LATCHING, FOR SWITCHING AND EFFECTS - Fender® TYPE.
Has 3 electrical terminals (single pole, single throw)Solder lugs for wire. Commonly found in newer Fender® footswitch boxes, including the footswitch box for the Vibro-King Custom, 64 Vibroverb Custom, 68 Custom Deluxe Reverb, and 68 Custom Twin Reverb.  Fender® part number 0024042000.
Part #FS-298
$3.95


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, FOR SWITCHING AND EFFECTS - Marshall® TYPE.
Has 3 electrical terminals (single pole, double throw).   Solder lugs for wire. Commonly found in Marshall® footswitch boxes, as well as other brands.  Marshall® part number SWP802.
Part #FS-398
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Has 3 electrical terminals (single pole, double throw). Solder lugs for wire. This is a "soft click" momentary switch - not latching.   See drawing for switch open/closed arrangement.
Part #FS-398-M
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, PC MOUNT, FOR SWITCHING AND EFFECTS - Marshall® TYPE, LATCHING
Electrically equivalent and physically the same body size as the FS-398, but made for direct connection to a PC board.  Found in the some Marshall® footswitch boxes with PC board design.  This is a latching switch. Has 3 electrical terminals (single pole, double throw).
Part #FS-398-PC
$3.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many stomp boxes.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").   This switch is used in the Marshall AVT Stage Foot Controller PEDL-00039 used in conjunction with the AVT-150, AVT-150H, and AVT-275 models.   See this page for more information.    This is a shorter version than used in MXR® pedals - will not fit MXR®!    Order the D-ECB554 for MXR® pedals.
Part #FS-211-PC
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it has solder lugs for wire attachment.   Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-211
$6.95


Click on photo for
larger view
PREMIUM FOOT SWITCH, TAIWAY 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.  Longer threaded bushing than the FS-311.  Softer "click" during switching than the FS-311 switch.  Manufactured by Taiway.  Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.   Data sheet here.  This is a latching switch - not a momentary.
Part #FS-311T
$8.95


Click on photo for
larger view
FOOT SWITCH, ALPHA 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.   Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-311
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, PC MOUNT, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it is a slightly softer-click momentary (no firm click) for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.  Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.   Pins for PC board mounting.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.   This switch is used in the Marshall AVT Stage Foot Controller PEDL-00039 used in conjunction with the AVT-150, AVT-150H, and AVT-275 models.   See this page for more information.    Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.

Part #FS-211-PC-M
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC-M, except it has solder lugs for wire attachment.  This switch is a slightly softer-click momentary (no firm click) for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.  Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.     Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-211-M
$6.95


Click on photo for
larger view
FOOT SWITCH, DIGITECH, SPDT, MOMENTARY, PC MOUNT
This switch is the replacement foot switch for DigiTech foot controllers:
  • RP1000
  • Vocalist Live 3
  • Control 2

Part #FS-430M

$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many Dunlop/MXR stomp boxes. Used in later revisions of the MXR Micro Amp, Carbon Copy, and others.   Also used in the later CSP101SL and M101 versions of the MXR Phase 90, MXR M107 Phase 100, MXR Dime Distortion, MXR Bass Octave Deluxe, MXR Custom Badass Modified O.D., MXR Custom Badass 78 Distortion, MXR Bass Distortion, MXR Bass Envelope Filter, MXR Bass Fuzz Deluxe, MXR Bass Compressor, MXR Fullbore Metal, MXR M117R Flanger, MXR Supercomp, MXR Microamp, MXR M134 Stereo Chorus, MXR M135 SmartGate, MXR M148 Micro Chorus, M169 Carbon Copy  .   Dunlop part number ECB554. The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for locking).  This switch is NOT the same as the FS-211-PC switch - the D-ECB554 is an extended length switch for Dunlop® / MXR pedals only.
Part #D-ECB554
$9.95


Click on photo for
larger view
KICK SWITCH, DUNLOP, USED ON VARIOUS DUNLOP PEDALS.   ORIGINAL DUNLOP PART NUMBER ECB233.   Used in a variety of specialized Dunlop pedals.    Has 12 pins for soldering to a PC board in the pedal, circuit is a 4PDT (4 pole, double throw)

Part #D-ECB-233
$6.95


Click on photo for
larger view
KICK SWITCH, DUNLOP, USED ON THE ROTOVIBE DUNLOP PEDALS.      Used in the Dunlop Rotovibe pedal.    Has 6 pins for soldering to a PC board in the pedal, circuit is a DPDT (double pole, double throw)

Part #D-ECB-234
$9.95

FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.    Side solder lugs for wire.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to wire a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503
$4.95


Click on photo for
larger view
FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.    Bottom solder lugs for wire.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to wire a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503B
$4.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-602-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.

Made for switching and effects units which require a momentary connection rather than a latching connection.    PC terminals.  Has 3 terminals.
Part #FS-502-PC

$4.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-502-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.  Made for switching and effects units which require a momentary connection rather than a latching connection.  PC terminals.  Has 3 terminals.   Used in the 5-way foot controller on the Marshall® TSL-100 amps for the clean, crunch and lead switches.

Part #FS-602-PC
$4.95


Click on photo for
larger view
FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.  PC terminals.   Fits some Blackstar® HT Dual Footpedals.    Blackstar® part #MCSWH02014.   Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503-PC
$4.95


Click on photo for
larger view
FOOT SWITCH, 3PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw).     Commonly found in effects pedals which have "true bypass".   Solder lugs for wire.
Part #FS-501
$6.50


Click on photo for
larger view
FOOT SWITCH, 3PDT, PC MOUNT, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw)    Commonly found in effects pedals which have "true bypass".   Made for PC mounting.
Part #FS-501-PC
$7.95


Click on photo for
larger view
FOOT SWITCH, 4PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 12 electrical terminals (4 pole, double throw)     For use in effects pedals which have "true bypass".   Solder lugs for wire.   Four poles allow additional features and switching options for your own design, such as additional LED indicators in addition to "true bypass".   With 4PDT, the options you can create in switching are limited only by your imagination!
Part #FS-504
$8.95

FOOT SWITCH, REPLACEMENT FOR BOSS EFFECT PEDALS
Replacement for Boss effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511
$3.99


Click on photo for
 larger view
FOOTSWITCH, PC MOUNT, TACTILE TYPE
Common switch found in Line 6 floor pedals (such as the Pod XT Live, DL4), Digitech floor controllers (such as the Control ONE), older DOD pedals, and Marshall JVM series footswitch boxes.   12mm x 12mm (about 1/2" x 1/2" x 1/4" tall).  Line 6 part number 24-31-0100.
Part #FS-100
$1.95


Click on photo for
 larger view
TACT SWITCH, PC MOUNT
Fits the following:  Boss ME-5.  Casio CZ-1000, CZ-3000, CZ-5000.  Ibanez TS9 Tube Screamer.  Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61.  Kurzweil K1000, K1200, K2000.  Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606.  Yamaha DX7, DX9, KX88.  Oberheim Matrix 6/6R/1000.  Sequential Circuits Multi-Trak.   Boss part # 13129715.  Korg # 37505000.  Roland # 13129715.  Yamaha # KA905510.  12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99

TACTILE SWITCH, DUNLOP, FOR WAH PEDALS
Original replacement part for Dunlop® 105Q Crybaby Bass Wah and Dunlop® 95Q Crybaby Q-Wah.

Part #D-ECB553
$1.95


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.0mm above top of switch (about the thickness of a credit card).   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary).     For through-the-hole mounting on PC boards.
Part #TS-5126
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary).     For through-the-hole mounting on PC boards.   Fits the Line 6 Alchemist, Bass POD XT Live, FBV Shortboard MKII, Floor POD Plus, M9, M13, POD HD300, POD HD400, POD HD500, POD X3 Live, POD XT Live, Spider Valve HD100, Spider Jam, Spider IV SERIES, Spider IV1508, HD500X.    Line 6 part number 24-31-1105
Part #TS-5127
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
® and Zoom® products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5144
$0.99


Click on photo for
larger view
TACTILE SWITCH, PC MOUNT, KORG, VOX.
Fits the following Korg keyboards:  01/W, 01W-FD, DA5, SG10, 707, i2, i3, i4S, M1, M1R, microKORG, N264, N364, Prophecy, T1, T2, T3, Trinity, Trinity Plus, Trinity Pro, Wavestation, Wavestation A/D, X2, X3, X5, X5D.   Korg part # 37507500, 375007500, 375010500, 530000000265.   Front panel push switch on the Vox models VT30, , VT40, VT40+, VT50, VT80+, AD100VT, AGA70.
Part #TS-5145
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  6mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 6.0mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
® products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5146
$0.99



Other Switches



Click on photo for
larger view
ORIGINAL Marshall® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, FX switching on the front panels of many Marshall® amps from the 1990s.    Found in the JMP-1 preamp, 6100 Anniversary, JFX-1 Signal Processor, and early 90s Valvestate MK1 models: VS100R, VS100RH, 8010, 8020, 8040, 8080, 8100, 8200, 8240, 8280.   Original Marshall® part number S212.   For switch cap, see the K-212 or K-213.   Actuator shaft is 2.7mm square.
Part #SW-212
$4.95


Click on photo for
larger view
ORIGINAL Marshall® PUSH SWITCH
Dual DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (2XDPDT).  Used for channel switching, FX switching on the front panels of many Marshall® ValveState amps from the 1990s.    Found in the VS65R, VS100R, VS100RH, VS102R, VS265.  Also used as the PHASE/NOTCH switch in the Marshall® AS50R, and in multiple locations in the AD100D.  Used as the Channel Select switches on the TSL60, TSL601 and TSL602.  Original Marshall® part number S701, SWTP-00020 and SWTP-00035.   Actuator shaft is 3.3mm square.
Part #SW-701
$9.95


Click on photo for
larger view
ORIGINAL Marshall® , VOX, AND Blackstar® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used by Marshall as follows:
TSL100:
MID BOOST SWITCH CLEAN SW2
CLEAN/OD SWITCH SW1
OD/CRUNCH SWITCH SW3
DEEP SWITCH OD SW2
DEEP SWITCH CLEAN SW2
V.P.R.SWITCH SW3
OUTPUT MUTE SWITCH SW4
LOOP LEVEL SWITCH A SW2
LOOP LEVEL SWITCH B SW3

MB450H: Classic Channel Boost

DSL40C and DSL100H: SW2 (Channel Select), SW3 (Lead1/Lead2), SW5 (FX-Loop ON/OFF)

Used in the Vox® Pathfinder, V9168R,  with Reverb.  Vox® part number V3650 and V904530002.   Used in most Blackstar® Amps as SW2; also on back PCB: SW1; SW2; and SW3.  Blackstar® part number MCSWH02002.   Also found in other brands of amplifiers.  Actuator shaft is 3.3mm square.
Part #SW-650

$3.95


Click on photo for
larger view
ORIGINAL Marshall®  PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (4PDT).  Used for Tone Shift and Clean/Crunch on the TSL-100, TSL-122, DSL-50 and DSL-100.   Also found in the AVT100, AVT150, AVT275, TSL60, TSL601, TSL602, DSL40C.  Also found in other brands of amplifiers.  Actuator shaft is 3.3mm square.  Original Marshall® part number SWTP00039.
Part #SW-233
$6.95


Click on photo for
larger view
ORIGINAL ILLUMINATED Marshall® PUSH SWITCH
4PDT Mini Short-Throw Push Switch.  Has 14 electrical terminals on bottom of switch (4PDT + LED).   Contains red LED which illuminates through the stem of the switch.   Used for channel switching on certain amp models from the JCM900 series, including the 4100, 4101, 4102, 4500, 4501 and 4502.   Original Marshall® part number S206.  Does NOT include the clear switch cap - reuse existing cap.
Part #SW-206
$6.95


Click on photo for
larger view
ROUND SWITCH CAP - FITS SW-212 and 090-0012-0
This is a black 5mm (approx 3/16") diameter X 9mm long switch cap which fits the SW-212 and 090-0012-0 Push Switches.   Exact replacement for most of the round caps used on the Gallien-Krueger 400RB-II, 700RB-II, 1001RB and similar models.   Fits push switches with   actuator shaft of 2.7mm square.   The diameter of this switch cap is smaller than the original round switch cap from Marshall® found on some of the early ValveState models.  Does NOT fit the TSL/DSL amps in the JCM2000 series.  Does NOT fit the SW-650, SW-701, or SW-206 switches

Part #K-212
$1.50


Click on photo for
larger view
SQUARE SWITCH CAP - FITS SW-212
This is a black 5mm x 5mm (approx 3/16") square mini-switch cap which fits the SW-212 Marshall® Push Switch (used primarily for channel switching).  Replaces the original S213 switch cap from Marshall® , which has now been discontinued.   NOTE:   This is NOT the power switch cap on ValveState Amps - we do not have the power switch cap available.   Also, this switch cap does NOT fit the SW-650 switch, SW-256, SW-701, or SW-206 switches.   This square cap is found on the Marshall®, 6100, 6101, JMP1, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, 8010, AS80R, 8010, 8020, 8040, 8080, 8100, 8200, 8240, 8280, and 9004 models.
  Fits push switches with   actuator shaft of 2.7mm square.
Part #K-213
$1.50


Click on photo for
larger view
Gallien-Krueger® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for switching on the front panel of the 400RB-II, 400RB-III, 400RB-IV, 700RB-II, 1001RB-II, the MicroBass Series, Backline 110, Backline 112, Backline 115, Backline 210, and Backline 350 G-K amps.   Original Gallien-Krueger part number 090-0012-0.    For the switch cap, see either the K-212 or the K-058, depending on the amplifier model.  Has actuator shaft of 2.7mm square.
Part #090-0012-0
$4.95


Click on photo for
larger view
ORIGINAL Peavey® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (2XDPDT).  Used for front panel switches on Peavey® Supreme Transtube Amps.  Original Peavey® part number 71322256 or 31322256.  Has actuator shaft of 3.3mm square.
Part #SW-256
$9.95


Click on photo for
larger view
ORIGINAL Peavey® CHANNEL SELECT TOGGLE SWITCH
2P3TSP Toggle Switch used for the front panel channel select switch on the Triple XXX and Triple XXX II amp series.  Used as the resonance switch in the Ultra 112, Ultra 212, Ultra 410 combos and Ultra Plus head.  Original Peavey® part number 71322368 or 31322368.
Part #SW-236

This switch has been discontinued by Peavey, see the SW-236A, below.




REVISIT CHANNEL SELECT TOGGLE SWITCH FOR Peavey®
2P3TSP Toggle Switch used for the front panel channel select switch on the Triple XXX and Triple XXX II amp series.  Used as the resonance switch in the Ultra 112, Ultra 212, Ultra 410 combos and Ultra Plus head.  Replaces original Peavey® part number 71322368 or 31322368.
Part #SW-236A
$4.95


Click on photo for
 larger view

REVISIT 3-POSITION SLIDE SWITCH FOR Peavey®
2P3T Slide Switch used for Impedance, Power Level, or Damping on the back panel of several Peavey® amps.  Found in the Peavey Windsor Studio, 6505 112 Combo, Joe Satriani JSX, ValveKing 212 Combo, ValveKing Head, 5150-II, and XXL models.  Replaces original Peavey® part number 71322328 or 31322328.   Mounting hardware included
Part #SW-313
$7.95


Click on photo for
larger view
ORIGINAL Fender® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, FX switching on the front panels of many Fender® amps from the 1990s to present.    Found in the Acoustasonic series, Blues Deville, Blues Deluxe, Blues Jr., Bullet Reverb, Bullet Reverb, Bassman 300, Champion 30, Champion 30 DSP, Champion 110, Frontman 25R, Frontman 25G, Hot Rod Deville, Hot Rod Deluxe, Deluxe 112 & 112 Plus, Roc Pro series, Performer 1000, Princeton 65, Princeton 65 DSP, Princeton 112 & 112 Plus, PCN-2, PCN-4, SFX, Super-Sonic, Cyber Twin series, Satellite Ultimate Chorus, Super Champ X2, Super Champ XD, Twin Amp Pro Tube, and others.   Original Fender® part number 002809100.   Also Fender® part number 028091, and 028091049.  Switch only - see part number K-058 for the switch cap.  Has actuator shaft of 2.7mm square.
Part #SW-028
$4.95


Click on photo for
larger view
ORIGINAL Fender® PUSH SWITCH
4PDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (4PDT).   Used as the Enhance switch on the Fender® Bassman 25.   Used as the Effects Level switch (rear panel) on the Cyber Twin combo, Cyber Twin head, Cyber Twin SE, and the TBP-1 Preamp.  Original Fender® part number 0038828000.    Switch only - see part number K-058 for the switch cap.  Has actuator shaft of 2.7mm square.
Part #SW-828
$6.95


Click on photo for
larger view
BUTTON, for push switch, Black.  This black button pushes onto the switch stem.   Used on channel control and drive boost switches on the front panel of the Fender® Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior.  Original Fender® part number 0028104000.   Also fits the Gallien-Krueger MB150E amp.  Button only - not the complete switch.
Part #K-058
$2.95


Click on photo for
larger view
BUTTON, for push switch, White.  This white button pushes onto the switch stem.   Used on channel control and drive boost switches on the front panel of the Fender® Hot Rod Deluxe III, Hot Rod Deville III, and on the FAT switch of the Blues Junior III and Blues Junior IV. Used on the channel selection switch of the Super champ X2 and Super Champ XD.  Original Fender® part number 0048451000.   Button only - not the complete switch.   For the switch, see SW-028.   Fits switches with actuator shaft of 2.7mm square.
Part #K-048
$2.95


Click on photo for
larger view
BUTTON, for push switch, Red.  This red button pushes onto the switch stem.   Used on the front panel buttons of the Eden TN501 Bass Amp.   Button only - not the complete switch.      Fits switches with actuator shaft of 2.7mm square.
Part #K-068
$2.95


Click on photo for
larger view
ORIGINAL Crate® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, level switching, FX switching, etc on the front panels of many Crate® amps from the 1990s to present.    Found in the Palomino, BT50, and many other models.  Original Crate® part number 88-302-02.   Has actuator shaft of 2.7mm square.
Part #88-302-02
$4.95


Click on photo for
larger view
ORIGINAL Ampeg® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (2XDPDT).  Used for pre-post switch on Ampeg SVT4-PRO.  Original Ampeg® part number 88-303-02.  Has actuator shaft of 3.3mm square.
Part #88-303-02
$9.95


Click on photo for
larger view
Madison® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for switching on the front panel of the Madison Divnity.   Has actuator shaft of 2.7mm square.

Part #SW-636
$4.95


Click on photo for
larger view
ORIGINAL ENGL® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used in the ENGL Screamer 50.  ENGL part number SPUJ-2-2.   Actuator shaft is 2.7mm square.
Part #SPUJ-2-2
$4.95


Copyright ©2021 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
