Parts for
Vox Amps

Tube Accessories     Capacitors     Hardware     Potentiometers     Knobs

Handles     Jacks     Switches     Fuse Holders     Jack Panels     Power Cords

Footswitch Boxes     Cables     Reverb

>

Click on photo for
larger view
TUBE RETAINER FOR EL84 OR 6BQ5 TUBES.   2 inches between base and top bracket which fits around the "nub" at the top of the tube.   Will not fit all situations  - works best when the tube socket is recessed below the chassis about 1/4 inch.    1-1/8" mounting centers.
Part #TR-144
$2.95


Click on photo for
larger view
TUBE RETAINER FOR 12AX7, 12AT7 TUBES.   1½ inches between base and top bracket which fits around the "nub" at the top of the tube.   Will not fit all situations  - works best when the tube socket is exactly flush with the chassis.   1-1/8" mounting centers.
Part #TR-146
$2.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$2.99
(Set of 6 rings)



Click on photo for
larger view

Socket - Belton, Micalex, 8 Pin, Octal PC Mount, Solder Lugs   Micalex construction, solder lugs for attaching wire.  1 ½" mounting centers 1 1/4" chassis hole. Applicable for use with all types of electric and electronic equipment using vacuum tubes.  Paddle saddle mounting, easy mount with the saddle of extruded screw hole.   Phosphorous bronze pin terminal with tin plating, glass fiber field PPS Insulating material.   Used as the socket for the GZ34 rectifier tube in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.
Part # TS-8-209W

$3.95


Click on photo for
larger view
9 pin Belton Micalex socket for PC board mounting.   Mounts under the PC board.  Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.  Used in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.   Click here for additional specs.
Part #TS-9-BEL
$2.79


Click on photo for
larger view
CAPACITOR, electrolytic 22uF @ 450V with radial leads.  16mm Diameter, 25mm tall.   Used in many PC board tube amplifiers, such as newer Vox® models.
Part #RAD-22-450
$2.50


Click on photo for
larger view

CAPACITOR,
electrolytic 47uF @ 450V with radial leads.    16mm Diameter, 31.3mm tall.   Used in many PC board tube amplifiers, such as newer
Vox® models.
Part #
RAD-47-450S
$3.95


Click on photo for
larger view
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113
$1.39
(Pack of 5 terminals)




Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750
$2.95
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
Part #BRF-723
$3.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

Part #BRF-1691
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

Part #BRF-9105
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   Tapered: 1 3/16" Diameter At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112
$4.95
(pack of 4)



Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4.   Tapered -  1 5/8" Diameter At Large End, 1 1/4" At Small End. 3/4" Tall. Black Rubber With Metal Insert. Used To Support Amp Heads, Speaker Cabinets. Mounting Screws Not Included.
Part #BRF-9107
$7.95
(pack of 4)



Click on photo for
larger view
Vox® CORNER, BLACK PLASTIC, SOLD INDIVIDUALLY. These Tube Amp Doctor black plastic corners are great replacements for Vox® and Orange® amps and cabinets that feature this type. The two larger holes are for use with screws while the small holes are intended for pins/nails just like the originals. ¾" radius, 2 pins on front.   Used on some vintage Vox® amps.  For heads, combos and straight speaker cabinets.    Screws NOT included.  Use CN-304-8 nails and SC-411-8 black screws to attach.
Part #VC-1050
$1.95
(Per individual corner)


Click on photo for
larger view
Vox® BRASS VENT, VINTAGE STYLE   Found on several vintage Vox® amps from the 1960s, including the original AC15 and AC30.  The vintage Vox® amps typically used 3 of these vents across the top of the cabinet.  This recreation from Tube Amp Doctor is hand-crafted in Germany to be a perfect match for the original brass vents.   Measures 0.720" x 4.805" (122 x 18.3mm).   Sold individually.
Part #VV-225
$12.95

16mm Potentiometer, Vox, 1990-Present

Click on photo for
larger view
POT, VOX, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING
Used in many later Vox amp models with PC board circuitry, including AC30C2, V9158 Pathfinder, V9159, V9310, Night Train, etc.  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.  These pots are available with optional dust caps installed.   The dust caps seal out dust for reliability, longer life, and help prevent "scratchy pots" in later life.    Download cross-reference guide for these pots.   Choose pot value and dust cap option in "Select Options".


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-XX

$2.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, Vox® DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the
Vox® Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-B10KX2
$6.95


Click on photo for
larger view
POT, Vox® DUAL 100K OHM LINEAR, (B100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the
Vox® Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-B100KX2
$6.95


Click on photo for
larger view
POT, Vox® DUAL 200K AUDIO, (A200KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.

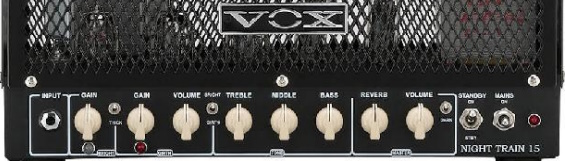

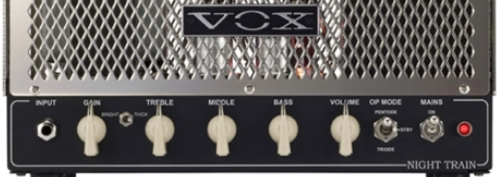

Used as the Master Volume Pot in the
Vox® Night Train.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXA-A200KX2
$6.95


Click on photo for
larger view
POT, Vox® 10K OHM LINEAR, (B10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT FOR  VOX VALVETRONIX SERIES.
Replacement for most pots in the ADxxVT Valvetronix Series.   B10K Ohms - 10K Linear.   In the AD15VT, AD30VT, AD50VT, AD60VT, and AD100VT, replaces the Gain, Volume, Treble, Middle, Bass, Edit 1 and Master Volume.  In the AD60VT and AD120VT, also replaces the Presence, Drive, Level, Speed, Feedback and Depth.   Replaces
Vox® part numbers V903620015, RV1620-40-15S-B1, and VR RV160-40-15S-B10K-C0.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B10K
$3.95


Click on photo for
larger view
POT, 10K OHM AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used in the Vox® DA5, DA10, DA10CL, AD60VTH, and AD60VTX.  A10K Ohms - 10K Audio.  Replaces Vox® part numbers 530000000288, V903620014, and RV160-40-15S-A10K-C0.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10K
$3.95

Click on photo for
larger view
POT, B100K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Reverb Mix pot in the AC15CC1, ACC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces Vox® part number 550020-1044111000.   100K Ohms, Linear Taper (B100K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B100K
$3.95


Click on photo for
larger view
POT, A200K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Tone Cut pot in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  Replaces Vox® part number 550020-2044110000. This style of pot is NOT used in the AC15C1 or AC30C1.  200K Ohms, Audio Taper (A200K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A200K
$3.95


Click on photo for
larger view
POT, A500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Top Boost Volume, Master Volume and Tremolo Depth in the AC15CC1 and AC15CC1X.   Used as the Top Boost Volume, Normal Volume, Master Volume, and Reverb Tone in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  This style of pot is NOT used in the AC15C1 or AC30C1.  Replaces Vox® part number 550020-5044110000.   500K Ohms, Audio Taper (A500K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A500K
$3.95


Click on photo for
larger view
POT, B500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Tremolo Depth pot in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces Vox® part number 550020-5044111000.   500K Ohms, Linear Taper (B500K)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-B500K
$3.95


Click on photo for
larger view

POT, A1M, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT.  Used as the Top Boost Treble and Bass pots in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  This style of pot is NOT used in the AC15C1 or AC30C1.  Replaces Vox® part number 550020-1054110000.   1 Meg Ohms, AudioTaper (A1M)
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A1M

$3.95


Click on photo for
larger view
POT, DUAL 10K OHM STEREO AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SPLIT SHAFT FOR  VOX VALVETRONIX AD120VT SERIES.
Replacement for the Master Volume control pot in the AD120VT, AD120VTH, and AD120VTX Valvetronix models.   Stereo (dual gang) right angle A10K Ohms - 10K Audio Taper.   Replaces Vox part numbers V903620010 or RV1620-40-15S-A10K-CO.

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10KX2
$6.95


Click on photos for
larger view

BRASS POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on your 1/4" knurled shaft potentiometer?  Do you need to eliminate the off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?

Just slip one of our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft or 6mm pot shaft to ensure a snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!

Note:  Will NOT work with 3/16" knurled shaft pots.  Those smaller knurled shafts are typically found in Crate and Peavey amps.  Not recommended for D-shaft type shafts.

Part #PAS-635

$0.95


Click on photo for
larger view
KNOB, CHICKEN HEAD, Vox® KNURLED PUSH-ON, BLACK
Used on many Vox® amps - can replace any knob which uses a 1/4" knurled type shaft.  Black.   Fits 1/4" knurled shaft only.
Part #K-V11
$1.95


(Black)

Click on photo for
larger view
Vox® STYLE GUITAR AMP HANDLEBlack handle strap, "dogbone" style, diamond pattern, with brackets. Nickel end hooks - replacement for vintage and modern Vox® amps.  Does not contain Vox® logo, so it may be used on other brands of amps.  Center to center measurement is 6 1/4 inches.  Color of handle strap is black.   Screws not included - you might consider the pack of four SC-402 screws found here.   Note that some vintage Vox® amps may have used a different thread type than the 8-32 thread of the SC-402 screws.
Part #VAH-327
$5.99


Click on photo for
larger view
JACK, 1/4", T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND /WASHER.
Same as the J-504, with the addition of a special ground washer which contacts the chassis AND is inserted into the ground connection of the PC board via dual pins under the jack.   6 PC board terminals for signal, plus 2 additional terminals for the ground washer.   Only for amplifiers so equipped for this jack, designed to reduced EMI/RFI interference (radio stations, ground loops).  Found in the Vox® AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X, AC30CC2H.  Nut is included.
Part #J-504GW
$2.89


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Vox®.   6 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-581
$4.49


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Vox® part number 530000000112.   Used in the AC15HTVH, AC100CPH, AC50CXP2, AC30H2, AC30H2L.   With nut and washer.
Part #J-503
$1.89


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched.  With nut and washer.  British style.  Vox® part number 530000000113.   Used in the AC100CPH, AC50CP2.
Part #J-504
$1.89



Click on photo for
larger view

Available with or without nut and washer.

JACK, 1/4", TIP/SLEEVE 4 PIN, PC MOUNT.   Mono, 4 pin. Fits certain Fender®, Hartke® and Vox® amp models 1988 - present.  Replacement nut/washer set is the JN-916.

Available with or without nut/washer - choose in "Options"

Part # J-506
Starting at $1.99
Select Option:


Quantity:


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING - RATED AT 15A/125VAC, 10A/250VAC.    Two position (on/off), double pole (DPST).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on.    Upgrade for China-made Chily switch in the AC30C2 and AC15C1.   Replaces Vox® part number 530000002100.
Part #SW-525
$6.95


Click on photo for
larger view
FUSE HOLDER, LOW PROFILE, USED WITH AGC TYPE FUSE.
This low profile fuse holder is made of high temperature, flame retardant, thermoplastic capable of withstanding years of heavy road abuse. The single turn cap holds a standard 1-1/4" x 1/4" AGC, MDL, or 3AG type fuse and the rear nut mounting design is perfect for reliable installation. With a 1/2" hole, installation is quick and easy and the included environmental washer helps keep dust and moisture out of your amp. Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.   Flat screwdriver required to remove and insert the cap.
Part #FH-569
$5.49


Click on photo for
larger view

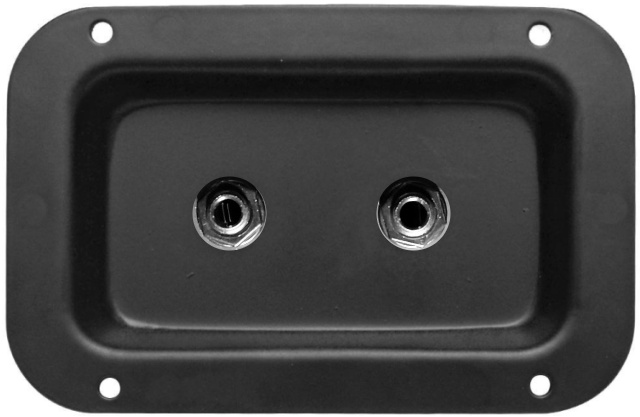

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$7.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender® jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.49



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.   Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra Flexibility In Equipment Placement, Reduces Use Of Extension Cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view

Vox® STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Vox® dual footswitch - same quality, just without the Vox® logo and Vox® price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Latching switches.   Works with Vox AC151C1(X), AC15C2, AC30C2(X), AC15VR, AV30, AV60, and all Night Train G2 models. 1/4" Stereo plug, 16 ft. cable.
Part #FBS-471
$37.95


Click on photo for
larger view

Vox® STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original
Vox® footswitch. - same quality, just without the Vox® logo and Vox® price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.    Replaces Vox® stock numbers VFS-1 and 530000002298.   Works with the Vox® model AC15HW.
Part #FBS-470
$29.95



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99


Click on photo for
 larger view
Revisit™ SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150
$5.99



Click on photo for
 larger view
Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip cord.   Red and black for easy polarity identification.  Resistance is 0.0097 ohms/ft.  Automotive grade "GPT" PVC insulation, oil and gas resistant, rated for -20 deg F to +160 deg F.   Also perfect for bias testers, radio, home theatre, automotive, stereo, robotics, and model train applications.   Priced per foot, sold in lengths from 1 foot to 50 feet.
Part #RBZ-18
$0.32
(priced per foot)


Feet (1-50):



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1BShort Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output.  Mounts horizontal, open side down.   Primarily used Vox® AC30, with solid state reverb as used in the 1970s, See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8BB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$35.89
In stock




Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   Used in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

View the 2-year warranty details here.
Part #8EB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$35.89
In stock




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1B.   Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.  Replaces the 53-5004-2 Vox reverb tank used in the V1133 Royal Guardsman, the V1123 Buckingham, and the V1154 Viscount Combo Amp.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4BB2A1B

"Bringing back the sound of vintage Accutronics tanks"

$38.89
In Stock






Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up.    Replaces Vox reverb tank 23-5002-2 in the solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142).  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4FB2A1C

"Bringing back the sound of vintage Accutronics tanks"

$38.89
In stock





Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B.   Input impedance 190 ohms, output impedance 12,000 ohms, medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Vox® AC30TBR Top Boost Reverb model (1991-1993.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9BC2C1B

"Bringing back the sound of vintage Accutronics tanks"

$43.95
In stock




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B.   Input impedance 800 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Vox® AC50CPH, AC100CPH.    See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$43.95
In stock




Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets
)



Click on photo for
larger view

Reverb Tank Bag for 17" tanks.   Used in a variety of amps, including Fender® amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.
Part #RB-017
$17.99
In Stock



Click on photo for
larger view
(Reverb tank not included)

Handmade Reverb Tank Bag for 9" tanks.  Works with any short (9") reverb tank.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.  Handmade of single-ply black Tolex.  Replacement for Fender and many other amps.  Bag dimensions: 4.5"W x 1.5"H x 9.5"L.   Includes loops at each end for screw attachment to the amp cabinet, and a tuck-in flap to close up the end.   Mounting screws not included.
Part #RB-009
$11.99
In Stock



Click on photo for
larger view

3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173
$3.95
In Stock



Click on photo for
larger view

4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In stock



Click on photo for
larger view

4 foot Revisit™ right angle cables for Reverb Tanks.    RCA at one end, stripped cable at opposite end.    For connecting reverb tanks directly to a PC board via a soldered connection at the PC board end.   Used by a number of manufacturers.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-374
$4.95
In stock



Click on photo for
larger view

5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-17
5
$5.95
In stock



Strat®, Stratocaster®, Esquire®, Telecaster®, Tele®, Jazzmaster®, Jaguar®, Mustang®, P.Bass®, J.Bass® and Fender® are registered trademarks of Fender® Musical Instruments. The replacement necks and bodies are for a Fender® or Squier® by Fender® guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster®, Telecaster®, J.Bass®, P.Bass® and Tele® Bass are registered trademarks of Fender® Musical Instruments Co.
Peavey® is a registered trademark of Peavey® Electronics Corporation.
Marshall® is a registered trademark of Marshall® Amplification Plc.
Mesa Boogie® is a registered trademark of MESA/Boogie® Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2021 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
