Reverb Tanks

Largest Selection of Reverb Tanks Anywhere!

"2-Type" 9 inch 2-spring Tank
(Budget priced)

"8-Type" 9 inch 3-spring Tank

"4-Type" 17 inch 2-spring Tanks

"9-Type" 17 inch 3-spring Tanks

Reverb Cables & Accessories

Lost in finding the right tank?
Go to our Cross Reference guide here

Why choose a Revisit™ reverb tank?

1. Multiple holes to adjust mounting grommets and screws for any applications.
2. Internal wires with stress relief and sufficient length to avoid breakage.
3. Solid aluminum tray holding custom wound input and output transducers producing clear, deep tone.
4. Counter wound asymmetric coupled springs with separator (types 4 and 9).
5. Rugged black finish.
6. Soft grommets with brass inserts to decouple outer channel from amplifier cabinet.
7. Classic standard audio connectors (white=input, red=output)
8. Classic part number system helping to find the correct Revisit™ reverb tank for your amp.

And, a one-of-a-kind 2 year manufacturer warranty!

	"Bringing back the sound of vintage USA-built Accutronics tanks"
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1A. Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side up. Replacement for the Gibbs Type F reverb tanks used in the 60s and early 70s, including the Sunn™ Solarus and Sentura I. Also used in the 1969 version of the Kustom K100-2. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB3A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1B. Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Replacement for the Gibbs Type F reverb tanks used in the 60s and early 70s, including Ampeg™ models Echo Jet, Echo Twin, B12X, B12XY. See explanation of Korean-made Accutronics Reverb. Also used in the Lab Series L5, L7 and L11 models. Tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB3A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1A. Input impedance 8 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side up. Used in the Yamaha G100 Series I and Series II. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1B. Input impedance 8 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1A. Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input isolated/output grounded, designed for horizontal mounting, open side up. See explanation of Reverb Tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB3C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990. Princeton Reverb, Deluxe Reverb, Vibrolux Reverb, Pro Reverb, PA100, PA135, Super Reverb, Twin Reverb, Quad Reverb, Super Six Reverb, Pro Reverb, Bandmaster Reverb, Dual Showman Reverb, Vibrosonic, Prosonic, Vibroking, `63 Reverb Unit, `65 Princeton Reverb Reissue, `65 Deluxe Reverb Reissue, `65 Super Reverb Reissue, `65 Twin Reverb Reissue, `68 Custom Deluxe Reverb Reissue, `68 Custom Vibrolux Reverb Reissue, `68 Custom Princeton Reverb Reissue, `68 Custom Twin Reverb Reissue, `65 Twin Custom 15, Concert II, Dual Professional, Fender stand-alone reverb unit. Also used in Mesa Boogie™ MK2C and others, LAB™ Series L5, L7, L9, Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52 AT-100. Used in the Epiphone™ Blues Custom 30 Amp. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B current production. Korean-made Accutronics Reverb Tanks are a copy of the Belton tank, and are now made by Accu-Bel in South Korea. They are of lower quality than the original Accutronics reverb tanks made in Cary, Illinois until 2009. Note that Accustronics Reverb Tanks are not returnable because you are not pleased with the sound or construction quality. We carry a limited number of Accutronics tanks because some customers are Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990. Also used in Reissue models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb, Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb, Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™ Dual Professional. Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9, Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Soft mounting grommets are not included with this tank. If needed, order the RRG-4 grommet set found in this section. Korean-made Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA. Part #ACC-4AB3C1B	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1C. Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for vertical wall mounting, long axis horizontal, connectors up. Original Fender™ number 0047604000, used in the Fender™ stand-alone reverb unit, and the Fender™ 63 Reverb. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4AB3C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1B. Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Common replacement for Music Man™, and the Mesa Boogie™ F-30 and F-50. Also replaces the 53-5004-2 Vox reverb tank used in the V1133 Royal Guardsman, the V1123 Buckingham, and the V1154 Viscount Combo Amp. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1C. Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical wall mounting, long axis horizontal, connectors up. Common replacement for many Gibson amps from the 1960s era. Replacement for the Hammond RV4C-1 tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB2A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2C1B. Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3A1B. Input impedance 150 ohms, output impedance 2250 ohms, long decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Longer decay replacement for Music Man™, and Mesa Boogie™. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB3A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1B. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting. Common replacement for Fender™ Blues Deluxe (original 90s version), Fender™ Blues Deville (original 90s version). Also found in Fender™ London Reverb, Harvard Reverb II, Studio Lead, and Showman 115 (1980s). Used in the Rivera™ Rake, Fandango and Jake Studio Combo. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1D. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded. Mounts on vertical wall, long axis horizontal, connectors down. Common replacement for Marshall™ (DSL100, TSL100, DSL60, TSL60, TSL122, DSL201, DSL401) Also found in certain Laney™ models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4BB3C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1C. Input impedance 250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for vertical wall, long axis horizontal, connectors up. Common replacement for Polytone™ amps, including the Polytone 103, Polytone Studio 212 and other models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4DB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1D. Input impedance 250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for vertical wall, long axis horizontal, connectors down. Common replacement for Marshall™ 2205, 2210, 2550, 2558, 2558V, 3005, 3210, 4212, 5213, 5275, 8200, 8280, JCM3005, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622 and some ValveState models. Also fits the Vox™ AC15TB and AC15TBX. Also is an upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4DB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB3A1D. Input impedance 250 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input and output grounded, designed for vertical wall, long axis horizontal, connectors down. Common replacement in some Marshall™ models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4DB3A1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB3C1D. Input impedance 250 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for vertical wall, long axis horizontal, connectors down. Common replacement for Marshall™ 3203, 4203, 5275 and some ValveState models. Also is an upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212, and an upgrade tank for the Roland™ JC90. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4DB3C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1A. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side up. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB2A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1A. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side up. Generally used in heads where the tank is mounted with the open side up, but is also found in some combo amps. Peavey part number 71011113. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ (including Bravo 112, Encore 65, Valveking 100 (VK100), Classic 30, Classic 50, Backstage 30, Windsor Studio, Ultra Plus 120, Special 112, Special 212 [version 1] etc. Peavey™ part number 71011114). Upgrade for Vox™ AC30CC. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3A1D. Input impedance 600 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input grounded/output grounded. Mounts on vertical wall, long axis horizontal, connectors down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB3A1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3C1B. Input impedance 600 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe Reissue and Blues Deville Reissue. Fender™ part number 0050394000. Also found in Peavey™, Music Man™. Used in the Traynor™ Custom Valve 50 (Model YCV50). Upgrade for Vox™ AC30CC See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4EB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1A. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side up. Common replacement for certain Randall™ amps, including the RG-120-410. Replacement for Gibson™ GSS-100 Solid State Amp, and the Gibson™ Dual Medalist. Also used in the Gibson™ Reverb III external reverb unit. Replacement for the Kustom K-200-A. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1B. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Common replacement for vintage Gibson™, Epiphone™ and Kalamazoo™ amplifiers which used a driver transformer for the reverb input side. Exact replacement for certain Gibson™ amps, including the GA-2RVT (Maestro), GA3-RV, GA19RVT (Falcon), G40 solid state and Medalist 410. Exact replacement for the Laub Unique 26R amplifier (60s-70s) as well as several Magnatone models. Exact replacement for the Randall RG-80 combo. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up. Exact replacement for Marshall™ 2040, 4140, 4145, 4210, 4211, and 4212 (JCM800 series). Exact replacement for the Gibbs Type "C" Reverb Tank found in a number of vintage Ampeg™ models, including Reverberocket, Jet, Gemini, B12XT, AC12, V4, VT22, V2, VT40, GV15/22. Exact replacement for Gibbs Type "C" Reverb tank found in a number of Gibson™ amps, including the GA-15RVT (Explorer, 1964), GA-35RVT (Lancer, 1965), GA-55RVT (1965), GA-77RVT (1963). Replaces Vox reverb tank 23-5002-2 in the solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1A. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output insulated. Mounts horizontal, open side up. Primarily found in Peavey, including the Peavey Classic 4x10 combo amp. Also used in the classic Shure Vocal Master VA-300C. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2B1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1B. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output insulated. Mounts horizontal, open side down. Primarily found in Traynor and Yorkville, including the Traynor YGM-3 and YGM-4. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2B1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1A. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded. Mounts horizontal, open side up. Exact replacement for Kustom™ K100-2 (1968), K100-5, K150-2, K200-B5, K250-2, K250-4, and K400-B5. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1B. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for horizontal mounting, open side down. Used in a few Ampeg and Acoustic models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1C. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for vertical mounting, long axis horizontal, connectors up. Exact replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1D. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for vertical mounting, long axis horizontal, connectors down. Exact replacement for Genz Benz™ El Diablo 100. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1A. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for horizontal mounting, open side up. Used in some versions of the Ampeg™ V4. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2D1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1B. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for horizontal mounting, open side down. Exact replacement for Tapco™ 4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1C. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for designed for vertical mounting, long axis horizontal, connectors up. Exact replacement for Ampeg™ VT-22. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB2D1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1A. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output grounded, designed for horizontal mounting, open side up. Common replacement for certain versions of the Ampeg™ Gemini amps. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1B. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Common replacement for Ampeg™, Music Man™ RP and RD series, Epiphone™ EA-28RVT, Gibson™ GA19RVT, Gibson™ GA20RVT and others. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1C. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3B1B. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output insulated, designed for horizontal mounting, open side down. Exact replacement for Fisher™ Spacexpander from the 1960s. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3B1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1A. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input insulated/output insulated, designed for horizontal mounting, open side up. Common replacement for most vintage Kustom amps from the 1960s and early 70s. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3D1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1B. Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input insulated/output insulated, designed for horizontal mounting, open side down. Common replacement for Ampeg™ (Type C) . See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #4FB3D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$46.95
Budget-priced 9" Short Tanks (2 springs)
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, equivalent to Accutronics 2AB2A1B. Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. A replacement for some Mesa Boogie™ and Fender™ Models. Also used in the PRS SE-20, Reverend Goblin, Kingsnake and early Hellhound models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, equivalent to Accutronics 2AB2A1C. Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. A replacement for some Mesa Boogie™ and Fender™ Models. Also used in the PRS SE-20, Reverend Goblin, Kingsnake and early Hellhound models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2C1A. Lower cost short tank with Medium Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side up. Replacement for tanks in early Yamaha solid-state amps from the 1970s and early 80s. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2C1B. Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Found in Orange™ Rockerverb (HEAD ONLY), Orange™ Rockerverb MKII (HEAD ONLY), and Orange™ Rockerverb MKIII (HEAD ONLY). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2D1A. Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side up. May be used in some Roland™ JC120 (very early versions and also the JC120UT. The 8DB2C1B is used in some other versions of the Jazz Chorus 120). Unsure? Measure input resistance on old tank - if it is less than 5 ohms, the 2AB2D1A is the replacement) Also used in the Roland™ Space Echo RE-501, RE-301, and RE-201. as well as the Roland™ Bolt 60, and the Roland Jazz Chorus JC77. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2D1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2AB2D1B. Lower cost short tank with 2 springs, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side down. Found in some versions of the Roland™ Space Echo RE-501 and RE-201 with the tank mounted on the bottom. Also used in the Acoustic™ G60T (Model 162 or Model 163). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2AB2D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2B1B. Lower cost short tank with 2 springs, Medium Decay, input impedance 800 ohms, output 2575 ohms, grounded input and insulated output. Mounts horizontal, open side down. Used in Jet City™ amps. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2B1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2C1A. Lower cost short tank with 2 springs, Medium Decay, input impedance 800 ohms, output 2575 ohms, grounded input and insulated output. Mounts horizontal, open side up. Used in Peavey™ 6505+ and Yamaha™ JX30. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2C1B. Lower cost short tank with 2 springs, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. A quality tank at a budget price. Replacement for Fender™ Blues Junior, Fender™ Transistor Amps such as: Fender™ Deluxe 85, Fender™ Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™ Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™ Ultimate Chorus, Fender™ Princeton Chorus, Fender™ H.O.T., Fender™ Vaporizer, Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Combo, Fender™ Pro 185, Fender™ Stage 185, Fender™ London 185. Peavey Envoy 110, Peavey™ Ultra 60/120, Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior Hot Rod, Tech 21™ Trademark 30. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Replaces Fender ™ part numbers 0028055000, 028055, 025269, 020550. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2C1C. Lower cost short tank with 2 springs, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall, long axis horizontal, connectors up. Used in the Burriss Royal Bluesman amp. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2C1D. Lower cost short tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts vertical wall, long axis horizontal, connectors down. Used in Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Head, Tech 21™ Trademark 30. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Replaces original Fender™ part number 0031669000. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 2 spring, 2EB2C1E. Lower cost short tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall with long axis vertical, input jack up. Used in Crate™ Tube Driver series of amps, such as the TD-70. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #2EB2C1E "Bringing back the sound of vintage USA-built Accutronics tanks"	$32.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. Found in some Mesa Boogie™ and Fender™ Models. Also used in the PRS SE-20, Reverend Goblin, Kingsnake and early Hellhound models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2A1B tank in this section View the 2-year warranty details here. Part #8AB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1C. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts on vertical wall, long axis horizontal, connectors up. Used as an upgrade external tank in the Mesa Boogie™ Caliber 50+. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2A1C tank in this section View the 2-year warranty details here. Part #8AB2A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side up. Replacement for tanks in early Yamaha solid-state amps from the 1970s and early 80s. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2C1A tank in this section View the 2-year warranty details here. Part #8AB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Found in Orange™ Rockerverb (HEAD ONLY), Orange™ Rockerverb MKII (HEAD ONLY), and Orange™ Rockerverb MKIII (HEAD ONLY). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2C1B tank in this section View the 2-year warranty details here. Part #8AB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2D1A. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side up. Found in some Roland™ JC120 (very early versions and also the JC120UT). Found in the Roland™ JC60. The 8DB2C1B is used in some other versions of the Jazz Chorus 120. Unsure? Measure input resistance on old tank - if it is less than 5 ohms, the 8AB2D1A is the replacement) Also used in the Roland™ Space Echo RE-501, RE-301, and RE-201. as well as the Roland™ Bolt 60, and the Roland Jazz Chorus JC77. Used in the Gibson G60T tube amp. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2D1A tank in this section View the 2-year warranty details here. Part #8AB2D1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2D1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts horizontal, open side down. Found in some versions of the Roland™ Space Echo RE-501 and RE-201 with the tank mounted on the bottom. Also used in the Acoustic™ G60T (Model 162 or Model 163). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2AB2D1B tank in this section View the 2-year warranty details here. Part #8AB2D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3A1B. Short Tank, Long Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8AB3A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3C1B. Short Tank, Long Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Found in Fender™ Super Champ, Fender™ Princeton Reverb II, and Orange Rockerverb, and Kitty Hawk Supreme Series I. Also found in later versions of the Reverend Hellhound amps. Fender™ part number 0018454000 (018454). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8AB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2A1B. Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. Primarily used by Musicman™, Crate™ and Ampeg™. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1A. Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side up. Primarily used by Gibson™, Epiphone™, Crate™. Used in the Crate™ Blue-Voodoo BV120H and Stealth GT-50. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B. Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Primarily used by Fender™ Sidekick 15R, 25R, 35R, and 65R, Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb, Vox™ AC30, with solid state reverb as used in the Seventies, Ampeg™ Jet II J12R, Crate™ G212, Crate™ GT212, Crate™ Palomino V32 & V16, Crate™ Vintage Club VC3112 & VC5212, Music Man™ RD50, Kitty Hawk Supreme, Marshall™ G80RCD, Marshall™ G100RCD. Upgrade for Laney™ VC15 (part nr. 10006), Brunetti Singleman, Mesa Boogie™ Rectoverb. Replaces Ampeg™ / Crate™ part number 79-201-02. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2D1B. Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and output. Mounts horizontal, open side down. Fits the SWR California Blonde and Strawberry Blonde amplifiers. Upgrade for the 1BB1D1B reverb tanks used in Acoustic™ amplifiers from the 1970s, such as the models 230 and 330. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB2D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3C1B. Short Tank, Long Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output. Used in the Fender™ Yale Reverb and Harvard Reverb II amps which use the "short" tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3D1B. Short Tank, Long Decay, input impedance 190 ohms, output 2575 ohms, insulated input and output. Mounts horizontal, open side down. Primarily used in Rivera™ amplifiers See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8BB3D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D. Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Designed for horizontal mounting, open side up. Primarily found in the Marshall™ 4100, 4101, 4102, 4500, 4501, 4502 in situations where the tank is mounted "upside down". See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1B. Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Primarily used by Marshall™ VS100, Marshall™ VS265, a few versions of the Marshall JCM900 series, Polytone™ Minibrute I through Minibrute IV, Polytone™ Megabrute, Fender™ FM212R, FM210R, FM65R, Frontman 212R, Frontman 210R, Frontman 65R. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1C. Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall, long axis horizontal, connectors up. Primarily used by Polytone™ Mini-Brute, Mini-Brute II and Baby Brute. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D. Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall, long axis horizontal, connectors down. Primarily found in the Marshall™ 4100, 4101, 4102, 4500, 4501, 4502, 5150, 5205, 8080, 8100, 8240, AS50, AS50R, AS80R, AVT50, AVT50H, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, MA50C, MA100C, MA100H, G25R, G50RCD, VS100R, VS100RH, VS102R, VS230, VS232, VS265, and VS65R. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1E. Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall with long axis vertical, input side up. Primarily used BY Roland™ GC-408, Roland™ Jazz Chorus JC90, Roland™ Jazz Chorus JC120B as well as some other versions (the 8AB2D1A is also used in certain JC120 models ... Unsure? Measure resistance of the input side of the old tank. If it is around 35 ohms or so, the 8DB2C1E is correct). Also the Roland™ Cube 40 and Cube 60 models from the 1980s, and the Roland Blues Cube BC60 from the 1990s. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB2C1E "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB3C1B. Short Tank, Long Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Primarily used by Marshall™ JCM900. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8DB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2B1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, grounded input and insulated output. Mounts horizontal, open side down. Used in Jet City™ amps. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2B1B tank in this section View the 2-year warranty details here. Part #8EB2B1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1A. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side up. Used in Peavey™ 6505+ and Yamaha™ JX30. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2C1A tank in this section View the 2-year warranty details here. Part #8EB2C1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Used in Fender™ Blues Junior, Fender™ Transistor Amps such as: Fender™ Deluxe 85, Fender™ Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™ Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™ Ultimate Chorus, Fender™ Princeton Chorus, Fender™ H.O.T., Fender™ Vaporizer, Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Combo, Fender Performer 650 & 1000, Fender™ Pro 185, Fender™ Stage 185, Fender™ London 185. Peavey Envoy 110, Peavey™ Ultra 60/120, Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior Hot Rod, Tech 21™ Trademark 30. This is the most popular short tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Replaces Fender ™ part numbers 0028055000, 028055, 025269, 020550. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2C1B tank elsewhere on this page. View the 2-year warranty details here. Part #8EB2C1B "Bringing back the sound of vintage Accutronics tanks"	$43.95
Click on photo for larger view	Korean-made Accutronics Reverb Tank, 9" long, 3 spring, 8EB2C1B. Korean-made Accutronics Reverb Tanks are a copy of the Belton tank, and are now made by Accu-Bel in South Korea. They are of lower quality than the original Accutronics reverb tanks made in Cary, Illinois until 2009. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Used in Fender™ Blues Junior, Fender™ Deluxe 85, Fender™ Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™ Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™ Ultimate Chorus, Fender™ Princeton Chorus, Fender™ H.O.T., Fender™ Vaporizer, Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Combo, Fender Performer 650 & 1000. Peavey Envoy 110, Peavey™ Ultra 60/120, Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior Hot Rod, Tech 21™ Trademark 30, Crate V-18, Supro BluesKing 12, Yamaha G5. This is the most popular short tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Replaces Fender ™ part numbers 0028055000, 028055, 025269, 020550. Soft mounting grommets are not included with this tank. If needed, order the RRG-4 grommet set found in this section. Korean-made Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA. Part #ACC-8EB2C1B	$35.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1C. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall, long axis horizontal, connectors up. Used in the Burriss Royal Bluesman amp. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2C1C tank in this section View the 2-year warranty details here. Part #8EB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1D. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts vertical wall, long axis horizontal, connectors down. Used in Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Head, Tech 21™ Trademark 30. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Replaces original Fender™ part number 0031669000. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2C1D tank in this section View the 2-year warranty details here. Part #8EB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1E. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall with long axis vertical, input jack up. Used in Crate™ Tube Driver series of amps, such as the TD-70. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. For an equivalent tank in a 2-spring version for 25% less, see the 2EB2C1E tank in this section View the 2-year warranty details here. Part #8EB2C1E "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. Used as an upgrade in Fender™ Blues Junior, Fender™ Transistor Amps such as: Fender™ Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super 60, Super 112), Peavey™ Ultra 60/120 etc, Tech 21™ Trademark 30. VOX™ Upgrade for Vox™ AC15CC and Vox™ AC15C. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. View the 2-year warranty details here. Part #8EB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side up. Replacement for multiple Valco amplifier models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB2A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3A1A. Short Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side up. Replacement for multiple Valco amplifier models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB3A1A "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2A1B. Short Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. Primarily used in Crate™ and Music Man™ Amps. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1B. Short Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and insulated output. Mounts on horizontal wall with open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB2B1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1F. Short Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and insulated output. Mounts on vertical wall with long axis vertical, output jack up. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB2B1F "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2C1C. Short Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, input insulated, output grounded. Found in several Polytone models. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1B. Short Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #8FB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$43.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1A1B. Input impedance 10 ohms, output impedance 2575 ohms, short decay (1.2 - 2.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down. Common replacement for Mesa Boogie^™ Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB1A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95 Special Order Ready to ship 4 business days after we receive your order.
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1C1B. Input impedance 10 ohms, output impedance 2575 ohms, short decay (1.2 - 2.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Diezel^™. Also a great upgrade for the Epiphone™ So-Cal from the original two-spring tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB1C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95 Special Order Ready to ship 4 business days after we receive your order.
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2A1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input and output grounded, designed for horizontal mounting, open side down. Exact replacement for Mesa Boogie™ MK V, MK VII, Lonestar, Lonestar Special, Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick. Also used in some Fender™, Vox™ AC30 (1960s+70s), and Engl™ Screamer (E330, E335) See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB2A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3A1B. Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input and output grounded, designed for horizontal mounting, open side down. A longer decay replacement for Mesa Boogie™ MK I, MK II, MK III, MK IV, MK V, MK VII, Lonestar, Lonestar Special, Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick. Also may be used in some Fender™, Vox™ AC30 (1960s+70s), and Engl™ Screamer (E330, E335) See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB3A1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2C1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Fender^™, including the Fender 75 and Fender 140. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Fender^™. Upgrade for the 4AB3C1B 2-spring tank. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1C. Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input insulated/output grounded, designed for vertical mounting. A longer decay replacement for the Fender 6G15 Reverb Unit (1960s). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9AB3C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Accutronics Reverb Tank, 17" long, 3 spring, 9BB2C1B current production. Korean-made Accutronics Reverb Tanks are a copy of the Belton tank, and are now made by Accu-Bel in South Korea. They are of lower quality than the original Accutronics reverb tanks made in Cary, Illinois until 2009. Input impedance 190 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. This tank fits the Mesa Boogie^™ Nomad 45, Nomad 55, Nomad 100. Also fits the Vox^™ AC50CPH, AC100CPH. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Soft mounting grommets are not included with this tank. If needed, order the RRG-4 grommet set found in this section. Korean-made Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA. Part #ACC-9BB2C1B	$42.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B. Input impedance 190 ohms, output impedance 12,000 ohms, medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Gibson^™ GA-30RV (2004), Gibson^™GA-60RV (2004), Vox^™AC30TBR Top Boost Reverb model (1991-1993), and Orange AD30R. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9BC2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B. Input impedance 800 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ Nashville 112, Peavey™ Nashville 400, Vox™ AC50CPH, AC100CPH. Upgrades Vox™ AC30CC, deeper reverb for the Fender™ Hot Rod Deluxe/DeVille! See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9EB2C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, replacement for Accutronics 9EB3C1B and Belton BL3EB3C1B. Input impedance 800 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Tech 21™ Trademark 60 and Trademark 120, Vox™ AC30C2X, AC50CPH, AC100CPH. Upgrades Vox™ AC30CC. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9EB3C1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2A1C. Input impedance 1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up. Common replacement for Fender, Peavey, Music Man™, Gemini, Portaflex. Upgrade for several vintage Ampeg™ models, including Reverberocket, Jet, Gemini, B12XT, AC12, V4, VT22, V2, VT40, GV15/22. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9FB2A1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1C. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for vertical mounting, long axis horizontal, connectors up. Upgrade replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9FB2C1C "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1D. Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for vertical mounting, long axis horizontal, connectors down. Upgrade replacement for Genz Benz™ El Diablo 100. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9FB2C1D "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2D1B. Input impedance 1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output insulated, designed for horizontal mounting, open side down. Replacement for the DIY project Tellun 156 Neural Agonizer. Upgrade for the Tapco™ 4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of reverb tank numbering system here. See a chart which lists AC impedance and DC resistance measurements for reverb tanks here. Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet. View the 2-year warranty details here. Part #9FB2D1B "Bringing back the sound of vintage USA-built Accutronics tanks"	$49.95
Click on photo for larger view	Rubber mounting grommets for reverb tanks, package of four. Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet, preventing hum, roar, shock sensitivity and feedback. Mounting Hole Diameter = 3/8" Outer Diameter = 1/2" Part #RRG-4	$1.99 (For a pack of 4 grommets)
Click on photo for larger view	Reverb Tank Bag for 17" tanks. Used in a variety of amps, including Fender™ amps. Works with any long (17") reverb tank. Mounting screws not included. Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback. Part #RB-017	$18.90
Click on photo for larger view (Reverb tank not included)	Handmade Reverb Tank Bag for 9" tanks. Works with any short (9") reverb tank. Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback. Handmade of single-ply black Tolex. Replacement for Fender and many other amps. Bag dimensions: 4.5"W x 1.5"H x 9.5"L. Includes loops at each end for screw attachment to the amp cabinet, and a tuck-in flap to close up the end. Mounting screws not included. Part #RB-009	$13.95
Click on photo for larger view	Fender™ style reverb or AC cable clamp. Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet. Clamp is 3/8" diameter, comes with 3/4" screw for mounting. Also used in some amplifiers to hold the AC cord to the cabinet wall. Fender part number 022941. Works on many other brands of amplifiers as well. Part #RCC-381	$0.99

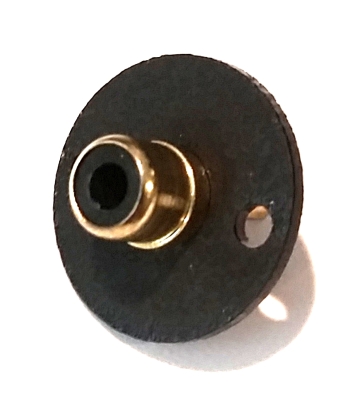

Click on photo for larger view	Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK. RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round. Chrome RCA jack. Used in vintage USA-Made Accutronic Reverb Tanks made before 2010. Black phenolic base. Part #J-351	$3.50

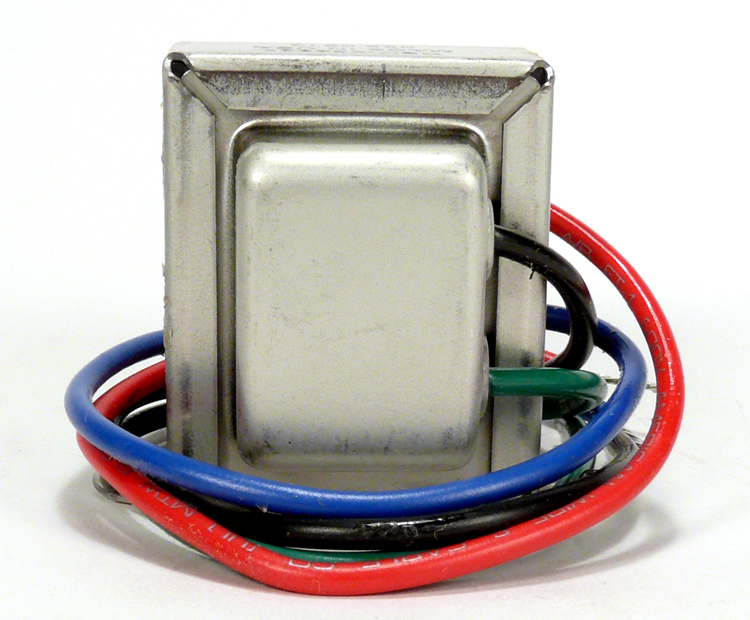

Click on photo for larger view	TRANSFORMER, Fender™ REVERB DRIVER. Reverb transformer as found in the Fender™ 65 Twin Reverb Reissue, 65 Super Reverb Reissue, 65 Princeton Reverb Reissue, and 65 Deluxe Reverb Reissue. Fender™ part number 0037099049. 10" leads with .187 faston connectors, X-Mount with 1 3/4" mounting centers. Part #037099	$43.95
Click on photo for larger view	TRANSFORMER, Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™ #125A20B & #022921. For vintage Mesa-Boogie™ models, including vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber, Maverick, Lonestar Special, and many others . Mesa Boogie™ part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting centers. Input impedance 14.5K ohms, output impedance 4 ohms. Part #TGR-001	$20.95

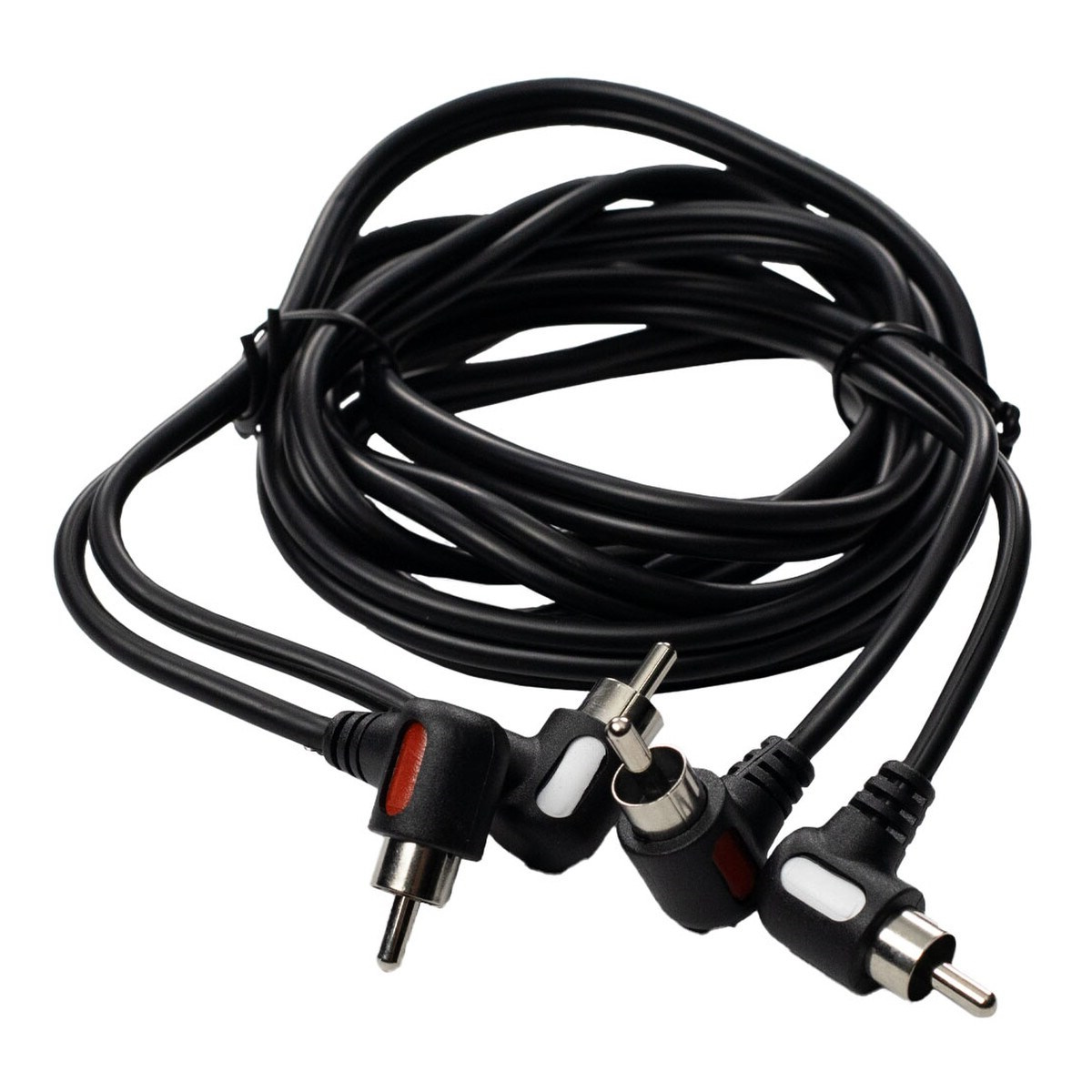

Click on photo for larger view	3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices. Dual cable, excellent shielding properties, 3 feet long. Part #RC-173	$6.95
Click on photo for larger view	4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices. Dual cable, excellent shielding properties, 4 feet long. Part #RC-174	$7.95
Click on photo for larger view	5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices. Dual cable, excellent shielding properties, 5 feet long. Part #RC-175	$8.95
Click on photo for larger view	6 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices. Dual cable, excellent shielding properties, 6 feet long. Great replacement for the long reverb cable in the tall cabinet Fender combo amps, such as the Super Reverb and Quad Reverb. Part #RC-176	$8.95

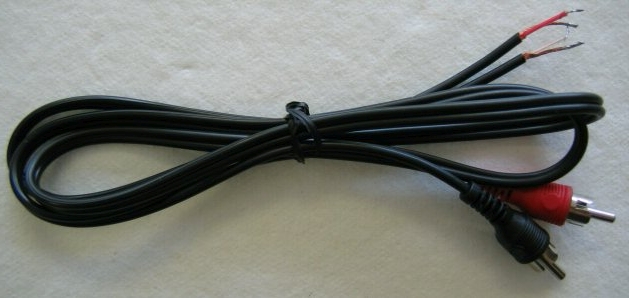

Click on photo for larger view	Fender™ Reverb Cable. Molded plastic straight dual RCA on both ends. This cable is used on the 65 Twin Reverb Reissue, 65 Princeton Reverb Reissue, 65 Deluxe Reverb Reissue and probably some others. 36" long Fender™ part number 0025722000. Part #RC-300	$5.95
Click on photo for larger view	Fender™ Reverb Cable. Molded plastic right-angle dual RCA on both ends. This cable is used on the 65 Super Reverb Reissue, 64 Vibroverb Custom and probably some others. 48" long Fender™ part number 0056931000. Part #RC-310	$7.95

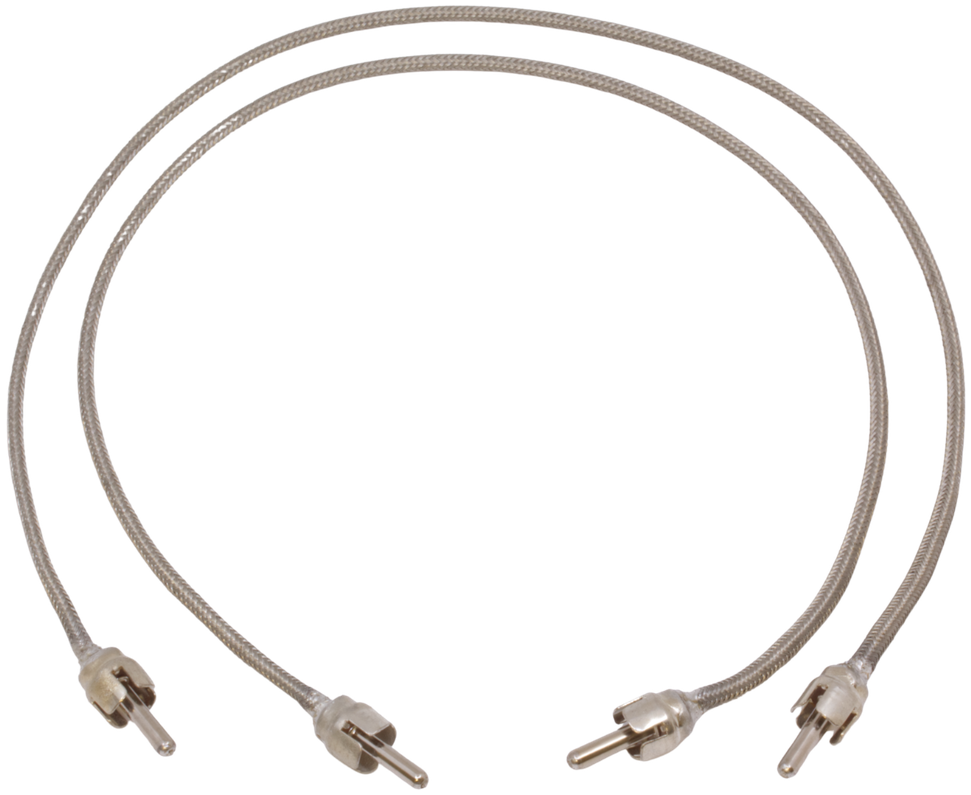

Click on photo for larger view	Revisit™ vintage Fender™ style reverb cable - universal. Made with the same style shielded wire and RCA connectors as the originals. Warning: Not designed for use in amps other than Fender, due to the bare shields. These reverb cables perfectly replicate the original cables found in vintage Fender™ vintage blackface and some silverface amplifiers. One cable is 3 ft long, and the other is 5 ft long. By coiling up any excess cable into the reverb isolation bag, these cable lengths are suitable for most vintage Fender™ combo amps, with these exceptions: Super Reverb, Quad Reverb, Super Six Reverb. Part #RC-200	$32.95
Click on photo for larger view	Revisit™ vintage Fender™ style reverb cable KIT for Super Reverb, Quad Reverb, and Super Six Reverb (blackface and early silverface). Long length for larger amplifiers. Set of parts for you to make two cables (reverb input and reverb output) Short one is 43 inches (110 cm), long one is 55 inches (140 cm). Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s. Compare with similar cable sets costing up to $45. Warning: Not designed for use in amps other than Fender, due to the bare shields. Soldering skills and tools required. See instructions for assembly here. Part #RK-279L	$16.95 Assembly required (with soldering skills needed)
Click on photo for larger view	Revisit™ vintage Fender™ style reverb cable KIT for Twin Reverb, Pro Reverb and Vibrosonic Reverb (blackface and early silverface). Medium length for medium-sized amplifiers. Set of parts for you to make two cables (reverb input and reverb output) Short one is 39 inches (99 cm), long one is 51 inches (130 cm). Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s. Compare with similar cable sets costing up to $45. Warning: Not designed for use in amps other than Fender, due to the bare shields. Soldering skills and tools required. See instructions for assembly here. Part #RK-279M	$15.95 Assembly required (with soldering skills needed)
Click on photo for larger view	Revisit™ vintage Fender™ style reverb cable KIT for Deluxe Reverb, Vibrolux Reverb and Princeton Reverb (blackface and early silverface). Short length for smaller amps. Set of parts for you to make two cables (reverb input and reverb output) Short one is 36 inches, long one is 47 inches. Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s. Compare with similar cable sets costing up to $45. Instructions not included - assumes you are familiar with building this type of cable. Warning: Not designed for use in amps other than Fender, due to the bare shields. Soldering skills and tools required. See instructions for assembly here. Part #RK-279S	$14.95 Assembly required (with soldering skills needed)
Click on photo for larger view	Revisit™ vintage Fender™ style reverb cable KIT for the original Fender™ 6G15 and the '63 Reverb Unit Reissue. Set of parts for you to make two cables (reverb input and reverb output) Both cables are 15 inches long, and they work great in the Fender stand-alone reverb units. Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s. Warning: Not designed for use in amps other than Fender, due to the bare shields. Soldering skills and tools required. See instructions for assembly here. Part #RK-279R	$11.95 Assembly required (with soldering skills needed)

	Cross Reference Guide for some makes and models
Acoustic	G60T (Model 162 or Model 163)	8AB2D1B or 2AB2D1B (budget priced)
	Used in some Acoustic amplifiers from the 1970s, such as the models 230 and 330.	8BB2D1B
	Used in some Acoustic amplifiers from the 1970s, such as some of the 134, 135, 136, 140, 150 and 150B models	4FB2A1B
Ampeg	Echo Jet, Echo Twin, B12X, B12XY	4AB3A1B
	VT-40, Super Rocket SR212	4AB3C1B
	Reverberocket, Jet, Gemini (some versions), B12XT, AC12, V4, VT22 (some versions), V2, VT40, GV15/22	4FB2A1C
	Some versions of the V4	4FB2D1A
	Other versions of the V4	4FB2D1B
	Some versions of the VT22	4FB2D1C
	Some versions of the Gemini	4FB3A1A
	Jet II, J12R. Replaces Ampeg part number 79-201-02	8BB2C1B
B-52	AT-100	4AB3C1B
Brunetti	Singleman	8BB2C1B
Burris	Royal Bluesman	8EB2C1C
Crate	Tube Driver series of amps, such as the TD-70.	8EB2C1E or 2EB2C1E (budget priced)
	Blue-Voodoo BV120H and Stealth GT-50	8BB2C1A
	G212, GT212, Palomino V32 & V16, Vintage Club VC3112 & VC5212	8BB2C1B
Diezel	Found in several models	9AB1A1B
Engl	Screamer (E330, E335)	9AB2A1B
Epiphone	EA-5RVT (Emperor), EA-12RVT (Futura), EA15RVT (Zephyr), EA-16RVT (Regent), EA26RVT (Electra), EA-28RVT (Pathfinder), EA300RVT (Embassy)	4FB2A1B
	EA-7P, EA-8P, EA33RVT (Galaxy)	4BB2A1C
	Valve Junior Hot Rod	8EB2C1B or 2EB2C1B (budget priced)
	Upgrade for So-Cal from original 2-spring tank	9AB1C1B
	Blues Custom 30 Amp	4AB3C1B
Fender	Many tube models from the 1960s until present. If the reverb is transformer driven, the tank is almost always the 4AB3C1B.	4AB3C1B
	Princeton Reverb, Deluxe Reverb, Vibrolux Reverb, Pro Reverb, PA100, PA135, Super Reverb, Twin Reverb, Quad Reverb, Super Six Reverb, Pro Reverb, Bandmaster Reverb, Dual Showman Reverb, Vibrosonic, Prosonic, Vibroking, `63 Reverb Unit, `65 Princeton Reverb Reissue, `65 Deluxe Reverb Reissue, `65 Super Reverb Reissue, `65 Twin Reverb Reissue, `68 Custom Deluxe Reverb Reissue, `68 Custom Vibrolux Reverb Reissue, `68 Custom Princeton Reverb Reissue, `68 Custom Twin Reverb Reissue, `65 Twin Custom 15, Concert II, Dual Professional, Fender stand-alone reverb unit.	4AB3C1B
	Blues Deluxe (original 90s version), Blues Deville (original 90s version), Yale Reverb, London Reverb, Harvard Reverb II, Montreaux, Studio Lead, Showman 115 (1980s).	4BB3C1B
	Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe Reissue and Blues Deville Reissue.	4EB3C1B
	Blues Junior, Fender Solid State Amps such as: Deluxe 85, Deluxe 90, Princeton 65, Stage Series, Tube 60 Series (Super 60, Super 112), Frontman 65R, Eighty-Five, Sidekick Reverb 35, Sidekick Keyboard 60, Ultra Chorus, Ultimate Chorus, Princeton Chorus, H.O.T., Vaporizer, Acoustasonic Junior, M-80 HM Series Combo, Performer 650 & 1000, Pro 185, Stage 185, London 185.	8EB2C1B or 2EB2C1B (budget priced)
	Acoustasonic Junior, M-80 HM Series Head	8EB2C1D or 2EB2C1D (budget priced)
	Super Champ, Princeton Reverb II	8AB3C1B
	Sidekick 15R, 25R, 35R, and 65R	8BB2C1B
	Yale Reverb and Harvard Reverb II amps which use the "short" tank.	8BB3C1B
	FM212R, FM210R, FM65R, Frontman 212R, Frontman 210R, Frontman 65R	8DB2C1B
	6G15 Reverb Unit (1960s)	9AB3C1C
	Fender 75 & Fender 140 (1981)	9AB2C1B
Fisher	Spacexpander from the 1960s	4FB3B1B
Genz Benz	El Diablo 100	4FB2C1D
Gibson	GA-3RV, GA-17RVT (Scout, 1964)	4BB2A1C
	GSS-100 Solid State Amp	4AB3A1B
	Dual Medalist, Gibson Reverb III external reverb unit.	4FB2A1A
	GA-2RVT (Maestro), GA3-RV, GA19RVT (Falcon), GA-20RVT (Minuteman), G40 solid state and Medalist 410.	4FB2A1B
	GA-15RVT (Explorer, 1964), GA-30RV (Invader, 1961), GA-35RVT (Lancer, 1965), GA-45RVT (Saturn), GA-55RVT (1965), GA-77RVT (1963), Medalist -410 (1968)	4FB2A1C
	GA-30RVH	8BB2C1A
	G60T (tube version)	8AB2D1B
	Super Gold Tone, GA-30RV (2004), GA-60RV (2004) (All made by Trace Elliot)	9BC2C1B
Jet City	Used in most Jet City models	8EB2B1B or 2EB2B1B (budget priced)
Kitty Hawk	Supreme Series I	8AB3C1B
Koch	Powertone I	4AB3C1B
Kustom	K100-2	4AB3A1A
	K-200-A	4FB2A1A
	K100-2 (1968), K100-5, K150-2, K200-B5, K250-2, K250-4, and K400-B5	4FB2C1A
	Common replacement for most vintage Kustom amps from the 1960s and early 70s	4FB3D1A
Lab Series	L5, L7, L9 and L11	4AB3A1B
Laney	VC15	8BB2C1B
	VC30 and Lionheart series	4BB3C1D
Laub	Unique 26R	4FB2A1B
Marshall	DSL100, TSL100, DSL60, TSL60, TSL122, DSL201, DSL401 (JCM2000 series)	4BB3C1D
	Long tank for: 2205, 2210, 2550, 4212 (JCM800 series). 2558, 2558V (Silver Jubilee series). 3005, 5005 (Lead 12), 3210 (Lead 100), 5213 (Mosfet 100), 5275 (Reverb 75). 8200, 8280 (Valvestate Bi-Chorus Series). JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622 and some ValveState models	4DB2C1D
	3203, 4203 (Artist Series), and some ValveState models	4DB3C1D
	2040, 4140, 4145, 4210, 4211, and 4212 (JCM800 series).	4FB2A1C
	5210, 5212 (JCM800 series)	4FB2C1C
	G80RCD, G100RCD	8BB2C1B
	Short tank for: 4100, 4101, 4102, 4500, 4501, 4502, 5150, 5205, 8080, 8100, 8240, AS50, AS50R AS80R, AVT50, AVT50H, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, MG25R, MG50RCD, VS100R, VS100RH, VS102R, VS230, VS232, VS265, VS65R	8DB2C1D
	Several JCM900 models where the tank is mounted "right side up"	8DB3C1B
Matchless	Chieftan	4AB3C1B
Mesa Boogie	MK2C	4AB3C1B
	F-30 and F-50	4BB2A1B
	Rectoverb	8BB2C1B
	Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B	9AB1A1B
	MK V, MK VII, Lonestar, Lonestar Special, Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.	9AB2A1B
	Nomad 45, Nomad 55, Nomad 100	ACC-9BB2C1B
Music Man	Used in several vintage Music Man models	4BB2A1B
	RD and RP series	4FB3A1B
Orange	Rockerverb (head only), Rockerverb MKII (head only), and Rockerverb MKIII (head only)	8AB2C1B or 2AB2C1B (budget priced)
	AD30R	9BC2C1B
Peavey	Musician, Peavey part number 71011113	4EB2C1A
	Bravo 112, Bandit (65, 75, 112, Transtube, Transtube II, Supreme Transtube) Encore 65, Valveking 100 (VK100), Classic 30, Classic 50, Backstage 30, Windsor Studio, Ultra Plus 120, Special 112, Special 212 [version 1], Studio Chorus 210. Peavey™ part number 71011114	4EB2C1B
	Peavey Classic 4x10 combo	4FB2B1A
	6505+	8EB2C1A or 2EB2C1A (budget priced)
	Envoy 110, Ultra 60/120, Backstage, Backstage Plus, Valveking series, XM4,	8EB2C1B or 2EB2C1B (budget priced)
	Nashville 112, Nashville 400	9EB2C1B
Polytone	Common long 17" replacement tank in Polytone, including the Polytone 103, Studio 212, and some other models	4DB2C1C
	Minibrute I through Minibrute IV, Megabrute, Baby Brute	8DB2C1B
	Found in a small number of Polytone models	8FB2C1C
PRS	SE-20	8AB2A1B or 2AB2A1B (budget priced)
Randall	RG-80 Combo	4FB2A1B
	RG-120-410	4FB2A1A
	RD50	8BB2C1B
Reverend	Goblin, Kingsnake and early Hellhound models	8AB2A1B or 2AB2A1B (budget priced)
Rivera	Rake, Fandango, Jake Studio Combo. R55 models with long tanks	4BB3C1B
	Pubster 25, Chubster 40, Knucklehead Reverb. R55 models with short tanks	8BB2C1B
Roland	Some Jazz Chorus 120 (early versions), JC120UT, JC60. Some versions of the Space Echo RE-501, RE-301, and RE-201 (tank mounted on top). Bolt 60, Jazz Chorus JC77	8AB2D1A or 2AB2D1A (budget priced)
	Some Jazz Chorus 120 models (later versions)	8DB2C1B
	Some versions of the Roland™ Space Echo RE-501 and RE-201 with the tank mounted on the bottom.	8DB2C1D
	GC-408, Jazz Chorus JC90, Jazz Chorus JC120B. Cube 40 and Cube 60 models from the 1980s, Blues Cube BC60 from the 1990s.	8DB2C1E
SWR	California Blonde and Strawberry Blonde	8BB2D1B
Sunn	Model A	8FB3A1B
	Model 1200, Sentura I & II, Solarus	4AB3A1B
Tapco	4400 and 4400A Reverb Unit	4FB2D1B
Tech 21	Trademark 30	8EB2C1B or 2EB2C1B (budget priced)
	Trademark 60 and Trademark 120	9EB3C1B
Traynor	Custom Valve 50 (Model YCV50)	4EB3C1B
	YGM-3, YGM-4, YRM-1	4FB2B1B
Vox	V1133 Royal Guardsman, V1123 Buckingham, V1154 Viscount Combo	4BB2A1B
	AC15TB and AC15TBX	4DB2C1D
	Replaces Vox reverb tank 23-5002-2 in the solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142)	4FB2A1C
	AC30 (later versions)	8BB2C1B
	AC15CC, AC15C	8EB2C1B or 2EB2C1B (budget priced)
	AC30 (1960s+70s)	9AB2A1B
	AC30TBR Top Boost Reverb model (1991-1993)	9BC2C1B
	AC30C2X, AC50CPH, AC100CPH, AC30CC2, Upgrade for AC30CC.	9EB3C1B
Yamaha	G100 Series I and Series II	4AB2C1A
	Early Yamaha solid-state amps from the 1970s and early 80s	8AB2C1A or 2AB2C1A (budget priced)
	JX30	8EB2C1A or 2EB2C1A (budget priced)
	G5	8EB2C1B or 2EB2C1B (budget priced)

Copyright ©2025 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.

All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
