Jewels




Jewels



RED

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.   RED - the standard on Fenders since the 1940's.  Replaces Fender® part number 0990952000.

Part #JL-115R
$2.99


AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender® part number 0990949000.

Part #JL-115Q
$2.99


VIOLET

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  Violet - just plain cool!

NOTE:  When illuminated by the bulb, this violet jewel tends to have a hue slanted toward the red spectrum, so some call the look a reddish-pinkish-violet color.   If you like violet/purple and want it toward the warmer end of the color spectrum, this is the jewel for you.   If you like it more bluish - toward the cooler end of the violet color zone, choose the purple jewel JL-115P below instead.

Part #JL-115V

$2.99


PURPLE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  Purple - just plain cool!   Replaces Fender® part number 0990953000.

NOTE:  To the naked eye, this jewel looks blue until you put it in front of the P-47 bulb.   The bulb has an amber tint to it, so the combo makes the jewel glow purple.  When illuminated by the bulb, this purple jewel tends to have a hue slanted toward the blue spectrum, so some call the look a bluish-purple color.   If you like violet/purple and want it toward the cooler end of the color spectrum, this is the jewel for you.   If you like it more reddish - toward the warmer end of the violet color zone, choose the violet jewel JL-115V above instead. IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE INSTEAD OF PURPLE.

Part #JL-115P

$2.99


BLUE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  Blue, for the California vibe.   Replaces Fender® part number 0990959000.

NOTE:  Due to the orange glow of the bulb normally used behind this jewel, the resulting color is not a pure brilliant blue ... head on, it looks like a somewhat washed-out blue, and from a side angle, it looks more like purple.   This is not the fault of the jewel, but rather the combination of the blue color of the jewel combined with the orange glow of the bulb.  If used with a pure white light (such as a white LED), the resulting look is a deep blue color.

Part #JL-115B

$2.99


AMBER

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®,, many others.  Amber - jazzy look!  Replaces Fender® part number 0990950000.
Part #JL-115A
$2.99


GREEN

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  Green - Texas style!  Replaces Fender® part number 0990951000.

Part #JL-115G
$2.99


CLEAR

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  Clear, for the brightest light output.

Part #JL-115C
$2.99


WHITE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.  WHITE.

Part #JL-115W
$2.99



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender®, Peavey®, Mesa Boogie®, many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115
$12.99


RED

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, red jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110R
$8.95


AMBER

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, amber jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110A
$8.95


BLUE

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, blue jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110B
$8.95


CLEAR

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, clear jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110C
$8.95


GREEN

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, green jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110G
$8.95


VIOLET

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR MESA BOOGIE, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, violet jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110V
$8.95


RED

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124R

Starting at
$6.95
Select Option:




BLUE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, blue jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124B

Starting at
$6.95
Select Option:




AMBER

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, amber jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124A

Starting at
$6.95
Select Option:




CLEAR

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, clear jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124C

Starting at
$6.95
Select Option:




GREEN

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, green jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124G

Starting at
$6.95
Select Option:




VIOLET

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, violet jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124V

Starting at
$6.95
Select Option:




WHITE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, WHITE, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, white jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124W

Starting at
$6.95
Select Option:




PURPLE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, PURPLE, REPLACEMENT FOR FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, purple jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring.

The purple color on this lamp jewel is toward the cool end of the purple/violet range - so it has more of a bluish tint to the purple color.  In fact, the lamp jewel cover looks blue if the light is not turned on.  If you prefer a warmer tone (toward the red/pink end of the scale), choose the FLA-124V violet lamp assembly.  Not available with the LED option, as the color when using an LED is a deep blue rather than purple.
Part #FLA-124P

$6.95



Click on photo for
 larger view

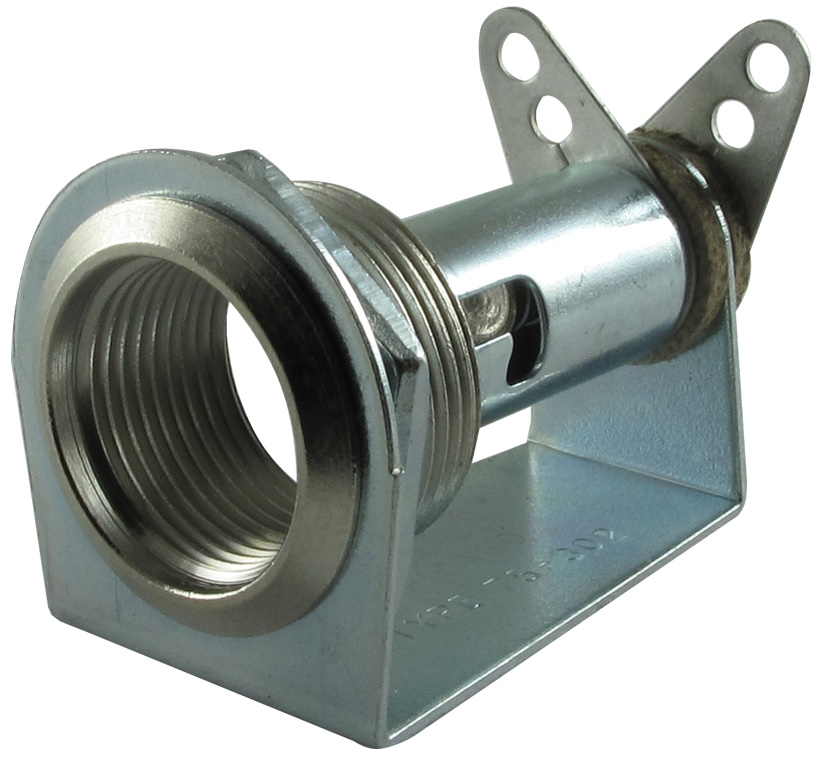

PILOT LAMP HOLDER, REPLACEMENT FOR FENDER®
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527"    Works with a standard bayonet lamp such as the 6.3V #47 lamp.   Accepts all of the colored jewels on this page.

Part #LH-124
$3.95



Click on photo for
 larger view

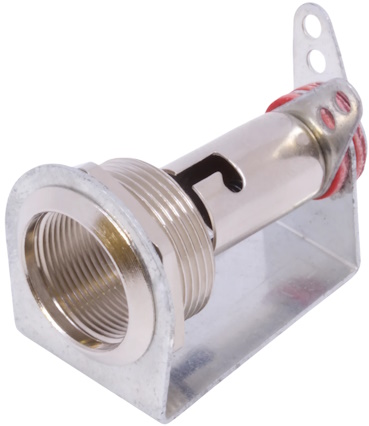

PILOT LAMP HOLDER, REPLACEMENT FOR MANY BRANDS.
Lamp holder. Relampable front panel indicator accepts a variety of T-2 and T-3 1/4 miniature bayonet lamps. 11/16" chassis hole.  Accepts all of the colored jewels on this page.     Total Length = 1.755" (solder lugs included in measurement) (extends about 1.68" from front of panel to end of solder lugs) Rating: 125V, 75W. Not recommended for use with the LED-47 or LED-47B, as the sleeve in the holder is not compatible with the LED.

Part #LH-110
$6.99
