Parts for
Mesa/Boogie

Hardware    Jacks    Electronics    Power Cords   Knobs   Fans

Pots     Reverb Tanks    Switches    Capacitors


>
  Mesa/Boogie® Potentiometers
POTENTIOMETER, Mesa/Boogie®, A25K, 20% Audio Taper.      1/4" plastic D-shaft.  A25K, 20% audio taper, Mesa/Boogie part number 592736 or 593736.  Used as the Middle Pot in the GREEN channel of the 3-Channel Dual & Triple Rec, the Middle Pot of the GREEN channel in the Nomad.   Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-20A25K

$3.95

POTENTIOMETER, Mesa/Boogie®, B25K, Linear Taper.      1/4" plastic D-shaft.  B25K, linear taper, Mesa/Boogie part number 592737 or 593737.
Used as "MIDDLE" control in Rectifiers, Road King,
Maverick, Nomad, F-Series, DC-5.  Presence Control of 3 Channel Triple/Dual Rectifiers. Used on both channels of the DC-5 as the presence controls, masters, and the mid controls.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B25K

$3.95

POTENTIOMETER, Mesa/Boogie®, A100K, Linear Taper.      1/4" plastic D-shaft.  A100K, audio taper, Mesa/Boogie part number 592150 or 593150.
Used as the MASTER control in the Mark IV.  PRESENCE control in the Nomad 45/55 ORANGE and RED channels. And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-A100K

$3.95

POTENTIOMETER, Mesa/Boogie®, B100K, Linear Taper.      1/4" plastic D-shaft.  B100K, linear taper, Mesa/Boogie part number 592151 or 593151.
Used as the PRESENCE control in the 2 channel Dual & Triple Rectifier (ORANGE Channel).  PRESENCE control in the 3 Channel Dual & Triple Rectifier (RED Channel).  Master in the Nomad Orange Channel.   And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B100K

$3.95

POTENTIOMETER, Mesa/Boogie®, A250K, 5%  Audio Taper.      1/4" plastic D-shaft.  A250K, 5% audio taper, Mesa/Boogie part number 592794 or 593794.   Used in Rectifiers (New and old), Roadkings, Tremoverbs as "GAIN", used as "Master" in F30, 50, 100  (# 592794) And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-5A250K

$3.95

POTENTIOMETER, Mesa/Boogie®, A250K,  Audio Taper.      1/4" plastic D-shaft.  A250K, audio taper, Mesa/Boogie part number 592148 or 593148.    Used in Dual and Triple Rectifiers (New and old) and Roadkings as the BASS pot in some channels.  Used as the SOLO control and the OUTPUT control in the 3-ch Dual Rectifier Solo Head.  Used as the TREBLE pot in some Nomads and Road Kings.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-A250K

$3.95

POTENTIOMETER, Mesa/Boogie®, B250K,  Linear Taper.      1/4" plastic D-shaft.  B250K, linear taper, Mesa/Boogie part number 592738 or 593738.  Used as the TREBLE pot on the ORANGE channel in the DC-5 and the Maverick, TREBLE pot on both channels in the Trem-O-Verb, the presence pot in CH 1 and CH 2 in the Road King, TREBLE pot in the ORANGE and RED channels in the Nomad, Dual Rec and Triple Rec Solo Heads.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-B250K

$3.95

POTENTIOMETER, Mesa/Boogie®, A1M, 10%  Audio Taper.      1/4" plastic D-shaft.  A1m, 10% audio taper, Mesa/Boogie part number 592739 or 593739.   Used in Rectifiers (New and old), BASS Pot in CH 3 and CH 4 in the Road King, BASS Pot in both channels in the Trem-O-Verb and Dual/Triple Rec, BASS Pot in the ORANGE channel in the DC-5 and the Dual/Triple Rec 3-Channel Solo Heads, GAIN control in all channels of the Nomad and also the Gain control in ORANGE and RED channels of the Nomad, and the Gain control of CH 1 of the Maverick.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-10A1M

$3.95

POTENTIOMETER, Mesa/Boogie®, A1M, 20%  Audio Taper.      1/4" plastic D-shaft.  A1m, 20% audio taper, Mesa/Boogie part number 592792 or 593792.   Used in Rectifiers (New and old), GAIN Pot in GREEN channel of the 3-Channel Dual/Triple Rec Solo head, RED Master Pot in the RED channel of the Dual/Triple Rec 2-Channel Solo Head, Master Pot in all 4 channels of the Road King, GAIN pot in CH 2 of the Maverick, Presence Pot in the GREEN channel of the Nomad, and Master Pot in the RED channel of the Trem-O-Verb.  And many other applications.  Unsure if this is the right part for your amp and the function in that amp?  Ask us!

Part #P-MB-20A1M

$3.95

  Mesa/Boogie® Knobs
(Also see our complete line of knobs)


Click on photo for
larger view
KNOB, Mesa/Boogie®, Vintage Brown
Amp knob, brown color with white pointer.   Knob is secured by set-screw, designed to fit a 1/4" shaft.   Replaces Mesa/Boogie® part number 408020.   Very similar to the original knob used on the Mesa/Boogie® Maverick Dual Rectifier model.
Part #MB-316
$2.95


Click on photo for
larger view
KNOB, Mesa/Boogie®, Vintage Brown, Set of 6
Amp knob, brown color with white pointer.   Knob is secured by set-screw, designed to fit a 1/4" shaft.   Replaces Mesa/Boogie® part number 408020.   Very similar to the original knob used on the Mesa/Boogie® Maverick Dual Rectifier model.  Set of 6 knobs.
Part #MB-316-6
$12.95
(for pack of 6 knobs)


Click on photo for
larger view
KNOB, Mesa/Boogie® , Vintage Black
Mesa/Boogie® amp knob, black color with white pointer.  Includes internal brass inset.   Knob is secured by set-screw, designed to fit a 1/4" shaft.   Used on F-Series Amps, Lonestar Series Amps, Express Series Amps.  Very similar to  Mesa/Boogie® part number 408015.
Part #MB-325
$2.95


Click on photo for
larger view
KNOB, Mesa/Boogie® Style Chicken Head, 1/4" Set Screw, Cream.   Used on the California Tweed Series Amps.    Fits 1/4" shaft, brass insert, with set screw.   Replaces Mesa/Boogie part number 408660.
Part #MB-640
$1.95



Mesa/Boogie® Hardware
(Also see our complete line of hardware)





Click on photo for
larger view

Choose from Black, Tan, or Havana Brown

Mesa/Boogie®  AMP HANDLE, HEAVY-DUTY STITCHED
Original Mesa/Boogie
®  replacement handle.   Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38").   Vintage Leather-look style.  Available colors:  Black with black stitching, tan with tan stitching, Havana Brown with white stitching.  Nickel mounts.   More details   Mounting screws not included - use SC-403 screw pack.   Choose handle color in 'Select Color' box.

Part # MBH-X
$14.95
Select Color:


Quantity:



Click on photo for
larger view

Choose from Black, Tan, or Havana Brown

Mesa/Boogie®  AMP HANDLE KIT WITH HARDWARE, HEAVY-DUTY STITCHED
Original Mesa/Boogie
®  replacement handle with hardware included.   Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38").   Vintage Leather-look style.  Available colors:  Black with black stitching, tan with tan stitching, Havana Brown with white stitching.  Nickel mounts.   More details   Includes heavy-duty stitched handle in your choice of colors, 4 nickel screws, 4 T-Nuts.   Choose handle color in 'Select Color' box.

Part # MBH-KIT-X
$16.95
Select Color:


Quantity:



Click on photo for
larger view

Choose from Black or Nickel End Caps & Screws

Mesa/Boogie®  AMP STRAP HANDLE KIT WITH HARDWARE, NICKEL OR BLACK END CAPS
Original Mesa/Boogie®  replacement handle with hardware included.   Rugged rubber black handle strap, steel reinforced.  Your choice of polished chrome or black oxide metal caps with matching screws.  Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 10 1/4".   Choose end cap and screw color in 'Select Color' box.

Part # MBH-271-X
$8.95
Select Color:


Quantity:


Click on photo for
larger view
Mesa/Boogie® Nickel Chassis Strap - Large (6"), bright nickel finish. Single chassis strap, no screws. Screw spacing is 5.31 inches center-to-center, strap length is 6 inches end-to-end.  Original Mesa/Boogie part number 407520.   Sold individually - ordering quantity of 1 delivers 1 strap.   Each amplifier uses 2 straps.
Part #MBCS-6
$7.50

(Sold individually - One chassis strap, screws NOT included.  Each amp uses 2 straps)




Click on photo for
larger view
Mesa/Boogie® Stainless Steel Screw - 4 inches long, 10-24 thread.   Used with the MBCS-6 chassis straps.   Original Mesa/Boogie part number 302190.  Sold individually - ordering quantity of 1 delivers 1 screw.    Each amplifier requires a total of 4 screws.
Part #MBCB
$1.39

(Sold individually - Each amp uses 4 screws)




Click on photo for larger view

Belton 8 pin socket, Micalex, for PC board mounting  Belton 8 Pin Octal Auto Wave Solder Micalex Socket. Very high quality. This is a specially designed socket that mounts under the PCB.  Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.  Click here for additional specs.
Part #TS-8-BEL

$3.99


Click on photo for larger view

CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET, crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting centers, 1" to 1 1/4" chassis hole.  Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.  Click here for additional specs.   Fender part number 0990724000.
Part #TS-8-807W

$3.50


Click on photo for
larger view
9 pin Belton Micalex socket for PC board mounting.   Mounts under the PC board.  Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   Used in Mesa/Boogie® , Peavey® and other brands.  Click here for additional specs.
Part #TS-9-BEL
$2.79


Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Original Mesa/Boogie part number 380008.  1 1/2" mounting centers.  For 6L6 or EL34 tubes.  Made by Belton.
Part #TC-142
$1.79


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE FOR MATING WITH PREFORMED CHASSIS HOLE, ALUMINUM, 2" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER the TUBE.   Fits 12AX7A and similarly sized preamp tubes.  For current Mesa/Boogie models Comes with rubber gasket for sealing and noise damping with chassis.  Mesa/Boogie part number 351500.
Part #TS-601
$2.79



Click on photo for
larger view
RADIAL ELECTROLYTIC CAPACITOR, 10,000uF @ 16V.   This size filter capacitor is commonly found in amplifiers which use DC voltage on the filaments of some of the preamp tubes.   Found in Marshall®, Mesa-Boogie® as well as other brands.  Working temperature range -40°C to +105°C.   18mm diameter, 35mm tall (approximately 11/16" diameter X 1 3/8" tall)
Part #
10000-16
$2.49


Click on photo for
larger view
CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 70 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
F&T
™ Capacitors are now part of Mersen™
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:


Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Mesa/Boogie® and many other amps.     1 1/2" mounting centers.  Made by Belton.   Mesa/Boogie® part number 351500
Part #TC-142
$1.79


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE FOR MATING WITH PREFORMED CHASSIS HOLE, ALUMINUM, 2" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER the TUBE.   Fits 12AX7A and similarly sized preamp tubes on current Mesa/Boogie®  models.  Comes with rubber gasket for sealing and noise damping with chassis.  Mesa/Boogie part number 380008.
Part #TS-601
$2.79


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender® and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket
Part #TS-370
$3.99


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield which fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender® and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S
$1.69


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender® and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S-6
$8.95


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Mesa/Boogie part number 700915, 6 ft cord for domestic bass amplifiers with detachable power cables. Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replaces Mesa/Boogie part number 700915, 10 ft cord for domestic amplifiers with detachable power cables. Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113
$1.39
(Pack of 5 terminals)





Click on photo for
larger view
TERMINAL STRIPS, 6 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   Center post for mounting to chassis.   All 6 terminals are isolated from ground.  Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
Part #TS-825
$2.89
(for a set of 2 terminal strips)



Click on photo for
larger view
TERMINAL STRIPS, 7 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   End terminals on each strip are the mounting lugs, so they become a ground lug if attached to a metal chassis.   Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
Part #TS-712
$3.29
(for a set of 2 terminal strips)


Click on photo for
larger view

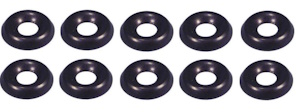

CUP WASHER, BLACK METAL, PACK OF 10.  USED WITH #8 BLACK SCREW ON AMP AND SPEAKER CABINETS.
Part #BCW-10
$1.29
(pack of 10)



Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #6 screw, 3/4 inch long, pack of 10.
Part #SCR-435
$0.79
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.
Part #BWS8-5
$0.89
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.
Part #BWS8-75
$0.95
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.
Part #BWS8-1
$1.05
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.
Part #BWS8-15
$1.19
(pack of 10)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. USED ON:  Dual Rectifier Heads, Roadster Head, Recto-Verb 25 Heads, Solo 50 Heads
Stiletto Deuce Heads, Stiletto Trident Heads, Triple Rectifier Heads.  1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
LARGE BLACK RUBBER FEET, SET OF 4.  Used on All Combo Guitar Amps, All Guitar Extension Cabs, Subway Bass Cabs, Traditional/Vintage Powerhouse Series - 1x12, 2x10, 2x12, 4x10, 1x15, 1x12, All Bass Heads,
DC Series Heads, Electra-Dyne Heads, Express & Express Plus Heads, F-Series Heads
Heartbreaker Heads, Lone Star & Lone Star Special Heads, Mark Series Heads, Maverick Heads, Mini Rectifier Heads, RA100 Head
Recto-Verb 50 Heads, Road King Heads, Stiletto Ace Heads, TA15 Heads, TA30 Heads, Triple Crown Heads, WalkAbout Combos.   Screws not included - use BWS8-1 as mounting screw on cabinets.   Mesa/Boogie part number 424539.

Part #MBF-9107
$7.95
(pack of 4)



Click on photo for
larger view

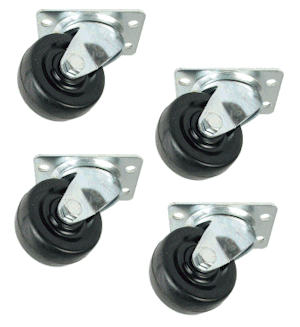

Flat Mount 2" Caster Wheels - Set of 4.    Great for Fender® and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.   Specifications found here.   Note:  Mounting screws NOT included.
Part #FCW-4F
$24.95
(Set of 4 casters)

NOT SOLD OUTSIDE the USA




RED

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.   Red - traditional color for pilot lamps.

Part #JL-115R
$2.99


AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa Boogie®, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender® part number 0990949000.

Part #JL-115Q
$2.99


VIOLET

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  Violet - just plain cool!

NOTE:  When illuminated by the bulb, this violet jewel tends to have a hue slanted toward the red spectrum, so some call the look a reddish-pinkish-violet color.   If you like violet/purple and want it toward the warmer end of the color spectrum, this is the jewel for you.   If you like it more bluish - toward the cooler end of the violet color zone, choose the purple jewel JL-115P below instead.

Part #JL-115V

$2.99


PURPLE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  Purple - just plain cool!   Replaces Fender® part number 0990953000.

NOTE:  To the naked eye, this jewel looks blue until you put it in front of the P-47 bulb.   The bulb has an amber tint to it, so the combo makes the jewel glow purple.  When illuminated by the bulb, this purple jewel tends to have a hue slanted toward the blue spectrum, so some call the look a bluish-purple color.   If you like violet/purple and want it toward the cooler end of the color spectrum, this is the jewel for you.   If you like it more reddish - toward the warmer end of the violet color zone, choose the violet jewel JL-115V above instead. IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE INSTEAD OF PURPLE.

Part #JL-115P

$2.99


AMBER

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  AMBER.
Part #JL-115A
$2.99


GREEN

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  GREEN.

Part #JL-115G
$2.99


BLUE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  BLUE.

NOTE:  Due to the orange glow of the bulb normally used behind this jewel, the resulting color is not a pure brilliant blue ... head on, it looks like a somewhat washed-out blue, and from a side angle, it looks more like purple.   This is not the fault of the jewel, but rather the combination of the blue color of the jewel combined with the orange glow of the bulb.  If used with a pure white light (such as a white LED), the resulting look is a deep blue color.

Part #JL-115B

$2.99


CLEAR

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  CLEAR.

Part #JL-115C
$2.99


WHITE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender®, Peavey®, Mesa/Boogie®, many others.  WHITE.

Part #JL-115W
$2.99



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender®, Peavey®, Mesa/Boogie® , many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115
$12.99



Click on photo for
 larger view
PILOT LAMP HOLDER, REPLACEMENT FOR MANY BRANDS.
Lamp holder. Relampable front panel indicator accepts a variety of T-2 and T-3 1/4 miniature bayonet lamps. 11/16" chassis hole.  Accepts all of the colored jewels on this page.     Total Length = 1.755" (solder lugs included in measurement) (extends about 1.68" from front of panel to end of solder lugs) Rating: 125V, 75W. Not recommended for use with the LED-47 or LED-47B, as the sleeve in the holder is not compatible with the LED.

Part #LH-110
$6.99


RED

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, red jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110R
$8.95


AMBER

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, amber jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110A
$8.95


BLUE

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, blue jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110B
$8.95


CLEAR

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, clear jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110C
$8.95


GREEN

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, green jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110G
$8.95


VIOLET

Click on photo for
 larger view
PREMIUM PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR Mesa/Boogie, FENDER® AND OTHER AMP BRANDS.  COMPLETE WITH #47 BULB.
Complete pilot lamp assembly:  Includes premium pilot lamp holder, violet jewel and a #47 bulb. Fits 11/16" chassis hole. Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring. Holder not designed for use with LED replacements, such as the LED-47 or LED-47B.

Part #FLA-110V
$8.95


Click on photo for
larger view

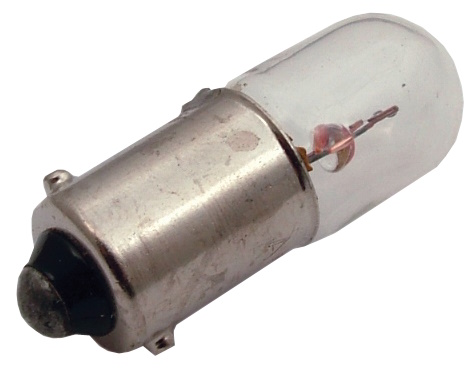

INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.  6.3V
Part #P-47
$0.99

Mesa/Boogie® Electronics


Click on photo for
larger view
10 OHM, 5A NTC (Negative Temperature Coefficient) type Thermistor.   Fender part number 028503.    Used in many Fender amp models since the 1990s.  Also used in some Mesa Boogie amps.  It is installed in series in a circuit between the transformer and incoming AC power.   This thermistor is rated for 5A maximum current, and is 19mm in diameter.   By limiting inrush current, it protects the transformer and other components in the power supply at turn-on.   This thermistor should only be used on amps which have a 5 amp fuse or less.   Download data sheet here.
Part #CL-60
$3.99
(each)



Click on photo for
larger view
Revisit™ VTL5C1 OPTO-ISOLATOR
Replaces VTL5C1 from Vactec or Excelitas at an affordable price.   Used in many Mesa/Boogie® and Crate models in the channel switching circuit.  100dB dynamic range, fast response (2.5ms turn-on), very high dark resistance (50 M Ohm).  Light resistance 200 Ohms at 20mA LED current.  See datasheet here.
Part #
VTL5C1
$4.95


Click on photo for
larger view
J111 JFET N-CHANNEL

General replacement N-Channel Field Effect Transistor (FET).   Used for analog switching in many Mesa/Boogie models.
    Download datasheet here.

Part #
J111
$0.99


Click on photo for
larger view
J175 JFET P-CHANNEL (ALSO SUBS FOR J174)

General replacement p-Channel Field Effect Transistor (FET).   Used for analog switching in many Mesa/Boogie models.
  Also can be used in place of the J174 JFET.  Download datasheet here.

Part #
J175
$0.99

Mesa/Boogie® Relay. 12V DC DIP Relay, 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of Mesa/Boogie® models.   Replaces NEC part number RSP05H2C12S1. Check coil voltage on existing relay to ensure compatibility.
Part #MB-RLY-12
$9.95

Mesa/Boogie® Relay. 5V DC DIP Relay, 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of Mesa/Boogie® models.   Replaces NEC part number RSP05H2C05S1. Check coil voltage on existing relay to ensure compatibility.   Mesa Boogie 518006A.
Part #MB-RLY-5
$9.95

  Mesa/Boogie® Switches

Click on photo for
larger view
ROCKER SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.    Used for Power or Standby on the Bass 400+.  Original Mesa/Boogie part number 600505.

Part #SW-547
$7.99



Click on photo for
larger view
Genuine Carling Technologies dress nuts for use with all mini toggle switches. These plated dress nuts feature a chamfered edge for a professional look and work on any 15/32-32 UNS threaded bushing.  Note:  The dress nut will only tighten down to the point where the threads of the switch have reached the top of the nut.   To use this nut properly, adjust the back nut on the switch to allow 1/8 inch or 3.4mm thread extension beyond the panel. Two sides are flatted for use with a tool when fastening.
Part #DN-154
$0.79


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, ON-ON SWITCHING (NO CENTER OFF POSITION), LONG BAT HANDLE.
Used as two position mini toggle switches on front panels of many Mesa/Boogie amps.  6 solder lug terminals, 2 position switch.

Part #SW-MTS-D11
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION), LONG BAT HANDLE.
Used as three position mini toggle switches on front panels of many Mesa/Boogie amps.  6 solder lug terminals, 3 position switch.
Part #SW-MTS-D101
$2.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING (NO CENTER OFF POSITION), LONG BAT HANDLE.
Used as two position mini toggle switches on front panels of many Mesa/Boogie amps.  3 solder lug terminals, 2 position switch.

Part #SW-MTS-S11
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION), LONG BAT HANDLE.
Used as three position mini toggle switches on front panels of many Mesa/Boogie amps.  3 solder lug terminals, 3 position switch.

Part #SW-MTS-S101
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, CARLING® TECHNOLOGIES MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
0.354" Bushing length
1/4" Mounting hole
Solder lugs
High quality Carling® brand


Part #SW-MTS-
S101-CAR
$4.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION), SHORT BAT HANDLE.
Used as three position mini toggle switches on front panels of many Mesa/Boogie amps.  3 solder lug terminals, 3 position switch with short bat handle lever.

Part #SW-MTS-S101-SL
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches on front panels of many Mesa/Boogie amps.  3 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-S11-SL
$1.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches on front panels of many Mesa/Boogie amps.  6 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-D11-SL
$1.95

Mesa/Boogie® Jacks
(Also see our complete line of jacks)



Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$2.99


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Found in vintage Fender
® (and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender® part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$3.59


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$3.95


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft®
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender® models.   Isolated switch is normally open - closes when a plug is inserted.
Part #J-13
$6.99


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE

4 PC board terminals, switched.  Used in many brands of amps and other equipment.   With nut and washer.
Part #J-503
$1.89


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, PACK OF 6
4 PC board terminals, switched.  Used in many brands of amps and other equipment.   Pack of 6 jacks, with nuts and washers.
Part #J-503-6
$9.99
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
4 PC board terminals, switched.  Used in newer Mesa/Boogie® amps, including the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-603
$2.79
(per jack)



Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched.  With nut and washer.  British style.
Part #J-504
$1.89


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, PACK OF 6
Stereo jack. 6 PC board terminals, switched.  Pack of 6 jacks, with nuts and washers.
Part #J-504-6
$10.99
(Set of 6 jacks)



Click on photo for
larger view

SAVE WITH OUR MULTIPACK ASSORTMENT!  THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN) JACKS.
Many amps contain both the 4 pin and the 6 pin British jacks.   This assortment gives you 3 of each jack ...  Three J-503, and three J-504.

Part # J-5034-6

$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)


Click on photo for
larger view
JACK, 1/4", STEREO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
6 PC board terminals, switched.   Used in newer Mesa/Boogie® amps, including the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-604
$2.99
(per jack)



Click on photo for
larger view
JACK, 1/4", MONO PLASTIC, BRITISH STYLE, SOLDER TERMINALS,  REPLACEMENT FOR Marshall®
4 solder terminals, switched. Used in "hand-wired" amps. With nut and washer.
Part #J-502
$1.99


Click on photo for
larger view
JACK, 1/4", STEREO PLASTIC, BRITISH STYLE, SOLDER TERMINALS,  REPLACEMENT FOR Marshall®
6 solder terminals, switched. Used in "hand-wired" amps.  With nut and washer.
Part #J-505
$2.50


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall® AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall® AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
Part #J-5NT-6
$2.39
(For a pack of 6 nuts)



Click on photo for
larger view
ECONOMY JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed).  5 pins.     Used in Peavey®, Mesa/Boogie, Mackie and many other brands.  Replaces Switchcraft 114BPCX and 114BPCSX.  Nut and washer included.

Part #J-529
$2.99


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC BOARD MOUNTING, Switchcraft®, METAL BUSHING
Common PC mount jack in guitar amps, mixers, etc.   5 pins for inserting into PC board, stereo, tip and ring shunt. Shield tied to chassis mount.   Often used for headphone jacks, insert jacks, FX loop jacks, etc.   Nut and washer included.   Genuine Switchcraft®.

Part #J-114B-PC
$4.99


Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft®, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for inserting into PC board, metal bushing.  Nut and washer included.  Genuine Switchcraft®

Part #J-113B-PC
$4.99


Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft®, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for inserting into PC board, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft®

Part #J-113F-PC
$4.99

JACK NUT AND WASHER, METAL, SWITCHCRAFT®
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa/Boogie® pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender® Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)




Click on photo for
 larger view
Revisit™ SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150
$5.99



Click on photo for
 larger view
Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip cord.   Red and black for easy polarity identification.  Resistance is 0.0097 ohms/ft.  Automotive grade "GPT" PVC insulation, oil and gas resistant, rated for -20 deg F to +160 deg F. Also perfect for bias testers, radio, home theatre, automotive, stereo, robotics, and model train applications.   Priced per foot, sold in lengths from 1 foot to 50 feet.
Part #RBZ-18
$0.32
(priced per foot)


Feet (1-50):



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99


Click on photo for
larger view

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$7.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender® jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.49



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95



Click on photos for
larger views

JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in. Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.  Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet.  Direct easy replacement for many existing small jack dishes.   No soldering required.  Complete wiring directions included - click here for more details.  Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12 cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.  Can be used for the following configurations:
  • 4 ohm mono
  • 8 ohm left + 8 ohm right stereo
  • 8 ohm left only mono
  • 8 ohm right only mono
  • 16 ohm mono

Part #CJP-1

$32.95


Mesa/Boogie® Power Cords



Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.   10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF EXTENSION CORDS.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or 7.9mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13 amps maximum.  Used only in North America.
Part #PC-163SJT15
$15.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL
$9.95


Click on photo for
larger view
15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301
$13.95


Click on photo for
larger view
Fender® style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view
SMALL SIZED STRAIN RELIEF
Designed for very small flat cords - two conductor (such as two conductor cords or dual audio cable.  Cable size is SJT-1 (0.120" x 0.220" .. or approximately 1/8" thick x 1/4" wide).  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #
SR-1100
$0.89


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender® amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
EXTRA-LARGE SIZED STRAIN RELIEF FOR 3/4" X 27/32" HOLE
Popular strain relief found on a few larger vintage power amplifiers with very thick power cords.  Designed for 11/32" cord diameter.   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1300
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$14.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each


Click on photo for
larger view
FUSE HOLDER, ORIGINAL MESA/BOOGIE, FOR AGC, MDL OR 3AG TYPE FUSE
Fuse holder, Twist-lock cap.   Used on current model Mesa/Boogie amps built for domestic distribution in the USA or Canada.   Original Mesa/Boogie part number 790347.   Fits "American" style AGC, MDL or 3AG fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.
Part #FH-347
$6.95


Click on photo for
larger view
Mesa/Boogie® IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL
Original Mesa/Boogie® IEC type AC connector found on the Triple Rectifier and other models.   Designed to snap into 0.8" x 1.10" rectangular panel hole.  Connections are for 1/4" push on terminals, or may be soldered.  Rated at 10 amps.  Mesa/Boogie® part number 613713
Part #MB-108
$2.95



Mesa/Boogie® Capacitors




Click on photo for
larger view
RADIAL ELECTROLYTIC CAPACITOR, 10,000uF @ 16V.    This size filter capacitor is commonly found in amplifiers which use DC voltage on the filaments of some of the preamp tubes.   Found in Marshall®, Mesa/Boogie® as well as other brands.  Working temperature range -40°C to +105°C.   18mm diameter, 35mm tall (approximately 11/16" diameter X 1 3/8" tall)
Part #10000-16
$2.49



CAPACITOR, SILVER MICA, RADIAL
10pF @ 500V
±5% Radial lead, dipped in epoxy coating.  10 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-010-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
12pF @ 500V
±5% Radial lead, dipped in epoxy coating.  12 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-012-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
22pF @ 500V
±5% Radial lead, dipped in epoxy coating.  22 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-022-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
47pF @ 500V
±5% Radial lead, dipped in epoxy coating.  47 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-047-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
68pF @ 500V
±5% Radial lead, dipped in epoxy coating.  68 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-068-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
82pF @ 500V
±5% Radial lead, dipped in epoxy coating.  82 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-082-5
$0.60

CAPACITOR, SILVER MICA, RADIAL
100pF @ 500V
±5% Radial lead, dipped in epoxy coating.  100 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-100-5
$0.65

CAPACITOR, SILVER MICA, RADIAL
120pF @ 500V
±5% Radial lead, dipped in epoxy coating.  120 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-120-5
$0.65

CAPACITOR, SILVER MICA, RADIAL
150pF @ 500V
±5% Radial lead, dipped in epoxy coating.  150 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-150-5
$0.65

CAPACITOR, SILVER MICA, RADIAL
220pF @ 500V
±5% Radial lead, dipped in epoxy coating.  220 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-220-5
$0.80

CAPACITOR, SILVER MICA, RADIAL
300pF @ 500V
±5% Radial lead, dipped in epoxy coating.  300 pico-Farad @ 500V  1000pF = 1nF = 0.001uF
Part #C-SM-300-5
$0.90

CAPACITOR, SILVER MICA, RADIAL
500pF @ 500V
±5% Radial lead, dipped in epoxy coating.  500 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-500-5
$1.00

CAPACITOR, SILVER MICA, RADIAL
750pF @ 500V
±5% Radial lead, dipped in epoxy coating.  750 pico-Farad @ 500V 1000pF = 1nF = 0.001uF
Part #C-SM-750-5
$1.69

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.001uF @ 630V
Part #C-PR-102-6
$0.30

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.0022uF @ 630V
Part #C-PR-222-6
$0.30

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.0047uF @ 630V
Part #C-PR-472-6
$0.30

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.01uF @ 630V
Part #C-PR-103-6
$0.35

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.022uF @ 630V
Part #C-PR-223-6
$0.35

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.047uF @ 630V
Part #C-PR-473-6
$0.40

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.1uF @ 630V
Part #C-PR-104-6
$0.50

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.22uF @ 630V
Part #C-PR-224-6
$0.70

CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
.47uF @ 630V
Part #C-PR-474-6
$1.50



Mesa/Boogie® Reverb Tanks




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Used in Mesa/Boogie®  MK2C, Mesa Express and others.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4AB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$38.89



Click on photo for larger view

Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B current production.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender® amplifiers with tube reverb from 1963-1990.   Also used in Reissue models like:   Fender® Princeton Reverb, Fender® Deluxe Reverb, Fender® Vibrolux Reverb, Fender® Pro Reverb, Fender® Super Reverb , Fender® Twin Reverb, Fender® Quad Reverb , Fender® Super Six Reverb, Fender® Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender® 65 Twin Custom(TM) 15, Fender® Concert II, Fender® Dual Professional.  Also used in Mesa/Boogie®  MK2C and others, LAB Series L5, L7, L9, Koch® Powertone I, Ampeg® VT-40, Ampeg® Super Rocket SR212 and B-52® AT-100.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Accutronics products are made in South Korea.

Part #ACC-4AB3C1B

$39.99



Click on photo for larger view

Belton Reverb Tank, 17" long, 2 spring, 4AB3C1B, current production.   Belton part number BL2AB3C1B.  Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender® amplifiers with tube reverb from 1963-1990.   Also used in Reissue models like:   Fender® Princeton Reverb, Fender® Deluxe Reverb, Fender® Vibrolux Reverb, Fender® Pro Reverb, Fender® Super Reverb , Fender® Twin Reverb, Fender® Quad Reverb , Fender® Super Six Reverb, Fender® Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender® 65 Twin Custom(TM) 15, Fender® Concert II, Fender® Dual Professional.  Also used in Mesa/Boogie®  MK2C and others, LAB Series L5, L7, L9, Koch® Powertone I, Ampeg® VT-40, Ampeg® Super Rocket SR212 and B-52® AT-100.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Belton products are made in South Korea.   Belton part number BL2AB3C1B.

Part #BL-4AB3C1B

$32.99



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3A1B.   Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.   Common replacement for  Music Man, and the Mesa/Boogie® F-50.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4BB2A1B

"Bringing back the sound of vintage Accutronics tanks"

$38.89




Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1BShort Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down.   Found in some Mesa/Boogie® and Fender® Models.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lis4ts AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8AB2A1B

"Bringing back the sound of vintage Accutronics tanks"

$35.89




Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1C. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts on vertical wall, long axis horizontal, connectors up.  Used as an upgrade external tank in the Mesa/Boogie® Caliber 50+.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8AB2A1C

"Bringing back the sound of vintage Accutronics tanks"

$35.89




Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1BShort Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output.  Mounts horizontal, open side down.   Primarily used by Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb, Vox® AC30, with solid state reverb as used in the Seventies, Crate Palomino V32 & V16, Music Man RD50, Kitty Hawk Supreme, Marshall® G80RCD, Marshall® G100RCD.    Upgrade for Laney VC15 (part nr. 10006), Brunetti Singleman, Mesa/Boogie® Rectoverb.   See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8BB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$35.89




Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1BShort Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8FB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$35.89




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1A1B.   Input impedance 10 ohms, output impedance 2575 ohms, short decay (1.2 - 2.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.   Common replacement for Mesa/Boogie®  Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9AB1A1B

"Bringing back the sound of vintage Accutronics tanks"

$43.95

Special Order
Ready to ship
4 business days
after we receive
your order.




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2A1B.   Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input and output grounded, designed for horizontal mounting, open side down.   Common replacement for Mesa/Boogie®  Lonestar, Lonestar Special, Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.  Also used in some Fender®, Vox® AC30 (1960s+70s), and Engl Screamer (E330, E335)  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9AB2A1B

"Bringing back the sound of vintage Accutronics tanks"

$43.95




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3A1B.   Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input and output grounded, designed for horizontal mounting, open side down.   A longer decay replacement for Mesa/Boogie®  MK V, Lonestar, Lonestar Special, Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.  Also may be used in some Fender®, Vox® AC30 (1960s+70s), and Engl® Screamer (E330, E335)  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9AB3A1B

"Bringing back the sound of vintage Accutronics tanks"

$43.95




Click on photo for larger view

Accutronics Reverb Tank, 17" long, 3 spring, 9BB2C1B current production.   Input impedance 190 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   This tank fits the Peavey® Nashville 112, Mesa/Boogie®  Nomad 45, Nomad 55, Nomad 100.   Also fits the Vox® AC50CPH, AC100CPH.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Accutronics products are made in South Korea.

Part #ACC-9BB2C1B

$42.95



Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets - In Stock)



Click on photo for
larger view

Reverb Tank Bag for 17" tanks.   Used in a variety of amps, including Fender® amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.
Part #RB-017
$17.99
In Stock



Click on photo for
larger view
(Reverb tank not included)

Handmade Reverb Tank Bag for 9" tanks.  Works with any short (9") reverb tank.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.  Handmade of single-ply black Tolex.  Replacement for Fender and many other amps.  Bag dimensions: 4.5"W x 1.5"H x 9.5"L.   Includes loops at each end for screw attachment to the amp cabinet, and a tuck-in flap to close up the end.   Mounting screws not included.
Part #RB-009
$11.99
In Stock




Click on photo for
larger view
TRANSFORMER, Revisit™ Fender® REVERB DRIVER.   For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc.   Equivalent to Fender® #125A20B & #022921.   For vintage Mesa-Boogie® models, including vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber, Maverick, Lonestar Special, and many others .    Mesa Boogie® part number 550185.  10" cut leads, X-Mount with 1 3/4" mounting centers.  Input impedance 14.5K ohms, output impedance 4 ohms.
Part #RT-921
$14.95


Click on photo for
larger view

3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173
$3.95
In Stock



Click on photo for
larger view

4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In stock



Click on photo for
larger view

4 foot Revisit™ right angle cables for Reverb Tanks.    RCA at one end, stripped cable at opposite end.    For connecting reverb tanks directly to a PC board via a soldered connection at the PC board end.   Used by a number of manufacturers.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-374
$4.95
In stock



Click on photo for
larger view

5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-17
5
$5.95
In stock




Mesa/Boogie® Switches
(Also see our complete line of switches)



Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - Rated at 20 Amps (125VAC) or 15 Amps (250VAC).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on, single pole / single throw (SPST).   Two position - on/off.  NOTE:   RATED FOR AC SERVICE ONLY AT 250V MAX - DO NOT USE AS A GUITAR AMPLIFIER STANDBY SWITCH.
Part #STS-20
$3.95


Click on photo for
larger view
SWITCH, CARLING SPST TOGGLE, Good replacement for Mesa/Boogie® power or standby switches in larger heads (such as the Dual or Triple Recitifier).     Made by Carling.
Part #SW-495
$5.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING - RATED AT 15A/125VAC, 10A/250VAC.    TWO POSITION (ON/OFF), DOUBLE POLE (DPST).  FITS 1/2" CHASSIS HOLE.  SOLDER TERMINALS OR 1/4" PUSH-ON.  Fender® PART NUMBER 0036570000.   Made by Carling.
Part #SW-525
$6.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - Made by Carling® - rated at 15A/125VAC, 10A/250VAC. Two position (on/off), single pole (SPST). Fits 1/2" chassis hole. Solder terminals.
Part #SW-526
$4.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - TWO POSITION (ON/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, no center off - two positions (ON/ON).
Part #STS-15-DPDT
$4.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - THREE POSITION (ON/OFF/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, with center off - three positions (ON/OFF/ON).
Part #STS-15-DPDT-CO
$5.95


Click on photo for
larger view
ROCKER SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.    Used for Power or Standby on the Bass 400+.  Original Mesa/Boogie part number 600505.

Part #SW-547
$7.99


Click on photo for
larger view
FOOT SWITCH, CARLING BRAND, SPDT, LATCHING
Found in many type of footswitches.  Has 3 electrical terminals (single pole, double throw)Solder lugs for wire. Made by Carling.
Part #FS-492
$9.95


Click on photo for
larger view
FOOT SWITCH, CARLING BRAND, SPST, LATCHING, REPLACEMENT FOR Fender®, ETC.
Carling SPST footswitch. Used in Marshall® etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.   Made by Carling.
Part #FS-493
$9.95


Click on photo for
larger view
FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board.  Found in the Line 6® XPS-AB power supply for their Variax guitars.  Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC

(Also see our complete line of switches)

$3.95



Fans



Click on photo for
larger view
ThermoCool Fan.  120 x 38mm Ball Bearing 72 CFM.
This size is commonly found in Mesa/Boogie® Mark I through Mark IV models and many other MESA models designed and built prior to 2000.  If your MESA amp requires a 4 inch fan, this is it.  (Cord not included).  For plug in wiring harness, order 25-0050 fan cord separately.  For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power: 100-125V AC, 50-60 Hz • Ball bearing • Terminal connection • 0.22 amps • 2200 RPM • 39dB noise level • 72CFM air flow • Dimensions: 120 mm (H) x 120 mm (W) x 38 mm (D).  Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B+
[4 3/4" (H) x 4 3/4" (W) x 1 1/2" (D)]
Part #G12038MAS
$21.95


Click on photo for
larger view
Standard 24" fan cord with 90° angled plug. For use with 110~120 VAC cooling fans with .110" terminals; non-terminated on opposite end.   Great for use with G12038MAS fans, above.
Part #25-0050
$1.99


Strat®, Stratocaster®, Esquire®, Telecaster®, Tele®, Jazzmaster®, Jaguar®, Mustang®, P.Bass®, J.Bass® and Fender® are registered trademarks of Fender® Musical Instruments. The replacement necks and bodies are for a Fender® or Squier® by Fender® guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster®, Telecaster®, J.Bass®, P.Bass® and Tele® Bass are registered trademarks of Fender® Musical Instruments Co.
Peavey® is a registered trademark of Peavey® Electronics Corporation.
Marshall® is a registered trademark of Marshall® Amplification Plc.
Mesa/Boogie®  is a registered trademark of MESA/Boogie® Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2021 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
