TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Fender™ and many other amps.     1 1/2" mounting centers.  Made by Belton.  Fender part number 099072500.
Part #TC-142
$2.25


Click on photo for
larger view
TUBE RETAINER WITH SPRINGS, DESIGNED FOR 6V6, 5AR4, GZ34, 6SN7 TUBES.
Spring loaded retainer for 6V6 or smaller 5881 power tubes.   Also works with most 6SN7 preamp tubes and most 5AR4 or GZ34 rectifier tubes.   Mounts to the same screws that hold the tube socket.

Part #TR-149
$2.89


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket
Part #TS-370
$4.99


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S
$2.29


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   This is a great kit to replaced all 6 of the tube shields in many Fender™ amps with 6 preamp tubes.  Shield and base only - socket not included.

Part #TS-325S-6
$12.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$4.95
(Set of 6 rings)



Click on photo for
larger view

Socket - Belton, Micalex, 8 Pin, Octal PC Mount, Long Lead Micalex, PC mount, long leads (Belton) - MB/MT. 1 ˝" mounting centers 1 1/4" chassis hole. Applicable for use with all types of electric and electronic equipment using vacuum tubes.  Paddle saddle mounting, easy mount with the saddle of extruded screw hole.   Phosphorous bronze pin terminal with tin plating, glass fiber field PPS Insulating material
Part # TS-8-209

$3.50


Click on photo for
larger view
PHENOLIC TUBE SOCKET FOR OCTAL TUBES.  EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others.    Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1" to 1 1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.  Unlike some phenolic tube sockets on the market, this one fits the 1" hole found in most vintage Fenders.
Part #TS-8-600
$4.50


Click on photo for
larger view
FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.        Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.  Fender part number 0023606049.
Part #TS-9-700
$4.49


Click on photo for
larger view
6-PACK OF FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.      Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.   Pack of 6 tube sockets.  Mounting screws not included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube sockets).  It is also possible to use 1/8 inch pop rivets to mount these sockets.  Replaces Fender part number 0023606049.
Part #TS-9-700-6
$25.99
(for 6 sockets)


Click on photo for
larger view
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113
$1.39
(Pack of 5 terminals)




Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #6 screw, Pack of 10.
Part #SCR-435
$0.79
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.
Part #BWS8-5
$0.99
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.
Part #BWS8-75
$1.10
(pack of 10)


BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.
Part #BWS8-1
$1.25
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.
Part #BWS8-15
$1.39
(pack of 10)



Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Orange™ METRIC
Replacements for the standard M6-1.00 50mm metric screws used to hold the chassis in UK-built Orange™ heads and combos.  Washers included.   Package of 4 stainless steel screws, with 4 washers.
Part #OCB-4
$4.99
(Set of 4 screws w/washers)


Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Trace Elliot™ METRIC
Replacements for the standard M6-1.00 35mm metric screws used to hold the chassis in UK-built Trace Elliot™ heads and combos.  Washers included.   Package of 4 zinc-plated steel screws, with 4 washers.
Part #TCB-4
$3.99
(Set of 4 screws w/washers)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750
$4.95
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
Part #BRF-723
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

Part #BRF-1691
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

Part #BRF-9105
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   Tapered: 1 3/16" Diameter At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112
$4.95
(pack of 4)



Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4.   Tapered -  1 5/8" Diameter At Large End, 1 1/4" At Small End. 3/4" Tall. Black Rubber With Metal Insert. Used To Support Amp Heads, Speaker Cabinets. Mounting Screws Not Included.
Part #BRF-9107
$7.95
(pack of 4)



Click on photo for
larger view
ORANGE CORNER, BLACK PLASTIC, SOLD INDIVIDUALLY.  These Tube Amp Doctor black plastic corners are great replacements for Vox™ and Orange™ amps and cabinets that feature this type. The two larger holes are for use with screws while the small holes are intended for pins/nails just like the originals.  3/4" radius, 2 pins on front.   Used on some vintage Orange amps.  For heads, combos and straight speaker cabinets.    Screws NOT included.  Use CN-304-8 nails and SC-411-8 black screws to attach.
Part #VC-1050
$2.45
(Per individual corner)


Click on photo for
larger view
POT, ORANGE™, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SHAFT
Used in many modern Orange™ amp models including the AD30, Rockerverb, Dual Terror, Tiny Terror, TH30, Rocker 30, Thunderverb, and others.  Diameter of the body of the pot is slightly smaller than a dime.  Click on photo for more detail.     Download cross-reference guide for these pots.


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VOR-XX

$3.95

Select Option 1:


Quantity:


Click on photo for
larger view

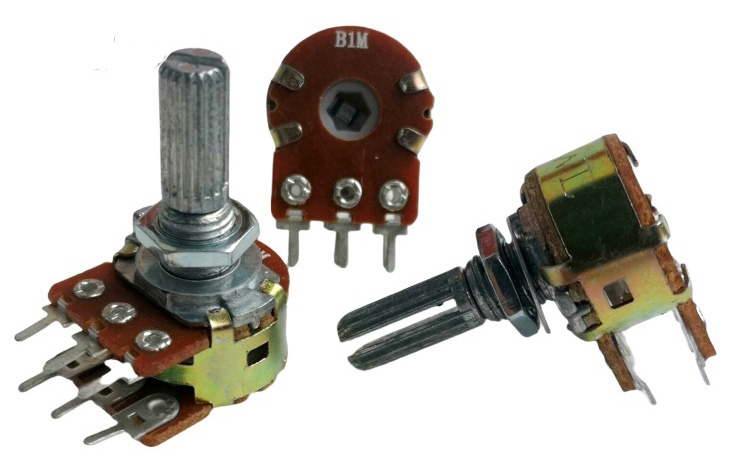

POT, ORANGE™, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror, AD30, and AD140   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V1MBX2-M16M
Currently unavailable

$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 100K OHM AUDIO, (A100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Exact replacement for the volume control pot  on the Orange Tiny Terror.   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V100KAX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 500K OHM AUDIO, (A500KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Exact replacement for the gain control pot  on the Orange Tiny Terror.   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V500KAX2-M16M
$6.95

Quantity:


Click on photos for
larger view

BRASS POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on your 1/4" knurled shaft potentiometer?  Do you need to eliminate the off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?

Just slip one of our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft or 6mm pot shaft to ensure a snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!

Note:  Will NOT work with 3/16" knurled shaft pots.  Those smaller knurled shafts are typically found in Crate and Peavey amps.  Not recommended for D-shaft type shafts.

Part #PAS-635

$0.95


Click on photo for
larger view
REPRODUCTION OF the DUNLOP MXR KNOB, BLACK KNOB WITH WHITE LINE
Good replica of the
Dunlop MXR Knob - as used on the Phase 90 and other MXR pedals.   Also a good replacement for knobs on most Orange Amps.  1" (25.4mm) diameter at the base x 0.6" (15mm) high.  Set Screw, for smooth shaft pots.
Part #K-345
$1.99


Click on photo for
larger view
REPRODUCTION OF THE MINI MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small MXR™ Knob.    Diameter (bottom): 20mm at the base. Height: 11.45mm With Set Screw for smooth 1/4" shafts.
Datasheet

Part #K-830
$1.99


Click on photo for
larger view
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DARK BROWN WITH BROWN STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38")   Dark brown with brown stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-270
$15.95

ONLY ONE HANDLE LEFT IN STOCK.   THIS HANDLE IS BEING DISCONTINUED.




Click on photo for
larger view
Orange™ AMP BLACK GUITAR AMP HANDLEBlack rubber handle strap, metal reinforced.  Black rubber caps.   Screws not included - recommend using the SC-403B black 10-32 type screws along with a 10-32 T-Nut for secure mounting.   See diagram for handle dimensions and center-center screw distance.    Fits most Orange Amplifiers.   Also fits some Markbass amplifiers.


Part #OAH-456

$7.99


Click on photo for
larger view

BLACK HANDLE SCREWS
Pack of 2 stainless-steel handle screws finished in satin black for use with black end-cap handles, such as our GAH-1, OAH-456, or GAH-271B.  1-1/4" Long, 10-32 threads, finished in satin black to match black end caps.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".   See Data Sheet here
Part #SC-403B
$0.99
(for a pack of 2 screws)



ORANGE (AMBER)

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, ORANGE/AMBER, REPLACEMENT FOR ORANGE
Complete pilot lamp assembly:  Includes pilot lamp holder, amber jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring.
Part #FLA-124A
$8.50


ORANGE (AMBER)

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Orange™, Fender™, Peavey™, Mesa Boogie™, many others.  Amber / Orange color.
Part #JL-115A
$2.99



Click on photo for
 larger view

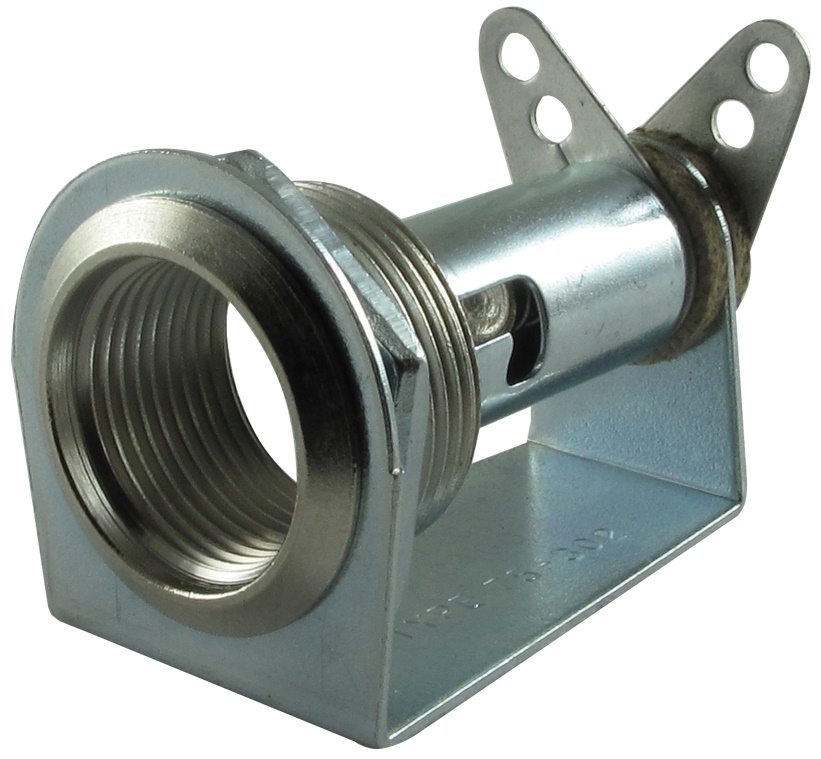

PILOT LAMP HOLDER, REPLACEMENT FOR ORANGE
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527"    Works with a standard bayonet lamp such as the 6.3V #47 lamp, or the LED-47.   Accepts all of the colored jewels on this page.

Part #LH-124
$5.50


Click on photo for
larger view

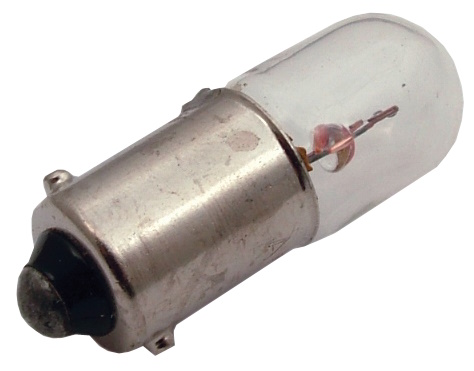

INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.  6.3V
Part #P-47
$0.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, EXTRA-TALL LEGS.   6 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.  Used as the output jack on the Orange DT30.  Guitar input jack on the Orange Terror Bass.
Part #J-504SL
$3.95


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall™ , B52™, Trace Ellio™, Orange™, etc.  NOT used in Crate™, Ampeg™. 4 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-580
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall™ , B52™, Trace Elliot™, Orange™, and Dunlop™/MXR products.  NOT used in Crate™, Ampeg™ (see J-581L for those).   6 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-581
$4.49


Click on photo for
larger view
JACK NUT/FERULE, CHROME, with BLACK PLASTIC BEZEL/WASHER - BRITISH CLIFF STYLE
Replacement nut and bezel washer for the J-501, J-501S, J-580, J-581, J-580L and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:
There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for BRITISH CLIFF STYLE jacks.   Bezel is included with this nut.
Part #JN-200W
$0.95


Click on photo for
larger view
FUSE HOLDER -  Egnater™, Orange™, Trace Elliot™, Blackstar™, other brands - GMA OR GDC TYPE FUSE (5mm X 20mm)

Fuse holder found in many models of  Egnater™, Orange™, Blackstar™, and Trace Elliot™ amplifiers.   Designed for the 5mm x 20mm mini glass fuse (GMA or GDC type).  PC Board mounted.
Part #PTF-50
$3.95


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, FOR AGC, MDL OR 3AG TYPE FUSE.
Fuse holder, Twist-lock cap.   Durable, rugged design - better than OEM.   Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC, MDL, OR 3AG fuses (1/4" x 1 1/4")  Connection by 1/4 push-on terminals, or wires may be soldered to the terminals.
Part #FH-301
$3.95


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, FITS AGC, MDL OR 3AG TYPE FUSE.
Fuse holder, Twist-lock cap.  Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC, MDL, OR 3AG fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.
 Fits through a .50" hole in the chassis.
Part #FH-367
$8.95


Click on photo for
larger view
SWITCH, TOGGLE, DPST - Used in Marshall, Orange and Trace Elliot, Hiwatt and Vox. Rated at 15A, 125/250VAC.  Two position (on/off), double pole (DPST), 4 terminals.  Fits 1/2" chassis hole.   Solder terminals or push-on terminals.   Found in Marshall Reissue models such as the 1959HW, 1959SLP, JTM45 (2245), 2245THW, 1987X, 2061X and 1974X.  Original Marshall part number SWTM-00021.  Found in Orange AD30, AD200, TH50, and TH200.  Found in Trace Elliot Speedtwin C30, Trident, Bonneville, Velocette, Velo 12R, Velo Twin and V-Type tube amps.   Also found in some Hiwatt and Vox amps.
Part #SW-641
$24.95


Click on photo for
larger view
Orange™ MINI ROCKER SWITCH  - MARKED 0-1 FOR ON/OFF - USED IN SMALLER ORANGE CRUSH AMPS.
DPDT Mini Rocker Switch for all versions of Crush 12, Crush 20, Crush 25BX, Crush 30, and Crush 35.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.
Part #SW-289
$3.95



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99


Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99



BUILD YOUR OWN Speaker Harness for Combo Amps:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view
PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.
Part #P-287
$3.95


Click on photo for
larger view

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$7.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.89



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95



Click on photos for
larger views

JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in. Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.  Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet.  Direct easy replacement for many existing small jack dishes.   No soldering required.  Complete wiring directions included - click here for more details.  Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12 cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.  Can be used for the following configurations:
  • 4 ohm mono
  • 8 ohm left + 8 ohm right stereo
  • 8 ohm left only mono
  • 8 ohm right only mono
  • 16 ohm mono

Part #CJP-1

$35.95


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.   Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra Flexibility In Equipment Placement, Reduces Use Of Extension Cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many Orange™ amplifiers.   Designed to snap into  1.25" x 1.10" rectangular panel hole.   Uses GMA type fuses (5mm x 20mm).   Space for spare fuse.   Rated up to 10 amps.   Fuse not included.
Part #P-S2-120-3
$3.95


Click on photo for
larger view
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many Orange™ amplifiers.   Designed for screw mounting into 1.25" x 1.10" rectangular panel hole.   Uses GMA type fuses (5mm x 20mm).   Space for spare fuse.   Rated up to 10 amps.   Fuse not included.
Part #P-S2-719
$3.95


Click on photo for
larger view

UNIVERSAL STYLE DUAL FOOTSWITCH WITH REMOVABLE CABLE.   Revisit™ replacement for foot switch boxes with two mono 1/4" plugs for the amplifier connection.   10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug for connection at the foot switch end, and dual 1/4" mono plugs for connection at the amplifier end.   Replacement for a number of different footswitches on various amplifiers, including many Orange Amp models which have dual footswitch jacks.  Includes the dual footswitch box and the stereo to mono Y-cable (10 ft).
Part #FBS-571
$39.95



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1BShort Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   Found in Orange Rockerverb (HEAD ONLY), Orange Rockerverb MKII (HEAD ONLY), and Orange Rockerverb MKIII (HEAD ONLY).  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8AB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$42.89
In stock




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B.   Input impedance 190 ohms, output impedance 12,000 ohms, medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Orange AD30R.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9BC2C1B

"Bringing back the sound of vintage Accutronics tanks"

$48.99



Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets
)



Click on photo for
larger view

Reverb Tank Bag for 17" tanks.   Used in a variety of amps, including Fender™ amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.
Part #RB-017
$18.90
In Stock



Click on photo for
larger view
(Reverb tank not included)

Handmade Reverb Tank Bag for 9" tanks.  Works with any short (9") reverb tank.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.  Handmade of single-ply black Tolex.  Replacement for Fender and many other amps.  Bag dimensions: 4.5"W x 1.5"H x 9.5"L.   Includes loops at each end for screw attachment to the amp cabinet, and a tuck-in flap to close up the end.   Mounting screws not included.
Part #RB-009
$13.95
In Stock



Click on photo for
larger view

3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173
$4.95
In Stock



Click on photo for
larger view

4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In stock



Click on photo for
larger view

5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-17
5
$5.95
In stock



Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
