Transformers



Description

Price Purchase


Click on photo for
larger view
CHOKE, Revisit™ Filter Choke for medium size Fender® amps.   Replacement filter choke for Fender® Deluxe, Deluxe Reverb, Vibrolux and Vibrolux Reverb.  Replaces Fender® part number 125C3A & 022707.   Inductance 4H, +/- 15%, DC current 50mA.  Vacuum impregnated with polyurethane varnish for quiet and long life operation.  For dimensions and technical specifications, click here.
Part #FC-194A
$16.95


Click on photo for
larger view

CHOKE, Revisit™ Filter Choke for most larger Fender® amps with 6L6 power tubes.   Replacement filter choke for Fender® Bassman, Bandmaster, Concert, Showman, Dual Showman, Pro Reverb, Super Reverb, Twin Reverb, Vibroverb, etc.  Not used with the Vibrolux - see the FC-194A choke for the Vibrolux.  Replaces Fender® part number 125C1A & 022699.   Inductance 4H, +/- 15%, DC current 90mA.  Vacuum impregnated with polyurethane varnish for quiet and long life operation.  For dimensions and technical specifications, click here.
Part #FC-194B
$24.95



Click on photo for
larger view
TRANSFORMER, Revisit™ Fender® REVERB DRIVER.   For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc.   Equivalent to Fender® #125A20B & #022921.   For vintage Mesa-Boogie® models, including vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber, Maverick, Lonestar Special, and many others .    Mesa Boogie® part number 550185.  10" cut leads, X-Mount with 1 3/4" mounting centers.  Input impedance 14.5K ohms, output impedance 4 ohms.
Part #RT-921
$14.95


Click on photo for
larger view
TRANSFORMER, Fender® REVERB DRIVER.  Reverb transformer as found in the Fender® 65 Twin Reverb Reissue, 65 Super Reverb Reissue, 65 Princeton Reverb Reissue, and 65 Deluxe Reverb Reissue.    Fender® part number 0037099049.  10" leads with .187 faston connectors, X-Mount with 1 3/4" mounting centers.
Part #037099
$16.95




Click on photo for
larger view

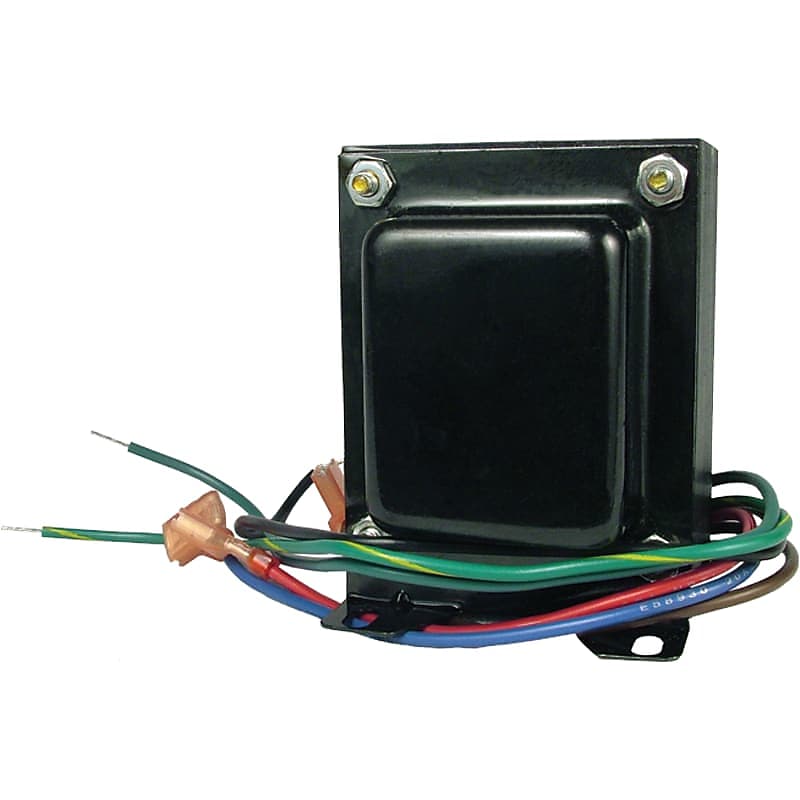

Fender® OUTPUT TRANSFORMER  Output transformer for Fender® Hot Rod Deluxe, Hot Rod Deville 410, Blues Deluxe 112, Blues Deluxe 410, Blues Deville 112 and Blues Deville 410 amps.   Note:  Not for Hot Rod Deville 212, Blues Deville 212, or Blues Deluxe 212. Fender® part number 050438.  Mounting centers at 2" x 2.2".   Primary impedance 4250 ohms.

Part #TF50438
$69.95





Click on photo for
larger view
Revisit™ OUTPUT TRANSFORMER, FENDER.  Replacement for Fender® Champ, VibroChamp, Champion 600 and Bronco amps.  Equivalent to #125A35A & #022905.  X-Mount with mounting centers at 2 3/8".

Part #TF22905
$38.95



Click on photo for
larger view
Revisit™ OUTPUT TRANSFORMER, FENDER.  Replacement for Fender® Deluxe, Deluxe Reverb.   Equivalent to #125A1A & #041318.  X-Mount with mounting centers at 3 1/4".  25 Watts, 8 ohms.

Part #TF41318
$34.95



Click on photo for
larger view
FENDER OUTPUT TRANSFORMER Replacement for Fender® Super Reverb, Concert and Tweed Bassman Combo amps.  Equivalent to #125A9A & #022855.  Original Fender part.  Click here for mounting dimensions.

Part #
TF22855
$73.95




Click on photo for
larger view
GENUINE Fender® OUTPUT TRANSFORMER   Replacement for Fender® 65 Super Reverb Reissue, 59 Bassman Reissue, and the Fender® Vibro-King and Custom Vibro-King.  Fender® Part number 036485.

Part #036485
$73.95
