Fender™ Vintage Tweed
Amp Restoration
Parts (1947-1959)

We carry a complete selection of Fender™ Amplifier Parts to restore your original vintage tweed amp from 1947-1959.

Jacks    Jewels    Handles   Hardware    Lamps

Capacitors    Cap Sets     Pots    Power Cords     Switches

Plugs     Resistors    Fuse Holders    Glides


Fender™ Hardware
(Also see our complete line of hardware)



Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket
Part #TS-370
$3.99


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield which fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S
$1.69


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S-6
$12.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$3.99
(Set of 6 rings)


Click on photo for
larger view
OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power tube or rectifier with a broken keyway, here is a great solution. By cleaning the remainder of the broken keyway from the tube base and properly installing this keyway replacement (a little dab of silicone sealant works great to hold it in place), your tube can safely be reinstalled into your equipment.   These great tube-savers are sold in sets of 2.   Note:  When using an adhesive to secure the keyway to the tube base, DO NOT use a water-based glue.   Silicone sealant (RTV) which is acryllic-based or butyl-based is fine.   Latex sealant or hot-glue is NOT.
Part #OTK8-2
$6.99
(for a set of 2 tube keyways)


Click on photo for
larger view
OCTAL TUBE BASE, SOLD INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state rectifiers, bias probes, etc.   8-pin plug with room inside the base for circuitry and wiring.  Sold individually.
Part #OTB-100

$3.99 ea


Click on photo for
larger view
TUBE SOCKET, OCTAL 8-PIN, commonly used with the OTB-100 Octal Tube Base to build bias probes, tube socket savers, tube extenders, etc.   This socket has no mounting bracket.
Part #TS-8-810
$3.50


Click on photo for
larger view
PHENOLIC TUBE SOCKET FOR OCTAL TUBES.  EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others.    Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1" to 1 1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.  Unlike some phenolic tube sockets on the market, this one fits the 1" hole found in most vintage Fenders.
Part #TS-8-600
$2.99


Click on photo for larger view

CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET, crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting centers, 1" to 1 1/4" chassis hole.  Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.  Click here for additional specs.   Fender part number 0990724000, or 023580.
Part #TS-8-807W

$3.95


Click on photo for
larger view
FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.        Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.  Fender part number 0023606049.
Part #TS-9-700
$2.69


Click on photo for
larger view
6-PACK OF FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.      Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.   Pack of 6 tube sockets.  Mounting screws not included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube sockets).  It is also possible to use 1/8 inch pop rivets to mount these sockets.  Replaces Fender part number 0023606049.
Part #TS-9-700-6
$12.99
(for 6 sockets)


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.      Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-601
$2.49


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.      Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-610
$2.49



Click on photo for
larger view
Revisit™ Solid-State Tube Rectifier Replacement.
Replaces 5AR4, GZ34, 5U4, 5Y3 rectifier tubes.  Use when less "sag" is desired in the power supply.  1.31"  diameter, 0.89" tall (not including pins and center post).

NOTE! Because there is no warm up of a rectifier tube when using this solid state device, it is absolutely necessary that a standby switch is used in conjunction with this device.   Do not install in an amplifier that does not have a standby switch - always use the standby switch in amps so equipped when using the 5SSR.
Part #5SSR

$12.95

Fender™ Capacitors


CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance ±5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

Part #C-SM-XX
Starting at
$0.80
Select Option:


Quantity:


CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 1.0uF.  Axial Leads.   (See Options)

Part #C-MF-XX
Starting at
$0.90
Select Option:



Quantity:

  F&T Premium Capacitors

Click on photo for
larger view
CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 70 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:

  Sprague Premium Cathode Bypass Axial Capacitors

Click on photo for
larger view
SPRAGUE AXIAL 5uf/50V  Replacement for the 5uF/25V or 5uF/50V axial cathode bypass capacitor commonly found in the vibrato circuit of vintage Fender silverface amps from the 1970s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-5-50

$3.95


Click on photo for
larger view

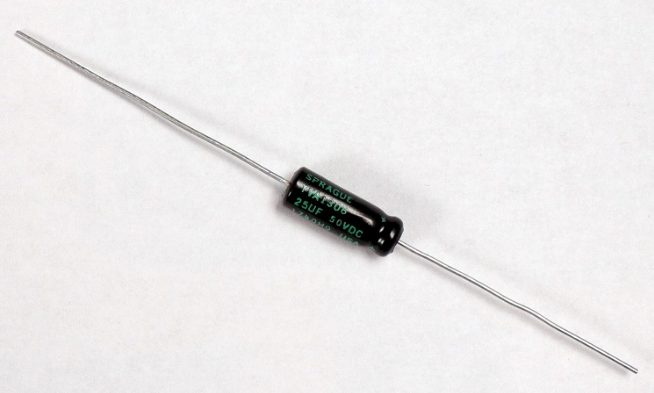

SPRAGUE AXIAL 25uf/50V  Replacement for the 25uF/25V axial cathode bypass capacitors commonly found in vintage Fender amps from the 1950s through the 1980s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-25-50

$3.95

  Tube Amp Doctor Premium Capacitors


Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 8uF-475V

12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.


Part #TAD-CAP-8-475
$4.35
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 16uF-475V

12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC


Part #TAD-CAP-16-475
$4.50
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$4.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 25uF-25V

6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps


Part #TAD-CAP-25-25
$1.45
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 50uF-100V

8.0mm diameter x 21.0mm Length
Rated
105° C for Long Life
50uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-50-100
$3.30
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 80uF-100V

9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-80-100
$4.60
In stock

  Ruby Gold Premium Capacitors

Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Ruby Gold capacitors are used by many original amplifier manufacturers in Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105° C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.   Ideal as replacement in vintage audio and guitar amplifiers.  Values available include 50uF/50V and 220uF/350V.   Choose capacitor value under the Select Option box.
Part #RG-CAP-XX
Starting at
$1.00
Select Option:


Quantity:

  MOD Axial Capacitors

Click on photo for
larger view
MOD CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Mod™ Electronics electrolytic capacitors offer long-lasting performance at the highest degree. These capacitors are designed with tube amplifiers in mind; each capacitor is rated at 105°C. This temperature rating provides a highly-stable capacitance in any device, be it vacuum tube or solid state. The Mod™ electrolytic capacitor line features capacitance values that are common in many vintage amplifiers.   Values available include 8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.   Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX
Starting at
$0.79
Select Option:


Quantity:

  Illinois Capacitor Electrolytic Capacitors

Click on photo for
larger view
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years later continues to produce benchmark quality capacitors for industry.     Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American capacitor manufacturer tracing its roots to 1909.  Values available include 2.2uF/50V, 2.2uF/100V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.
Part #IC-CAP-XX
Starting at
$0.99
Select Option:


Quantity:

  Axial Electrolytic Capacitors - Other Brands

Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Values available include the following:
25uF/25V 100uF/25V 220uF/25V 2200uF/25V
100uF/50V 0.68uF/50V 25uF/50V 50uF/50V
2200uF/50V 47uF/63V 70uF/100V 100uF/100V
220uF/100V 8uF/150V 10uF/160V 100uF/350V
220uF/350V 4.7uF/450V 8uF/450V 10uF/450V
16uF/450V 22uF/450V 33uF/450V 47uF/450V
16uF/475V 20uF/500V 20uF/600V 80uF/500V

Choose capacitor value under the Select Option box.
Part #EL-CAP-XX

Starting at
$1.00
Select Option:


Quantity:



Click on photo for
larger view
Fender™ Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter, bias filter and preamp cathode bypass electrolytic capacitors for most amps from the tweed, blonde, brownface, blackface and silverface eras.
Prices starting at $32.95 Click here to see the full selection of Fender capacitor kits.


Click on photo for
larger view
Fender™ VINTAGE STYLE GUITAR AMP HANDLE, RAISED, MEDIUM BROWN STITCHED SIMULATED LEATHER.
Medium brown simulated leather handle strap, replacement for Fender™ "tweed" style amps (as well as other vintage amps).  Has slight "raised" bump near the center of the handle.   Medium brown, white stitched.  5-7/8" from post position to post position, total length of strap when completely flat is 8-3/4".    Comes complete with two nickel-plated handle mounts and four screws.
Part #GAH-282
$15.95



Click on photo for
larger view
Fender™ or Ampeg™ VINTAGE STYLE GUITAR AMP HANDLE, RAISED, BLACK STITCHED SIMULATED LEATHER. Black raised handle strap, made of simulated leather, replacement for Fender™ "tweed" style amps or vintage Ampeg amps (as well as other vintage amps).  Has slight "raised" bump near the center of the handle.   Black, white stitched.  5-7/8" from post position to post position, total length of strap when completely flat is 8-3/4".   Mounts and screws are included.
Part #GAH-782
$15.95



Click on photo for
larger view
Fender™ or Ampeg™ VINTAGE STYLE GUITAR AMP FLAT HANDLE, BLACK STITCHED SIMULATED LEATHER. Black flat handle strap, made of simulated leather, replacement for Fender™ "tweed" style amps or vintage Ampeg amps (as well as other vintage amps).  Flat, about 0.18" thick.  Black, white stitched.  5-7/8" from post position to post position, total length of strap when completely flat is 8-3/4".   Mounts and screws are included.
Part #GAH-683
$11.95


Click on photo for
larger view
HANDLE MOUNTING KIT - FOR STRAP HANDLES    Complete set of hardware for mounting one leather style strap handle, including machine screws and T-Nuts.    Excellent for repairing strap handles where the old wood screws have pulled out of their holes.   Remove amp chassis, drill new holes with 3/16" or 5mm drill bit, tap in T-Nuts on the underside and mount the handle.    Fits Fender™ "tweed" style amps and some vintage Ampeg™ amps.   Works with our handles GAH-282, GAH-683, GAH-782.

Part #THH-2

$4.95


(Brown)

Click on photo for
larger view
Fender™ STYLE GUITAR AMP HANDLEBrown handle strap, "dogbone" style. Nickel end hooks - replacement for vintage and modern Fender™ amps.   Replacement for Fender™ part number 0990946000.   Does not contain Fender™ logo, so it may be used on other brands of amps.  Used on vintage and modern brownface and blonde tolex amps such as the 59 Bassman, Hot Rod Deluxe, Blues Deluxe, Blues Deville, Super-Sonic etc.   Color of handle strap is brown.   Screws not included - order screw SC-402 separately (takes a pack of 4 screws).
Part #FAH-328
$7.99


(Black)

Click on photo for
larger view
Fender™ STYLE GUITAR AMP HANDLEBlack handle strap, "dogbone" style. Nickel end hooks - replacement for vintage and modern Fender™ amps.  Replacement for Fender™ part number 0990943000.   Does not contain Fender™ logo, so it may be used on other brands of amps.  Used on vintage and modern black tolex amps such as the Hot Rod Deville, Blues Deluxe, Blues Deville, Super-Sonic, etc.   Color of handle strap is black.  Screws not included - order screw SC-402 separately (takes a pack of 4 screws).
Part #FAH-329
$7.99


Click on photo for
larger view

Fender™ "DOGBONE" HANDLE SCREWS
Pack of 4 nickel "Dogbone" handle screws for Fender™ style FAH-328 and FAH-329 handles.   Fits the handle on the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, and Blues Deville, as well as other Fender™ amps of similar design.  Also works with Hiwatt handles and other British design amp handles.   8-32 thread.
Part #SC-402
$1.59
(for a pack of 4 screws)



Click on photo for
larger view
Fender™ Amp Tweed Block Logo  Revive the look of your vintage-style or modern Fender™ amp with a genuine Fender™ amplifier logo.
Fender™ tweed amp logo includes mounting pins and is designed for the following amplifiers:   Pro Junior™, Blues Junior™, JazzMaster™ Ultralight
. Approx. 2 15/16" wide and 7/8" tall.   Original Fender™ part number 0994096000.
Part #FAL-917
$17.95
(each)



Click on photo for
larger view

Fender™ STAINLESS STEEL BACK-PANEL SCREWS
Pack of 6 stainless steel back panel screws suitable for Fender™ reissue "Tweed" series amps. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior and Blues Deville, and 59 Bassman reissue.   3/4" long, 10-32 thread.    Fender™ Original Part number 0015990049.   Pack of 6 screws.   Made of stainless steel, for longer life and no worries about rust or oxidation. These screws are not nickel-plated.
Part #FBP-6
$2.99
(for a pack of 6 screws)


Click on photo for
larger view

Fender™ STYLE STAINLESS STEEL CHASSIS MOUNTING SCREWS WITH KEPS NUTS
Pack of 6 stainless steel chassis mounting screws and matching KEPS nuts for Fender™ original "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender™ original Tweed amps from the 1950s:   Tweed Vibrolux, Tweed Twin, Tweed Tremolux, Tweed Super, Tweed Pro, Tweed Princeton, Tweed Harvard, Tweed Deluxe, Tweed Champ, and Tweed Bassman.   1 1/2" long, 10-32 thread.  Replacement for Fender™ Original Part number 0992095000.  Pack of 6 screws with 6 nuts.   Screws made of stainless steel, for longer life and no worries about rust or oxidation. These screws are not nickel-plated.
Part #FVCM-6
$3.99
(for a pack of 6 screws and 6 nuts)


Click on photo for
larger view

Genuine Fender™ NICKEL-PLATED STEEL CHASSIS MOUNTING SCREWS WITH KEPS NUTS
Pack of 6 nickel-plated steel chassis mounting screws and matching zinc-plated KEPS nuts for Fender™ original "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender™ original Tweed amps from the 1950s:   Tweed Vibrolux, Tweed Twin, Tweed Tremolux, Tweed Super, Tweed Pro, Tweed Princeton, Tweed Harvard, Tweed Deluxe, Tweed Champ, and Tweed Bassman.   1 1/2" long, 10-32 thread.  Pack of 6 screws with 6 nuts.  10-32 X 1-1/2 TH PHS Nickel-Plated Screws. Fender™ Original Part number 0992095000.
Part #FGVC-6
$6.95
(for a pack of 6 screws and 6 nuts)



Click on photo for
larger view
SPEAKER BAFFLE MOUNTING COPPER SCREWS AND STAINLESS STEEL KEPS NUTS (SET OF 4) FOR Fender™ TWEED AMPS.   Set of 4 screws, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nuts with integral washers.   This set of four copper screws connects the speaker baffle board to the cabinet on Fender™ tweed combo amps from the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.   For amps which require additional baffle screws, see the individual screw/nut part number SC-415, below.
Part #SC-415-4
$3.99
(for a pack of 4 screws and 4 nuts)



Click on photo for
larger view
SPEAKER BAFFLE MOUNTING COPPER SCREW AND STAINLESS STEEL KEPS NUT FOR Fender™ TWEED AMPS.  Individual screw, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nut with integral washer.   These screws connect the speaker baffle board to the cabinet on Fender™ tweed combo amps from the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.
Part #SC-415
$1.09
(for a single screw with nut)



Click on photo for
larger view
FENDER SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 12.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 12.
Part #SC-409-12
$12.95
(For a pack of 12 screws with nuts and lock washers)




Click on photo for
larger view
FENDER SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 4.
Part #SC-409-4
$3.50
(For a pack of 4 screws with nuts and lock washers)



Click on photo for
larger view
NICKEL GLIDE FEET, Revisit™, PACK OF 4, SCREWS INCLUDED.  Nickel cover over rubber foot.  15/16" Diameter, 0.33" Tall.   Replacement for glides used on many Fender™ amplifiers, including the blackface and silverface designs.  Set of 4, includes 7/8" wood screws.   Replaces Fender™ part number 0993900000.
Part #SG-239
$4.50
(pack of 4 with screws)


Click on photo for
larger view
GENUINE Fender™ SPHINX GLIDE FEET, PACK OF 4, SCREWS INCLUDED.
  • Set of four metal amplifier cabinet glide feet with rubber bushings and mounting screws.   1-1/4" diameter.  Fender™ part number 0993900000.
  • Fits Cyber-Champ™, Stage™ 100/112SE, Ultimate Chorus, Princeton 65 DSP/650, GE-112 Enclosure, Tone-Master™ Enclosures, Vibro-King™ 212 Enclosure, Pro Reverb, Deluxe 90 DSP/900, Acoustasonic™ 30/SFX II, Stage™ 1000/1600, Super-Sonic™ Series, Bassman™ Enclosures, Concert™, "The Twin", 65 Twin Custom™ 15, Steel King™, Hot Rod Deluxe™ Enclosures, Cyber Deluxe, and Cyber-Twin™ amplifiers.
  • Fits most vintage and modern Fender™ amplifiers, but is larger than the traditional 1" diameter glide on most blackface and silverface amps.

Part #SG-939

$12.99
(pack of 4 with screws)


Click on photo for
larger view

NICKEL GLIDE FEET, Fender™ STYLE, PACK OF 4, 3 PRONG HAMMER TYPE.
Older style 3-prong glide feet for Fender™ amplifiers - metal cap has 3 prongs, and the cap is hammered into the base of the amplifier.

Part #CG-068
$3.95
(pack of 4)


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender™ amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$14.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each


Click on photo for
larger view
FUSE HOLDER, MODERN TWEED Fender™ STYLE,  This fuse holder is similar to the fuse holders used on the Fender Tweed Series Amplifiers back in the late 1940`s to the early 1960`s. This fuse holder will serve as an excellent replacement for any Fender Tweed Amplifier in need of a repair. Amplifiers like the Fender Tweed Champ, Fender Tweed Princeton, Fender Tweed Deluxe, and so on. In the event your original fuse holder cap was lost or damaged, the cap on this fuse holder will fit on your original fuse holder.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-211
$4.95


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, FITS AGC, MDL OR 3AG TYPE FUSE.
Fuse holder, Twist-lock cap.   Low cost, yet high quality.  Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.
Part #FH-193
$2.95


Click on photo for
 larger view

Fender™ Style RCA Plug from Switchcraft
This is the original Switchcraft RCA plug used on vintage Fender amps for speaker, footswitch and reverb in / out connections. For cable up to 0.125" (3.18mm) diameter.
Part #P-3501MX

$0.99



Fender™ Jacks
(Also see our complete line of jacks)



Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$3.39


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$4.79


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

Part #J-L11W
$4.99


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft
Found in vintage Fender
(and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$3.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$4.50


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$4.99


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
Part #J-12B
$4.35


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$5.99


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender™ models.   Isolated switch is normally open - closes when a plug is inserted.
Part #J-13
$10.50


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender™ part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$9.95


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$9.95


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early KUSTOM™ models including the KUSTOM™ 150.  KUSTOM™ part number 030-1006-00. Also used in some Rivera-era Fender models, including the Champ II, original Super Champ, 300PS, Super Twin, and Fender 75. Fender part number 011028. Isolated switch is normally closed - opens when a plug is inserted.
Part #J-13E
$9.95


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender™ part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$9.95


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$9.95


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK. RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Chrome RCA jack.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351
$2.50


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, GOLD, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK. RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Gold plated RCA jack, for the lowest resistance connection possible, including less likelihood of tarnishing.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351G
$3.29


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
Part #W-38
$0.49

Fender™ Jewels



RED

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others.   RED - the standard on Fenders since the 1940's.   Replaces Fender™ part number 0990952000.  *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115R
$2.99


AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender™ part number 0990949000.   *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115Q
$4.65


VIOLET

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Violet - just plain cool!

NOTE:  When illuminated by the bulb, this violet jewel tends to have a hue slanted toward the red spectrum, so some call the look a reddish-pinkish-violet color.   If you like violet/purple and want it toward the warmer end of the color spectrum, this is the jewel for you.   If you like it more bluish - toward the cooler end of the violet color zone, choose the purple jewel JL-115P below instead.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115V

$2.99


PURPLE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Purple - just plain cool!   Replaces Fender™ part number 0990953000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  To the naked eye, this jewel looks blue until you put it in front of the P-47 bulb.   The bulb has an amber tint to it, so the combo makes the jewel glow purple.  When illuminated by the bulb, this purple jewel tends to have a hue slanted toward the blue spectrum, so some call the look a bluish-purple color.   If you like violet/purple and want it toward the cooler end of the color spectrum, this is the jewel for you.   If you like it more reddish - toward the warmer end of the violet color zone, choose the violet jewel JL-115V above instead. IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE INSTEAD OF PURPLE.

Part #JL-115P

$2.99


BLUE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Blue, for the California vibe.   Replaces Fender™ part number 0990959000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  Due to the orange glow of the bulb normally used behind this jewel, the resulting color is not a pure brilliant blue ... head on, it looks like a somewhat washed-out blue, and from a side angle, it looks more like purple.   This is not the fault of the jewel, but rather the combination of the blue color of the jewel combined with the orange glow of the bulb.  If used with a pure white light (such as a white LED), the resulting look is a deep blue color.

Part #JL-115B

$2.99


AMBER

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Amber - jazzy look!   Replaces Fender™ part number 0990950000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JL-115A
$2.99


GREEN

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Green - Texas style!  Replaces Fender™ part number 0990951000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115G
$2.99


CLEAR

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Clear, for the brightest light output.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115C
$2.99


WHITE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  WHITE.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115W
$2.99



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa Boogie™, many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JLK-115
$12.99



Click on photo for
 larger view
PILOT LAMP HOLDER, REPLACEMENT FOR FENDER
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527"    Works with a standard bayonet lamp such as the 6.3V #47 lamp.   Accepts all of the colored jewels on this page.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #LH-124
$3.95


RED

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124R

Starting at
$6.95
Select Option:




BLUE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, blue jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124B

Starting at
$6.95
Select Option:




AMBER

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, amber jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124A

Starting at
$6.95
Select Option:




CLEAR

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, clear jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124C

Starting at
$6.95
Select Option:




GREEN

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, green jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124G

Starting at
$6.95
Select Option:




VIOLET

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, violet jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124V

Starting at
$6.95
Select Option:




WHITE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, WHITE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, white jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124W

Starting at
$6.95
Select Option:




PURPLE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, PURPLE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, purple jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring.

The purple color on this lamp jewel is toward the cool end of the purple/violet range - so it has more of a bluish tint to the purple color.  In fact, the lamp jewel cover looks blue if the light is not turned on.  If you prefer a warmer tone (toward the red/pink end of the scale), choose the FLA-124V violet lamp assembly.  Not available with the LED option, as the color when using an LED is a deep blue rather than purple.
Part #FLA-124P

$6.95

Fender™ Lamps

Click on photo for
larger view
NEW! BRIGHT LED INDICATOR LAMP, REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE

Drop-in replacement long life LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb.  If  less brightness is desired, install a series resistor feeding the lamp socket (1/4 or ½ watt, value between 560Ω and 1KΩ).  Sold individually.  Add new pizzazz to your amp with a brighter lamp on the front panel, and one which pays for itself in the long run with exceptionally long life.   Works on 6 volts, AC or DC.   Color is warm white.   NOTE: NOT RECOMMENDED FOR USE WITH THE PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.     ALSO, NOT FOR USE WITH THE LH-110 LAMP HOLDER.
Part #LED-47
$2.95


Click on photo for
larger view
NEW!  COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP, REPLACES #47 BULB, T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life BLUE OUTPUT LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   (Not for use, however, with the LH-110 lamp holder). The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue.  When used with different colored jewels, creates a different color and a different vibe!  See the results below:

Jewel Color

Resulting Look

Brightness Level

JL-115A Amber Yellow High
JL-115B Blue Medium Blue High
JL-115C Clear Crystal Blue High
JL-115G Green Light Green High
JL-115P Purple Deep Blue Medium
JL-115R Red Orange Medium
JL-115V Violet Bluish Violet Low
JL-115W White Baby Blue Low

Part #LED-47B

$2.95


Click on photo for
larger view
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.  6.3V
Part #P-47
$0.99

Fender™ Pots



Pots for Original Tweed Amps from 1947-1959
(Not Reissues)

For complete Fender™ pot sets click here.




Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender™ and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$2.95
Select Option:

Quantity:



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT, 3M & 10M REVERSE AUDIO
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender™ and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$3.95
Select Option:

Quantity:


Click on photo for
larger view
POT - 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with rotary SPST (two terminal) switch.  Replacement for the volume control with AC switch on the 5C1 Champ, 5E1 Champ, 5F1 Champ, 5B3 Deluxe.   Replacement for the tone control with AC switch on the 5B2 Princeton, 5C2 Princeton, and 5D2 Princeton.  For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-1MA-RS
$4.95

Fender™ Power Cords



Click on photo for
larger view
SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or 7.9mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13 amps maximum.  Used only in North America.
Part #PC-163SJT15
$19.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL
$9.95


Click on photo for
larger view
15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301
$19.95


Click on photo for
larger view
Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99

Fender™ Switches
(Also see our complete line of switches)



Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling.   Carling toggle switches are used in Fender amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view
SWITCH, CARLING SPST TOGGLE Original replacement for 60s and 70s Fenderpower and standby switches.   Made by Carling
Part #SW-495
$6.95


Click on photo for
larger view
SWITCH, CARLING SPDT 2-POSITION TOGGLE SWITCH, Original Carling replacement for 60s and 70s Fenderground switch.
Part #SW-494
$9.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  3 SWITCHES: Two CarlingSPST toggle switches and one CarlingSPDT toggle switch. Original replacement for 60s and 70s Fender™ Amps (Power, standby, and ground switches). Change the power,  standby, and ground switches on your Fender™ at the same time, and save!
Part #SW-4945
$20.50


Click on photo for
larger view
FENDER™ 59 BASSMAN REISSUE STANDBY SWITCH   CarlingSPST toggle switch with 1/4" push-on connectors.   Original Fender part number 0036572000.   Mounting nuts are included.
Part #SW-514
$9.95

Carbon composition resistors are made by mixing carbon particles with a binder molded into a cylindrical shaped, and then baked.  Standard "classic" resistor used in vintage amplifiers - Fender™ Blackface and Silverface are prime examples. Fender™ Carbon Comp. Resistors 1/2 Watt
RESISTOR, CARBON COMPOSITION.    New production, 1/2 watt, 3.6mm x 9.5mm.  Lead diameter 0.7mm.  Total length end-to-end 65mm.   Resistors below 100K are 5% tolerance, resistors of 100K and higher are 10% tolerance.  Choose resistor value in Options.

Part #CC1/2-XX

$0.89

Select Option:


Quantity:



Click on photo for
larger view
Revisit™ RESISTOR LEAD FORMING TOOL
You know you want one!   Bend resistors to fit in PC boards, perf boards, or turret boards exactly, uniformly.  Makes your repairs and kit builds look completely professional.   Works great on vintage Fender™ Blackface and Silverface models.   One side is for 1/2 watt resistors, the other side fits 1/4 watt resistors.   Also perfect for diodes.  Slots for radial lead resistors run along the length of the high impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical  bends without stressing the leads.
Part #LF-010
$7.50


Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2022 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
