Fender™ Vintage
Silverface Parts

We carry a complete selection of Fender™ Amplifier Parts to restore your original vintage silverface amp from 1968-1983.

Jacks    Jewels    Handles   Hardware    Knobs    Lamps    Capacitor Cover

Corners    Capacitors   Capacitor Sets   Pots    Pot Sets    Power Cords

Switches    Plugs & Harnesses    Resistors    Fuse Holders     Reverb Parts

 Transformers
     Wheels/Casters    Refurb & Mod Kits     Vibrato Parts


>

Fender™ Hardware
(Also see our complete line of hardware)



Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket
Part #TS-370
$3.99


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield which fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

Part #TS-325S
$1.69


Click on photo for
larger view

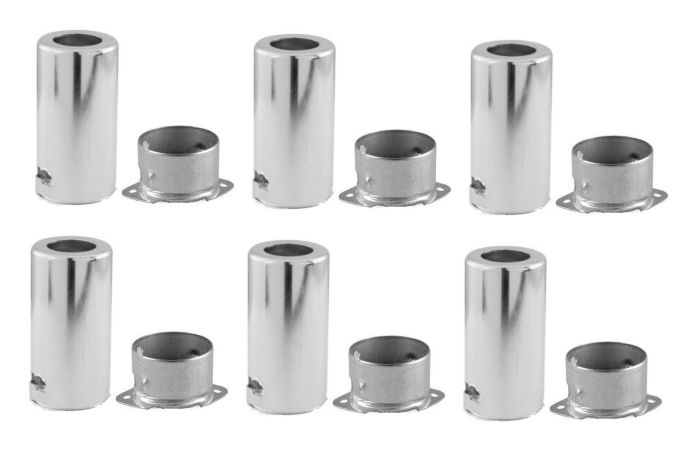

TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   This is a great kit to replaced all 6 of the tube shields in many Fender™ amps with 6 preamp tubes.  Shield and base only - socket not included.

Part #TS-325S-6
$12.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6
$3.99
(Set of 6 rings)


Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Fender™ and many other amps.     1 1/2" mounting centers.  Made by Belton.  Fender part number 099072500.
Part #TC-142
$1.79


Click on photo for
larger view
Fender™ Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket replacement kit.    For vintage Fender™ amps (NOT Reissues!) from the original blackface and silverface eras which have two power tubes (6L6 or 6V6).   Contains two phenolic 8-pin sockets, two "bear trap" retainers, four mounting screws, two 470 ohm screen grid resistors (Metal-Film Flameproof for safety), and two carbon composition 1500 ohm control grid resistors.   Princeton and Princeton Reverb do not need the resistors.   Perfect for Vibrolux Reverb, Vibroverb, Super Reverb, Deluxe Reverb, Pro Reverb, Bassman, Bandmaster Reverb, Tremolux, etc.
Part #FPTSK-2
$13.95


Click on photo for
larger view
Fender™ Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket replacement kit.    For vintage Fender™ amps (NOT Reissues!) from the original blackface and silverface eras which have four power tubes (6L6).   Contains four phenolic 8-pin sockets, four "bear trap" retainers, eight mounting screws, four 470 ohm screen grid resistors (Metal-Film Flameproof for safety), and four carbon composition 1500 ohm control grid resistors.   Perfect for Twin Reverb, Showman and Dual Showman, Quad Reverb, Bassman 100, etc.
Part #FPTSK-4
$26.95


Click on photo for
larger view
OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power tube or rectifier with a broken keyway, here is a great solution. By cleaning the remainder of the broken keyway from the tube base and properly installing this keyway replacement (a little dab of silicone sealant works great to hold it in place), your tube can safely be reinstalled into your equipment.   These great tube-savers are sold in sets of 2.   Note:  When using an adhesive to secure the keyway to the tube base, DO NOT use a water-based glue.   Silicone sealant (RTV) which is acryllic-based or butyl-based is fine.   Latex sealant or hot-glue is NOT.
Part #OTK8-2
$6.99
(for a set of 2 tube keyways)


Click on photo for
larger view
OCTAL TUBE BASE, SOLD INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state rectifiers, bias probes, etc.   8-pin plug with room inside the base for circuitry and wiring.  Sold individually.
Part #OTB-100

$3.99 ea


Click on photo for
larger view
TUBE SOCKET, OCTAL 8-PIN, commonly used with the OTB-100 Octal Tube Base to build bias probes, tube socket savers, tube extenders, etc.   This socket has no mounting bracket.
Part #TS-8-810
$3.50


Click on photo for
larger view
PHENOLIC TUBE SOCKET FOR OCTAL TUBES.  EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others.    Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1" to 1 1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.  Unlike some phenolic tube sockets on the market, this one fits the 1" hole found in most vintage Fenders.
Part #TS-8-600
$2.99


Click on photo for larger view

CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET, crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting centers, 1" to 1 1/4" chassis hole.  Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.  Click here for additional specs.   Fender part number 0990724000, or 023580.
Part #TS-8-807W

$3.95


Click on photo for
larger view
FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.        Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.  Fender part number 0023606049.
Part #TS-9-700
$2.69


Click on photo for
larger view
6-PACK OF FENDER STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.      Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender tube shields.   Used in Fender vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall designs.   Pack of 6 tube sockets.  Mounting screws not included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube sockets).  It is also possible to use 1/8 inch pop rivets to mount these sockets.  Replaces Fender part number 0023606049.
Part #TS-9-700-6
$12.99
(for 6 sockets)


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.      Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-601
$2.49


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.      Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-610
$2.49



Click on photo for
larger view

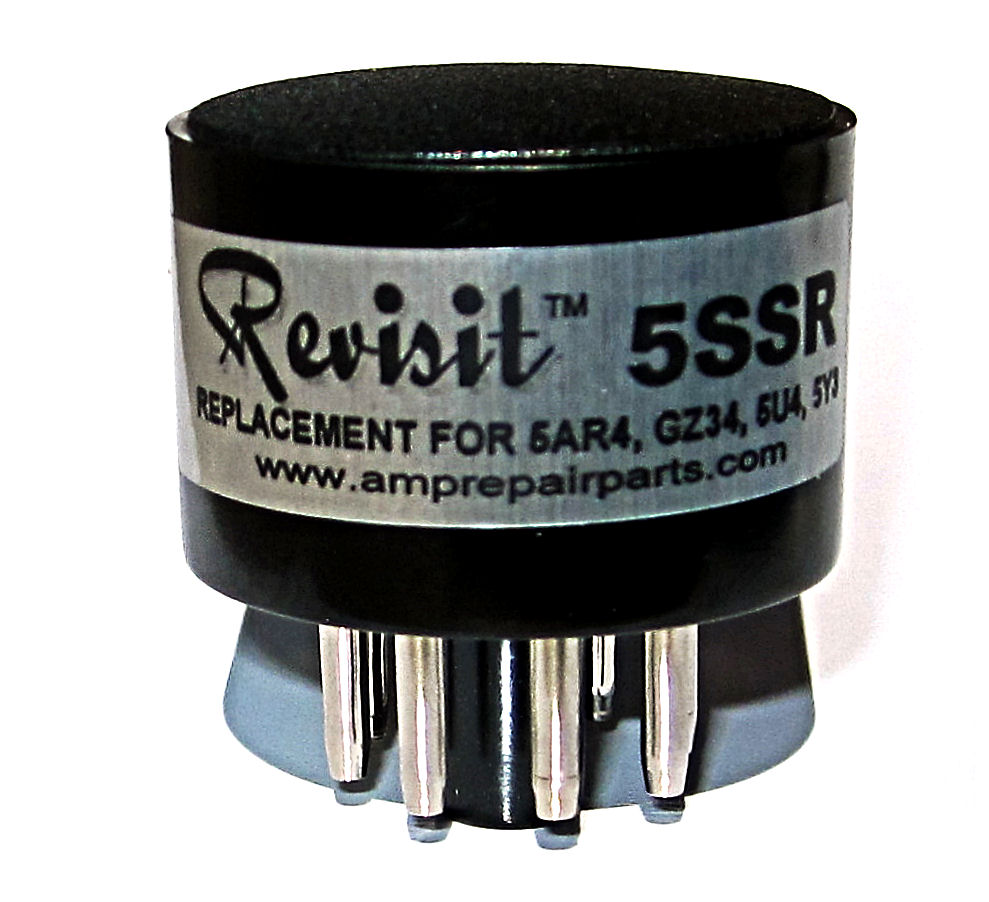

Revisit™ Solid-State Tube Rectifier Replacement.
Replaces 5AR4, GZ34, 5U4, 5Y3 rectifier tubes.  Use when less "sag" is desired in the power supply.  1.31"  diameter, 0.89" tall (not including pins and center post).

NOTE! Because there is no warm up of a rectifier tube when using this solid state device, it is absolutely necessary that a standby switch is used in conjunction with this device.   Do not install in an amplifier that does not have a standby switch - always use the standby switch in amps so equipped when using the 5SSR.
Part #5SSR

$12.95

Fender™ Style Capacitors


CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance ±5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

Part #C-SM-XX
Starting at
$0.80
Select Option:


Quantity:


CAPACITOR, POLYPROPYLENE, RADIAL.
  Similar to orange drop style, rated at 630 volts.  Values from 0.001uF to 0.47uF   Radial leads.  (See Options)


Part #C-PR-XX
Starting at
$0.30
Select Option:


Quantity:


CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 1.0uF.  Axial Leads.   (See Options)

Part #C-MF-XX
Starting at
$0.90
Select Option:



Quantity:



Click on photo for
larger view
Fender™ Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter, bias filter and preamp cathode bypass electrolytic capacitors for most amps from the blackface and silverface eras.
Prices starting at $32.95 Click here to see the full selection of Fender capacitor kits.
  F&T Premium Capacitors

Click on photo for
larger view
CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 70 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:

  Sprague Premium Cathode Bypass Axial Capacitors

Click on photo for
larger view
SPRAGUE AXIAL 5uf/50V  Replacement for the 5uF/25V or 5uF/50V axial cathode bypass capacitor commonly found in the vibrato circuit of vintage Fender silverface amps from the 1970s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-5-50

$3.95


Click on photo for
larger view
SPRAGUE AXIAL 25uf/50V  Replacement for the 25uF/25V axial cathode bypass capacitors commonly found in vintage Fender amps from the 1950s through the 1980s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-25-50

$3.95

  Ruby Gold Premium Capacitors

Click on photo for
larger view

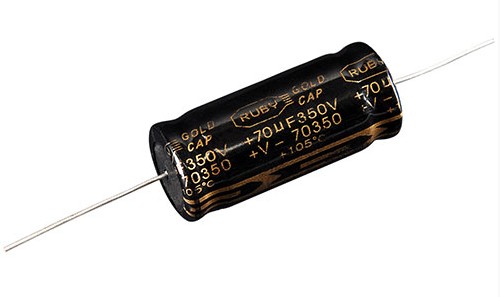

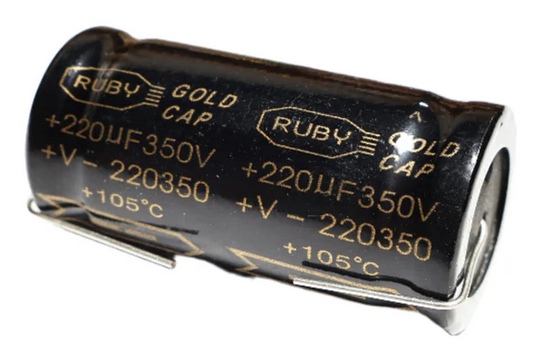

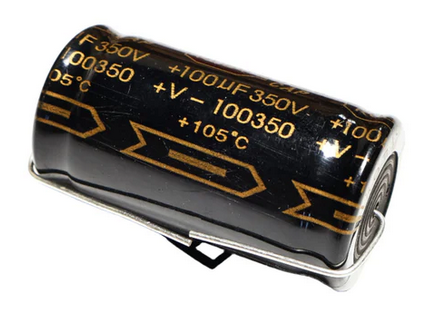

CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Ruby Gold capacitors are used by many original amplifier manufacturers in Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105° C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.   Ideal as replacement in vintage audio and guitar amplifiers.  Values available include 50uF/50V and 220uF/350V.   Choose capacitor value under the Select Option box.
Part #RG-CAP-XX
Starting at
$1.00
Select Option:


Quantity:

  Tube Amp Doctor Premium Capacitors


Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 8uF-475V

12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.


Part #TAD-CAP-8-475
$4.35
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 16uF-475V

12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC


Part #TAD-CAP-16-475
$4.50
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$4.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor  220uF-350V

25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC


Part #TAD-CAP-220-350
$11.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 25uF-25V

6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps


Part #TAD-CAP-25-25
$1.45
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 5uF-50V

5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit of many Fender amps


Part #TAD-CAP-5-50
$2.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 47uF-500V

22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC


Part #TAD-CAP-47-500
$7.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 70uF-350V

18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC


Part #TAD-CAP-70-350
$7.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$7.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 50uF-100V

8.0mm diameter x 21.0mm Length
Rated
105° C for Long Life
50uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-50-100
$3.30
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 80uF-100V

9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-80-100
$4.60
In stock

  MOD Axial Capacitors

Click on photo for
larger view
MOD CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Mod™ Electronics electrolytic capacitors offer long-lasting performance at the highest degree. These capacitors are designed with tube amplifiers in mind; each capacitor is rated at 105°C. This temperature rating provides a highly-stable capacitance in any device, be it vacuum tube or solid state. The Mod™ electrolytic capacitor line features capacitance values that are common in many vintage amplifiers.   Values available include 8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.   Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX
Starting at
$0.79
Select Option:


Quantity:

  Illinois Capacitor Electrolytic Capacitors

Click on photo for
larger view
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years later continues to produce benchmark quality capacitors for industry.     Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American capacitor manufacturer tracing its roots to 1909.  Values available include 2.2uF/50V, 2.2uF/100V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.
Part #IC-CAP-XX
Starting at
$0.99
Select Option:


Quantity:

  Axial Electrolytic Capacitors - Other Brands

Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Values available include the following:
25uF/25V 100uF/25V 220uF/25V 2200uF/25V
100uF/50V 0.68uF/50V 25uF/50V 50uF/50V
2200uF/50V 47uF/63V 70uF/100V 100uF/100V
220uF/100V 8uF/150V 10uF/160V 100uF/350V
220uF/350V 4.7uF/450V 8uF/450V 10uF/450V
16uF/450V 22uF/450V 33uF/450V 47uF/450V
16uF/475V 20uF/500V 20uF/600V 80uF/500V

Choose capacitor value under the Select Option box.
Part #EL-CAP-XX

Starting at
$1.00
Select Option:


Quantity:


Click on photo for
larger view

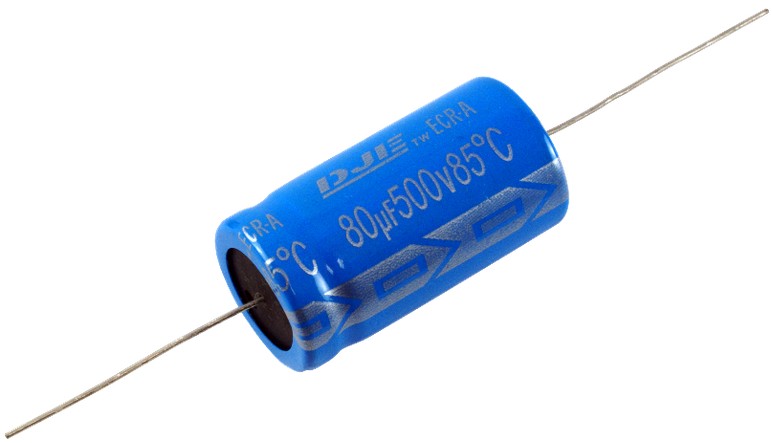

CAPACITOR, AXIAL LEAD ELECTROLYTIC, DJE.

80uF/500V.   Commonly used in Fender amps from 1962-present.  Rated 85 degrees C, -10%/+20% tolerance.

Part #EL-CAP-80/500

$4.95


Click on photo for
larger view
CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 20uF/20uF/20uF/20uF @ 475V,  1 3/8" D X 2" H.  Twist-lock tabs for mounting to chassis.    Replacement for Fender Princeton and Princeton Reverb main filter capacitor on blackface and silverface amps from the 1960s and 1970s.    Also may be used for Fender Champ, Vibro-Champ and Bronco amps from the same era (one extra 20uF section unused on these amps.     Rated 85 degrees C, -10%/+50% tolerance.
Part #C-EC20X4-475
$46.99

Fender™ Transformers

Click on photo for
larger view
CHOKE, Revisit™ Filter Choke for medium size Fender™ amps.   Replacement filter choke for Fender Deluxe, Deluxe Reverb, Vibrolux and Vibrolux Reverb.  Replaces Fenderpart number 125C3A & 022707.   Inductance 4H, +/- 15%, DC current 50mA.  Vacuum impregnated with polyurethane varnish for quiet and long life operation.  For dimensions and technical specifications, click here.
Part #FC-194A
$16.95


Click on photo for
larger view

CHOKE, Revisit™ Filter Choke for most larger Fender™ amps with 6L6 power tubes.   Replacement filter choke for Fender Bassman, Bandmaster, Concert, Showman, Dual Showman, Pro Reverb, Super Reverb, Twin Reverb, Vibroverb, etc.  Not used with the Vibrolux - see the FC-194A choke for the Vibrolux.  Replaces Fenderpart number 125C1A & 022699.   Inductance 4H, +/- 15%, DC current 90mA.  Vacuum impregnated with polyurethane varnish for quiet and long life operation.  For dimensions and technical specifications, click here.
Part #FC-194B
$24.95



Click on photo for
larger view
TRANSFORMER, Revisit™ Fender™ REVERB DRIVER.   For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc.   Equivalent to Fender™ #125A20B & #022921.   For vintage Mesa-Boogie™ models, including vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber, Maverick, Lonestar Special, and many others .    Mesa Boogie™ part number 550185.  10" cut leads, X-Mount with 1 3/4" mounting centers.  Input impedance 14.5K ohms, output impedance 4 ohms.
Part #RT-921
$15.95



Click on photo for
larger view

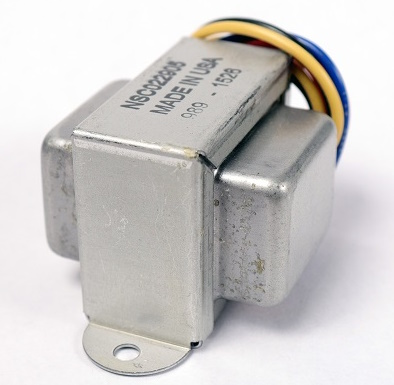

Revisit™ OUTPUT TRANSFORMER, FENDER.  Replacement for Fender™ Champ, VibroChamp, Champion 600 and Bronco amps.  Equivalent to #125A35A & #022905.  X-Mount with mounting centers at 2 3/8".

Part #TF22905
$312.95

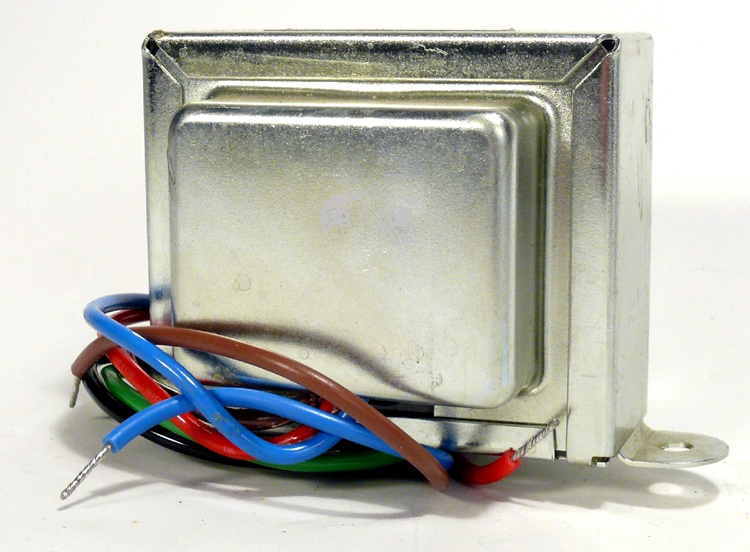

Revisit™ OUTPUT TRANSFORMER, FENDER.  Replacement for Fender™ Deluxe, Deluxe Reverb.   Equivalent to #125A1A & #041318.  X-Mount with mounting centers at 3 1/4".  25 Watts, 8 ohms.

Part #TF41318
$34.95



Click on photo for
larger view
FENDER OUTPUT TRANSFORMER Replacement for Fender™ Super Reverb, Concert and Tweed Bassman Combo amps.  Equivalent to #125A9A & #022855.  Original Fender part.  Click here for mounting dimensions.

Part #
TF22855
$73.95


Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, MEDIUM, SET OF 4.  OD 7/16", ID 3/16"  Typically found on the back panel of some Fender™ Blackface/Silverface vintage amps and the reissues of those amps.   Larger than the CW-401-4 - Fender™ was not consistent in which washers they used on back panels over the years.  Set of 4 washers.
Part #CW-501-4
$0.99
(for a set of 4 washers)



Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, MEDIUM, SET OF 8.  OD 7/16", ID 3/16"  Typically found on the back panel of some Fender™ Blackface/Silverface vintage amps and the reissues of those amps.   Larger than the CW-401-4 / CW-401-8 sets - Fender™ was not consistent in which washers they used on back panels over the years.  Set of 8 washers.
Part #CW-501-8
$1.79
(for a set of 8 washers)



Click on photo for
larger view
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113
$1.39
(Pack of 5 terminals)





Click on photo for
larger view
TERMINAL STRIPS, 6 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   Center post for mounting to chassis.   All 6 terminals are isolated from ground.  Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
Part #TS-825
$2.99
(for a set of 2 terminal strips)



Click on photo for
larger view
TERMINAL STRIPS, 7 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   End terminals on each strip are the mounting lugs, so they become a ground lug if attached to a metal chassis.   Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
Part #TS-712
$3.69
(for a set of 2 terminal strips)


BLACK FENDER HANDLE
Click on photo for
larger view
ORIGINAL BLACK Fender™ GUITAR AMP HANDLE.  Black amplifier handle with vinyl sleeve over steel strap and one-screw mounting nickel-plated end caps.   Includes mounting hardware (two screws and T-nuts).  Introduced on Blonde, Brown, and Blackface™-era Fender™ amplifiers.  Used on 65 Twin Reverb™, 65 Deluxe Reverb™, 65 Super Reverb™, 65 Princeton Reverb™, 64 Vibroverb Custom, Custom Vibrolux™, Vibro-King™ 212 Enclosure, Blues Junior™, Pro Junior™, Acoustasonic™ Jr. DSP, Acoustasonic 30, Acoustasonic SFX II, Bassman™ 25, Bassman 60, Jazzmaster Ultralight™ Enclosure, Princeton 650™, Cyber Champ™, Rumble™ 112, Rumble 2x8, Super-Sonic™ 100 Head, Super-Sonic Twin, Super Champ™ X2/XD, and Bullet 15 DSP amplifier.  Fits most vintage and modern amplifiers.  7 3/4"  center to center screw placement.  9 1/4" handle length without end caps.   Original Fender™ part number 0990947000.
Part #FAH-332
$14.99


Click on photo for
larger view
GUITAR AMP HANDLE - SIMILAR TO Fender™ HANDLEBlack handle strap, metal reinforced.  Nickel metal caps - may be used as replacement for vintage and reissue Fender™ amps.   Handle strap is 7/8" wide.   Designed for screw holes set 7 3/4 inches apart.   Looks similar to the original Fender™ part number 0990947000.   Screws and T-Nuts included.
Part #FAH-261
$8.49


Click on photo for
larger view

Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™ style FAH-332, FAH-261 handle.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

Fender™ EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™ style FAH-332, FAH-261 handle.   Used for vintage Fender™ style strap handles used on speaker cabinets, such as Bandmaster, Bassman, Showman, and Blonde or Blackface Tremolux.  1-1/4" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 1-1/8".  See Data Sheet here
Part #SC-403A
$0.99
(for a pack of 2 screws)




Click on photo for
larger view

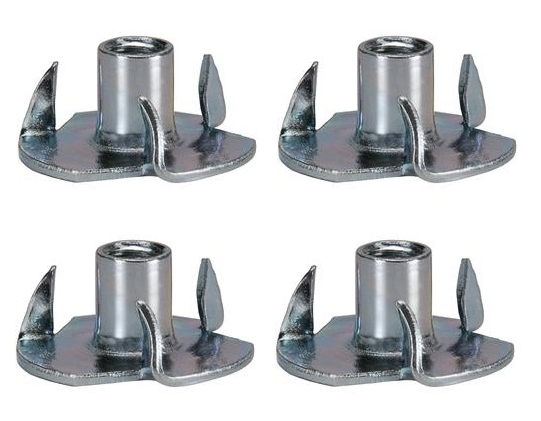

Premium-quality steel T-nuts feature three razor-sharp teeth and 10-32 fine thread.  Works with all 10-32 screws - recommended for mounting many guitar amp handles.   Pack of 4 nuts.
Part TNUT-1032
99 cents
(pack of 4)




Click on photo for
larger view
Premium-quality steel T-nuts feature six razor-sharp teeth and extra-long barrels.  1/4"-20 coarse thread. The result is a T-nut that goes in straighter and holds tighter than ordinary T-nuts. As a bonus, the 6-prong design ensures that your T-nut will stay in place even when working at the edge of a driver hole. We guarantee that these are the finest T-nuts that you will find on the market. Recommended hole size is 1/4", thread is 10-32, barrel length is 11mm, or about 7/16".     Pack of 4 nuts.
Part 6-TNUT-1032
$1.59
(pack of 4)



Click on photo for
larger view
Fender™ AMP "TAIL" LOGO.  New original Fender™ reproduction.   Fender™ logo with "tail", cast metal.   Similar to the original logo found on blackface amps from the 1960s.  Used on the upper left corner of the grill cloth on most blackface era Fender™ amps.  Approx. 4 1/2" wide, the "F" in the logo is about 2 1/2" inches tall.  Original Fender™ part number 0994093000.   Mounting screws are included.
Part #FAL-912
$17.95
(each)




Click on photo for
 larger view
Black Logo Mounting Screws
Set of 4 logo mounting screws.
These are #5 x 7/16" black oxide screws, set of 4.    Fit the AL-921 Ampeg logo, and the Fender FAL-912 logo.
Part #LS-504
$0.99
(for a set of 4 screws)


Click on photo for
larger view
Fender™ Nickel Chassis Straps - Large (5") for Twin, Bassman, Super, Showman, Vibro-King, Pro, Pro Reverb, Prosonic, etc.  Includes 2 straps, no screws or nuts.  Screw spacing is 5 inches center-to-center, strap length is 5 5/8" end-to-end.
Part #FCS-5-2
$7.95
(Two chassis straps, screws and nuts NOT included)




Click on photo for
larger view
Fender™ Nickel Chassis Straps - Medium (4") For Deluxe, Vibrolux, etc.   Includes 2 chassis straps, no screws or nuts.  Screw spacing is 4 inches center-to-center, strap length is 4 5/8" end-to-end.
Part #FCS-4-2
$7.49
(Two 4 in. chassis straps, screws and nuts NOT included)



Click on photo for
larger view
Fender™ Nickel Chassis Straps - Small (3")  For Champ, Music Master Bass, etc.  Includes 2 chassis straps, no screws or nuts.  Screw spacing is 3 inches center-to-center, strap length is 3 5/8" end-to-end.
Part #FCS-3-2
$6.99
(Two 3 in. chassis straps, screws and nuts NOT included)



Click on photo for
larger view
Fender™ Chassis Bolt Set - Works with all Fender Nickel or Revisit Chassis Straps for Blackface,  Silverface through 1975, and reissued Blackface models.   Includes 4 bolts and 4 matching nuts with integral lock washers.  Fender part number 0022236049.
Part #FCB-4
$5.95
(
4 bolts, 4 nuts - complete set for one amp)



Click on photo for
larger view
Fender™ Chassis Bolt Set - Works with all Fender™ Nickel Chassis Straps on 1976+ and early 80s (ultralinear) Silverface models.   Includes 4 bolts 8-32, 1 1/2" long.  Stainless steel.
Part #FNCB-4
$1.95
(
4 bolts - complete set for one amp)



Click on photo for
larger view
KEPS NUT, ZINC, 8-32 THREAD, SET OF 4 NUTS.   Typically used on Fender™ Nickel Chassis Straps bolts, and for speaker mounting.   Works with all 8-32 screws.   Captive lock washer keeps nut tight.   Zinc coating retards oxidation.   Sold in a pack of 4.
Part NT-832-4
$0.69
(pack of 4 nuts)



ORIGINAL Fender™ THUMBSCREWS  Fender™ piggyback thumbscrews, holds head to cabinet on Showman, Bandmaster, Tremolux, Tone Master™ 212, Super-Sonic™ 212 and Super-Sonic 60 speaker enclosures and other head/cabinet sets. Heavy nickel plated steel, heavy knurling on knob. Set Of Two. Genuine Fender™ part number 0990720000.
Part #TS-251
$12.95
(Set of 2 Thumbscrews)



Fender™ TILT-BACK LEG SCREWS AND CAPTIVE NUTS
Pack of 2 stainless steel tilt-back leg screws, 1-1/2 inches long, along with hex nuts with special nylon inserts.   Used on tilt-back legs of larger Fender combo amps and speaker cabinets.  Replaces Fender part numbers 021998 and 022277.
Part #SCW-403T-2
$1.79
(for a pack of 2 screws and
2 nuts)



Fender™ TILT-BACK LEG STOP SCREWS
Pack of 2 stainless steel tilt-back leg stop screws, 3/4 inches long.   Used on the tilt-back legs stops of larger Fender combo amps and speaker cabinets.
Part #SC-506-2
$0.99
(for a pack of 2 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Combo Series).     Set of 4 screws, stainless steel, 1 1/4 inches long, Phillips, oval head.  This set of four screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.   Use with either the CW-401 or CW-501 cup washers.
Part #SC-401-4
$0.99
(for a pack of 4 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Combo Series).     Set of 8 screws, stainless steel, 1 1/4 inches long, Phillips, oval head.   This set of eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.  Set of 8 completely replaces all of the screws on the two back panels.  Use with either the CW-401 or CW-501 cup washers.
Part #SC-401-8
$1.79
(for a pack of 8 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR CLOSED BACK CABINETS (SUCH AS Fender™ Bassman, Bandmaster, etc ).  Set of 8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with either the CW-400 or CW-501 cup washers.
Part #
SC-400-8
$1.99
(for a pack of 8 screws)





Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 16) FOR CLOSED BACK CABINETS (SUCH AS Fender™ Bassman, Bandmaster, etc ).  Set of 16 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with either the CW-400 or CW-501 cup washers.
Part #
SC-400-16
$3.69
(for a pack of 16 screws)





Click on photo for
larger view
SATIN BLACK BACK PANEL STAINLESS STEEL SCREWS (SET OF 4)  FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 4 screws, satin black stainless steel, 1 1/4 inches long, Phillips, oval head.  This set of four screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and todays reissues of those BF and SF May be used with the BCW-10 cup washers.   See data sheet
Part #SC-405-4
$0.99
(for a pack of 4 screws)




Click on photo for
larger view
SATIN BLACK BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 8 screws, satin black stainless steel, 1 1/4 inches long, Phillips, oval head.   This set of eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.  Set of 8 completely replaces all of the screws on the two back panels.  May be used with the BCW-10 cup washers.  See data sheet
Part #SC-405-8
$1.89
(for a pack of 8 screws)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING STAINLESS STEEL SCREWS AND WASHERS (SET OF 6) FOR Fender™ Blackface and Silverface Series.    Set of 6 screws with oval Philips heads, stainless steel #8, 1 3/4 inches long, and matching set of 6 stainless steel cup washers.   This set of six screws w/washers fastens the speaker baffle board to the cabinet on Fender™ blonde, brownface, blackface and silverface combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.   Replaces Fender part number 011678.
Part #SC-407-6
$2.29
(for a pack of 6 screws and washers)




Click on photo for
larger view
Fender™ GRILLE SCREWS (SET OF 4) FOR BROWN, BLONDE, BLACKFACE AND SILVERFACE HEADS.  Set of 4 screws, Stainless Steel, 1 3/4" long, Phillips, oval head, with matching cup washers. Fits all Fender™ vintage heads such as Bassman, Bandmaster, Showman, Dual Showman, Tremolux,etc and holds the grille to the front of the cabinet.
Part #FGS-4
$1.49
(for a pack of 4 screws and 4 washers)



Click on photo for
larger view

Fender™ Style Stainless Steel Corner Screws, Set of 8
Oval-head Phillips corner screws for counter-sunk amp corners, such as the FVC-2L and FVC-3 Fender™ corners.   3/4 inches long, Phillips head, stainless steel for long rust-free life.
Set of 8 screws, for four FVC-2L corners.

Part #SC-406-8

$2.99
(for a pack of 8 screws)



Click on photo for
larger view

Fender™ Style Stainless Steel Corner Screws, Set of 12
Oval-head Phillips corner screws for counter-sunk amp corners, such as the FVC-2L and FVC-3 Fender™ corners.   3/4 inches long, Phillips head, stainless steel for long rust-free life.
Set of 12 screws, for four FVC-3 corners.

Part #SC-406-12

$4.29
(for a pack of 12 screws)



Click on photo for
larger view

Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™ style FAH-332, FAH-261 handle.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

Fender™ EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™ style FAH-332, FAH-261 handle.   Used for vintage Fender™ style strap handles used on speaker cabinets, such as Bandmaster, Bassman, Showman, and Blonde or Blackface Tremolux.  1-1/4" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 1-1/8".  See Data Sheet here
Part #SC-403A
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

Fender™ SELF-TAPPING SCREWS
Used in vintage Fender™ blackface and silverface amps for a variety of tasks.   Used to attach capacitor pans, tube sockets, transformers on smaller amps, chokes, etc.   Pack of 12 screws.  Replaces Fender™ part number 029913.
Part #SC-410-12
$3.50
(for a pack of 12 screws)




Click on photo for
larger view
FENDER SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 12.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 12.
Part #SC-409-12
$12.95
(For a pack of 12 screws with nuts and lock washers)




Click on photo for
larger view
FENDER SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 4.
Part #SC-409-4
$3.50
(For a pack of 4 screws with nuts and lock washers)



Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view

Vintage Fender™ Combo Style Style Blackface and Silverface 2-Leg Wrap-Around Cabinet Corner with Lip - Bright Nickel Plated Steel (Not designed for the Blackface or Silverface REISSUES.  NOT for vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, etc.  These corners fit most vintage Fender combo amps.)   Recreation of the vintage Fender™ corners with counter-sunk screw holes.  For 1/2" radius corners.  Set of 4, includes screws.
Part #FVC-2L

$5.99
(Set of 4 corners with screws)



Click on photo for
larger view

Vintage Fender™ Style Blackface and Silverface 2-Leg Wrap-Around Cabinet Corner with Lip - Bright Nickel Plated Steel (Not designed for the Blackface or Silverface REISSUES.   NOT for vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, Tremolux, etc.  These corners fit most vintage Fender combo amps.)   Recreation of the vintage Fender™ corners with counter-sunk screw holes.   For 1/2" radius corners.  Set of 2, includes oval-head tapered stainless screws.
Part #FVC-2L-2

$3.19
(Set of 2 corners with screws)



Click on photo for
larger view

Vintage Fender™ Style 2-Leg and 3-Leg Corners with counter-sunk screw holes.   Bright nickel-plated steel.   Recreation of the vintage style corners with counter-sunk screw holes from the 60s and 70s.  Two FVC-2L type corners with two legs and a lip, and two FVC-3 corners with three legs.  Typically used around the bottom of the Bassman Ten (or Bassman 10) Combo Amp from 1972 to 1982.  Set of 4 corners total - two FVC-2L for the front, and two FVC-3 for the back. Includes oval-head tapered stainless screws.
Part #FVC-23

$6.50
(Set of 4 corners with screws)




Click on photo for
larger view

Revisit™ Vintage Style 3-Leg Corners with counter-sunk screw holes, set of 2.   Bright nickel-plated steel.   Recreation of the vintage style corners with counter-sunk screw holes from the 60s and 70s.    These corners have 3 legs (two long, one short), for 1/2" radius corners with solid material on all three sides (no recesses).   Typically used as the rear bottom corners on the Fender Bassman Ten Combo, the Deluxe 112, etc.  Set of 2, includes oval-head tapered stainless screws.
Part #FVC-
3

$3.50
(Set of 2 corners with screws)




Click on photo for
larger view

Fender™ Style Stainless Steel Corner Screws, Set of 8
Oval-head Phillips corner screws for counter-sunk amp corners, such as the FVC-2L and FVC-3 Fender™ corners.   3/4 inches long, Phillips head, stainless steel for long rust-free life.
Set of 8 screws, for four FVC-2L corners.

Part #SC-406-8

$2.99
(for a pack of 8 screws)



Click on photo for
larger view

Fender™ Style Stainless Steel Corner Screws, Set of 12
Oval-head Phillips corner screws for counter-sunk amp corners, such as the FVC-2L and FVC-3 Fender™ corners.   3/4 inches long, Phillips head, stainless steel for long rust-free life.
Set of 12 screws, for four FVC-3 corners.

Part #SC-406-12

$4.29
(for a pack of 12 screws)



Click on photo for
larger view
Black Oval-Head Corner Screws, Set of 8
Black oval-head Phillips corner screws for counter-sunk amp corners.   Works with Vox black plastic corners, and Fender style black metal corners with recessed screw holes.   #6 x 3/4 inches long, Phillips head, black oxide.  Screws are beveled under the head for use in countersunk holes.   Length measured from the edge of the head to tip of the screw.
Set of 8 screws.
Part #SC-411-8
$1.50
(For a set of 8 black oval-head Phillips screws)


Click on photo for
larger view
Fender™ Style Flat Mount 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.   Specifications found here.   Note:  Mounting screws NOT included.
Part #FCW-4F
$24.95
(Set of 4 casters)

NOT SOLD OUTSIDE the USA




Click on photo for
larger view
Fender™ Style Pop-Out 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.  The same type of removable caster wheels used on Fender™ amps since the 1960s.   Note:  Mounting screws NOT included.   Must drill 5/8" hole in bottom of cabinet to accommodate post for wheel.
Part #FCW-4R
$29.95
(Set of 4 pop-out casters)

NOT SOLD OUTSIDE the USA


Click on photo for
larger view
NICKEL GLIDE FEET, Revisit™, PACK OF 4, SCREWS INCLUDED.  Nickel cover over rubber foot.  15/16" Diameter, 0.33" Tall.   Replacement for glides used on many Fender™ amplifiers, including the blackface and silverface designs.  Set of 4, includes 7/8" wood screws.   Replaces Fender™ part number 0993900000.
Part #SG-239
$4.50
(pack of 4 with screws)


Click on photo for
larger view
GENUINE Fender™ SPHINX GLIDE FEET, PACK OF 4, SCREWS INCLUDED.
  • Set of four metal amplifier cabinet glide feet with rubber bushings and mounting screws.   1-1/4" diameter.  Fender™ part number 0993900000.
  • Fits Cyber-Champ™, Stage™ 100/112SE, Ultimate Chorus, Princeton 65 DSP/650, GE-112 Enclosure, Tone-Master™ Enclosures, Vibro-King™ 212 Enclosure, Pro Reverb, Deluxe 90 DSP/900, Acoustasonic™ 30/SFX II, Stage™ 1000/1600, Super-Sonic™ Series, Bassman™ Enclosures, Concert™, "The Twin", 65 Twin Custom™ 15, Steel King™, Hot Rod Deluxe™ Enclosures, Cyber Deluxe, and Cyber-Twin™ amplifiers.
  • Fits most vintage and modern Fender™ amplifiers, but is larger than the traditional 1" diameter glide on most blackface and silverface amps.

Part #SG-939

$12.99
(pack of 4 with screws)

Fender™ Cosmetic Refurb Kits


Click on photo for
 larger view

Fender™ LARGE COMBO AMP COSMETIC REFURB KIT
For original 1960s blackface and pre-1975 silverface Fender™ Twin Reverb, Super Reverb, Pro Amp, Pro Reverb, Concert, Vibrosonic models which use 5 5/8" long chassis straps.   (Not designed for the Blackface or Silverface REISSUES.   NOT for vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, Tremolux, etc.   Not for the Bassman Ten Combo.)    Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender™ handle with mounting hardware, 5 5/8" chassis straps with bolts and keps nuts,
nickel 15/16" glides, set of cabinet corners with mounting screws.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender™ logo plates here, Fender™ knobs here, Fender™ lamp jewels here and Fender™ casters here
Part #FRK-5
$34.95





Click on photo for
 larger view
Fender™ MEDIUM COMBO AMP COSMETIC REFURB KIT  For original 1960s blackface and pre-1975 silverface Fender™ Deluxe, Deluxe Reverb, Princeton, Princeton Reverb, Tremolux, Musicmaster Bass, Vibrolux Reverb models which use 4 5/8" long chassis straps.   (Not designed for the Blackface or Silverface REISSUES.   NOT for vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, Tremolux, etc.   Not for the Bassman Ten Combo.)   Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender™ handle with mounting hardware, 4 5/8" chassis straps with bolts and keps nuts, nickel 15/16"  glides, set of cabinet corners with mounting screws.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender™ logo plates here, Fender™ knobs here, Fender™ lamp jewels here and Fender™ casters here
Part #FRK-4
$33.95



Click on photo for
 larger view
Fender™ SMALL COMBO AMP COSMETIC REFURB KIT  For original 1960s and pre-1975 silverface Fender™ Champ, Vibro Champ, Bronco models which use 3 5/8" long chassis straps.    Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender™ handle with mounting hardware, 3 5/8" chassis straps with bolts and keps nuts, nickel 15/16" glides.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender™ logo plates here, Fender™ lamp jewels here and Fender™ knobs here
Part #FRK-3
$26.95

  Fender™ Front Panel Rehab Kits for Vintage Blackface & Silverface (60s & 70s)


Click on photo for
larger view
Fender™ Front Panel Rehab Kit for one channel amplifiers    For vintage Fender™ amps made before 1980 from the original blackface and silverface eras.  Not for reissues.  Contains two Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors.  Also contains a new bright switch with screws, and a new pilot light (your choice of color).   Scratchy, intermittent jacks and bright switch?    Pilot light dim, or intermittent?   This kit will take care of those problems.   Add a Potentiometer Kit for a complete front panel component replacement.  (Note:  On Bronco, Champ and Vibro Champ, the switch in this kit replaces the power switch).   Select lamp jewel color in options.   Fits the following one-channel amplifiers:   Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface),  Princeton (1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764 (Blackface 1964-67, Silverface 1968-1982).  Select lamp jewel color in options.
Part #FPRK-1-X
$18.50

Select Option:


Quantity:



Click on photo for
larger view
Fender™ Front Panel Rehab Kit for two channel amplifiers    For vintage Fender™ amps made before 1980 from the original blackface and silverface eras.  Not for reissues.  Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus four 68K and two 1 Meg carbon composition resistors.  Also contains two new bright switches with screws, and a new pilot light (your choice of color).   Scratchy, intermittent jacks and bright switch?    Pilot light dim, or intermittent?   This kit will take care of those problems.   Add a Potentiometer Kit for a complete front panel component replacement.
Bandmaster (1964-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1964-1982), Bassman 10 (Silverface 1972-1982), Concert (1964-1965 Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman (1967-69 Silverface), Dual Showman Reverb (1968-1981), Pro (1964-1965 Blackface), Pro Reverb (1965-1982 Blackface and Silverface), Quad Reverb (1972-1979 Silverface) Showman (1964-1967 Blackface), Showman (1968-1970 Silverface), Super Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1964-1966 Blackface), Twin Reverb (1963-1982 Blackface and Silverface), Vibrolux (1964 Blackface), Vibrolux Reverb (1964-1982 Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb (1964 Blackface).

Select lamp jewel color in options.

Part #FPRK-2-X
$29.95

Select Option:


Quantity:

  Fender™ Input Jack Replacement Kits for Silverface Amps


Click on photo for
larger view
Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one channel of a two-channel amp).    For vintage Fender™ amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains two Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following one-channel amplifiers:   Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton (1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764 (Blackface 1964-67, Silverface 1968-1982).   Note:   Does NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1
$9.95



Click on photo for
larger view
Fender™ Input Jack Replacement Kit for two channel amplifiers.    For vintage Fender™ amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus four 68K and two 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following two-channel amplifiers:   Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman (1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962 Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963 Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982 Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb (1963-1964 Brown and Blackface).
Part #FJK-2
$19.95



  Fender™ Rear Panel Jack Replacement Kits for Vintage  Blackface & Silverface (60s & 70s)


Click on photo for
larger view
Fender™ Rear Panel Jack Replacement Kit for Blackface and Silverface amps (1960s/1970s)   For vintage Fender™ amps made before 1980 from the original blackface and silverface eras.   For all models which have both Vibrato and Reverb, and whose back panel looks similar to the one shown below.   Contains the two speaker jacks and the four reverb/vibrato RCA jacks.

Part #FRJK-1

$14.95

  Fender™ Vibrato Rebuild Kits and other parts for the Vibrato circuit.   Vintage Blackface & Silverface (1963-1981)


Click on photo for
larger view
Fender™ VIBRATO REBUILD KIT by Revisit™
For all vintage blackface and silverface Fender amplifiers with opto-isolator type vibrato from the 1963-1981 era (not reissue models).  This would include most all 60s and 70s Fender amps with vibrato except for the Bronco, Vibro-Champ, Princeton, or Princeton Reverb - kit will not work on those models.  If you have vibrato problems, changing the vibrato 12AX7 oscillator tube should be the first step (2nd preamp tube away from the power tubes).   If that does not solve the problem, changing the components contained in this kit should do the trick.   Contains 3 phase shift ceramic disc capacitors, two resistors and one opto-isolator.   More info here.
Part #VRK-1
$14.95


Click on photo for
larger view
Fender™ VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender™  Blackface and Silverface amps.  Replaces Fender™ part number 0037836000

Part #LDR-1020
$9.95


CAPACITOR, CERAMIC DISC, RADIAL.
  Replacement for the ceramic disc vibrato phase shift capacitors in vintage Blackface and Silverface Fender™ amplifiers from the 60s and 70s.   Rated at 500 volts.  Available in .01uF and .02uF (See Options to select value)
Part #C-CD-XX
$0.75

Select Option:


Quantity:


Click on photo for
larger view

Fender™ RCA VIBRATO SHORTING PLUG by Revisit™ - GOLD-PLATED.   Did you know that on vintage Fender™ amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™ amp.   This version is made of gold-plated brass for a low resistance connection and highest immunity to oxidation.  Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.
Part #FSP-200

$2.50




(Picture for illustrative purposes only - actual kit components will vary from this photo)

FENDER "S-L-O-W-E-R  VIBRATO" KIT  This kit changes the circuit design of the vibrato to slow down the slow end of the vibrato speed control considerably, giving a much wider usable speed range.    Fast speed remains virtually unchanged, and the intensity remains the same.   Jazz players especially love the slower vibrato.  The official Fender vibrato "tick cure" is also included in this kit, as listed on a Fender service bulletin from several years ago.   The tick cure is not applicable and does not apply to Bronco, Princeton or VibroChamp circuits.  Kit includes necessary parts and instructions.   Soldering capability is required.

Part #FSVK-100

$3.50



Fender™ Modification Kits



(Picture for illustrative purposes only - actual kit components will vary from this photo)

FENDER "BLACKFACE" KIT  This kit changes the circuit design of your late 60s or 70s vintage Silverface Fender™ Amp to the original "Blackface" amps of the early-to-mid 60s.   Most players agree that the pre-CBS blackface amps sounded much better than the silverface successors designed by the CBS engineers.   With this kit, you can take your amp back to the Leo Fender design.  In addition, you also restore the bias-setting capability of the amp in place of the "balance" control.   These modifications are completely reversible, and no permanent changes to the chassis (such as drilling holes, etc) are required.  The kit includes 9 resistors, 4 capacitors and instructions.  Note:  This kit does NOT apply to the silverface Bantam Bassman, Bassman, Bassman Ten, Bronco, Champ, Deluxe Reverb, Musicmaster Bassman, Princeton Reverb, or VibroChamp.

Part #FBK-1

$11.95


(Picture for illustrative purposes only - actual kit components will vary from this photo)

FENDER "S-L-O-W-E-R  VIBRATO" KIT  This kit changes the circuit design of the vibrato to slow down the slow end of the vibrato speed control considerably, giving a much wider usable speed range.    Fast speed remains virtually unchanged, and the intensity remains the same.   Jazz players especially love the slower vibrato.  The official Fender vibrato "tick cure" is also included in this kit, as listed on a Fender service bulletin from several years ago.   This kit is applicable to all two-channel vintage Blackface and Silverface amps from the 1960-1970 era.   This kit does not apply to Bronco, Princeton or VibroChamp circuits.  Kit includes necessary parts and instructions.   Soldering capability is required.

Part #FSVK-100

$3.50



Fender™ Jewel Kits




Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa Boogie™, many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115
$12.99


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender™ amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$14.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each


Click on photo for
larger view
FUSE HOLDER, Fender™ STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender™ style fuse holder for blackface, silverface and other models, replacement for many other brands.   Twist-lock cap.   Durable, rugged design - better than OEM.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201
$3.95


Click on photo for
 larger view
F-CAP
This is the frequently lost Fender-logo plastic cap that snaps onto the 1/4" right-angle speaker plug on vintage Blackface and Silverface Fender™ amplifiers from the 1960s and 1970s.  Exact fit and replacement.  For the plug, see the P-055 plug below.

Part #F-CAP
$5.99


Click on photo for
 larger view
Fender™ Right-Angle Speaker Plug
Replacement Fender™ right-angle speaker plug on vintage Blackface and Silverface Fender™ amplifiers from the 1960s and 1970s.   Uses the F-CAP, above (not included - sold separately).
Note:  Requires a very hot soldering iron used for minimal time when soldering to the case or center post of the plug.   Heat applied for an extended time will damage the plug.
Part #P-055
$11.99



Click on photo for
 larger view
Revisit™ F1 to F2 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .187" (3/16") to .250" (1/4").  Also used to change some PC board connectors size.   Female .187" to male .250"
Part #F1F2
$1.89
(Set of 2 Adapters)




Click on photo for
 larger view
Revisit™ F2 to F1 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .250" (1/4") to .187" (3/16").  Also used to change some PC board connectors` size.   Female .250" to male .187"
Part #F2F1
$1.89
(Set of 2 Adapters)




Click on photo for
 larger view
Revisit™ Fender™ STYLE SPIDER DISTRIBUTION CONNECTOR FOR BLACKFACE SPIDER SPEAKER HARNESSES
Replacement vintage style Spider distribution board, used to tie together speaker wires in some vintage blackface Fender™ amps, particularly the vintage blackface Super Reverb.   Also found in some blackface 2-speaker amps, including the Pro Reverb, Twin Reverb, Vibrolux Reverb, and Vibroverb amplifiers from the 60s.

Part #FS
J-428
$5.99



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99



Click on photo for
 larger view
Revisit™ SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150
$5.99



Click on photo for
 larger view
Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip cord.   Red and black for easy polarity identification.  Resistance is 0.0097 ohms/ft.  Automotive grade "GPT" PVC insulation, oil and gas resistant, rated for -20 deg F to +160 deg F. Also perfect for bias testers, radio, home theatre, automotive, stereo, robotics, and model train applications.   Priced per foot, sold in lengths from 1 foot to 50 feet.
Part #RBZ-18
$0.32
(priced per foot)


Feet (1-50):


Click on photo for
larger view
Fender™ STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two
nickel jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 inch thick.   Keep your vintage Fender™ cabinet looking original!
Part #JPC-577
$16.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.89



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95


Click on photo for
 larger view

Fender™ Style RCA Plug from Switchcraft
This is the original Switchcraft RCA plug used on vintage Fender amps for footswitch and reverb in / out connections. For cable up to 0.125" (3.18mm) diameter.
Part #P-3501MX

$0.99



Fender™ Jacks
(Also see our complete line of jacks)




Click on photo for
larger view
Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one channel of a two-channel amp).    For vintage Fender™ amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains two Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following one-channel amplifiers:   Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton (1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764 (Blackface 1964-67, Silverface 1968-1982).   Note:   Does NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1
$9.95



Click on photo for
larger view
Fender™ Input Jack Replacement Kit for two channel amplifiers.    For vintage Fender™ amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus four 68K and two 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following two-channel amplifiers:   Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman (1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962 Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963 Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982 Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb (1963-1964 Brown and Blackface).
Part #FJK-2
$19.95




Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$3.39


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$4.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft
Found in vintage Fender
(and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$3.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$4.50


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
Part #J-12B
$4.35


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender™ models.   Isolated switch is normally open - closes when a plug is inserted.
Part #J-13
$10.50


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender™ part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$9.95


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$9.95


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK. RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Chrome RCA jack.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351
$2.50


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, GOLD, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK. RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Gold plated RCA jack, for the lowest resistance connection possible, including less likelihood of tarnishing.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351G
$3.29


Click on photo for
larger view
Fender™ STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two
nickel jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 thick.   Keep your vintage Fender™ cabinet looking original!
Part #JPC-577
$16.95


Click on photo for
larger view
RCA JACK, PANEL MOUNT
Exact
replacement for the reverb tank and footswitch jacks on the rear panel of Fender™ Blackface and Silverface amplifiers.  Also may be used as an alternative RCA jack replacement for the RCA speaker jacks used on some Fender™ Tweed models from the 1950s.  Made by Switchcraft.
Part #J-122
(Also see our complete line of jacks)
$2.99


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots, as well as Switchcraft 1/4" jacks.
Part #W-38
$0.49

Fender™ Jewels



RED

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others.   RED - the standard on Fenders since the 1940's.   Replaces Fender™ part number 0990952000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115R
$2.99


AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender™ part number 0990949000.   *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115Q
$4.65


VIOLET

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Violet - just plain cool!
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  When illuminated by the bulb, this violet jewel tends to have a hue slanted toward the red spectrum, so some call the look a reddish-pinkish-violet color.   If you like violet/purple and want it toward the warmer end of the color spectrum, this is the jewel for you.   If you like it more bluish - toward the cooler end of the violet color zone, choose the purple jewel JL-115P below instead.

Part #JL-115V

$2.99


PURPLE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Purple - just plain cool!   Replaces Fender™ part number 0990953000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  To the naked eye, this jewel looks blue until you put it in front of the P-47 bulb.   The bulb has an amber tint to it, so the combo makes the jewel glow purple.  When illuminated by the bulb, this purple jewel tends to have a hue slanted toward the blue spectrum, so some call the look a bluish-purple color.   If you like violet/purple and want it toward the cooler end of the color spectrum, this is the jewel for you.   If you like it more reddish - toward the warmer end of the violet color zone, choose the violet jewel JL-115V above instead. IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE INSTEAD OF PURPLE.

Part #JL-115P

$2.99


BLUE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Blue, for the California vibe.   Replaces Fender™ part number 0990959000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  Due to the orange glow of the bulb normally used behind this jewel, the resulting color is not a pure brilliant blue ... head on, it looks like a somewhat washed-out blue, and from a side angle, it looks more like purple.   This is not the fault of the jewel, but rather the combination of the blue color of the jewel combined with the orange glow of the bulb.  If used with a pure white light (such as a white LED), the resulting look is a deep blue color.

Part #JL-115B

$2.99


AMBER

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Amber - jazzy look!   Replaces Fender™ part number 0990950000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JL-115A
$2.99


GREEN

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Green - Texas style!  Replaces Fender™ part number 0990951000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115G
$2.99


CLEAR

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Clear, for the brightest light output.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115C
$2.99


WHITE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  WHITE.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115W
$2.99



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa Boogie™, many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JLK-115
$12.99



Click on photo for
 larger view
PILOT LAMP HOLDER, REPLACEMENT FOR FENDER
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527"    Works with a standard bayonet lamp such as the 6.3V #47 lamp.   Accepts all of the colored jewels on this page.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #LH-124
$3.95


RED

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124R

Starting at
$6.95
Select Option:




BLUE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, blue jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124B

Starting at
$6.95
Select Option:




AMBER

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, amber jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124A

Starting at
$6.95
Select Option:




CLEAR

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, clear jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124C

Starting at
$6.95
Select Option:




GREEN

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, green jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124G

Starting at
$6.95
Select Option:




VIOLET

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, violet jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124V

Starting at
$6.95
Select Option:




WHITE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, WHITE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, white jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124W

Starting at
$6.95
Select Option:




PURPLE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, PURPLE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, purple jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

The purple color on this lamp jewel is toward the cool end of the purple/violet range - so it has more of a bluish tint to the purple color.  In fact, the lamp jewel cover looks blue if the light is not turned on.  If you prefer a warmer tone (toward the red/pink end of the scale), choose the FLA-124V violet lamp assembly.  Not available with the LED option, as the color when using an LED is a deep blue rather than purple.

Part #FLA-124P
$6.95

Fender™ Knobs
(Also see our complete line of knobs)



Click on photo for
larger view
KNOB, Fender™ STYLE, SET-SCREW
Fender™ style amp knob, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Fender™ amps in the original blackface and silverface series, as well as the blackface and silverface reissue series.  With set-screw, for 1/4" smooth shaft pots.  Replaces Fender™ part number 0990930000.
Part #FVSK
$5.50

Fender™ Lamps
(Also see our complete line of lamps)



Click on photo for
larger view
NEW! BRIGHT LED INDICATOR LAMP, REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE

Drop-in replacement long life LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb.  If  less brightness is desired, install a series resistor feeding the lamp socket (1/4 or ½ watt, value between 560Ω and 1KΩ).  Sold individually.  Add new pizzazz to your amp with a brighter lamp on the front panel, and one which pays for itself in the long run with exceptionally long life.   Works on 6 volts, AC or DC.   Color is warm white.   NOTE: NOT RECOMMENDED FOR USE WITH THE PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.     ALSO, NOT FOR USE WITH THE LH-110 LAMP HOLDER.
Part #LED-47
$2.95


Click on photo for
larger view
NEW!  COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP, REPLACES #47 BULB, T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life BLUE OUTPUT LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   (Not for use, however, with the LH-110 lamp holder). The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue.  When used with different colored jewels, creates a different color and a different vibe!  See the results below:

Jewel Color

Resulting Look

Brightness Level

JL-115A Amber Yellow High
JL-115B Blue Medium Blue High
JL-115C Clear Crystal Blue High
JL-115G Green Light Green High
JL-115P Purple Deep Blue Medium
JL-115R Red Orange Medium
JL-115V Violet Bluish Violet Low
JL-115W White Baby Blue Low

Part #LED-47B

$2.95


Click on photo for
larger view
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.  6.3V
Part #P-47
$0.99


Click on photo for
larger view
Fender™ VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender™  Blackface and Silverface amps.  Replaces Fender™ part number 0037836000

Part #LDR-1020
$9.95

Fender™ Pots
For complete Fender™ pot sets (Blackface / Silverface) click here.





Click on photo for
larger view
POT - CTS,  3/8" BUSHING
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter solid metal shaft, 3/8" bushing, solder lugs. Fits perfectly in vintage amps like Fender™ (Tweed, Brownface, Blonde, original Blackface and original Silverface Models). With correct 1/4" shaft and 3/8" bushing. Superior quality, solderable back!    CTS was the original OEM supplier for vintage Fender™ pots.   Note:  250K J-Taper, 1 Meg J-Taper, and 3 Meg Reverse Audio (C3M) pots have brass colored shafts.
Select Pot Value in Options

INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VC-XX

Starting at $4.95

Select Option:


Quantity:



Click on photo for
larger view
POT - CTS, 3/8" BUSHING, NYLON SHAFT
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter nylon shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender™ and others.   Nylon shaft pots were used in most Fender silverface series amps from the late 60s and 70s.  CTS was the original OEM supplier for vintage Fender™ pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VCT-XX
Starting at $3.95
Select Option:


Quantity:



Click on photo for
larger view

POT - CTS, 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST PUSH-PULL SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with push-pull SPST (two terminal) switch.  For hand-wired American made amplifiers such as vintage Fender™ and others.   Used on Fender™ amps from the 1980s with control functions on some of the control pots, such as the Princeton Reverb and Concert.    NOT a replacement for the master volume control in the 70s silverface amps, as the switch on those needs to be a DPDT.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-VCPS-A1M
$12.95


Click on photo for
larger view
POT - Fender™ BIAS POT 10K LINEAR, SCREW
Original Fender™ 10K linear, screw, bias potentiometer.  Used in blonde, brownface and blackface models primarily.   Does not have a center tap, so it is not applicable to silverface models unless the bias circuit has been restored to the blackface design. Original Fender™ part # 0017502000.    Includes lock washer, smooth washer and nut.
Part #P-BPF-10KL
$4.95



Click on photo for
larger view
POT, Revisit™, 3/8" BUSHING, 24mm, SMOOTH SHAFT.
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made amplifiers such as vintage Fender™ and others.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)
Part #P-38-XX
$2.95

Select Option:


Quantity:

Fender™ Power Cords



Click on photo for
larger view
SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or 7.9mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13 amps maximum.  Used only in North America.
Part #PC-163SJT15
$19.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL
$9.95


Click on photo for
larger view
15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301
$19.95


Click on photo for
larger view
Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99

Fender™ Reverb Tanks




Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990.  See explanation of Accutronics reverb tank numbering system here.  Replaces original Fender™ part number 0064063000.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4AB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$43.79



Click on photo for larger view

Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B current production.

Accutronics reverb tanks are a cheaply produced copy of the Belton tank, and are now made by Belton in South Korea.   They are of much lower quality than the original Accutronics reverb tanks made in Cary, Illinois until 2009.

  Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990.   Also used in Reissue models like:   Fender™ Princeton Reverb, Fender™ Deluxe Reverb, Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb, Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™ Dual Professional.  Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9, Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52 AT-100.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Accutronics products are made in South Korea.

Part #ACC-4AB3C1B

$39.99



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B.   Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Fender.   Upgrade for the 4AB3C1B 2-spring tank.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9AB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$48.99
In stock




Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets)



Click on photo for
larger view

Revisit™ vintage Fender™ style reverb cable - universal.   Made with the same style shielded wire and RCA connectors as the originals.  These reverb cables perfectly replicate the original cables found in vintage Fender™ vintage blackface and some silverface amplifiers. One cable is 3 ft long, and the other is 5 ft long.  By coiling up any excess cable into the reverb isolation bag, these cable lengths are suitable for most vintage Fender™ combo amps, with these exceptions:   Super Reverb, Quad Reverb, Super Six Reverb.
Part #R
C-200
$29.95


Click on photo for
larger view

Revisit™ vintage Fender™ style reverb cable KIT for Super Reverb, Quad Reverb, and Super Six Reverb (blackface and early silverface).  Long length for larger amplifiers.   Set of parts for you to make two cables (reverb input and reverb output)   Short one is 43 inches (110 cm), long one is 55 inches (140 cm).    Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s.     Compare with similar cable sets costing up to $45.    Instructions not included - assumes you are familiar with building this type of cable.    Soldering skills and tools required.
Part #RK-279L
$15.95

Assembly required (with soldering skills needed)




Click on photo for
larger view

Revisit™ vintage Fender™ style reverb cable KIT for Twin Reverb, Pro Reverb and Vibrosonic Reverb  (blackface and early silverface).  Medium length for medium-sized amplifiers.   Set of parts for you to make two cables (reverb input and reverb output)   Short one is 39 inches (110 cm), long one is 51 inches (140 cm).    Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s.     Compare with similar cable sets costing up to $45.    Instructions not included - assumes you are familiar with building this type of cable.    Soldering skills and tools required.
Part #RK-279M
$14.95

Assembly required (with soldering skills needed)




Click on photo for
larger view

Revisit™ vintage Fender™ style reverb cable KIT for Deluxe Reverb, Vibrolux Reverb and Princeton Reverb (blackface and early silverface).   Short length for smaller amps.  Set of parts for you to make two cables (reverb input and reverb output)   Short one is 36 inches, long one is 47 inches.    Open face braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M. Fender™ cables used in the 1960s.     Compare with similar cable sets costing up to $45.    Instructions not included - assumes you are familiar with building this type of cable.    Soldering skills and tools required.
Part #RK-279S
$13.95

Assembly required (with soldering skills needed)




Click on photo for
larger view
Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view

Original Fender™ reverb tank bag for 17" tanks.   Used in a variety of Fender™ amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Original Fender™ part number 0031849000
Part #RB-017
$18.90
In Stock


Fender™ Switches
(Also see our complete line of switches)




Click on photo for
larger view

Fender™ STYLE VINTAGE FOOTSWITCH - NICKEL PLATED
Fender™ style vintage two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy
nickel metal construction.    Dual RCA Plugs, 12 ft cable, cable enters rear of pedal.   Replaces Fender™ part # 0994051000
Part #FBS-241
$412.95


Click on photo for
larger view

PREMIUM Fender™ STYLE FOOTSWITCH - BLACK
This is the highest quality reproduction of the iconic Fender Style 2-Button Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch components.  These are the same spec SPST footswitch components used in the original Fender 2-Button Footswitches.  The result is a robust housing with comfortable action and the most reliable functionality on the market.

The Premium Fender Style Vintage Black 2-Button Footswitch connects to the amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™ part # 0994051000
Part #FBS-322
$59.99




Click on photo for
larger view

Fender™ RCA VIBRATO SHORTING PLUG by Revisit™ - GOLD-PLATED.   Did you know that on vintage Fender™ amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™ amp.   This version is made of gold-plated brass for a low resistance connection and highest immunity to oxidation.  Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.  Note:  Does not apply to Bronco, Vibro Champ, Princeton, or Princeton Reverb amps.  Inserting this plug turns the vibrato off in those models, removing the plug turns it on.
Part #FSP-200

$2.50




Click on photo for
larger view

Revisit™ Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy
nickel metal construction.    Dual RCA Plugs, 16 ft cable.   Replaces Fender™ part number 0994051000
Part #FBS-271
$34.95



Click on photo for
larger view

Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy black metal construction.    Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B
$29.95


Click on photo for
larger view

Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller vintage blackface and silverface amps.   Sturdy
nickel metal construction.    Single RCA Plug.
Part #FBS-270
$24.95


Click on photo for
larger view

Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller vintage blackface and silverface amps.   Sturdy
nickel metal construction.    Single RCA Plug.
Part #FBS-270B
$26.95


Click on photo for
larger view
FOOT SWITCH, CARLING BRAND, SPST, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Fender™ etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.
Part #FS-493
$9.95


Click on photo for
larger view
FOOT SWITCH, CARLING™ BRAND, SPDT
Found in many type of footswitches.   Has 3 electrical terminals (single pole, double throw)Solder lugs for wire.
Part #FS-492
$11.95


Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling.   Carling toggle switches are used in Fender amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view
SWITCH, CARLING SPST TOGGLE Original replacement for 60s and 70s Fenderpower and standby switches.   Made by Carling
Part #SW-495
$6.95


Click on photo for
larger view
SWITCH, CARLING SPDT 2-POSITION TOGGLE SWITCH, Original Carling replacement for 60s and 70s Fenderground switch.
Part #SW-494
$9.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  3 SWITCHES: Two CarlingSPST toggle switches and one CarlingSPDT toggle switch. Original replacement for 60s and 70s Fender™ Amps (Power, standby, and ground switches). Change the power,  standby, and ground switches on your Fender™ at the same time, and save!
Part #SW-4945
$20.50


Click on photo for
larger view
SWITCH, SLIDE, SWITCHCRAFT™, DPDT (6 TERMINALS),  REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Also used as the slide switch on Jazzmaster and Jaquar guitars.  Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.    Click here for physical specifications.   Two screws are included with the switch.
Part #SW-116S - CURRENTLY OUT OF STOCK. NO NEW STOCK EXPECTED FROM SWITCHCRAFT UNTIL JULY, 2022.
$4.95


Click on photo for
larger view
SWITCH, SLIDE, DPDT (6 TERMINALS),  MADE BY ALPHA (TAIWAN), MAY BE USED AS A REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Click here for physical specifications.   Two screws are included with the switch.  See below for a kit of two of these switches with screws included for refurbishing Fender™ amps.
Part #SW-242S
$1.95


Click on photo for
larger view
Capacitor cover for Fender™ Twin Reverb and other full-size Fender™ silverface and blackface amps, such as the Super Reverb, Pro Reverb, Bandmaster and Bassman heads. Mounting centers are 7" x 3.5"   Measurements are 7 1/8" x 3 1/2" x 1 1/4".  Replaces Fender™ part number 0037854000.
Part #CC-170
$23.95

Carbon composition resistors are made by mixing carbon particles with a binder molded into a cylindrical shaped, and then baked.  Standard "classic" resistor used in vintage amplifiers - Fender™ Blackface and Silverface are prime examples. Fender™ Carbon Comp. Resistors 1/2 Watt
RESISTOR, CARBON COMPOSITION.    New production, 1/2 watt, 3.6mm x 9.5mm.  Lead diameter 0.7mm.  Total length end-to-end 65mm.   Resistors below 100K are 5% tolerance, resistors of 100K and higher are 10% tolerance.  Choose resistor value in Options.

Part #CC1/2-XX

$0.89

Select Option:


Quantity:



Click on photo for
larger view
Revisit™ RESISTOR LEAD FORMING TOOL
You know you want one!   Bend resistors to fit in PC boards, perf boards, or turret boards exactly, uniformly.  Makes your repairs and kit builds look completely professional.   Works great on vintage Fender™ Blackface and Silverface models.   One side is for 1/2 watt resistors, the other side fits 1/4 watt resistors.   Also perfect for diodes.  Slots for radial lead resistors run along the length of the high impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical  bends without stressing the leads.
Part #LF-010
$7.50

RESISTORS, ULTRA-MINIATURE, 1 WATT, 100K Ohms.    New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.  2.2mm x 6.8mm.  Lead diameter 0.5mm, lead length 28mm.  Total length end-to-end 61mm.   These are 1 watt resistors in a package about the size of a typical 1/4 Watt resistor.  Easy to work with, especially in tight spots.   Made by Yageo.  100K Ohms.    These make excellent replacements for preamp tube plate resistors!
Part #R-MF-UM1W-100K
$0.14

RESISTORS, ULTRA-MINIATURE, 1 WATT, 220K Ohms.    New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.  2.2mm x 6.8mm.  Lead diameter 0.5mm, lead length 28mm.  Total length end-to-end 61mm.   These are 1 watt resistors in a package about the size of a typical 1/4 Watt resistor.  Easy to work with, especially in tight spots.   Made by Yageo.  220K Ohms.  These make excellent replacements for preamp tube plate resistors!
Part #R-MF-UM1W-220K
$0.14

RESISTORS, ULTRA-MINIATURE, 2 WATT.    New production, 2 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.  3.9mm x 9.0mm.  Lead diameter 0.5mm, lead length 26mm.  Total length end-to-end 61mm.   These are 2 watt resistors in a package about the size of a typical 1/2 Watt resistor.  Easy to work with, especially in tight spots.  Great for screen grid resistors.   Made by Yageo.  Available in 470 ohm, 1K ohm, 2.2k ohm, 4.7K ohm, 10K ohm. All choices in this category are 2 Watts. Choose resistor value in Options.

Part #R-MF-UM-XX
$0.19

Select Option:


Quantity:

  Screen Grid & Other
Resistors

RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, INDIVIDUAL.    Commonly used as the screen grid resistor in many tube amps including Fender™.   Available individually, or in packs of 5, below.
Part #470FP2
$0.30 each

RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, PACK OF 5 RESISTORS.    Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5
$1.15
(Pack of 5 Resistors)


RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, INDIVIDUAL.    Commonly used as the screen grid resistor in many tube amps.  Also used as power supply dropping resistors in many Fender amps™.  Available individually, or in packs of 5, below.
Part #1000FP2
$0.30 each

RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, PACK OF 5 RESISTORS.    Commonly used as the screen grid resistor in many tube amps.  Also used as power supply dropping resistors in many Fender amps™.
Part #1000FP2-5
$1.15
(Pack of 5 Resistors)


RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.   Available individually, or in packs of 5, below.
Part #2200FP2
$0.30 each

RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.
Part #2200FP2-5
$1.15
(Pack of 5 Resistors)


RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.   Available individually, or in packs of 5, below.
Part #4700FP2
$0.30 each

RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.
Part #4700FP2-5
$1.15
(Pack of 5 Resistors)


RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.   Available individually, or in packs of 5, below.
Part #10KFP2
$0.30 each

RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.    Commonly used in the power supply of many Fender™ amps.
Part #10KFP2-5
$1.15
(Pack of 5 Resistors)


RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2 WATT.    Commonly used in the high voltage power supplies of many Fender™ Princeton and Princeton Reverb amplifiers.
Part #18KFP2
$0.30

RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2 WATT.    Commonly used in the high voltage power supplies of many Fender™ amplifiers.
Part #27KFP2
$0.30

RESISTOR, METAL OXIDE FLAMEPROOF, 100K OHM, 1 WATT.   Two of these are commonly used as balancing resistors across the main filter capacitors in higher power Fender™ Blackface and Silverface Amps.  Other Fender™ amps use the 220K 1 Watt resistors as balancing resistors, below.   It is important that these two resistors across the two series capacitors be fairly well-matched in order to properly distribute the voltage equally.
Part #100KFP1
$0.25

RESISTOR, FLAMEPROOF, 220K OHM, 1 WATT.   Two of these are commonly used as balancing resistors across the main filter capacitors in small to medium power Fender™ Blackface and Silverface Amps.  Other larger Fender™ amps use the 100K 1 Watt resistors as balancing resistors, above.   It is important that these two resistors across the two series capacitors be fairly well-matched in order to properly distribute the voltage equally.
Part #220KFP1
$0.25

RESISTOR, SANDBLOCK 2700 OHM, 10 WATT.    Used in place of a choke in the "ultra-linear" series of Fender silverface amps (70 watt and 135 watt), starting around 1974.
Part #2700W10
$1.89

  Fender™ Potentiometer Sets


Click on photo for
larger view
Fender™ Potentiometer Sets

Fender potentiometer sets contain all of the potentiometers for a particular amplifier.    Large selection for many models from the 1950s up to the present day.  Most potentiometer sets for amps in the blackface and silverface era offer a choice of metal shafts or nylon shafts.   Many kits for 60s and 70s models include the resistors which are soldered directly to the pots.
Prices starting at $12.95 Click here to see the full selection of Fender potentiometer sets.

Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2022 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
